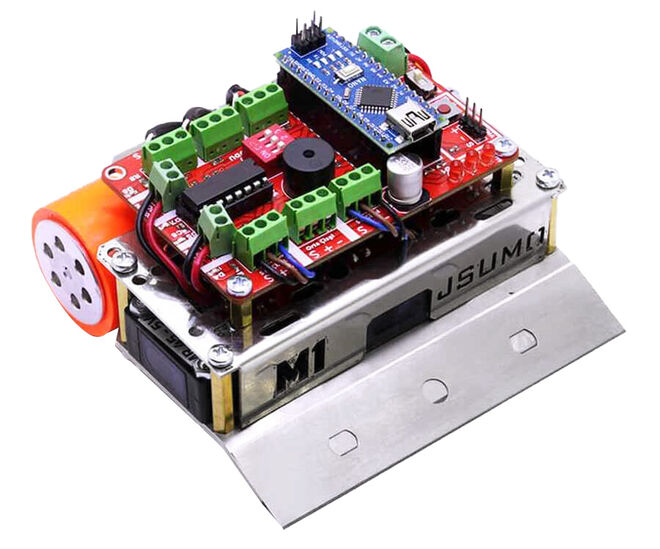

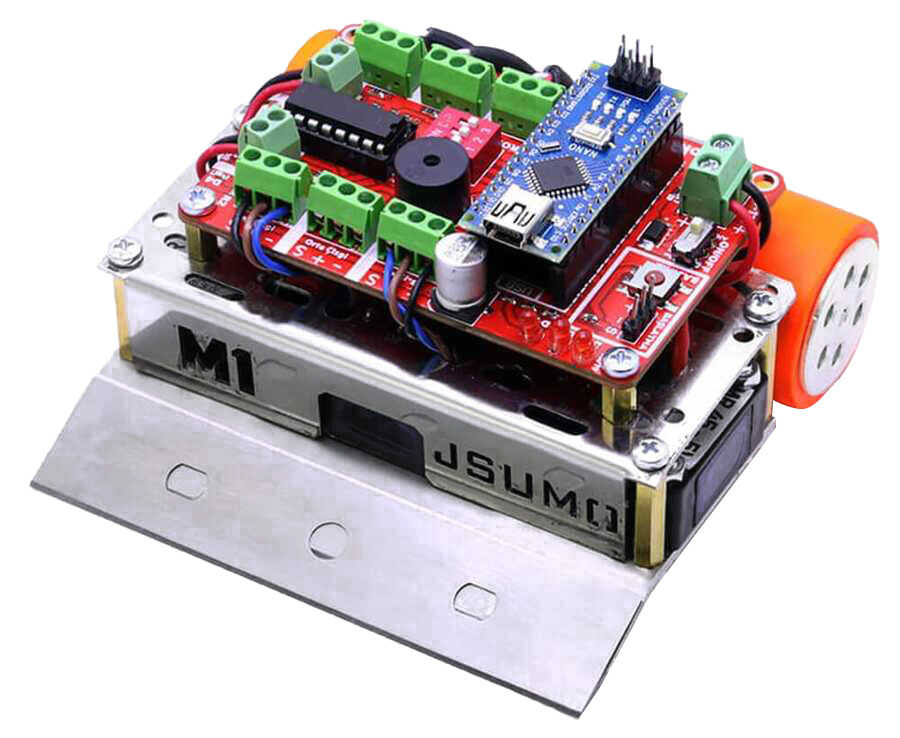

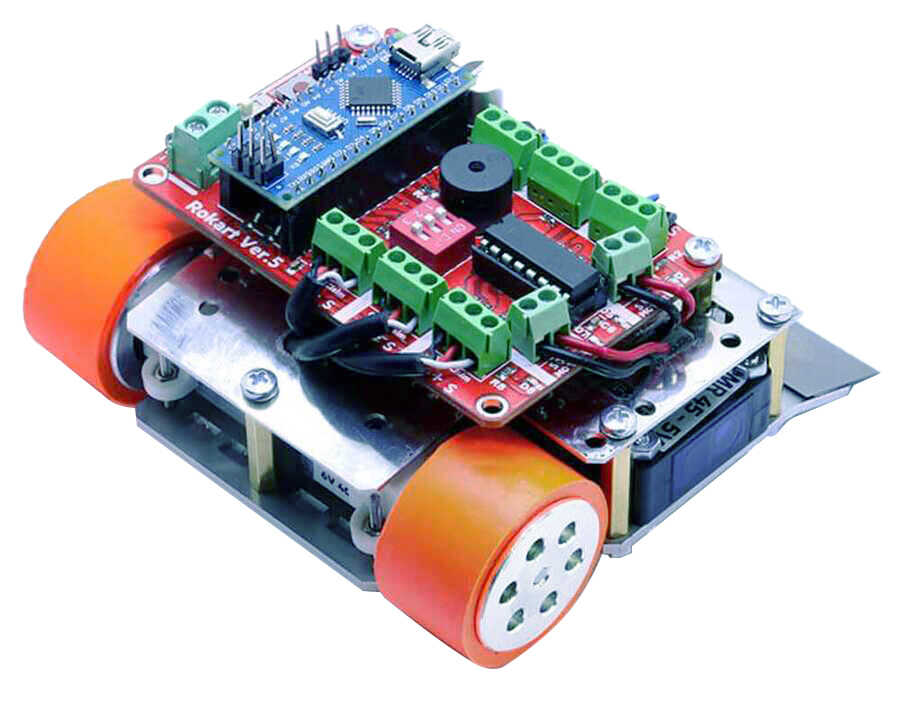

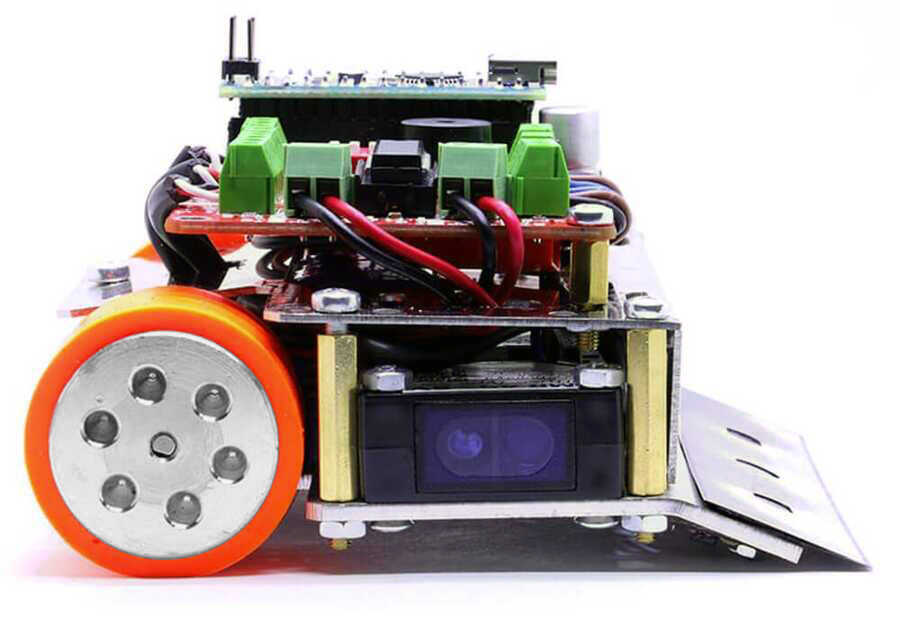

Mini Sumo Robot Kit - Genesis (Assembled) - Compatible with Arduino

The Mini Sumo Robot Kit - Genesis (Assembled) Compatible with Arduino is a professional, ready-to-use set specially designed for mini sumo robot competitions.
It features a highly durable metal sumo chassis produced with a laser cutting process.

Our model uses a Nano development board compatible with Arduino together with a custom Genesis control board.
Thanks to the three MR45 object sensors on it, it detects its opponents quickly and precisely. With its SLT20 silicone wheels specially produced on a CNC lathe, it offers the highest performance without slipping on the platform (dohyo).

The Mini Sumo Robot Kit compatible with Arduino is produced in full compliance with the official rules of all national and international competitions.

The kit, which has a completely open-source structure in terms of software and hardware, allows you to change the codes as you wish and develop your robot.
The free sample robot program is available in the documents section.

If you want to assemble your robot yourself, you can check the unassembled version of the product on our Mini Sumo Robot Kit - Genesis (Unassembled) Compatible with Arduino page.

Mini Sumo Robot Kit Compatible with Arduino Contents:

• 1 x 7.4V 2S LiPo Battery (450 mAh 25C)
• 1 x Nano Development Board Compatible with Arduino (with CH340 Chip - USB Cable Included)
• 1 x Genesis Mini Sumo Control Board
• 2 x 6V 400 RPM DC Motor
• 2 x Plastic Micro Metal Gearmotor Bracket (White)
• 3 x MR45 Object Sensor
• 2 x QTR-1A Contrast (Line) Sensor
• 1 x M1 Metal Laser Cut Chassis and Standoff Set
• 1 x Plastic Tie and Cable Set
• 2 x SLT20 Silicone Wheel

Documents & Useful Links:

• Mini Sumo Robot Kit Installation and User Manual (PDF)
• Mini Sumo Genesis 2 Sample Arduino® Code
