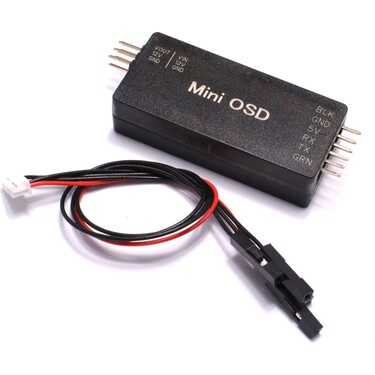

Mini OSD Board for Piwhawk and APM

Mini OSD Board for Piwhawk and APM

This Mini OSD board is compatible with Piwhawk and APM flight control systems. Its compact size allows for practical usage, and it provides real-time display of important data on your screen during flight. This way, users can manage their flights more safely and maintain full control over their devices.

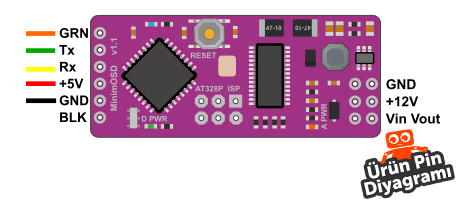

Mini OSD Pin Diagram:

Technical Specifications:

• Compatible Systems: Piwhawk, APM

• Processor: ATmega328P

• Width: 18mm

• Length: 43mm (58mm with pins)

• Height: 8mm

• Weight: 9g (with pins)

• Display: MAX7456 Monochrome (Single Color) Screen Display Support

• FTDI Cable Compatible Pin Output

• Standard 6-Pin ISP Header Support

• 2 Independent Power Sections, Each with LED Indicator

• Solder Bridges for Combining Power Sections

• +12V Power Input with +5V 500mA Regulator

• PAL Video Option Support with Solder Jumpers

• Open Test Points for HSYNC and LOS
