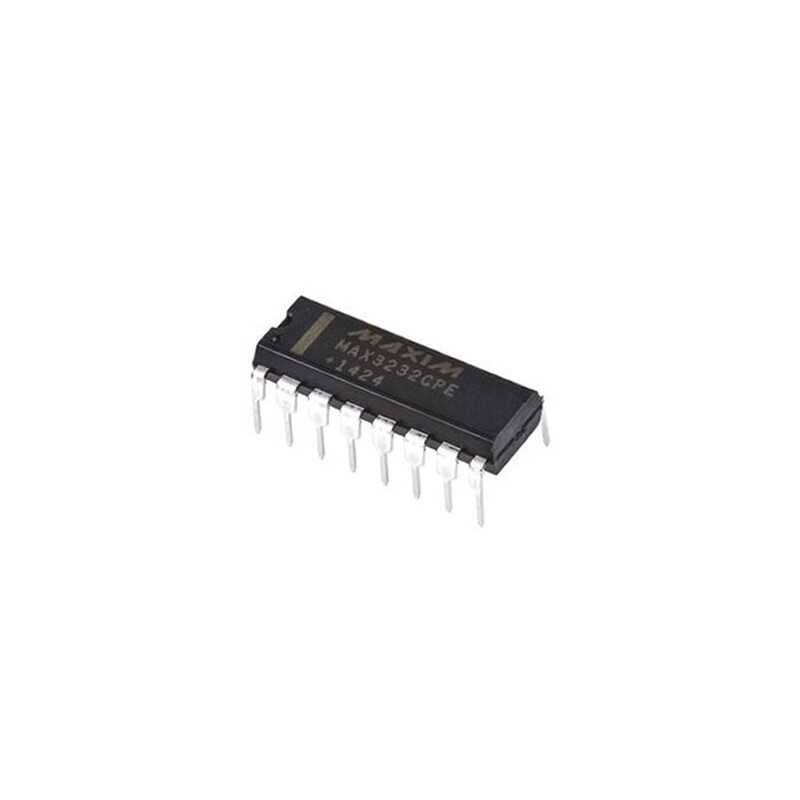

MAX3232CPE+ DIP Microcontroller

MAX3232CPE+ DIP Microcontroller

The MAX3232 is an integrated circuit featuring two line drivers, two receivers, and a dual charge pump. It operates with only four 0.1µF capacitors and provides true RS-232 signaling over a voltage range of 3.0V to 5.5V. Its low-power transmitter output makes it energy efficient and supports data rates up to 235 kbit/s. It can be powered from a single 3V–5.5V supply.

Applications:

• Serial port communication
• Modem applications
• Industrial control systems
• Data acquisition devices
• Telecommunication equipment
• Automation systems

Technical Specifications:

• Data Rate: 235 kb/s
• Number of Drivers: 2
• Number of Receivers: 2
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 3 V
• Operating Temperature - Min: 0°C
• Operating Temperature - Max: +70°C
• Height: 4.45 mm (Max)
• Length: 19.43 mm (Max)
• Width: 7.87 mm (Max)
• Unit Weight: 1.628 g
