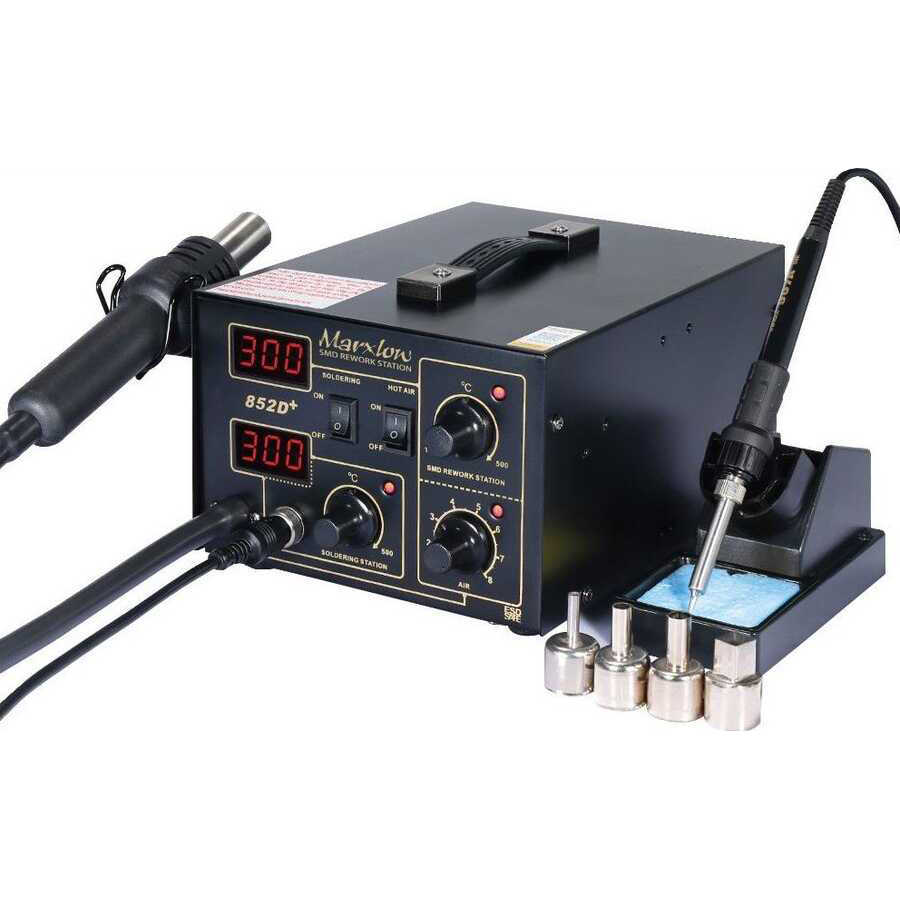

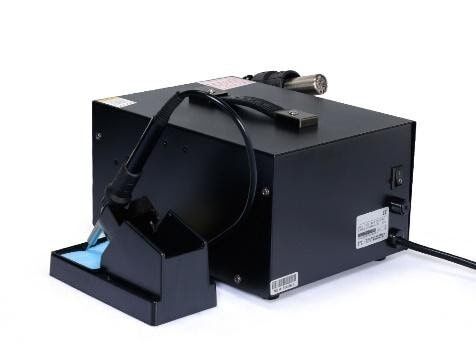

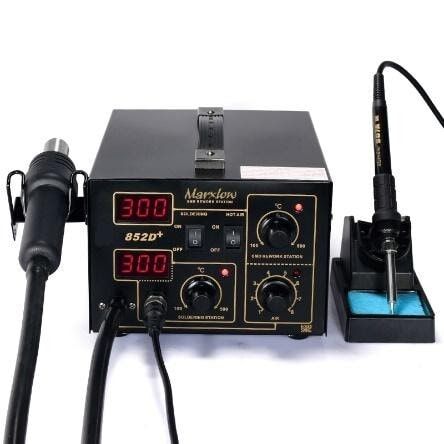

MARXLOW 852D+ (DIAPHRAGM PUMP) HOT AIR REWORK STATION

MARXLOW 852D+ (DIAPHRAGM PUMP) HOT AIR REWORK STATION

Marxlow 852D+ Diaphragm is a soldering station specially designed for professionals and produced for advanced soldering work. With its multi-functional soldering iron, it can see all your works together. There are various modes and options for you to adjust on our product.

• Two-in-one hot air gun and soldering iron, double LED digital display, stylishly compact, feature-rich, space-saving design.
• LED temperature display, more accurate temperature control, more stable temperature and more vivid operation features.
• Fine-control diaphragm pump is employed for powerful airflows; the smaller the nozzle of the gun, the stronger the airflow.A cutting-edge ceramic-framed heating core for extremely stable and reliable performance!Applicable to desoldering of several types of elements: SOIC, CHIP, QFP, PLCC, BGA; suitable for desoldering of single soldering spots.

Parametres:

• Voltage 220V-240V/AC,50Hz
• Machine Power 660W±10％（MAX）
• Working Environment 0～40℃
• Storage Temperature －20～80℃ Storage Humidity＜80％
• Package Size 33*27*20.2cm
• Machine Size 25.5*18.8*12.5cm
• Weight 3.7KG

Hot Air Gun:

• Working Voltage 220V-240V/AC,50Hz
• Output Power 590W
• Temperature Range 100℃～500℃
• Mode Of Airflow Diaphragm Pump
• Airflow 24L/Min(Max)
• Display Two LED (Red)
• Heater Heating Core Ceramics Heater
• Tips To Ground İmpedance ---
• Tips Voltage To Ground ---

Soldering Iron:

• Working Voltage AC 24V±10% 50Hz
• Output Power 40W
• Temperature Range 100℃～500℃
• Heater Import High-Power Heater
• Tips To Ground İmpedance ＜2Ω
• Tips Voltage To Ground ＜2mv
