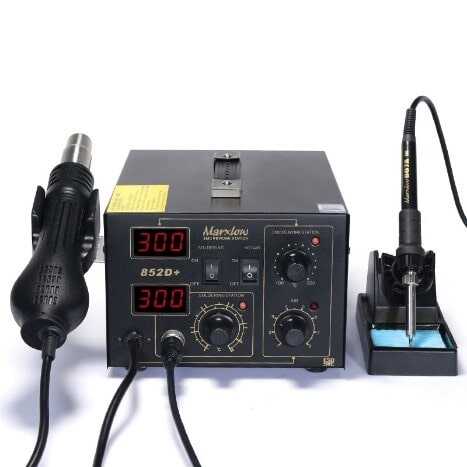

MARXLOW 852D+ (BRUSHLESS FAN) CHINA HOT AIR REWORK STATION

MARXLOW 852D+ (BRUSHLESS FAN) CHINA HOT AIR REWORK STATION

Marxlow 852D + Brushless Fan is a soldering station specially designed for professionals and produced for advanced soldering work. With its multi-functional soldering iron, it can see all your works together. There are various modes and options for you to adjust on our product.

1. SAMSUNG microcomputer control,warming-up quickly.
2. Adjust the air flow and temperature control rotation.

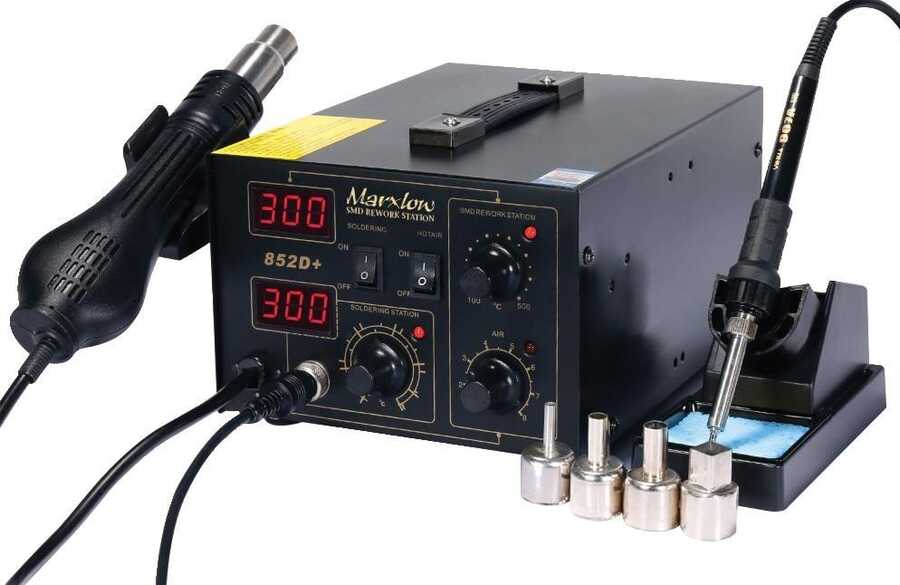

3. Refer to the instructions included with three kinds of nozzles (big,medium and small) replacement part.
4. Would replace the part if the resistance value is incorrect.
5. When the temperature is less than 70 degree , can stop rotation automatically.
6. Intelligent system that could alarm , Fault detection automatically.
7. High-quality resistance good for long service life.
8. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.
9. Intelligent detection and cool airflow features.
10. Green lines and high-quality silicone body heat for extend life and save power.

• Rated voltage : AC 220V±10% 50Hz
• power : 700W±10％（Max）
• Working environment : 0～40℃ relative humidity＜80％
• Storage environment : 20～80℃ relative humidity＜80％
• Dimensions : 33 * 27 * 20.cm
• Weight : 4.5KG

Hot Air Gun:

• Operating Voltage : AC 220V±10% 50Hz
• Output power : 650W
• Temperature range : 100℃～450℃
• Air Supply Mode : brushless motor
• Air Flow : 28L/min(MAX)
• Temperature Stability : ±15℃ （Static）
• Display Mode : LCD display
• PID Temperature Calibration Cycle : rapidly 20ms
• Heating Core : Ceramic columned heating element.

Soldering Iron:

• Operating Voltage : AC 26V±10% 50Hz
• Output power : 65W
• Temperature range : 200℃～500℃
• Temperature Stability : ±10℃ （Static）
• Display Mode : LCD display
• PID Temperature Calibration Cycle : high-speed 100ms
• Heating Core : Imported heater
