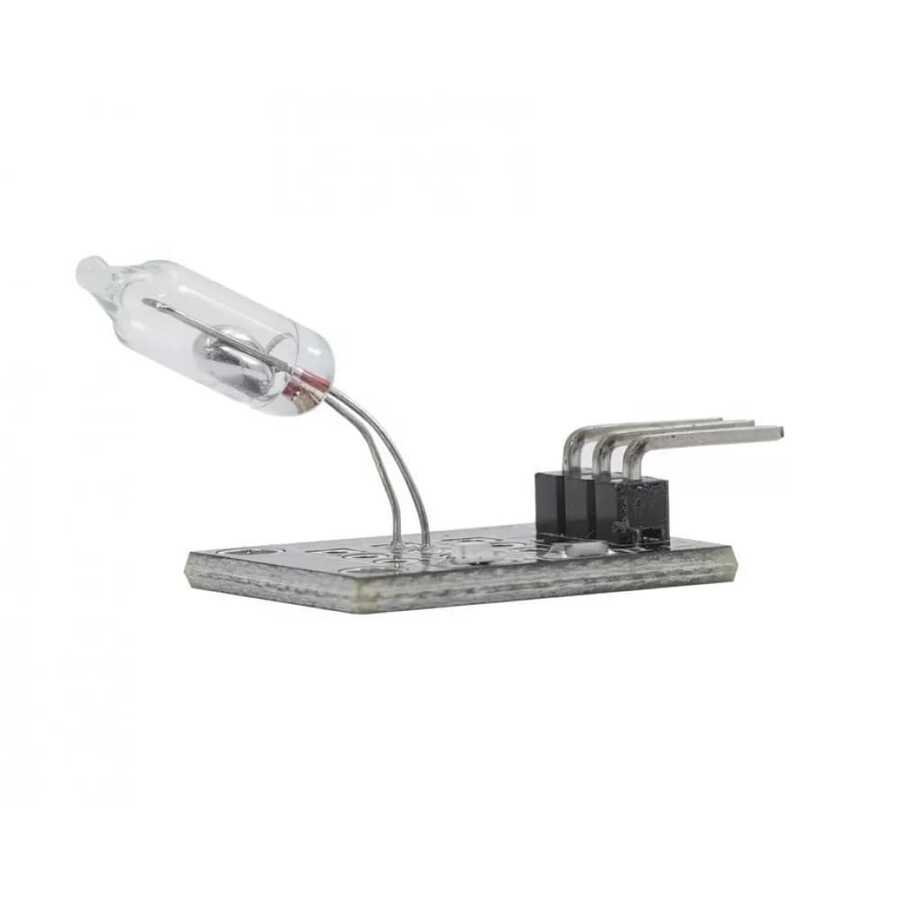

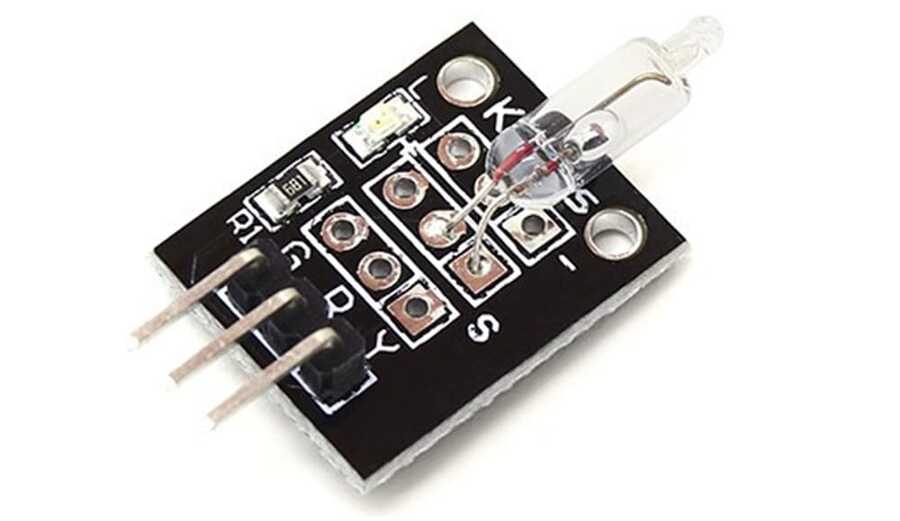

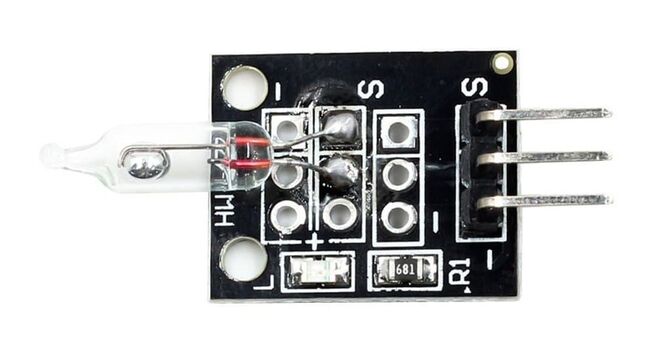

  • Mercury Tilt Switch Sensor Module - KY-017

    Mercury Tilt Switch Sensor Module is a sensor module that switches depending on the position of the mercury in the glass tube on the module. There are two pins, one full and one half, inside the whole glass. Mercury is in constant contact with the long pin. When the mercury is only in contact with the long pin, the module is in an open circuit state. When the module is physically in the opposite position, it contacts both the long pin and the short pin. In this case, the module completes the circuit and enters the closed circuit state.


    Mercury Tilt Switch Sensor Module Specifications:

    • Model: KY-017
    • Sensor Model: Mercury Glass Tube
    • Operating Voltage: 3.3 - 5V/DC
    • Working Current: 0.3mA
    • Width: 16mm
    • Length: 19mm
    • PCB Thickness: 1.5mm
