Jetson Nano Dev Kit

Brand
WaveShare
Product Code
23065
Fiyat
: 7,393.15 TL + VAT
KDV Dahil Fiyat
: 8,871.79 TL

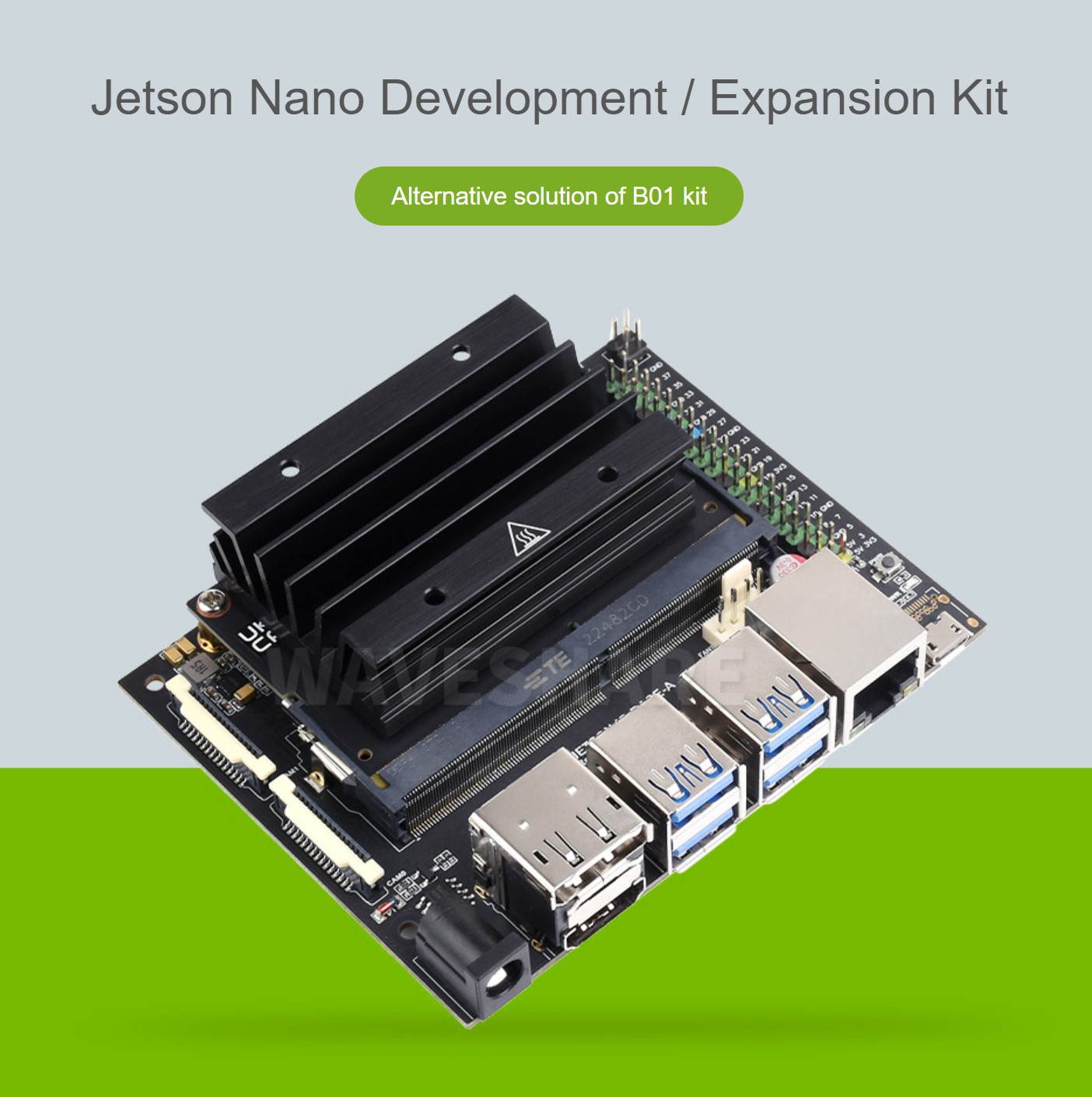

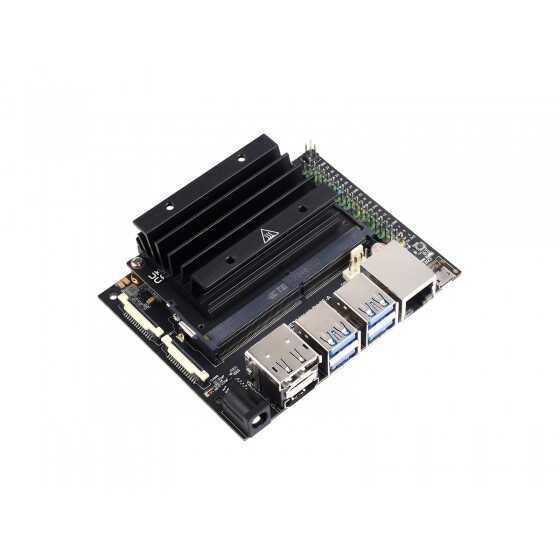

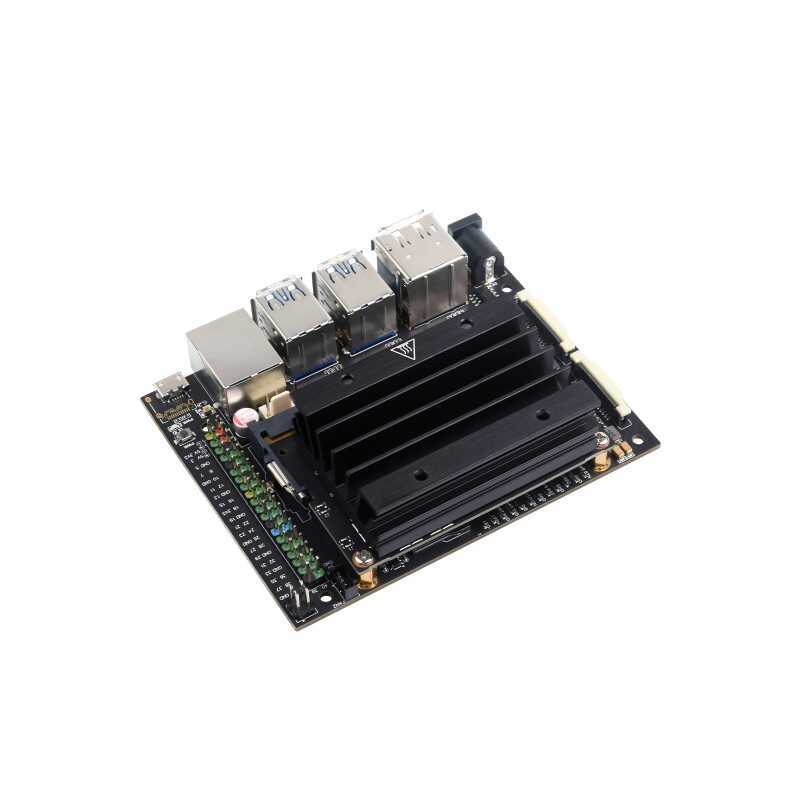

Jetson Nano Dev Kit

Based on AI computers Jetson Nano, providing almost the same peripheral interfaces, size and thickness as the Jetson Nano Developer Kit (B01), more convenient for upgrading the core module. By utilizing the power of core module, it is qualified for fields like image classification, object detection, segmentation, speech processing etc. and can be used in sorts of AI projects.



Default Storage:


Jetson Nano Developer Kit (B01)


The Nano module included in the B01 kit has no storage onboard, external TF card is required to be used as the system startup disk

JETSON-NANO-DEV-KIT


Includes a Nano module with onboard 16GB eMMC, more stable reading/writing, no extra TF card required for startup disk, providing adequate space for installing system image and development/study requirement in most cases

External Storage Option:


Jetson Nano Developer Kit (B01)


The B01 kit requires an external TF card to be used as the system startup disk

JETSON-NANO-DEV-KIT


Comes with a 64GB TF card, no need to purchase separately, competent for complicate development projects

External TF Card Slot:


Jetson Nano Developer Kit (B01)
There is no external TF card slot on the expansion board, it needs to be equipped with a Nano module with a TF card interface

JETSON-NANO-DEV-KIT
Support TF card. To use this function, you need to modify the device tree file, which is difficult for users who are just getting started. Can be used as memory expansion or startup disk

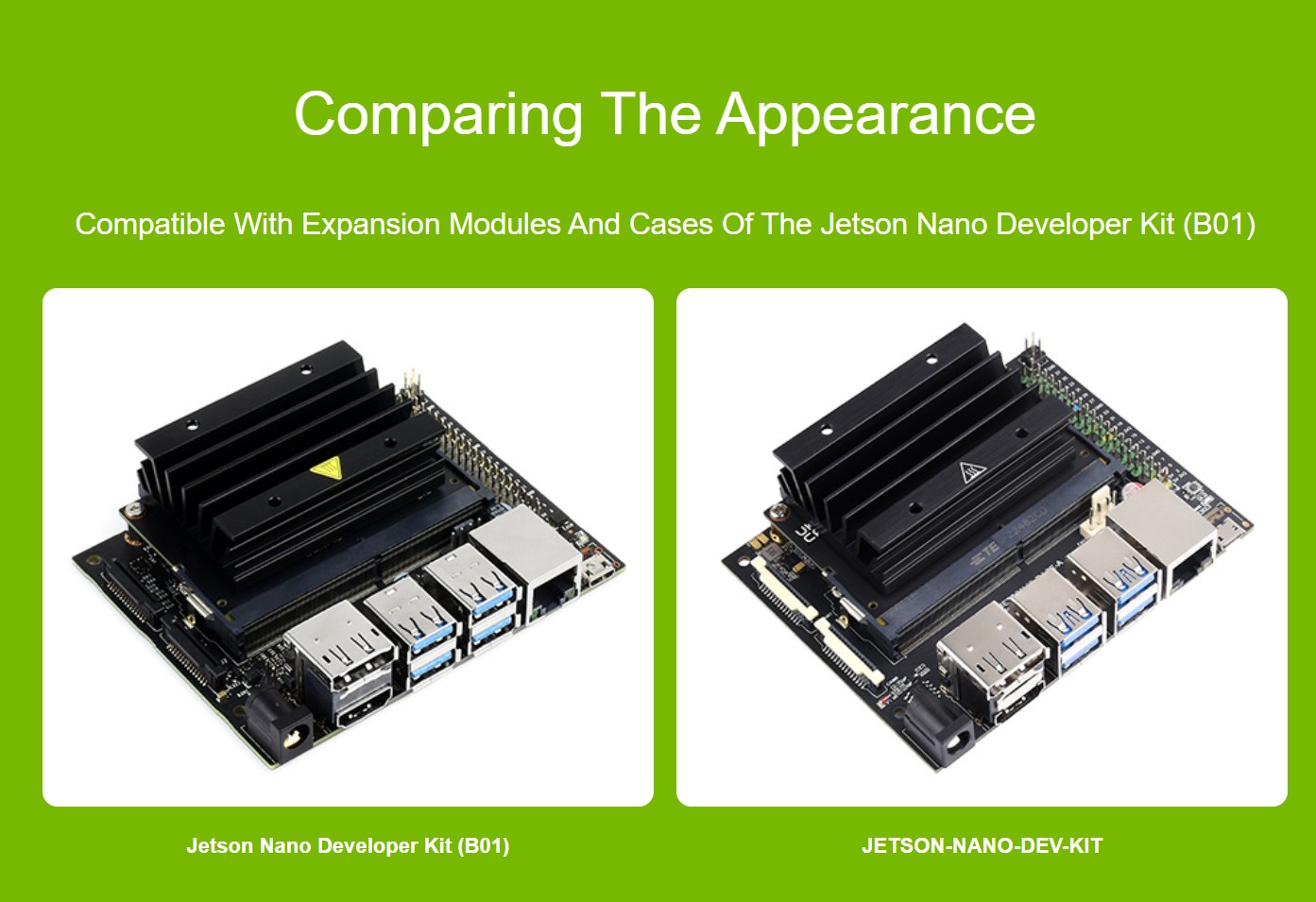

Comparing The Specifications:

  Jetson Nano Developer Kit (B01) JETSON-NANO-DEV-KIT
GPU 128-core Maxwell
CPU Quad-core ARM A57 @ 1.43 GHz
Memory 4 GB 64-bit LPDDR4 25.6 GB/s
Storage TF card
(NOT included)
16GB eMMC + 64GB TF card
Video Encoder 250 MP/s
1x 4K @ 30 [HEVC]
2x 1080p @ 60 [HEVC]
4x 1080p @ 30 [HEVC]
Video Decoder 500 MP/s
1x 4K @ 60 [HEVC]
2x 4K @ 30 [HEVC]
4x 1080p @ 60 [HEVC]
8x 1080p @ 30 [HEVC]
Camera 2x MIPI CSI-2 DPHY lanes
Connectivity Gigabit Ethernet, M.2 Key E expansion connector
Display HDMI and DP
USB 4x USB 3.0, USB 2.0 Micro-B
Extension Interfaces GPIO, I2C, I2S, SPI, UART
Dimensions 100 × 80 × 29mm
Other 260-pin connector

Play Around With Binocular Vision:

Supports 2-lanes CSI Camera, suitable for binocular vision applications such as parallax algorithm ranging, facial recognition, organism detection, VR video recording


Dual 4K Outputs

supports DisplayPort and HDMI high definition ports


4x high speed USB3.0

USB3.0 high speed data transmission, allows more USB peripherals


Color-Coded 40PIN GPIO Header

color-coded header pins with clear labels, handy for use

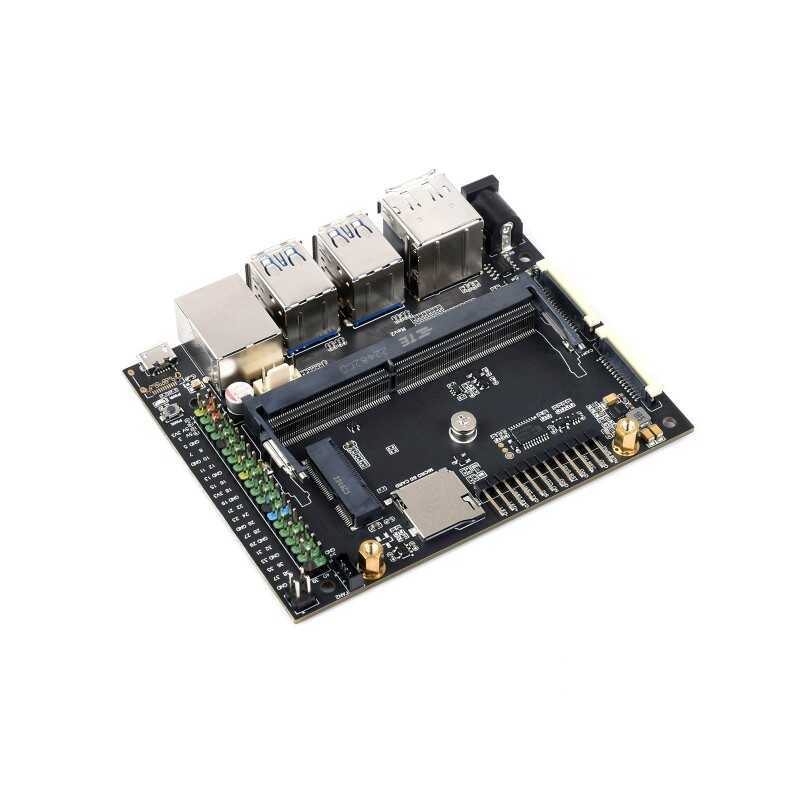

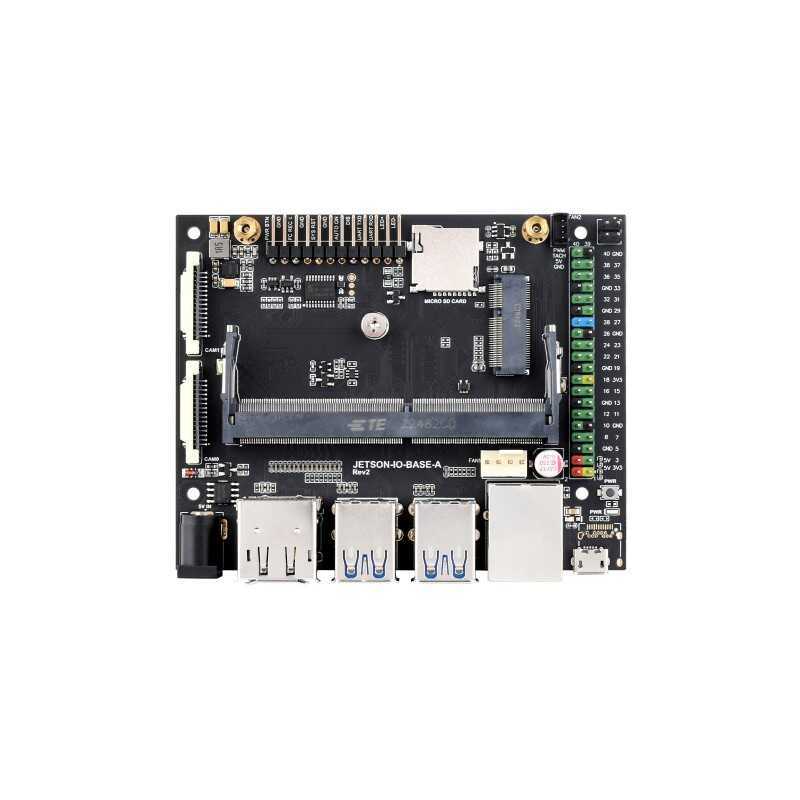

Introduction


  1. Core module socket
  2. TF card slot
  3. M.2 Key E connector
  4. 1.25mm Fan header
  5. PoE pins: PoE module is not included
  6. 40PIN GPIO header
  7. 2.54mm Fan header
  8. Micro USB port: for 5V power input or for USB data transmission
  9. Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation, supports PoE if external PoE module is connected
  10. 4x USB 3.0 port
  11. HDMI output port
  12. DisplayPort connector
  13. DC jack: for 5V power input
  14. 2x MIPI CSI camera connector
  15. Multi-function 12PIN header
  16. PWR button: Power ON/OFF control (same function as the PWR BTN pin)
