HD74HC76P DIP Integrated

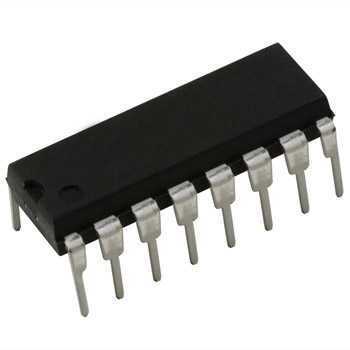

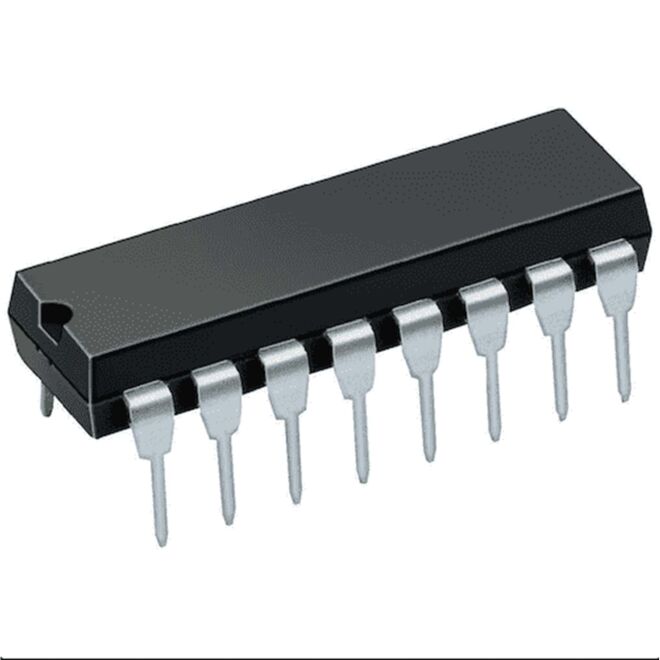

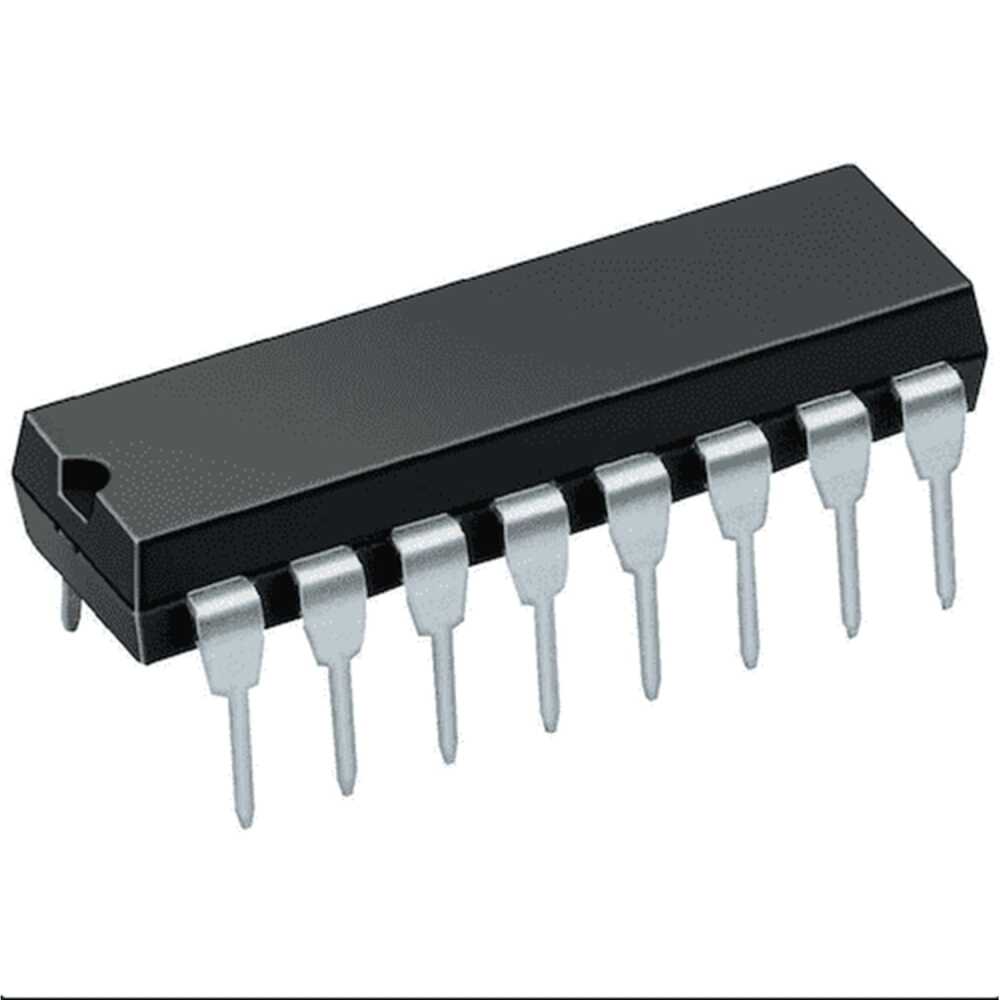

HD74HC76P DIP Integrated Circuit

The HD74HC76P is a high-performance digital integrated circuit that contains two independent J-K flip-flops with preset and clear inputs. Manufactured using CMOS HC technology, this IC is ideal for digital circuit applications that require low power consumption and high-speed operation.

Each flip-flop features J and K data inputs, as well as independent clock, preset, and clear inputs. The device is triggered on the negative edge of the clock signal, providing stable and reliable operation. Preset and clear inputs operate independently of the clock and are activated at a low logic level.

Thanks to its DIP package structure, the HD74HC76P allows easy mounting on breadboards and perforated PCBs. It is widely used in counter circuits, register applications, frequency dividers, and various logic control systems.

HD74HC76P DIP Integrated Circuit Technical Specifications:

• IC type: Dual J-K Flip-Flop

• Operating voltage: 2V – 6V

• Clock triggering: Negative edge triggered

• Preset and Clear inputs: Active low

• High speed: Typical 21 ns clock-to-Q delay

• Low power consumption

• Package type: DIP-16

• Operating temperature: -40°C to +85°C
