HB100 Microwave Doppler Radar Module

Product Code
Brand / Origin
Without Vat
89.78 TL
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
  • Features
  • Payment Options
  • Comments (2)
  • Recommend
  • Images
  • Suggestion Box

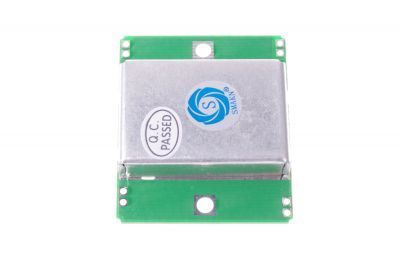

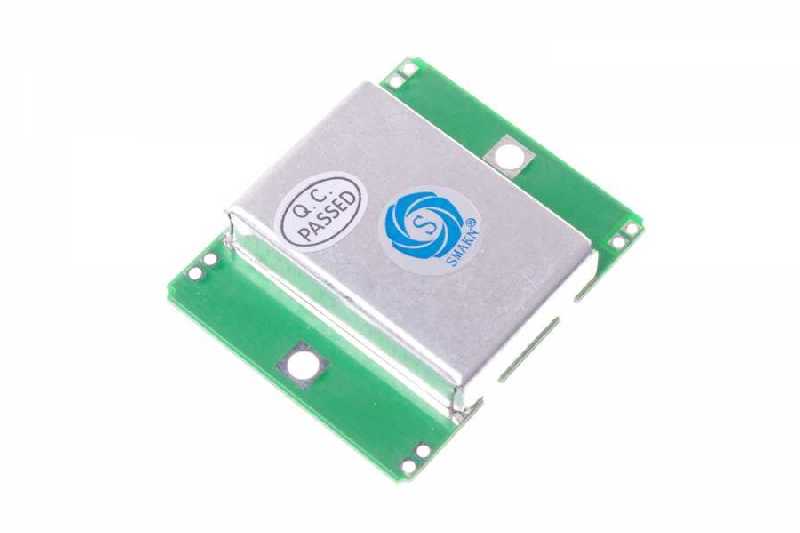

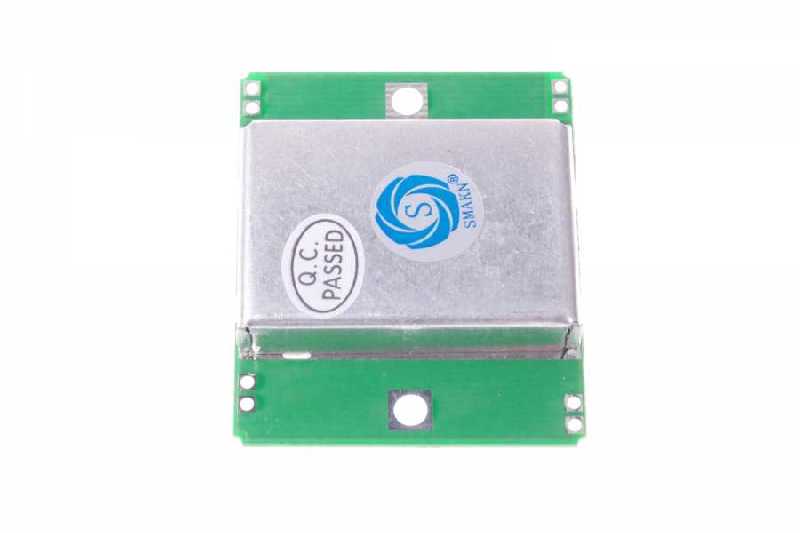

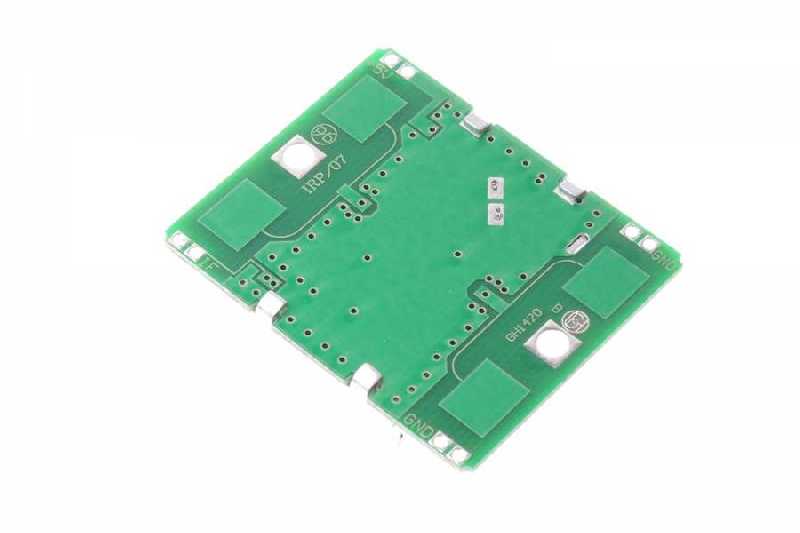

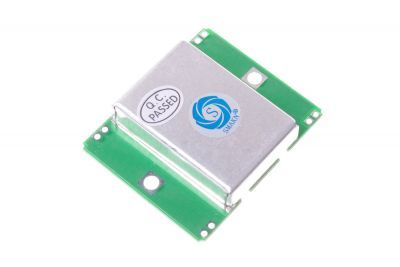

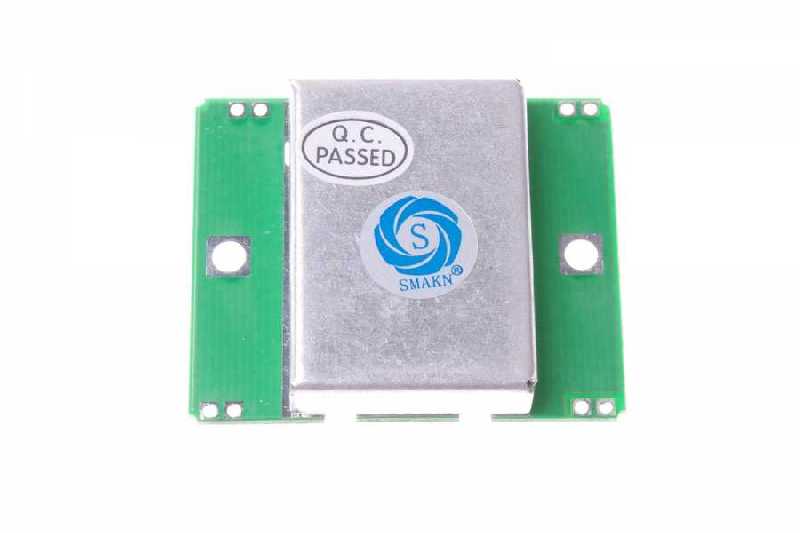

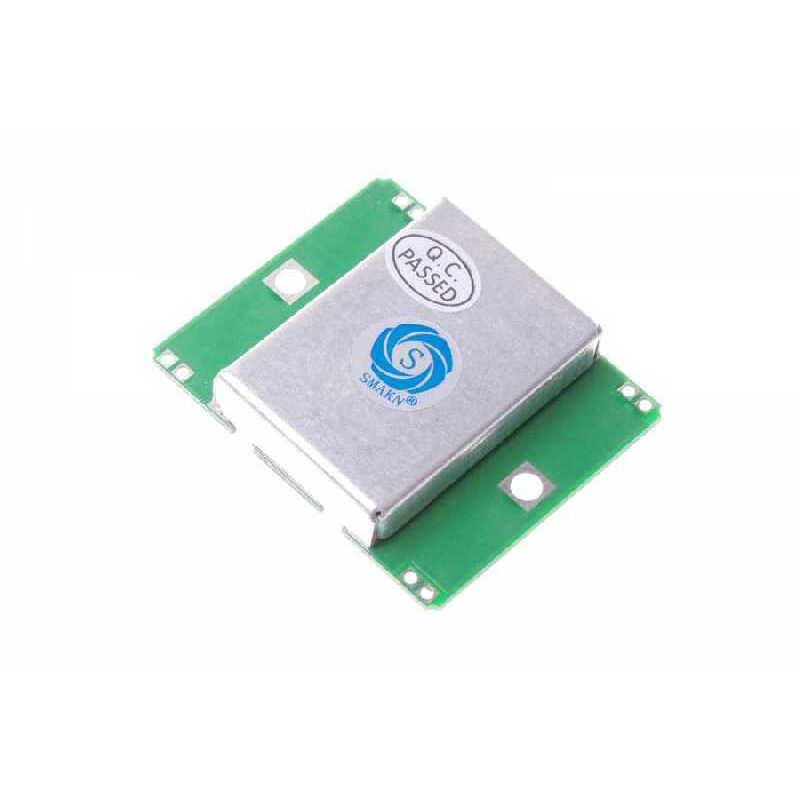

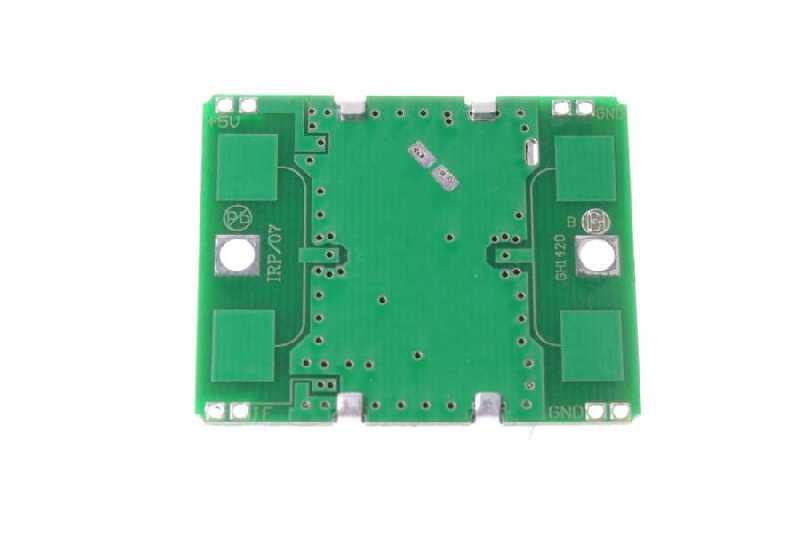

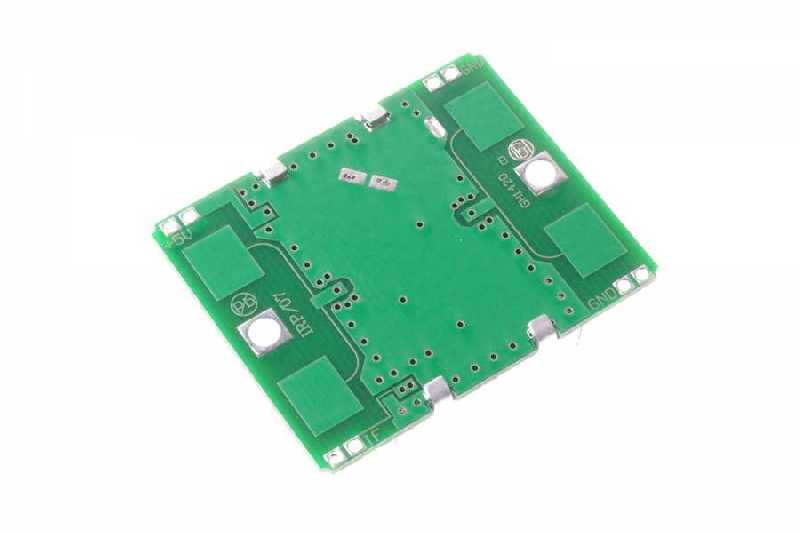

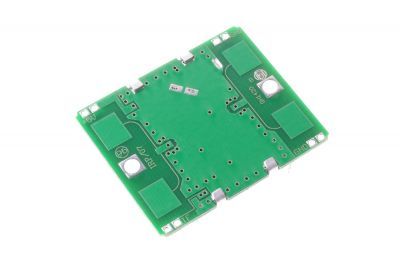

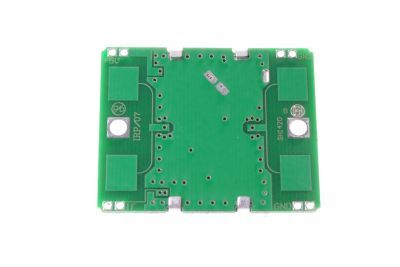

  • HB100 Miniature Microwave Motion Sensor is a X-Band Bi-Static Doppler transceiver module. It has a built-in Dielectric Resonator Oscillator (DRO) and a pair of Microstrip patch antenna array, making it ideal for usage in motion detection equipment.

    This module is ideal for alarms, motion detectors, lighting control, vehicle speed measurement and automatic doors.

    • Low current consumption (typical 30 mA)
    • CW or pulse operation
    • Flat profile
    • Long detection range (20 m)
    • Supply voltage: between 4.75V and 5.25V
    • X-Band frequency: 10.525 GHz
    • Minimum Power Output: 13 dBm EIRP

    Note: Please use a low voltage soldering iron and connect it to a reliable grounding. This device is sensitive to ESD and it may be damaged during soldering. The IF output of the HB100 module is especially sensitive. You can check it for damage using a multimeter in diode mode. The forward voltage drop between IF and GND should be about 0.25 V.

    Note: This module is not manufactured by ST Electronics AgilSense. It is similar but not identical to the HB100 sensor manufactured by AgilSense. The AgilSense datasheet and the application note are provided for reference only and there might be small differences between this module and the AgilSense HB100 sensor.

Prepared by  T-Soft E-Commerce.
