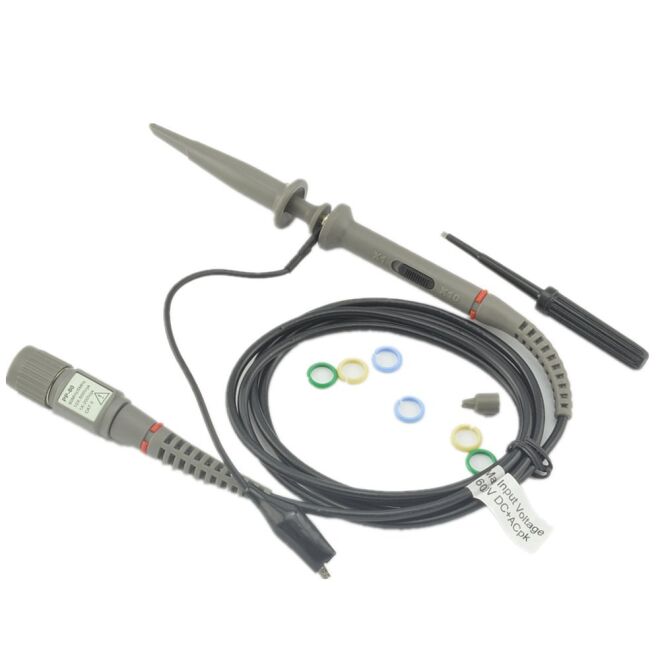

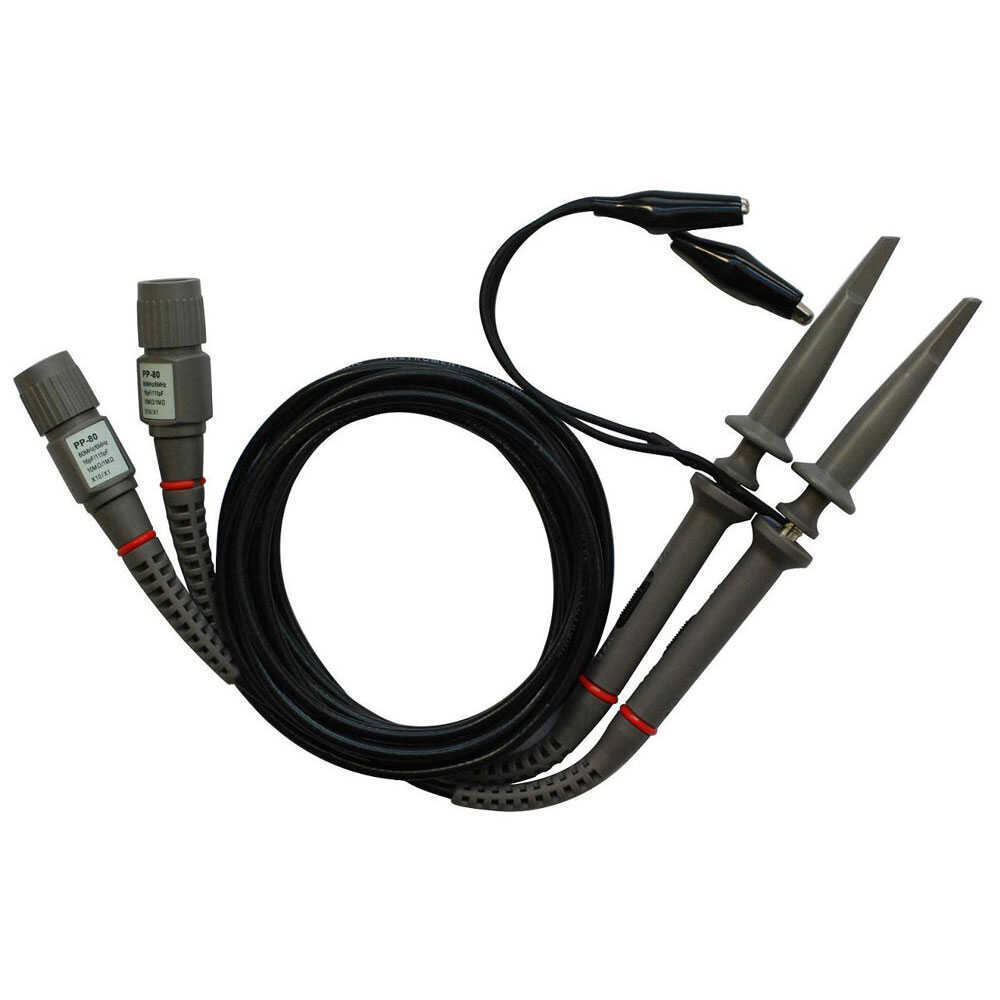

Hantek PP-80 60MHz Oscilloscope Probe

Hantek PP-80 60MHz Oscilloscope Probe

The Hantek PP-80 is a professional oscilloscope probe with a bandwidth of 60MHz, designed for reliable measurements in laboratory and field applications. Its ergonomic structure and durable cable design provide comfortable and long-term use.

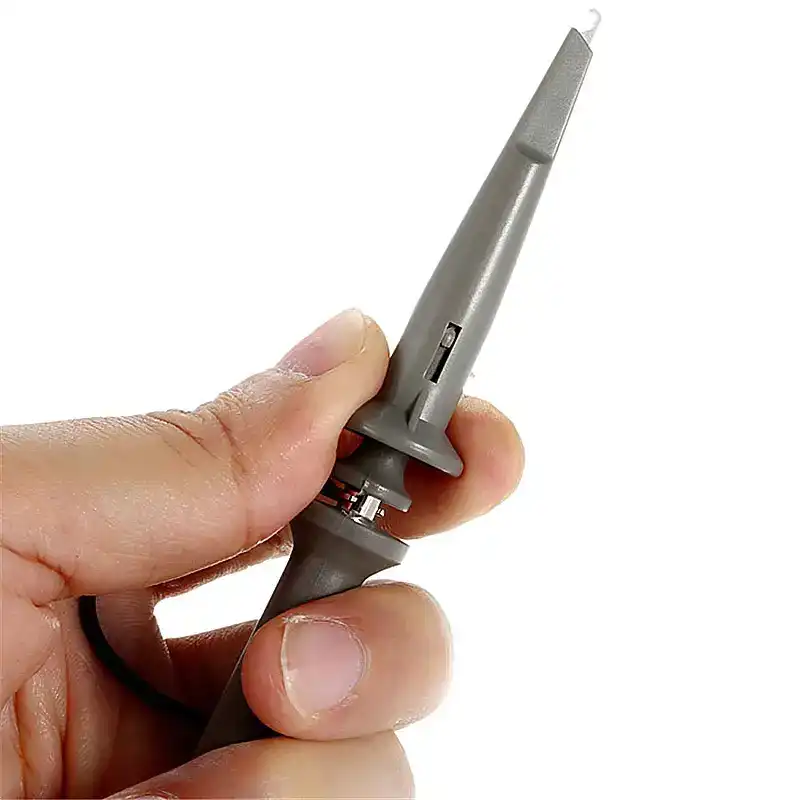

Supporting both 1X and 10X attenuation modes, the PP-80 adapts flexibly to different measurement requirements. It enables accurate and stable measurement of low and medium frequency signals. Thanks to its injection-molded body, the probe tip is robust and suitable for demanding test environments.

The Hantek PP-80 is compatible with both domestic and international digital and analog oscilloscopes. It is an ideal solution for electronic circuit testing, educational applications, and general measurement tasks.

Hantek PP-80 Technical Specifications:

• Bandwidth: 60MHz

• Attenuation ratio: 1X / 10X

• Input impedance: 1MΩ

• Input capacitance: 1X: 85pF–115pF / 10X: 18.5pF–22.5pF

• Maximum input voltage: <300V DC + Peak AC (1X)

• Cable length: 120cm

• Operating temperature: -10°C ~ +50°C

• Compatibility: Analog and digital oscilloscopes
