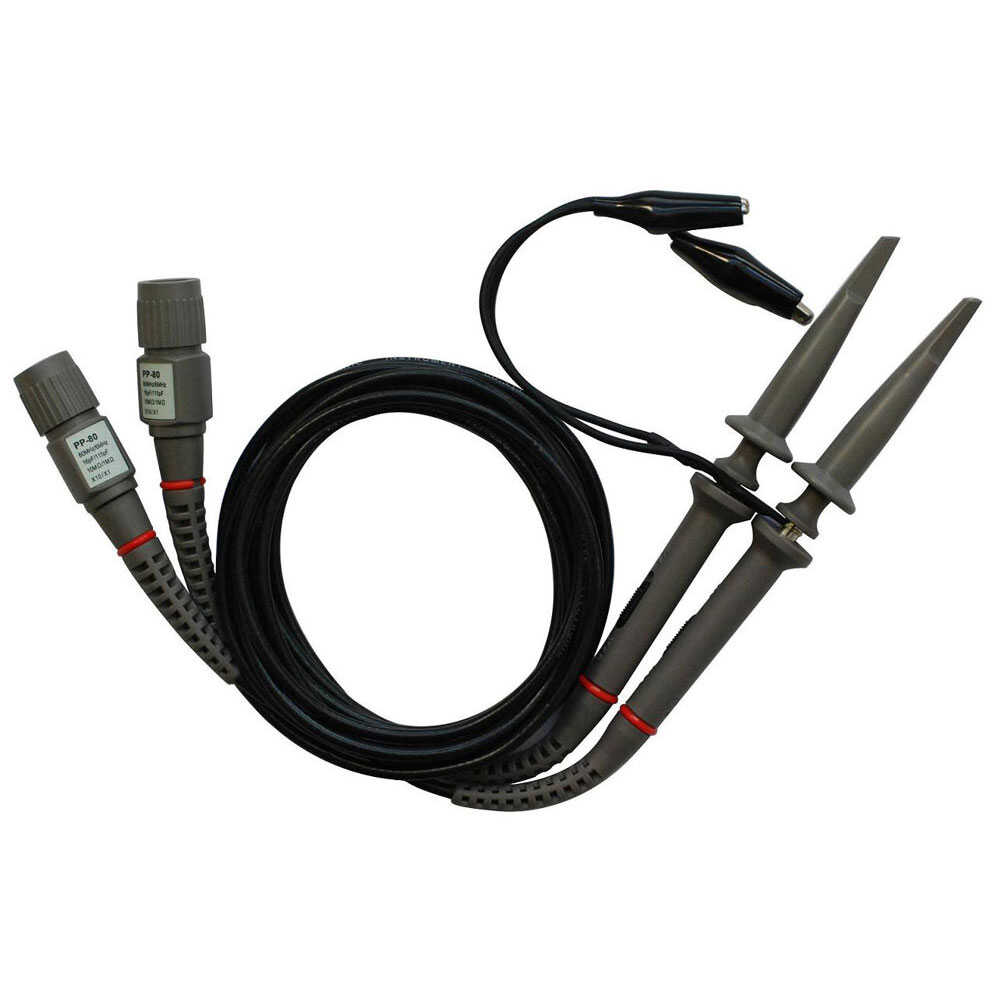

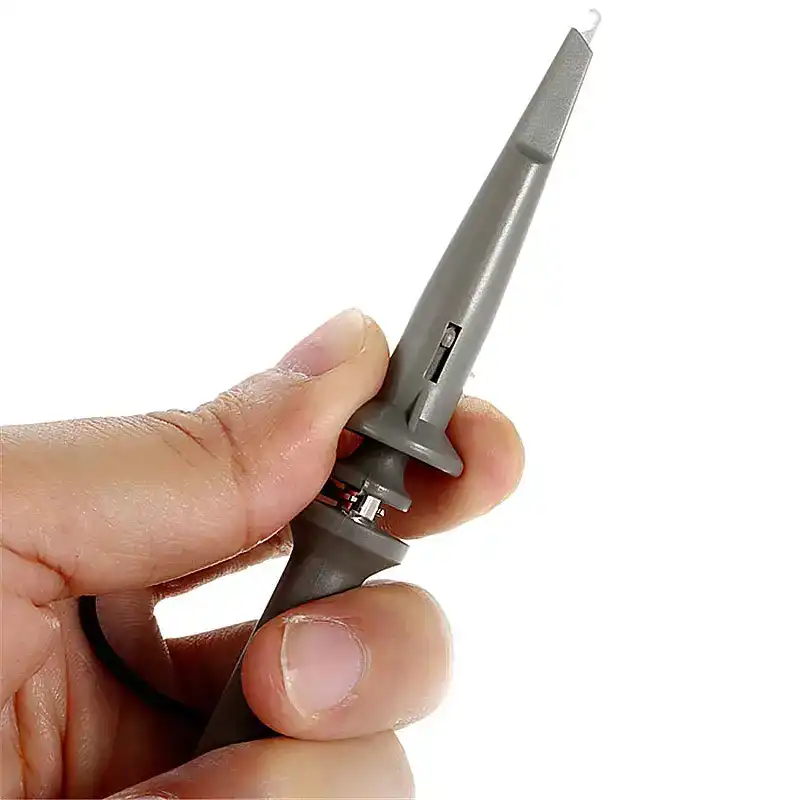

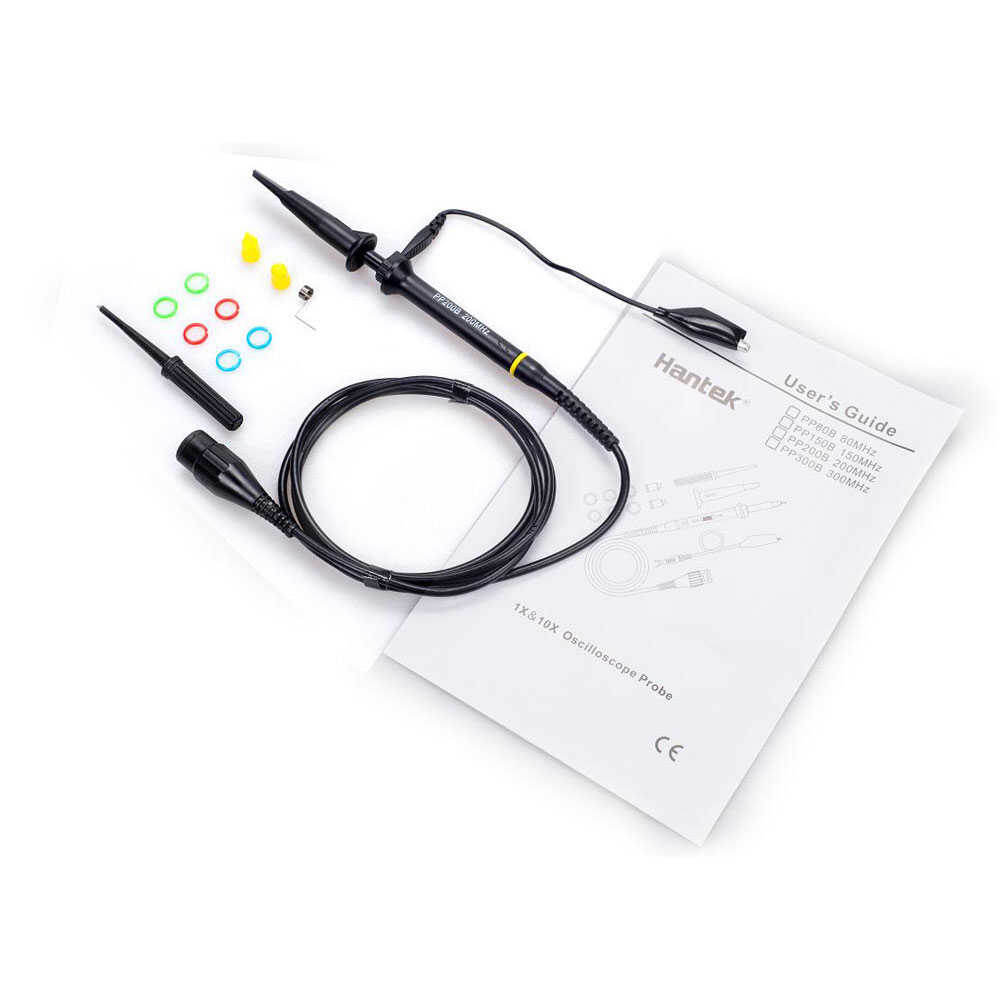

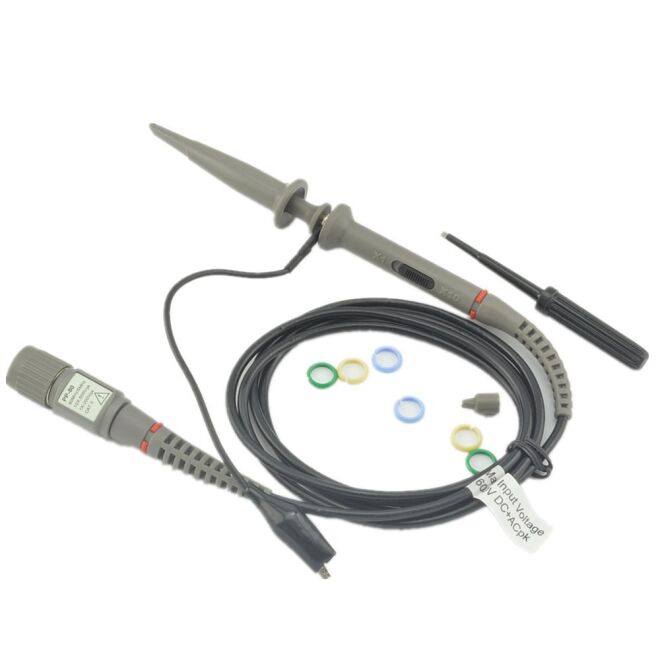

Hantek PP-150 100MHz Oscilloscope Probe

Hantek PP-150 100MHz Oscilloscope Probe

The Hantek PP-150 is a professional oscilloscope probe with a bandwidth of 100MHz, designed for precise and reliable measurements. It is widely used in laboratory environments, R&D applications, educational settings, and field testing.

Supporting 1X and 10X attenuation ratios, the PP-150 easily adapts to different signal levels and measurement scenarios. Its durable injection-molded housing provides flexible use and helps the oscilloscope adapt to various testing conditions.

The Hantek PP-150 is compatible with both domestic and international digital and analog oscilloscopes. It is an ideal solution for measuring low and medium frequency signals, electronic circuit analysis, and general testing and maintenance tasks.

Hantek PP-150 Technical Specifications:

• Bandwidth: 100MHz

• Attenuation ratio: 1X / 10X

• Input impedance: 1MΩ

• Input capacitance: 1X: 85pF–115pF / 10X: 18.5pF–22.5pF

• Maximum input voltage: <300V DC + Peak AC (1X)

• Cable length: 120cm

• Operating temperature: -10°C ~ +50°C

• Compatibility: Analog and digital oscilloscopes

Useful Links / Documents:

• Hantek PP Series Oscilloscope Probes User Manual
