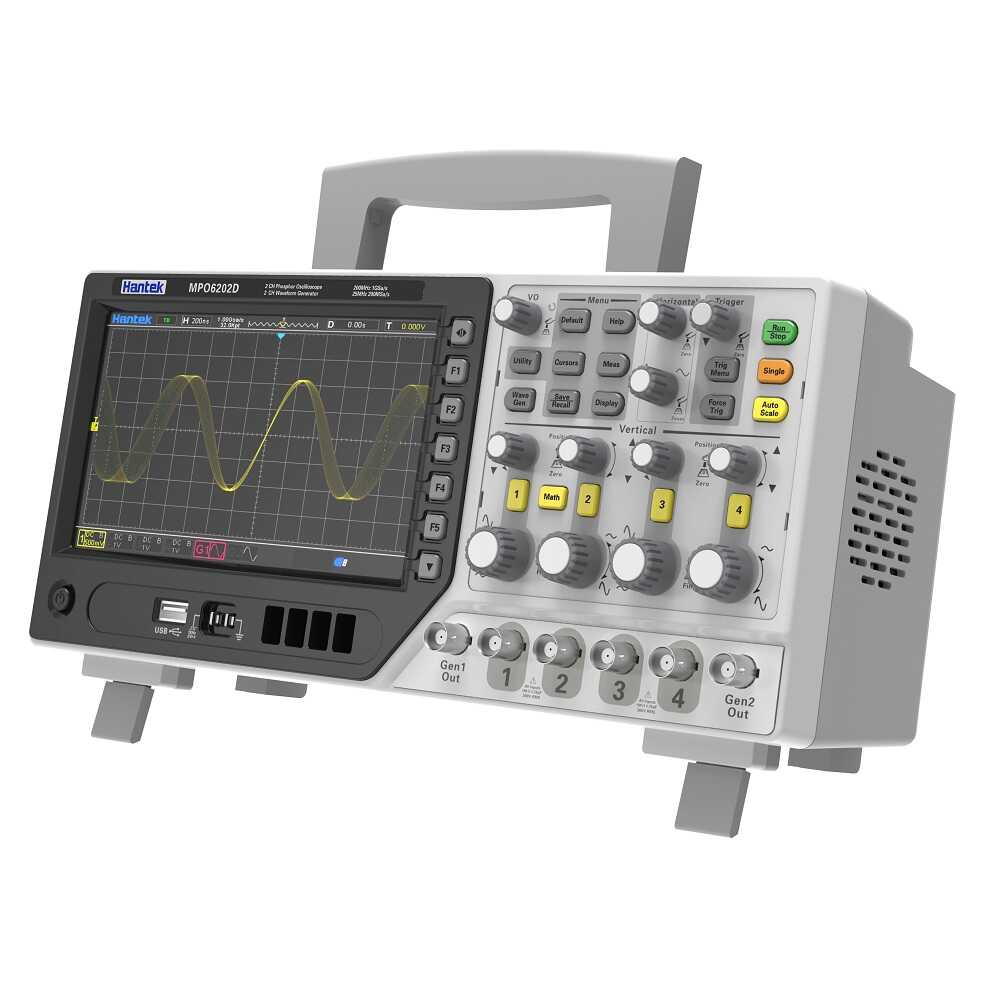

Notify me when its in stockHantek MPO6204D 200MHz 4-Channel 6-in-1 Oscilloscope
The Hantek MPO6204D is a powerful 6-in-1 measuring instrument that integrates an oscilloscope, logic analyzer, waveform generator, protocol analyzer, digital voltmeter (DVM), and frequency counter into a single compact device. With a 200MHz analog bandwidth, 4-channel architecture, and high-performance signal processing capabilities, it is designed for professional electronic testing, embedded system development, and advanced R&D applications.
Equipped with a high waveform capture rate of up to 400,000 wfms/s and a deep memory depth of up to 64Mpts, the MPO6204D enables accurate observation of rare signal anomalies and long waveform records. Advanced triggering options and serial protocol decoding support provide precise analysis of complex digital communication signals.
The built-in logic analyzer supports up to 16 digital channels, while the integrated waveform generator allows users to generate test signals directly from the device. A 7-inch color display with touch functionality ensures intuitive operation and clear waveform visualization, making the MPO6204D an ideal solution for laboratory, education, and industrial environments.

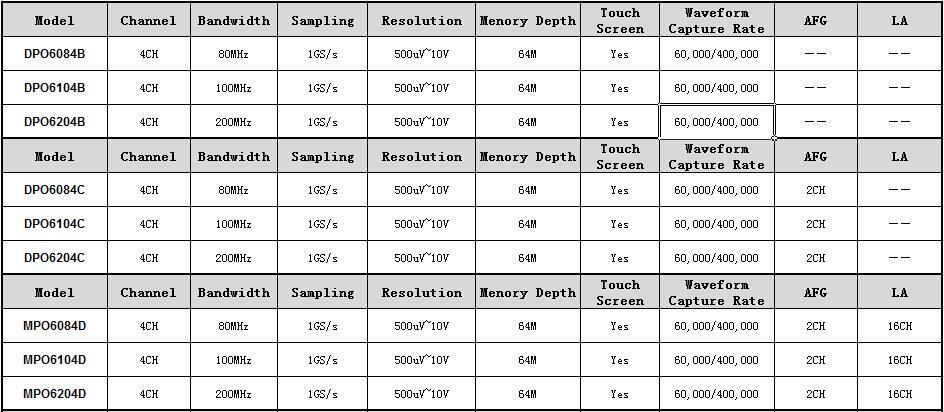

Hantek MPO6204D Technical Specifications:
Analog bandwidth: 200MHz
Oscilloscope channels: 4
Logic analyzer channels: 16
Waveform capture rate: Up to 400,000 wfms/s
Memory depth: Up to 64Mpts
Vertical resolution: 8-bit
Built-in waveform generator
Digital voltmeter (DVM) and hardware frequency counter
Serial protocol decoding and triggering support
Display: 7-inch color screen with touch support
Interfaces: USB Host, USB Device, LAN
Package Contents:
1 x Hantek MPO6204D 6-in-1 Oscilloscope
4 x Oscilloscope Probes
Logic Analyzer Probe Set
USB Connection Cables
Power Cable
User Manual and Documentation
