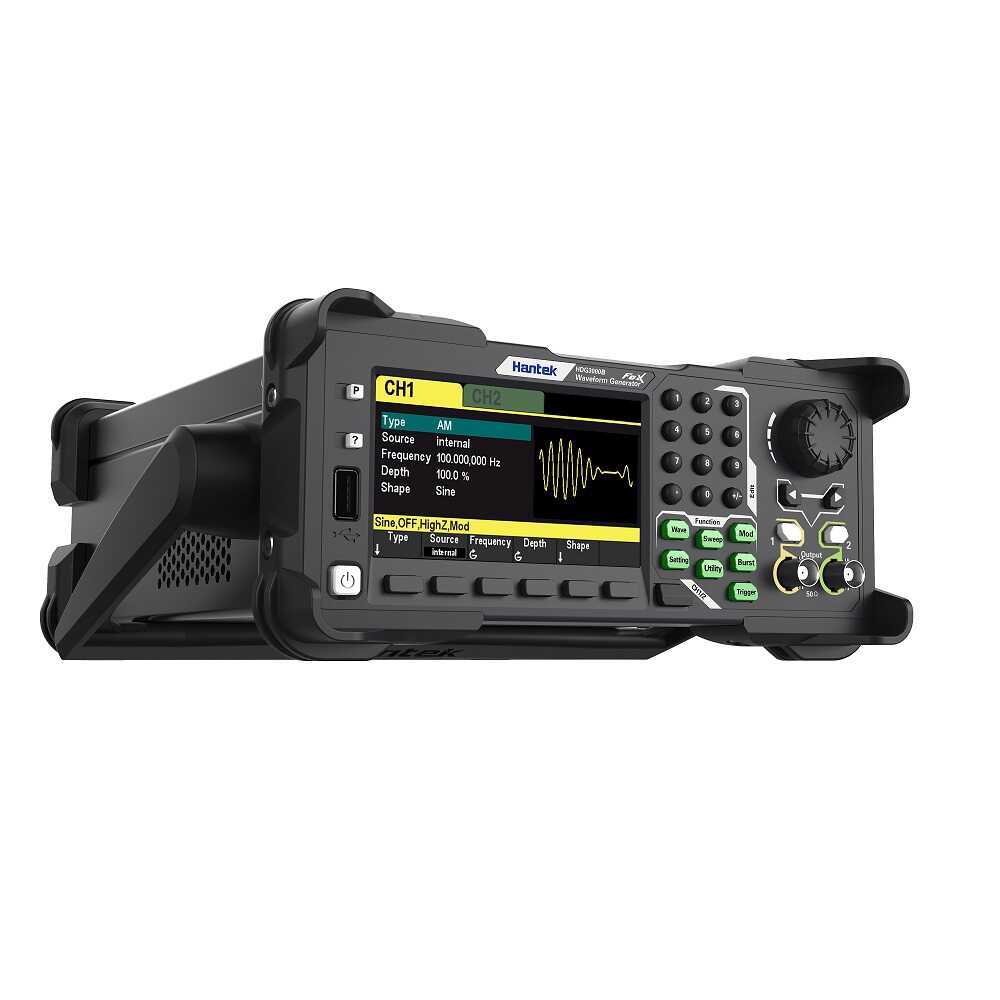

Hantek HDG3102B 100MHz 5-in-1 Function Generator

Hantek HDG3102B 100MHz 5-in-1 Function Generator

The Hantek HDG3102B is a multifunction signal generation device that combines a function generator, arbitrary waveform generator, pulse generator, harmonic generator, and frequency counter in a single unit. With a maximum output frequency of up to 100MHz, it is an ideal solution for R&D, education, production, and laboratory applications.

Utilizing DDS (Direct Digital Synthesizer) technology, the HDG3102B delivers highly stable, low-distortion, and clean output signals. It supports sine, square, triangle, ramp, noise, and user-defined waveforms, offering a wide range of testing possibilities. Its dual-channel architecture allows two different signals to be generated simultaneously.

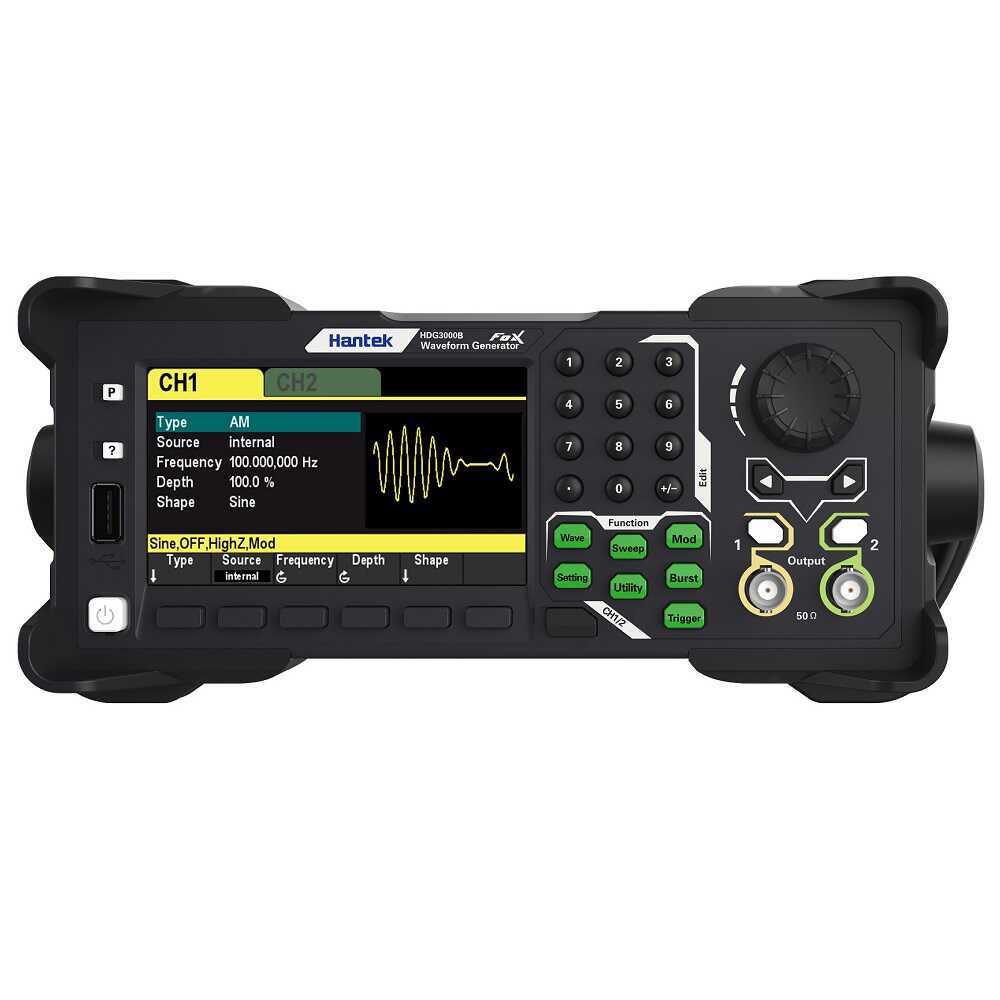

The color LCD display, ergonomic keypad, and intuitive menu structure provide a user-friendly experience. With USB and LAN connectivity, the device can be remotely controlled via a computer. Software and SDK support enable easy integration into automation and test systems.

Hantek HDG3102B Technical Specifications:

• Maximum output frequency: 100MHz

• Number of channels: 2

• Functions: Function generator, arbitrary waveform generator, pulse generator, harmonic generator, frequency counter

• Signal generation technology: DDS (Direct Digital Synthesizer)

• Supported waveforms: Sine, square, triangle, ramp, noise, arbitrary waveform

• Display: Color LCD

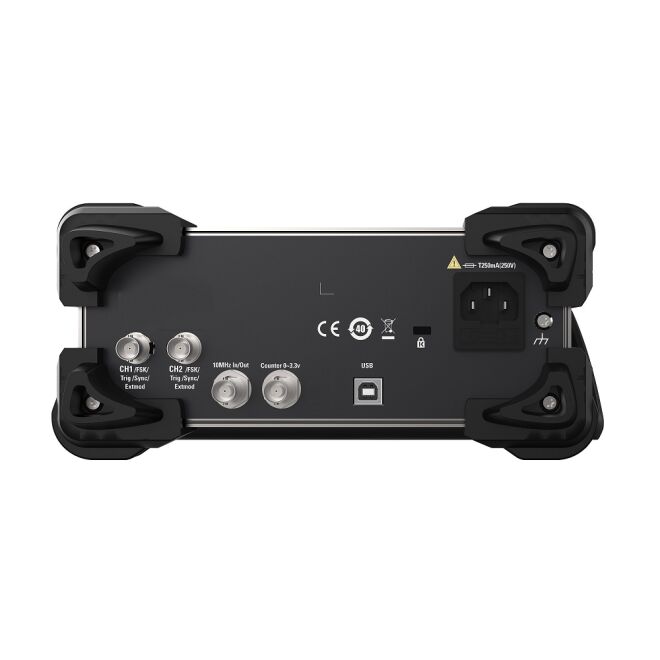

• Communication interfaces: USB, LAN

• PC control and remote access support
