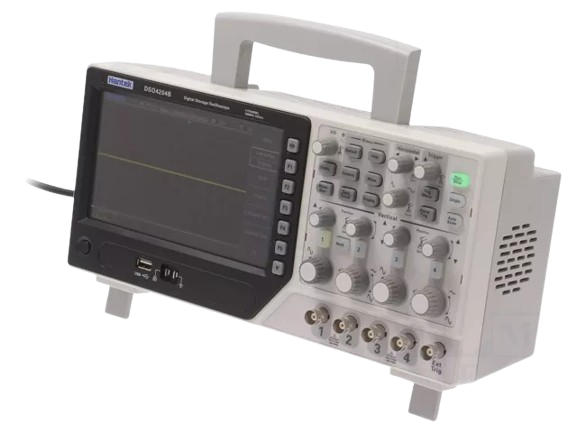

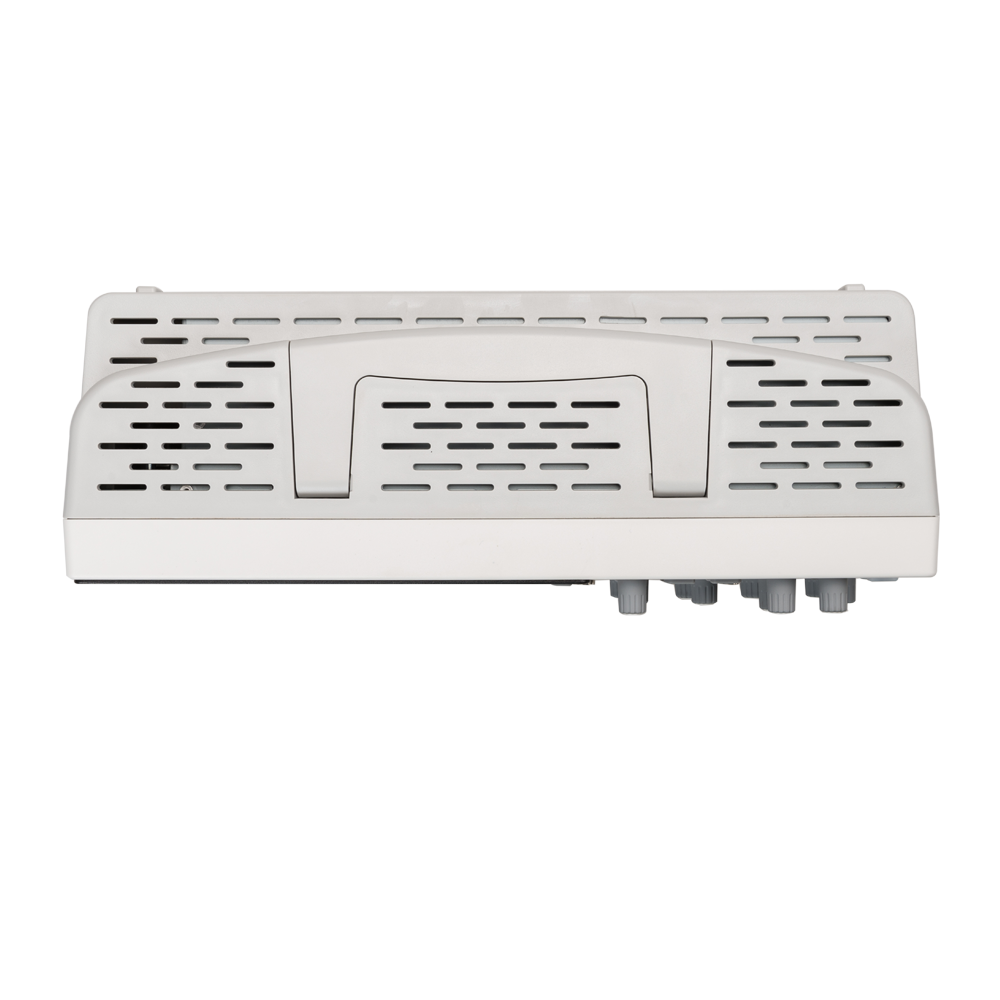

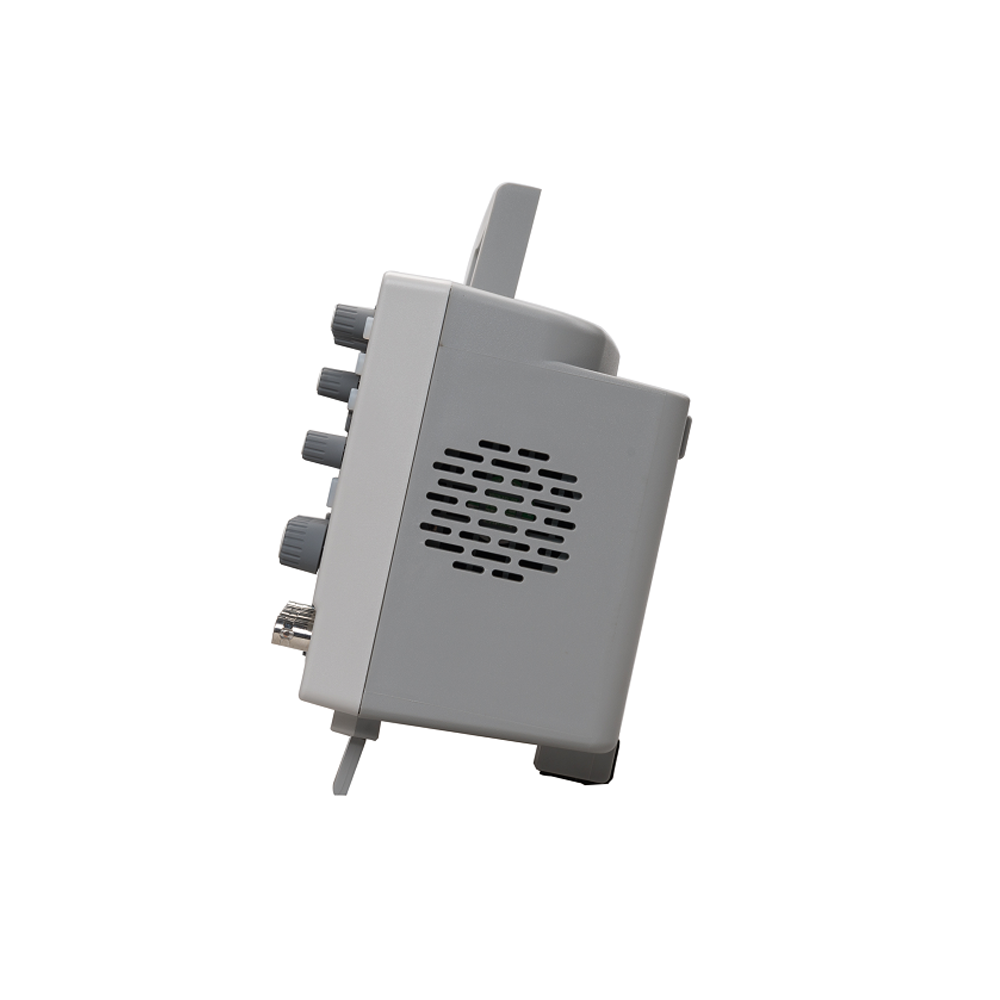

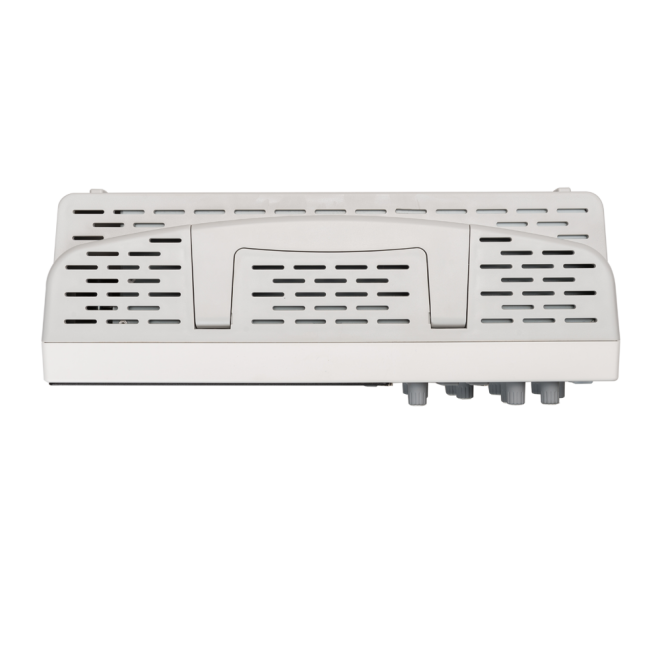

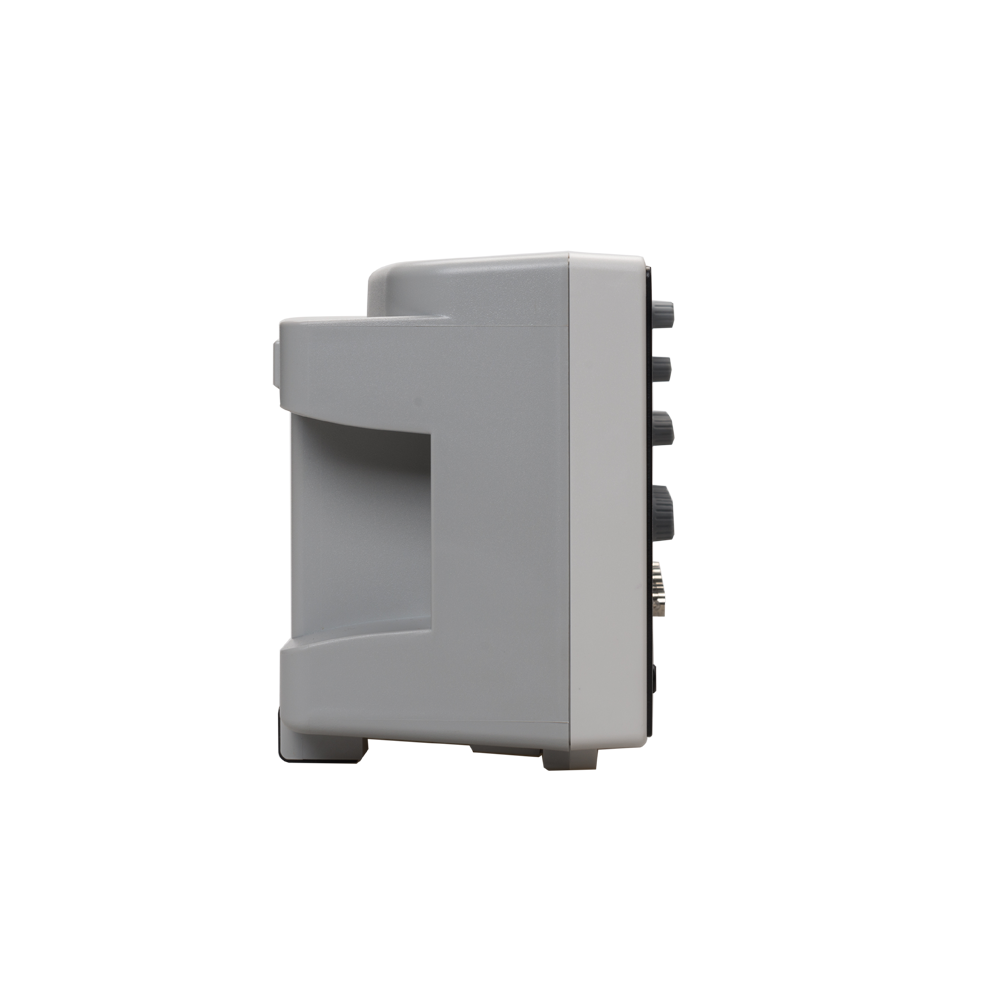

Hantek DSO4204B 200MHz 4-Channel Digital Oscilloscope

Hantek DSO4204B 200MHz 4-Channel Digital Oscilloscope

The Hantek DSO4204B is a professional digital oscilloscope developed for high-speed, multi-channel signal analysis, featuring a 200MHz analog bandwidth, a 4-channel architecture, and a 1GSa/s sampling rate. It can be reliably used in electronic design, maintenance and repair, education, and R&D applications, especially for complex circuits, multiple data lines, and time-critical measurements.

The device accelerates measurement processes with 32 automatic measurement functions and statistical analysis support, while advanced triggering options ensure stable and repeatable waveform acquisition. Triggering and decoding support for serial communication protocols such as RS232 / UART, I2C, SPI, and CAN provides significant advantages in embedded systems and digital communication analysis.

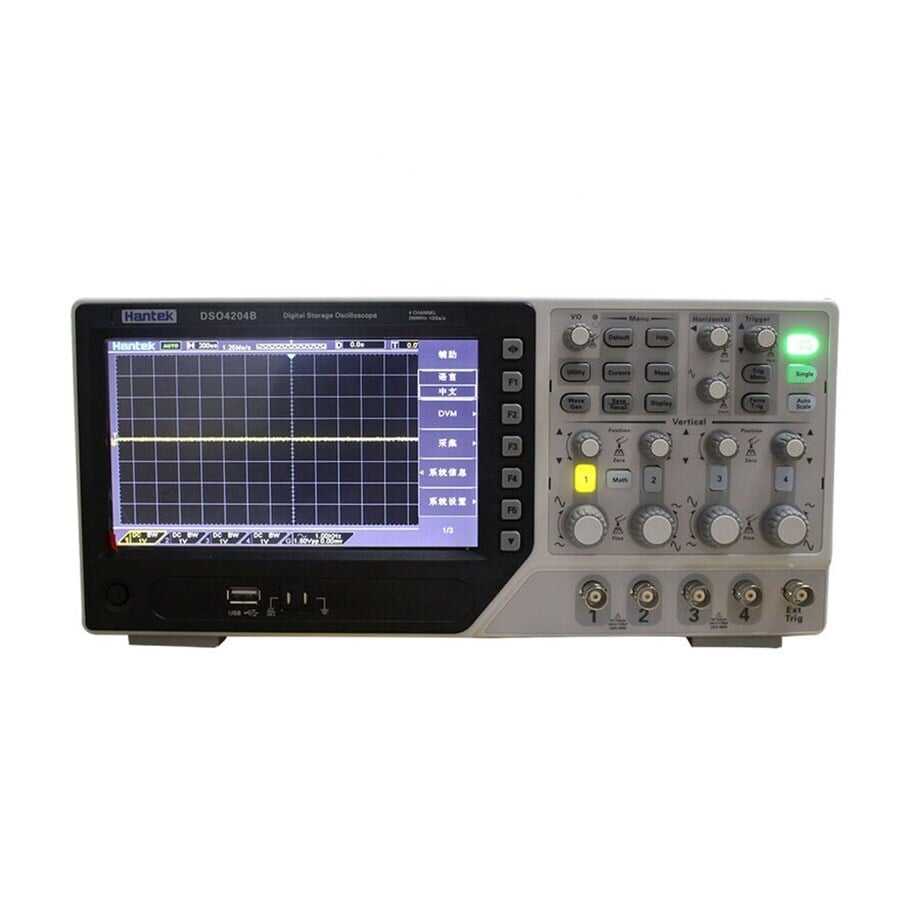

The DSO4204B features a 7-inch WVGA (800x480) color display for clear and detailed waveform visualization. Thanks to its large memory depth, long record lengths and detailed zooming are possible. USB and LAN interfaces enable PC connectivity, data transfer, and remote control via SCPI commands, making the oscilloscope well suited for laboratory and automation environments.

Hantek DSO4204B Technical Specifications:

• Analog bandwidth: 200MHz

• Number of channels: 4

• Maximum real-time sampling rate: 1GSa/s

• Vertical resolution: 8-bit

• Vertical sensitivity: 2mV/div – 10V/div

• Horizontal time base: 2ns/div – 100s/div

• Automatic measurements: 32 measurements with statistics

• Serial protocol triggering and decoding: RS232 / UART, I2C, SPI, CAN

• Digital voltmeter (DVM) and hardware frequency counter support

• Interfaces: USB Host, USB Device, LAN

• Display: 7-inch color WVGA (800 x 480)

• Maximum input voltage: 300 VRMS, CAT II 300V

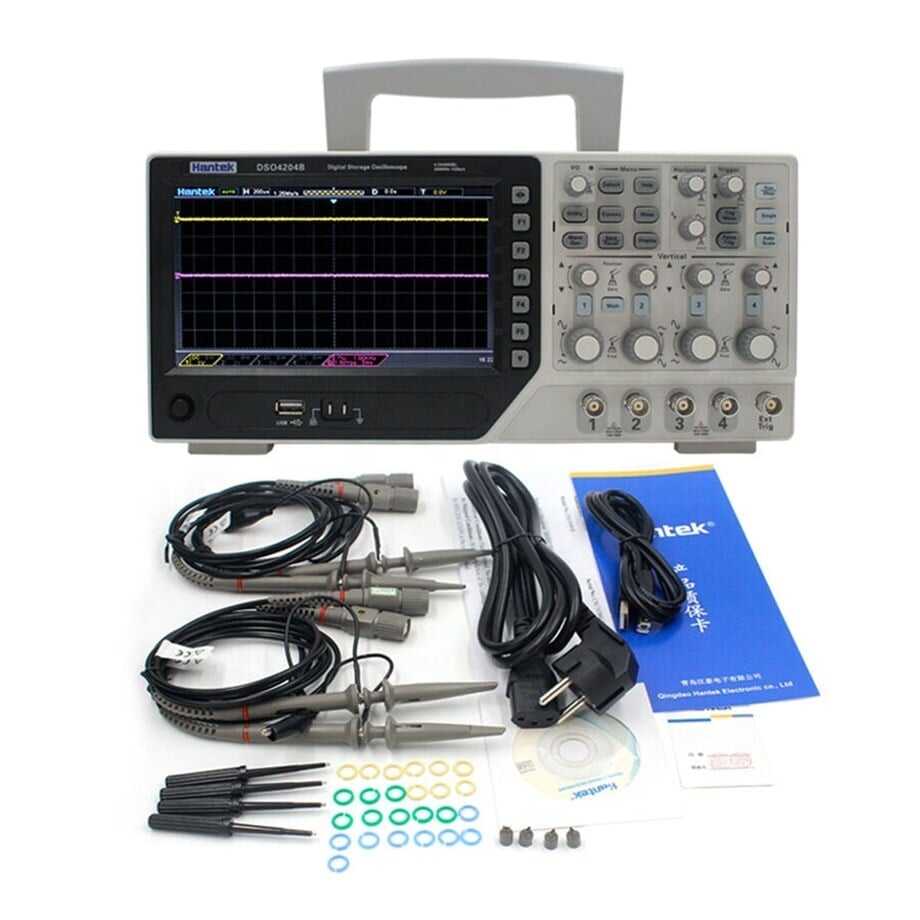

Package Contents:

• 1 x Hantek DSO4204B Digital Oscilloscope

• 4 x Oscilloscope Probes

• 1 x Power Cable

• 1 x USB Connection Cable

• 1 x User Manual and Documentation

Useful Links / Documents:

• DSO4000BC User Manual
• DSO4000BC SCPI Document
• DSO4000BC Quick Start Guide
• DSO4000BC Firmware
• DSO4000B Software
