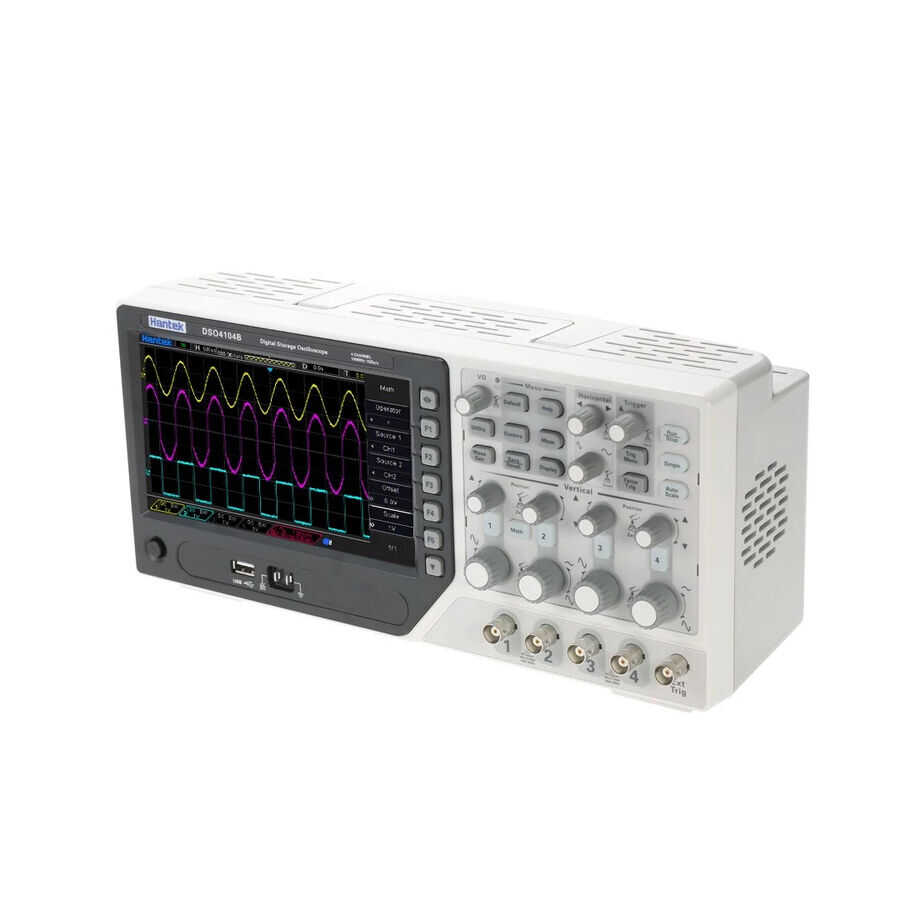

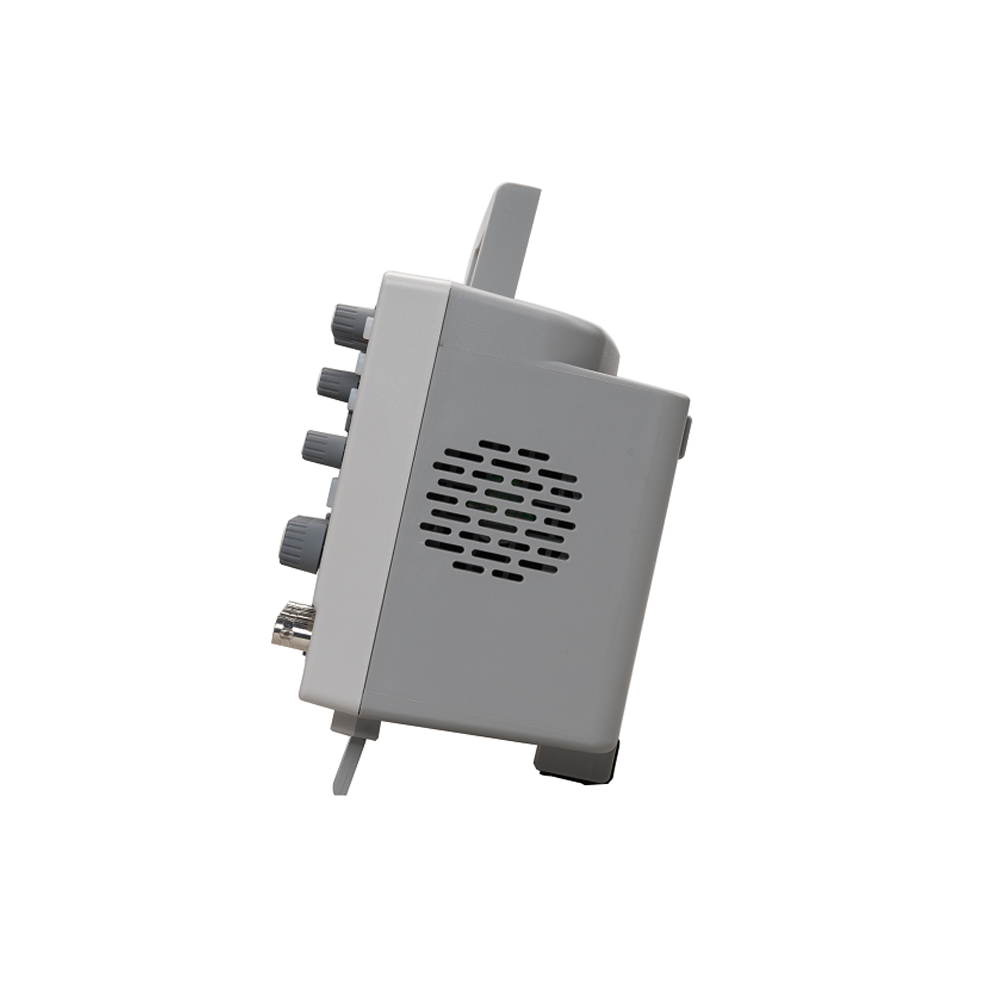

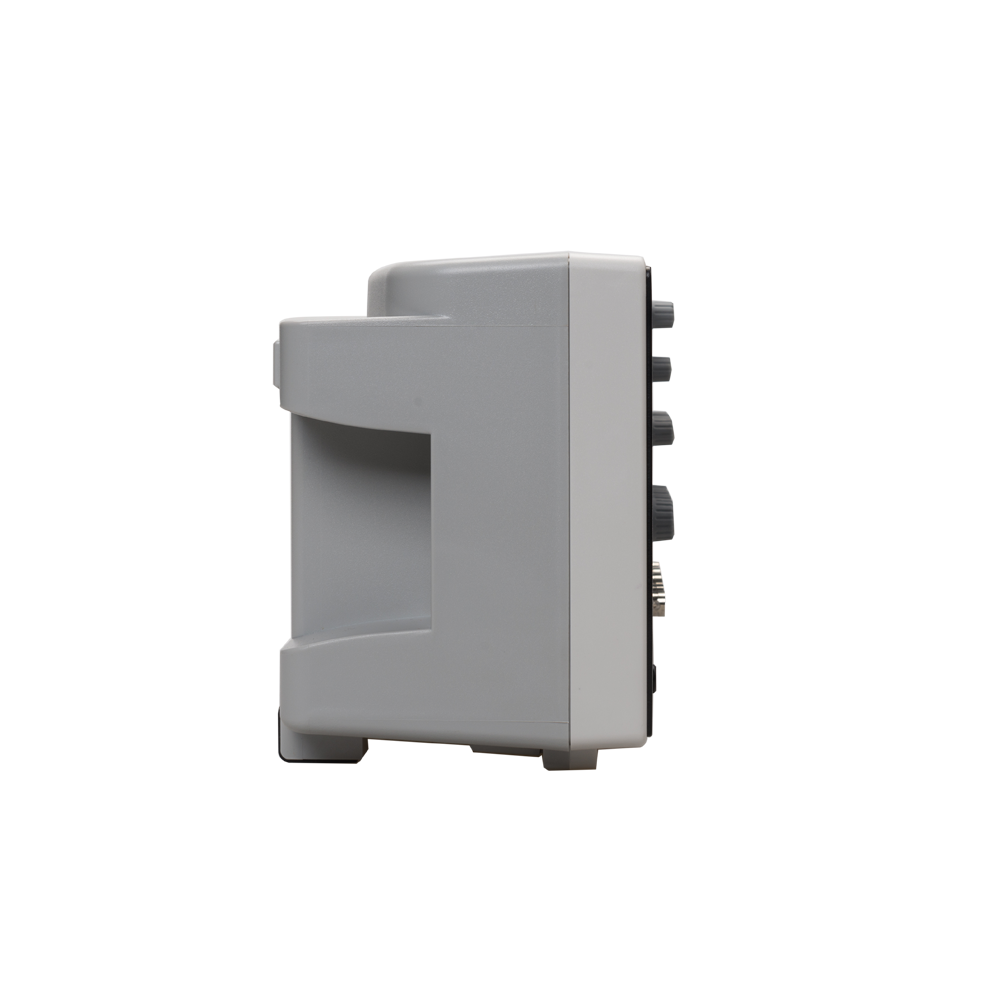

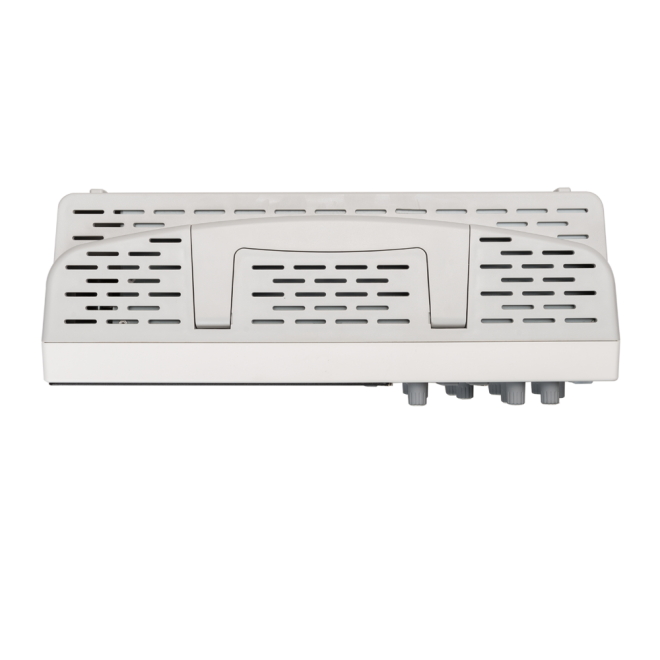

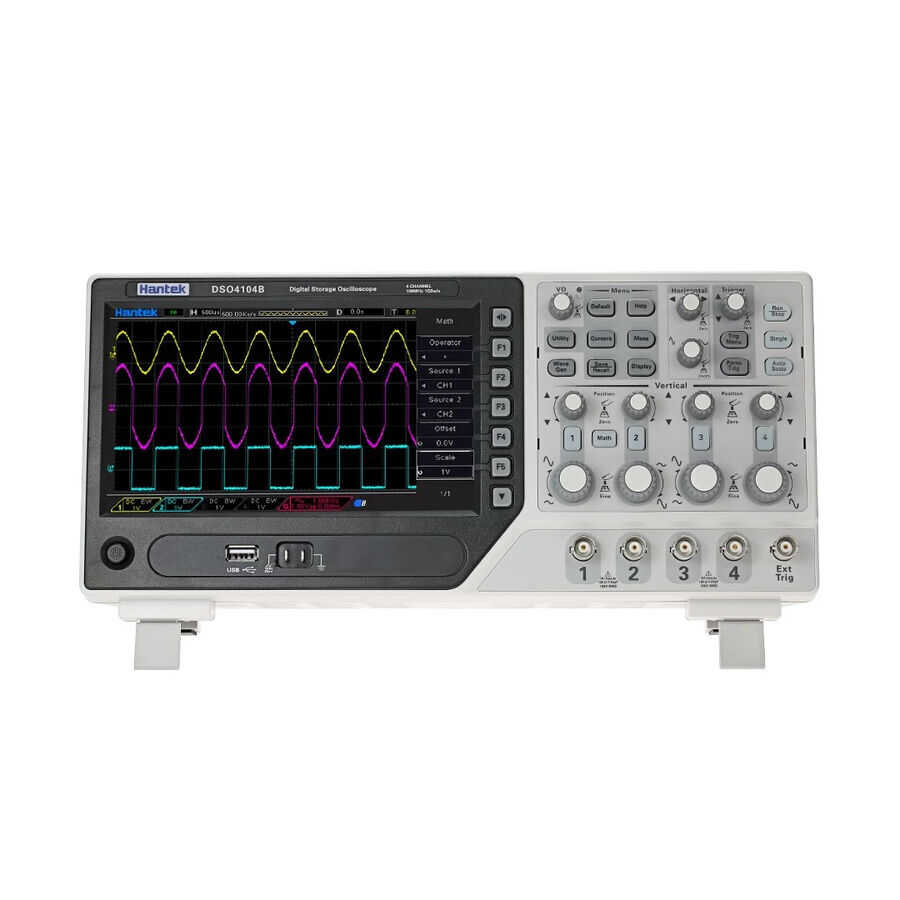

Hantek DSO4104B 100MHz 4-Channel Digital Oscilloscope

Hantek DSO4104B 100MHz 4-Channel Digital Oscilloscope

The Hantek DSO4104B is a professional digital oscilloscope developed for multi-channel and complex signal analysis, featuring a 100MHz analog bandwidth, 4-channel architecture, and a 1GSa/s sampling rate. It enables simultaneous and highly accurate monitoring of multiple signals in electronic design, maintenance and repair, education, and R&D applications.

The device accelerates measurement processes with 32 automatic measurement functions and statistical analysis support, while advanced triggering options ensure stable and repeatable waveform acquisition. Triggering and decoding support for serial communication protocols such as RS232 / UART, I2C, SPI, and CAN provides significant advantages in embedded systems and digital communication line analysis.

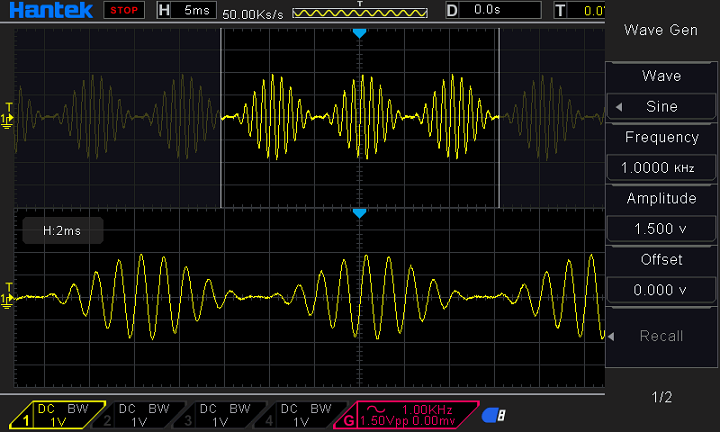

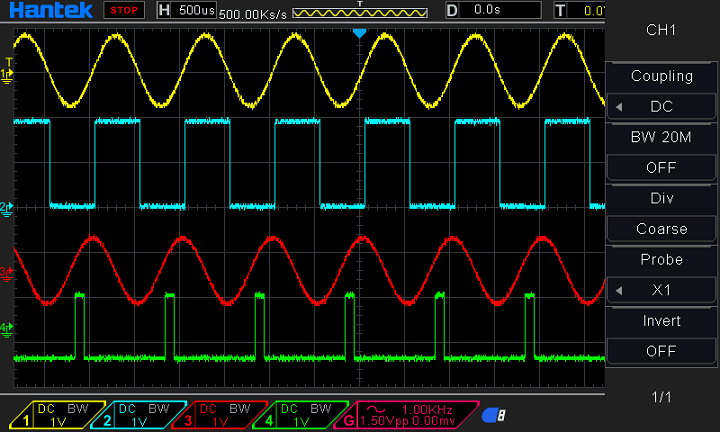

The DSO4104B features a 7-inch WVGA (800x480) color display for clear and detailed waveform visualization. Thanks to its large memory depth, it allows long record lengths and detailed zooming. USB and LAN interfaces enable PC connectivity, data transfer, and remote control via SCPI commands, making it suitable for laboratory and automation applications.

Hantek DSO4104B Technical Specifications:

• Analog bandwidth: 100MHz

• Number of channels: 4

• Maximum real-time sampling rate: 1GSa/s

• Vertical resolution: 8-bit

• Vertical sensitivity: 2mV/div – 10V/div

• Horizontal time base: 2ns/div – 100s/div

• Automatic measurements: 32 measurements with statistics

• Serial protocol triggering and decoding: RS232 / UART, I2C, SPI, CAN

• Digital voltmeter (DVM) and hardware frequency counter support

• Interfaces: USB Host, USB Device, LAN

• Display: 7-inch color WVGA (800 x 480)

• Maximum input voltage: 300 VRMS, CAT II 300V

Package Contents:

• 1 x Hantek DSO4104B Digital Oscilloscope

• 4 x Oscilloscope Probes

• 1 x Power Cable

• 1 x USB Connection Cable

• 1 x User Manual and Documentation

Useful Links / Documents:

• DSO4000BC User Manual
• DSO4000BC SCPI Document
• DSO4000BC Quick Start Guide
• DSO4000BC Firmware
• DSO4000B Software
