Hantek DSO2D15 150MHz Oscilloscope + Signal Generator

Hantek DSO2D15 150MHz Oscilloscope + Signal Generator

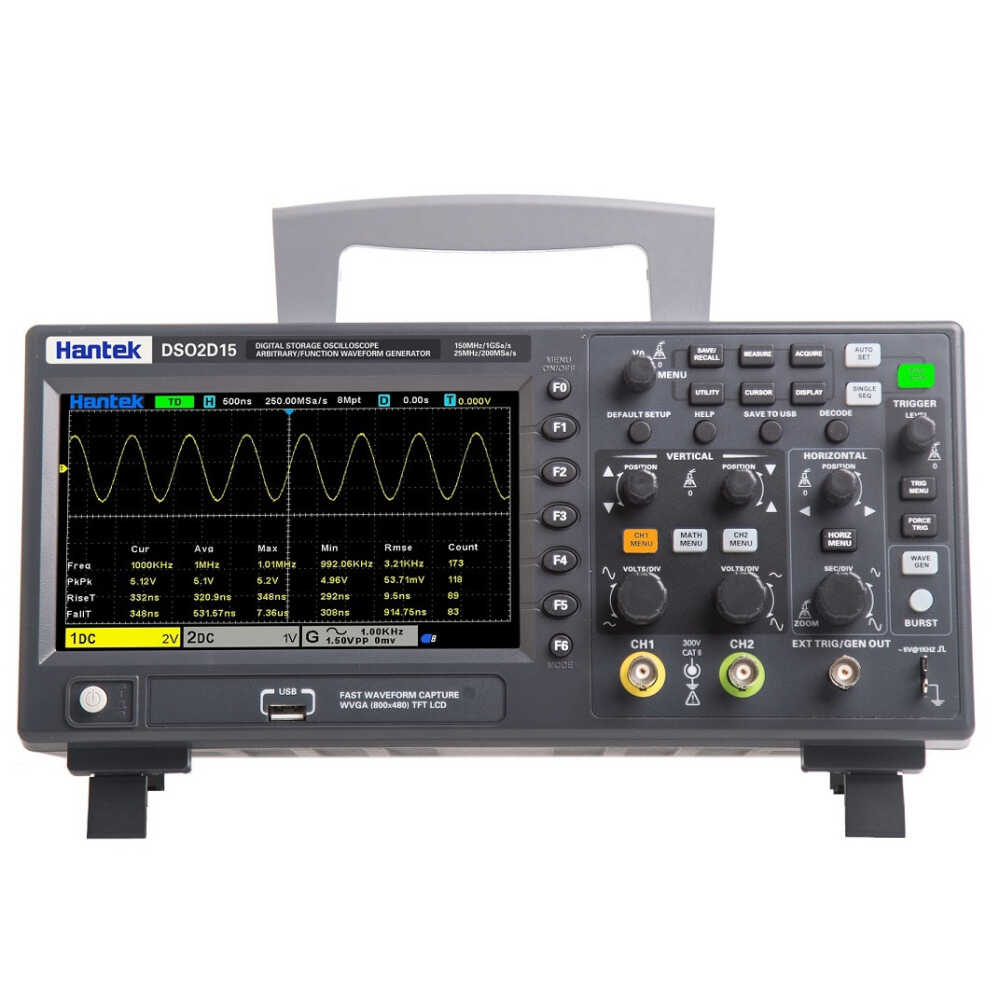

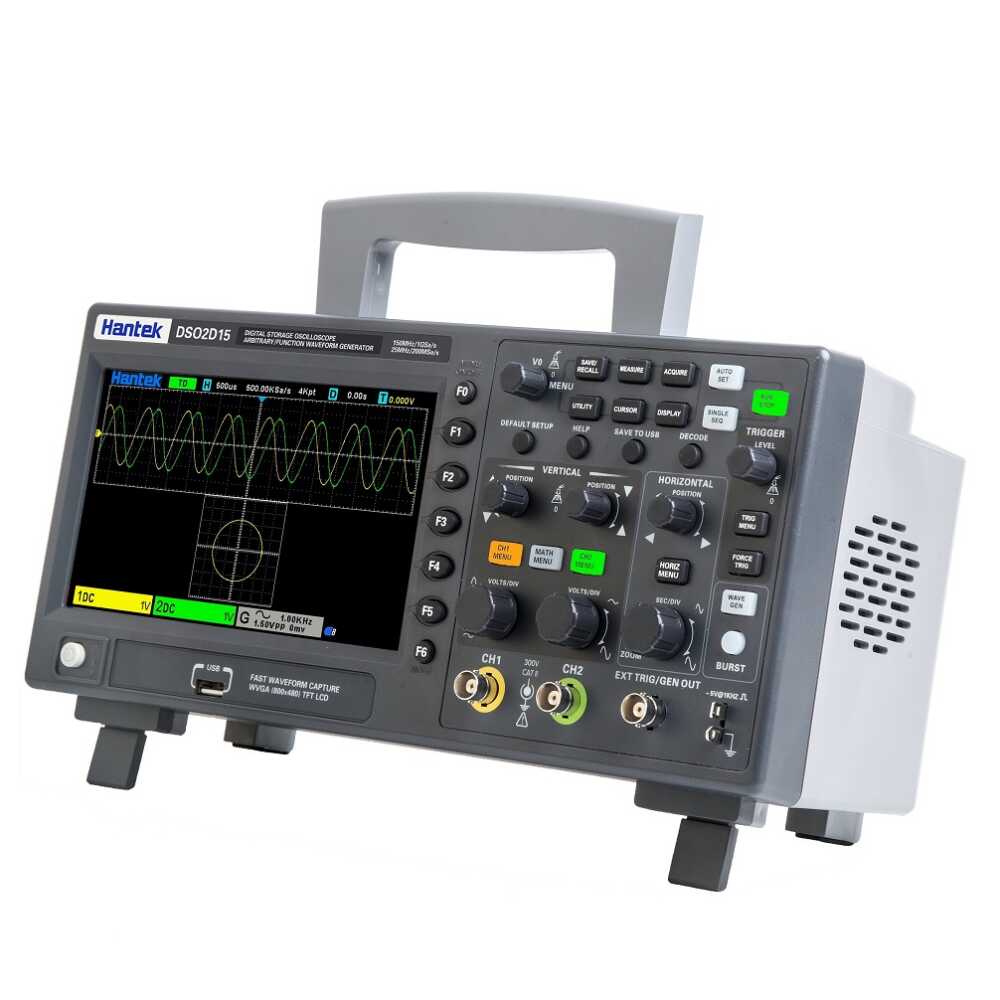

The Hantek DSO2D15 is a multifunction digital oscilloscope designed for high-speed signal analysis, featuring a 150MHz analog bandwidth, 2-channel structure, and a 1GSa/s sampling rate. With its built-in signal generator, it enables both measurement and test signal generation in a single device, making it an ideal solution for electronic design, maintenance and repair, education, and R&D applications.

The device accelerates measurement processes with 32 automatic measurement functions and statistical analysis support, while its 14 different trigger modes ensure stable waveform acquisition even for complex and rapidly changing signals. Triggering and decoding support for serial communication protocols such as RS232 / UART, I2C, SPI, CAN, and LIN provides a significant advantage in embedded system and digital communication analysis.

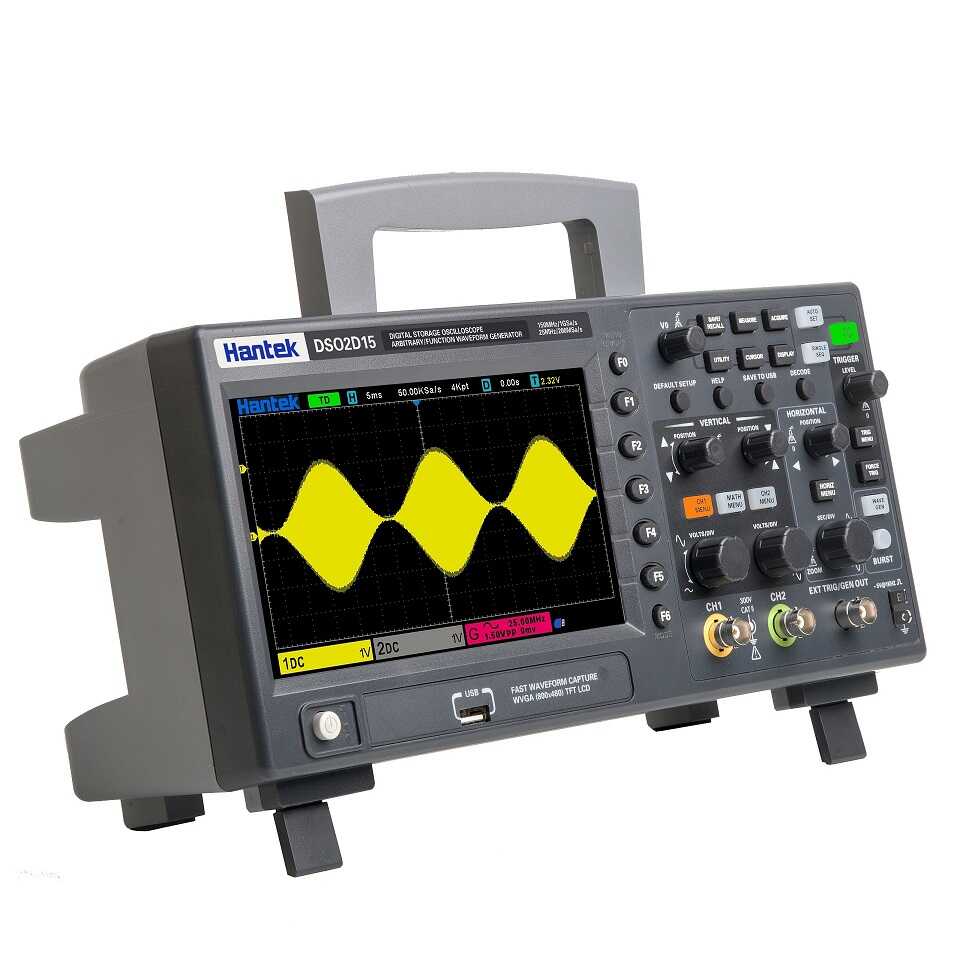

The DSO2D15 features a 7-inch WVGA (800x480) color display for clear and detailed waveform visualization. With an 8Mpts memory depth, it allows long record lengths and detailed zooming. The built-in single-channel signal generator (AWG) reduces the need for an external function generator, making testing and validation processes more efficient.

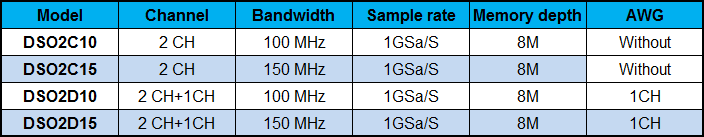

Hantek DSO2D15 Technical Specifications:

• Analog bandwidth: 150MHz

• Number of channels: 2 (independent control per channel)

• Maximum real-time sampling rate: 1GSa/s

• Memory depth: 8Mpts (1 channel), 4Mpts (2 channels)

• Vertical resolution: 8-bit

• Vertical sensitivity: 2mV/div – 10V/div

• Horizontal time base: 2ns/div – 100s/div

• Rise time: 2.4 ns

• Automatic measurements: 32 measurements with statistics

• Trigger modes: 14 different trigger types

• Serial protocol triggering and decoding: RS232 / UART, I2C, SPI, CAN, LIN

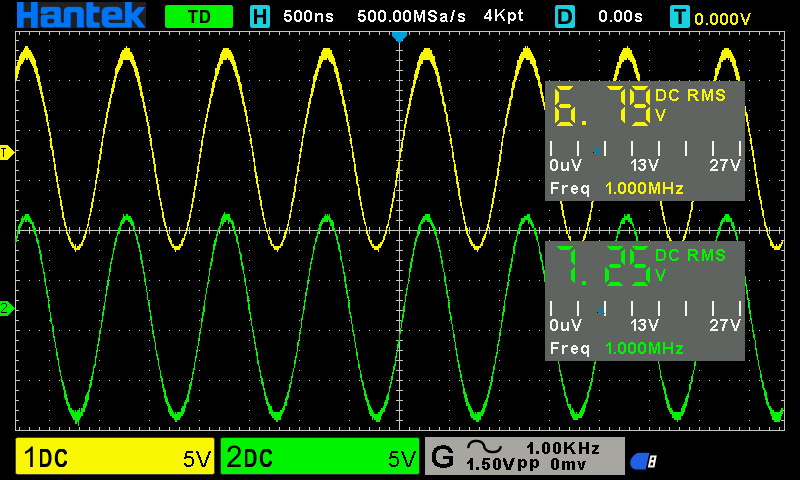

• Digital voltmeter (DVM): 3-digit

• Hardware frequency counter: 6-digit

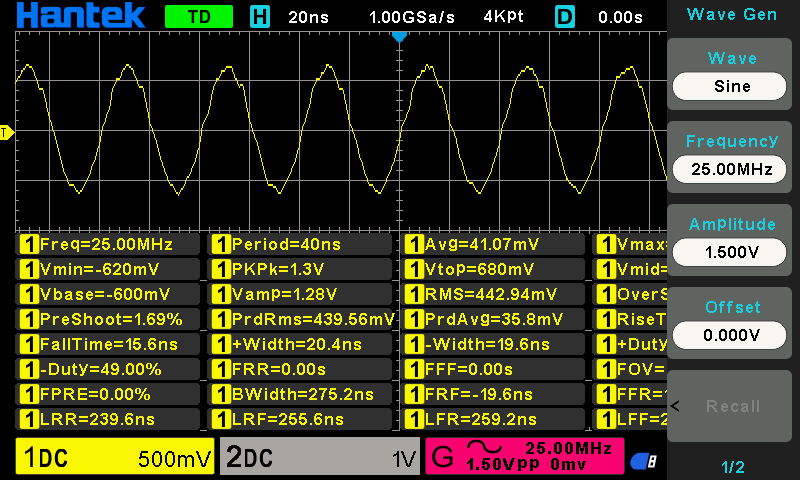

• Built-in signal generator: 1 channel, 25MHz (sine, square, triangle, etc.)

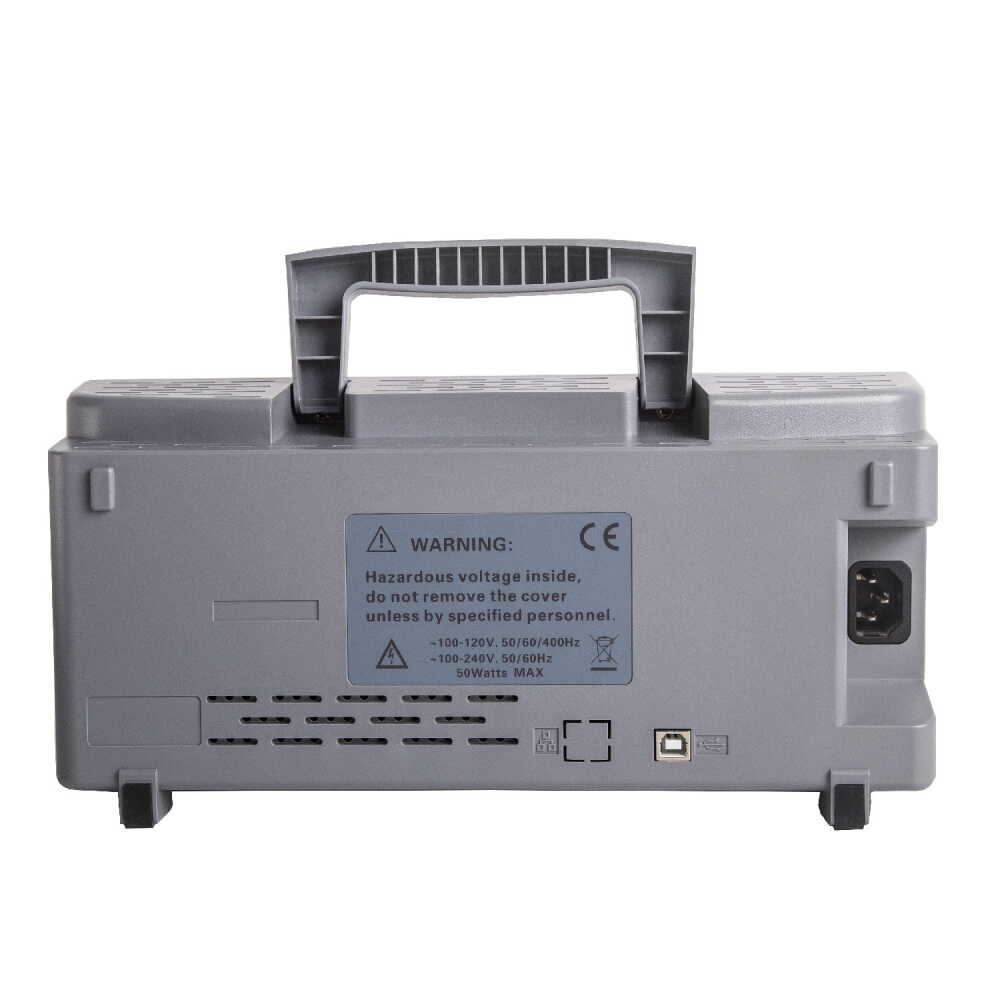

• Interfaces: USB Host, USB Device

• Display: 7-inch WVGA (800 x 480)

• Maximum input voltage: 300 VRMS, CAT II 300V

Package Contents:

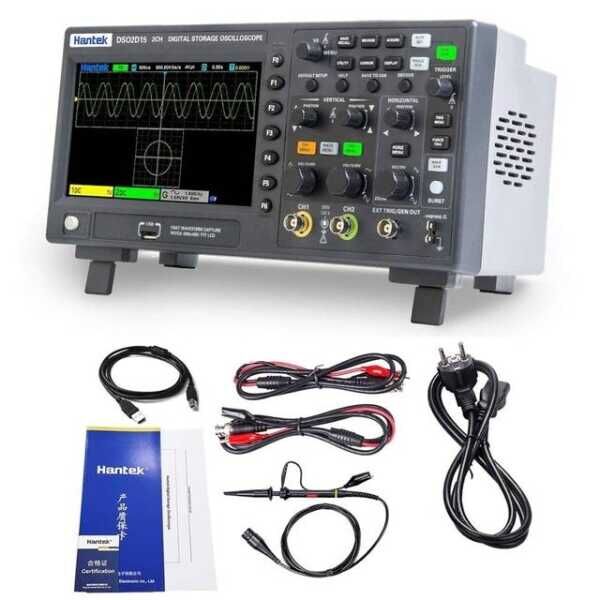

• 1 x Hantek DSO2D15 Digital Oscilloscope

• 2 x Oscilloscope Probes

• 1 x USB Connection Cable

• 1 x Power Cable

• 1 x User Manual and Documentation

Useful Links / Documents:

• DSO2000 User Manual
• DSO2000 SCPI Document
• DSO2000 Firmware
• DSO2000 Software

Similar Products:

• Oscilloscope Models
