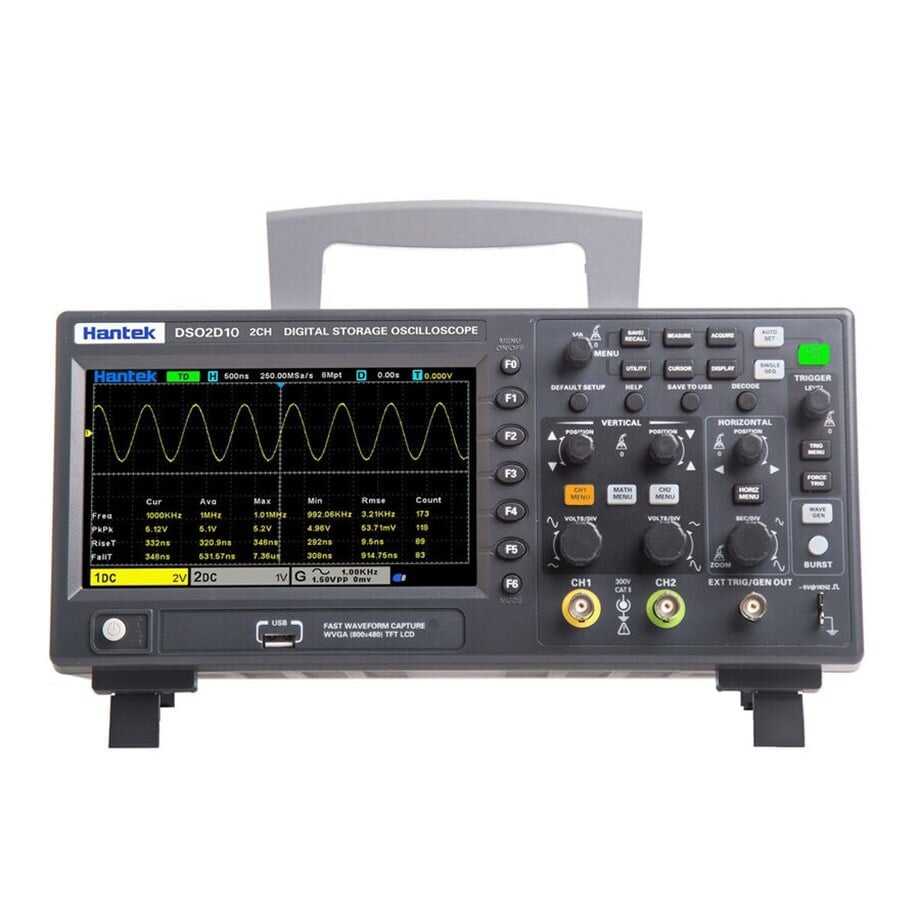

Notify me when its in stockHantek DSO2D10 100MHz Oscilloscope + Signal Generator
The Hantek DSO2D10 is a digital oscilloscope designed for versatile use in electronic design, maintenance and repair, education, and R&D applications, featuring a 100MHz analog bandwidth, 2-channel structure, and a 1GSa/s sampling rate. With its built-in signal generator, it combines both measurement and signal generation functions in a single device.
The device speeds up daily measurement tasks with 32 automatic measurement functions and statistical analysis support. Its 14 different trigger modes ensure stable and clear waveform acquisition. Triggering and decoding support for serial communication protocols such as RS232 / UART, I2C, SPI, CAN, and LIN provide great convenience for digital system analysis.
The DSO2D10 features a 7-inch WVGA (800x480) color display for clear waveform visualization. With an 8Mpts memory depth, it allows long record lengths and detailed zooming. The built-in 1-channel signal generator (AWG) reduces the need for external equipment during testing and validation processes, offering a more efficient working environment.
Hantek DSO2D10 Technical Specifications:
Analog bandwidth: 100MHz
Number of channels: 2 (independent control for each channel)
Maximum real-time sampling rate: 1GSa/s
Memory depth: 8Mpts (1 channel), 4Mpts (2 channels)
Vertical resolution: 8-bit
Vertical sensitivity: 2mV/div – 10V/div
Horizontal time base: 2ns/div – 100s/div
Rise time: 2.4 ns
Automatic measurements: 32 measurements with statistics
Trigger modes: 14 different trigger types
Serial protocol triggering and decoding: RS232 / UART, I2C, SPI, CAN, LIN
Digital voltmeter (DVM): 3-digit
Hardware frequency counter: 6-digit
Built-in signal generator: 1 channel, 25MHz (sine, square, triangle, etc.)
Interfaces: USB Host, USB Device
Display: 7-inch WVGA (800 x 480)
Maximum input voltage: 300 VRMS, CAT II 300V

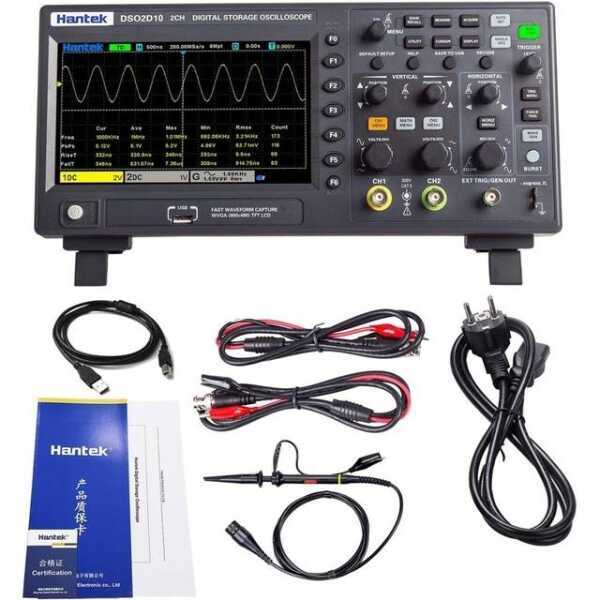

Package Contents:
1 x Hantek DSO2D10 Digital Oscilloscope
2 x Oscilloscope Probes
1 x USB Connection Cable
1 x Power Cable
1 x User Manual and Documentation
