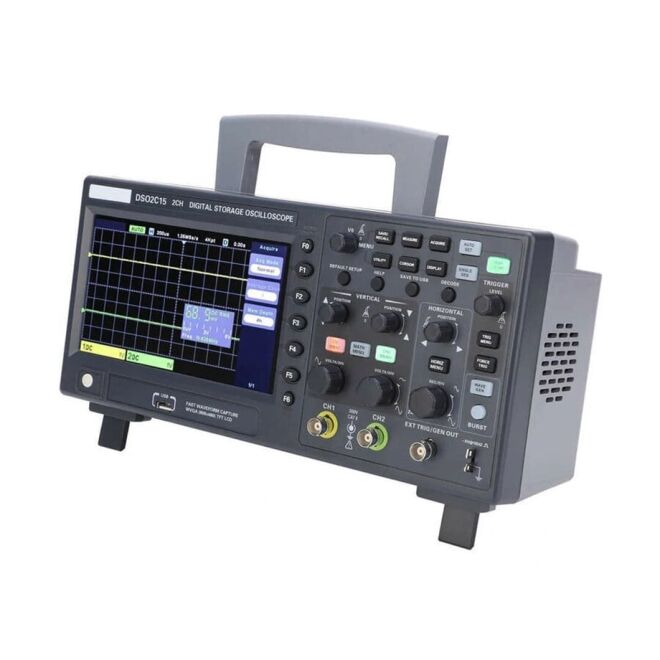

Notify me when its in stockHantek DSO2C15 150MHz 2-Channel Digital Oscilloscope
The Hantek DSO2C15 is a compact digital storage oscilloscope developed for electronic design, maintenance and repair, education, and R&D applications that require high-speed signal analysis. With its 150MHz analog bandwidth, 2-channel structure, and 1GSa/s sampling rate, it enables accurate and stable visualization of signals with fast rise times.
The device accelerates measurement processes with 32 automatic measurement functions and statistical analysis support, while its 14 different trigger modes ensure stable waveform acquisition even in complex signal scenarios. Triggering and decoding support for serial communication protocols such as RS232 / UART, I2C, SPI, CAN, and LIN provides a significant advantage in digital and embedded system analysis.

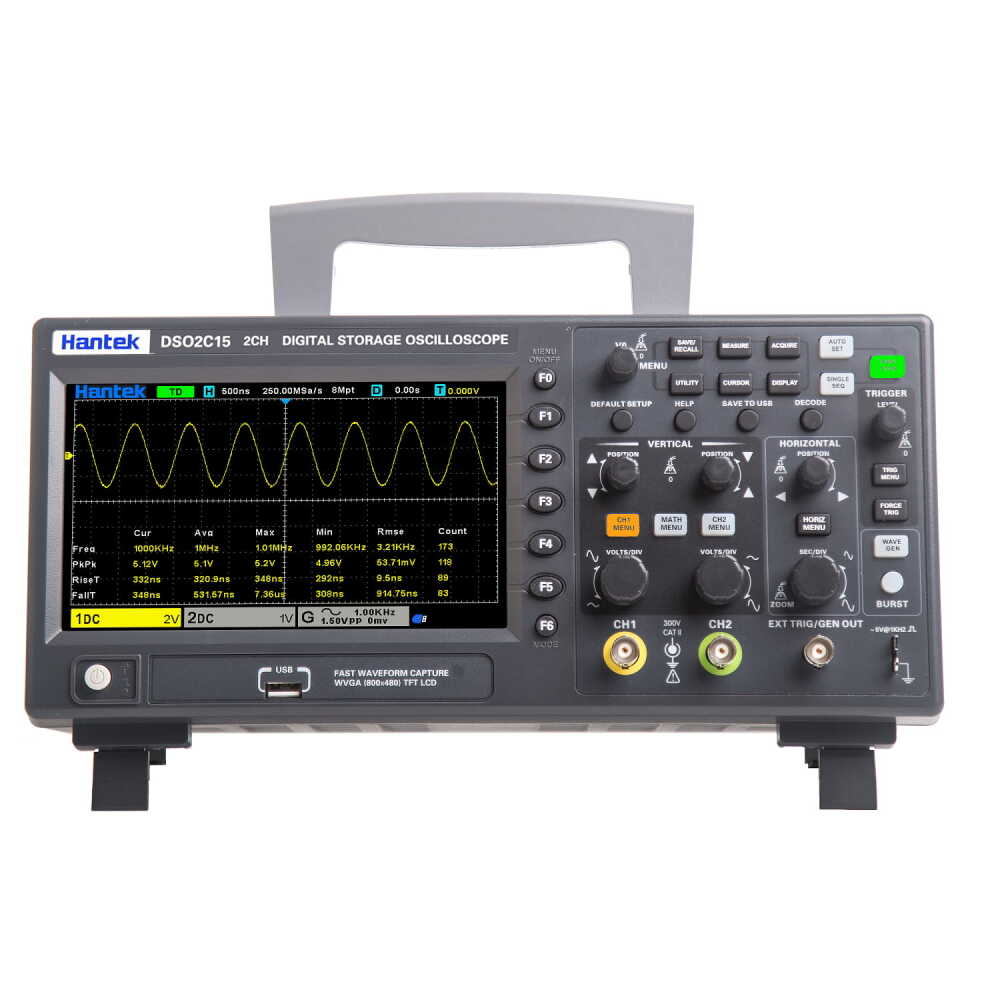

The DSO2C15 features a 7-inch WVGA (800x480) color display for clear waveform visualization. Thanks to its 8Mpts memory depth, it allows long record lengths and detailed zooming. Additional functions such as a built-in digital voltmeter (DVM) and a hardware frequency counter make the oscilloscope more functional for quick verification measurements.
Hantek DSO2C15 Technical Specifications:
Analog bandwidth: 150MHz
Number of channels: 2 (independent control for each channel)
Maximum real-time sampling rate: 1GSa/s
Memory depth: 8Mpts (1 channel), 4Mpts (2 channels)
Vertical resolution: 8-bit
Vertical sensitivity: 2mV/div – 10V/div
Horizontal time base: 2ns/div – 100s/div
Rise time: 2.4 ns
Automatic measurements: 32 measurements with statistics
Trigger modes: 14 different trigger types
Serial protocol triggering and decoding: RS232 / UART, I2C, SPI, CAN, LIN
Digital voltmeter (DVM): 3-digit
Hardware frequency counter: 6-digit
Interfaces: USB Host, USB Device
Display: 7-inch WVGA (800 x 480)
Maximum input voltage: 300 VRMS, CAT II 300V

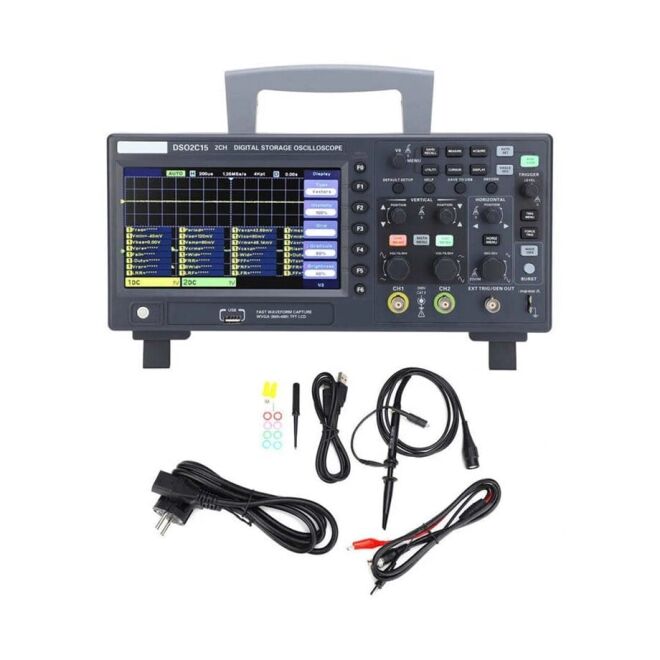

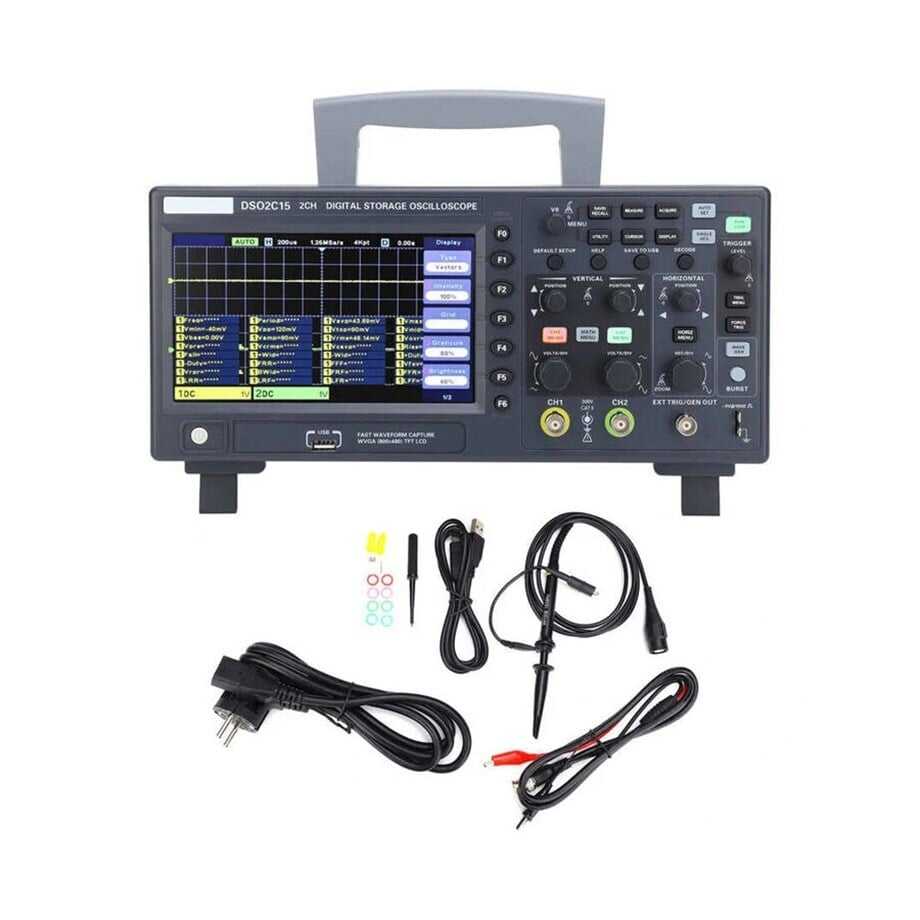

Package Contents:
1 x Hantek DSO2C15 Digital Oscilloscope
2 x Oscilloscope Probes
1 x USB Connection Cable
1 x Power Cable
1 x User Manual and Documentation
