Hantek DSO2C10 100MHz 2-Channel Digital Oscilloscope

Hantek DSO2C10 100MHz 2-Channel Digital Oscilloscope

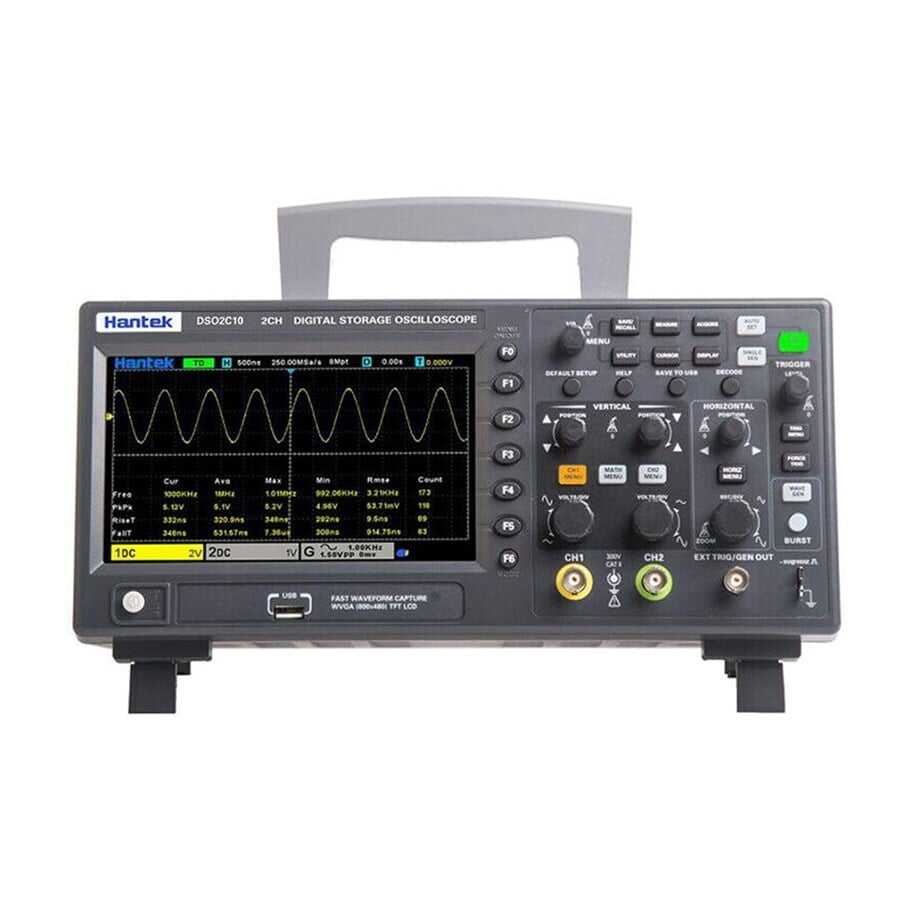

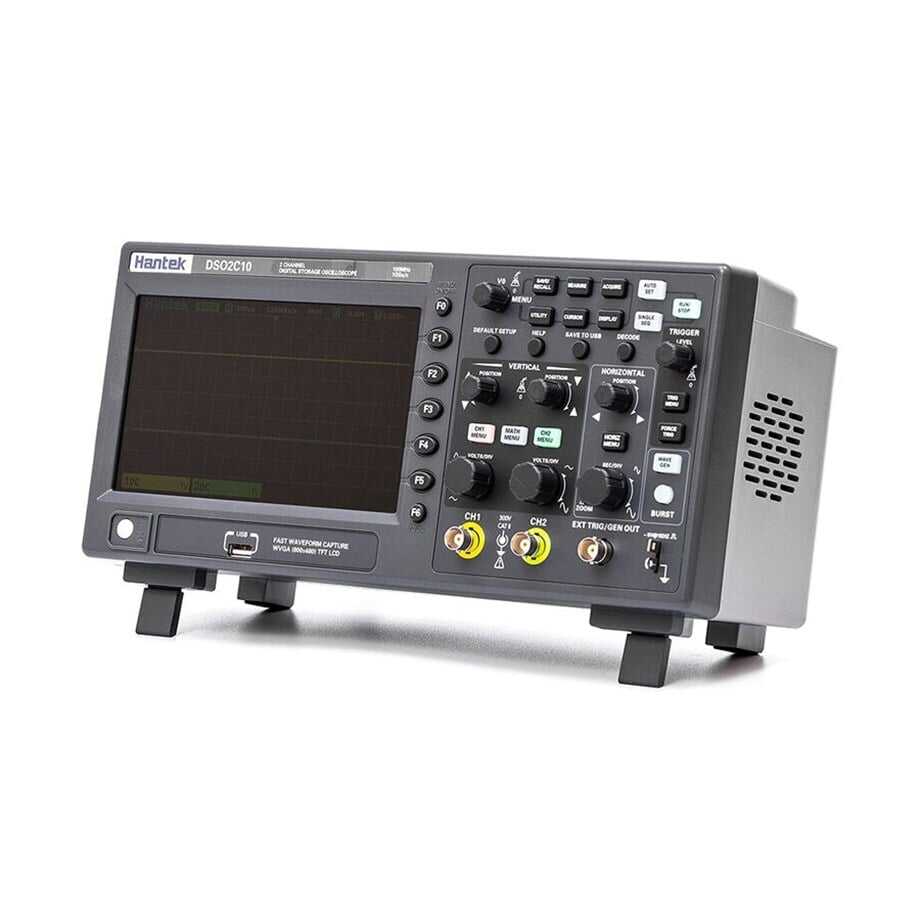

The Hantek DSO2C10 is a compact digital storage oscilloscope that can be reliably used in electronic design, maintenance and repair, education, and R&D applications with its 100MHz bandwidth, 2-channel structure, and 1GSa/s sampling rate. The series offers a practical experience for analyzing both analog signals and digital communication lines thanks to its fast triggering structure, rich automatic measurement options, and trigger/decoding support for serial communication protocols.

The device provides 32 automatic measurement functions with statistical support to speed up daily measurement tasks. With 14 different trigger modes (including common triggers such as edge triggering), it enables stable waveform acquisition. In addition, SCPI command support makes it suitable for remote control and automation scenarios via computer.

The DSO2C10 features a 7-inch WVGA (800x480) display that allows clear observation of waveforms. Thanks to its 8Mpts memory depth, it enables longer record lengths and detailed zooming. Auxiliary functions such as DVM (digital voltmeter) and a hardware frequency counter make the oscilloscope more functional for quick verification measurements.

This model does not include a built-in waveform generator and is ideal for use with external signal sources.

Hantek DSO2C10 Technical Specifications:

• Analog bandwidth: 100MHz

• Number of channels: 2 (independent control knobs for each channel)

• Maximum real-time sampling rate: 1GSa/s

• Memory depth: 8Mpts (1 channel), 4Mpts (2 channels)

• Vertical resolution: 8-bit

• Vertical sensitivity: 2mV/div – 10V/div

• Horizontal time base: 2ns/div – 100s/div

• Rise time: 2.4 ns

• Automatic measurements: 32 measurements with statistics

• Trigger modes: 14 different trigger types

• Serial protocol decoding and triggering: RS232 / UART, I2C, SPI, CAN, LIN

• Digital voltmeter (DVM): 3-digit

• Hardware frequency counter: 6-digit

• Data recording support: Settings, waveforms, reference waveforms, CSV files, screenshots

• Interfaces: USB Host, USB Device

• Display: 7-inch color WVGA (800 x 480)

• Maximum input voltage: 300 VRMS, CAT II 300V

• Dimensions: 318 x 110 x 150 mm

• Weight: 1.9 kg

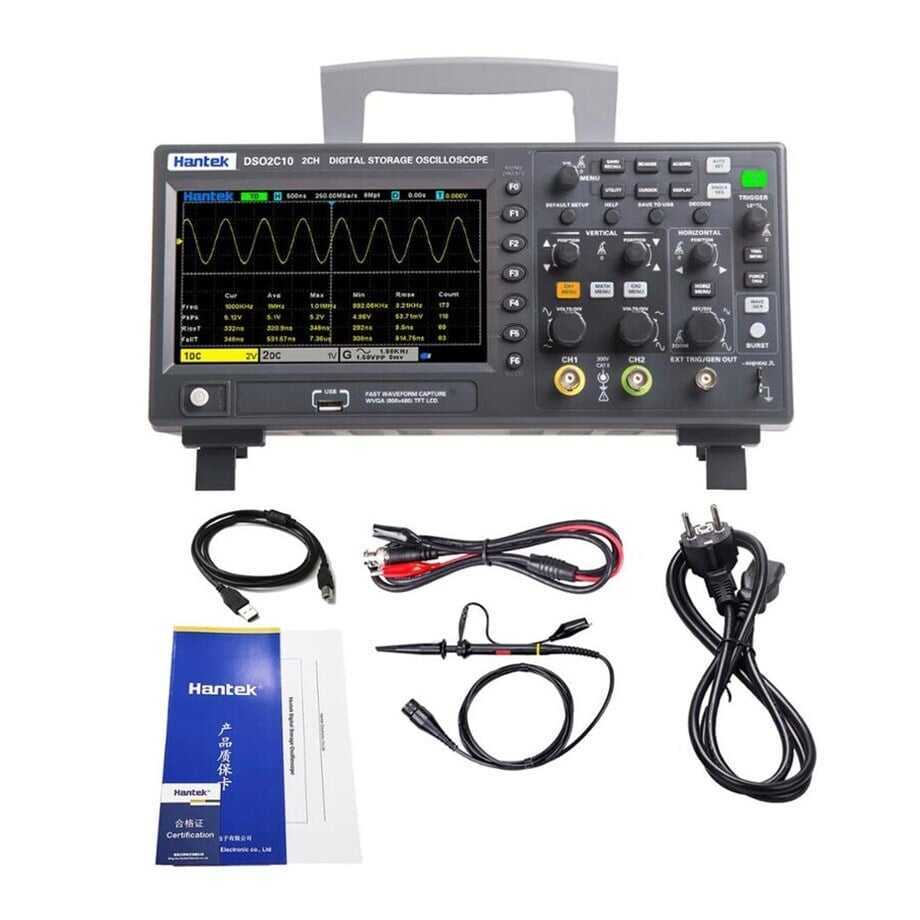

Package Contents:

• 1 x Hantek DSO2C10 Digital Oscilloscope

• 2 x Oscilloscope Probes

• 1 x USB Connection Cable

• 1 x Power Cable

• 1 x User Manual and Documentation

Useful Links / Documents:

• DSO2000 User Manual
• DSO2000 SCPI
• DSO2000 Firmware
• DSO2000 Software
