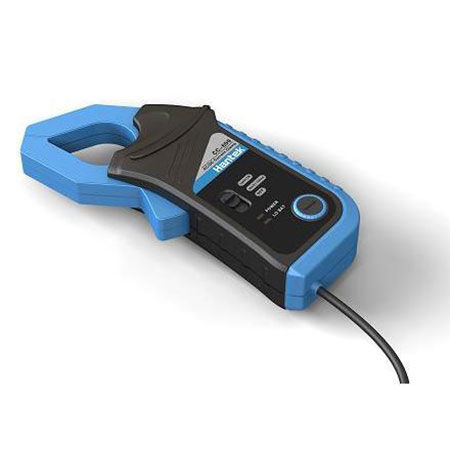

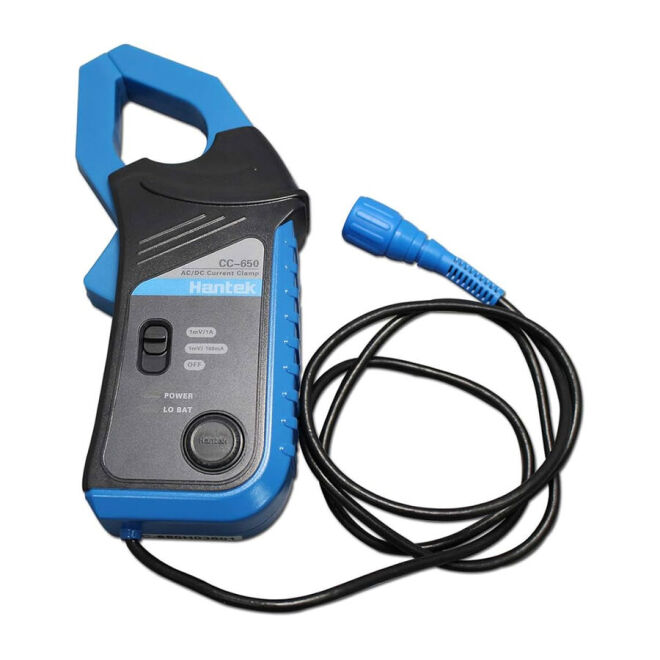

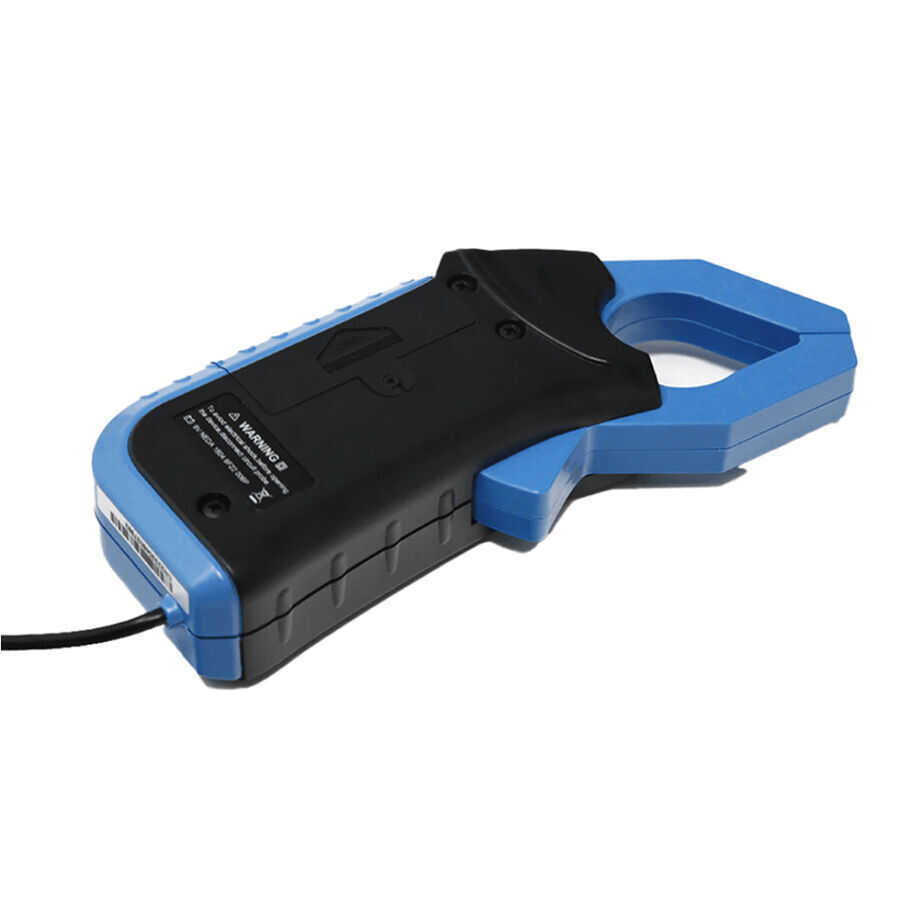

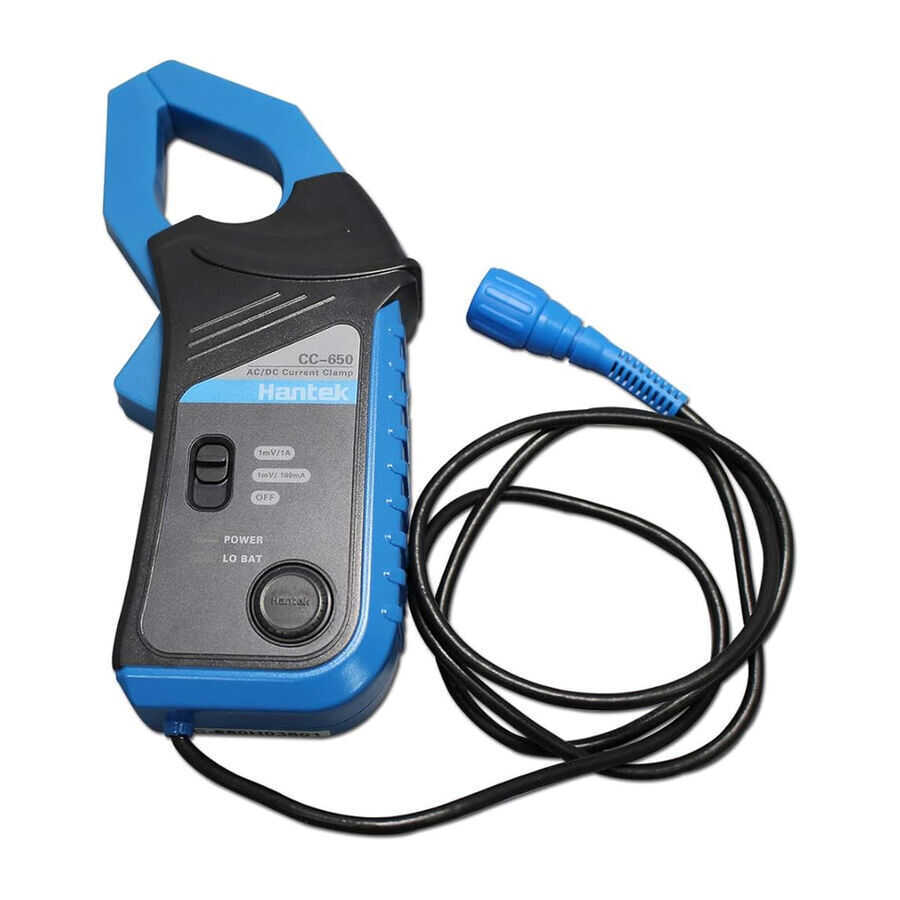

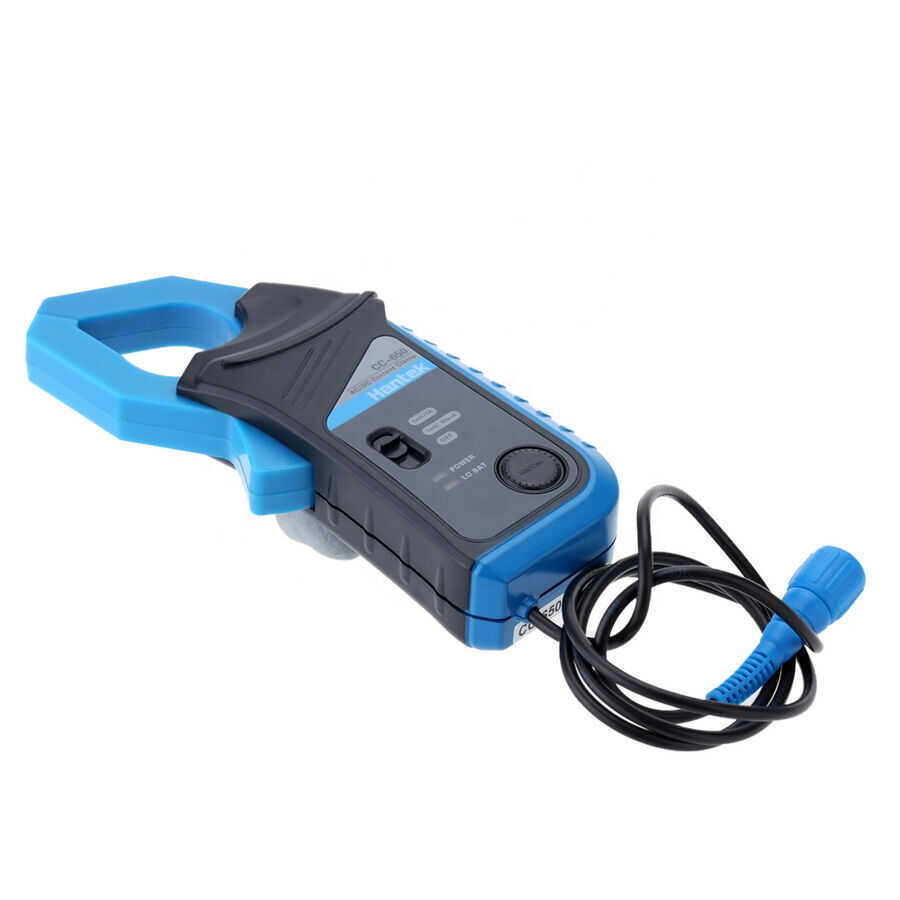

Hantek CC-650 650A AC/DC Oscilloscope Current Probe

Hantek CC-650 650A AC/DC Oscilloscope Current Probe

The Hantek CC-650 is a professional oscilloscope current probe designed for AC and DC current measurements, with a maximum current capacity of up to 650A. Its clamp-type structure allows safe and convenient current measurement without direct electrical contact with the conductor.

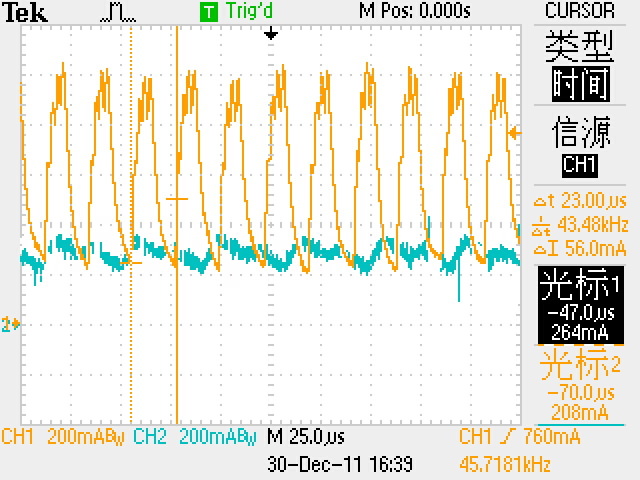

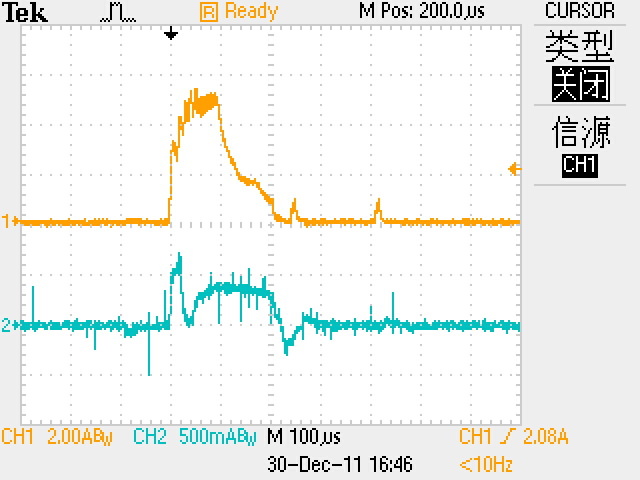

Featuring a bandwidth of 400Hz and a sensitivity of 1mV/10mA, the CC-650 enables accurate and clear observation of current waveforms. It can be connected to oscilloscopes via a BNC connector and to multimeters via banana plugs, providing broad measurement compatibility. The probe linearly converts AC and DC current signals into voltage outputs.

The Hantek CC-650 is ideal for power electronics applications, motor drives, inverters, automotive systems, and industrial maintenance operations. Its rugged housing and ergonomic design make it suitable for both field and laboratory use.

Hantek CC-650 Technical Specifications:

• Measurement type: AC / DC current

• Maximum current capacity: 650A

• Bandwidth: 400Hz

• Sensitivity: 1mV / 10mA

• Output connection: BNC (oscilloscope), banana plug (multimeter)

• External power requirement: None

• Application areas: Power electronics, automotive systems, industrial maintenance

Useful Links / Documents:

• Hantek CC-650 User Manual
