Hantek 2D72 70MHz Oscilloscope + Multimeter + Signal Generator

Hantek 2D72 70MHz Oscilloscope + Multimeter + Signal Generator

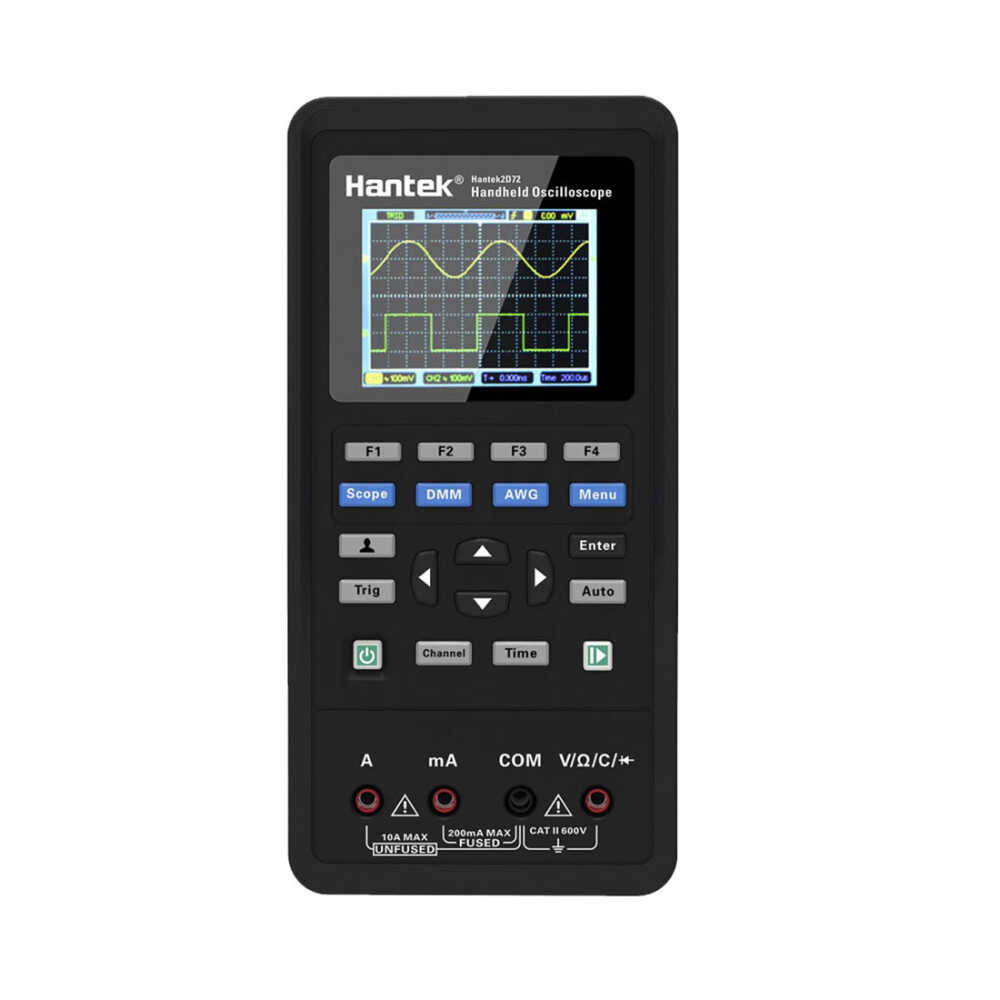

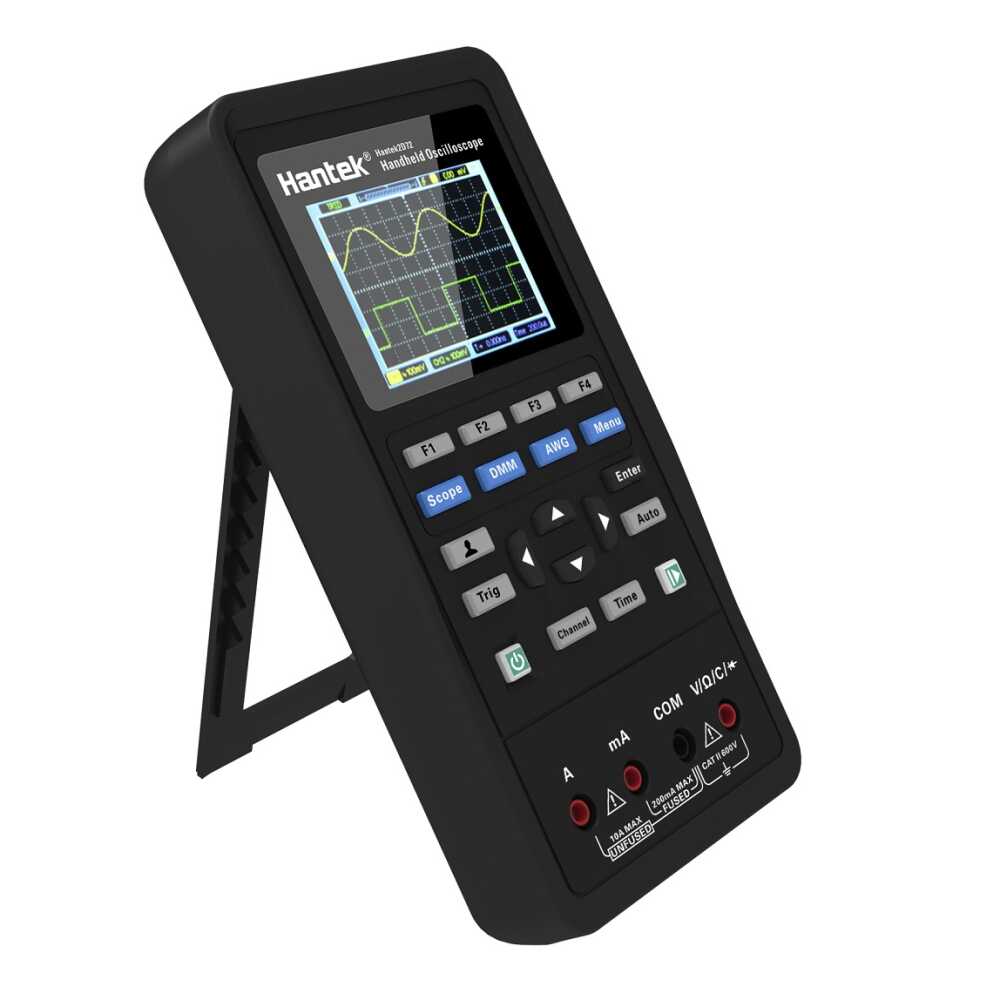

The Hantek 2D72 is a multifunction handheld measurement device that combines a 70MHz digital oscilloscope, a 6000-count digital multimeter, and a built-in signal generator in a single compact and portable unit. It is an ideal solution for field service, maintenance and repair tasks, educational use, and laboratory applications.

With its 2-channel oscilloscope structure, the device meets basic and intermediate signal analysis requirements, while the integrated multimeter enables reliable AC/DC voltage, AC/DC current, resistance, capacitance, diode, and continuity measurements. The built-in signal generator further enhances functionality by allowing test signal generation for circuit testing and verification. Its color LCD display clearly and accurately presents waveforms and measurement results.

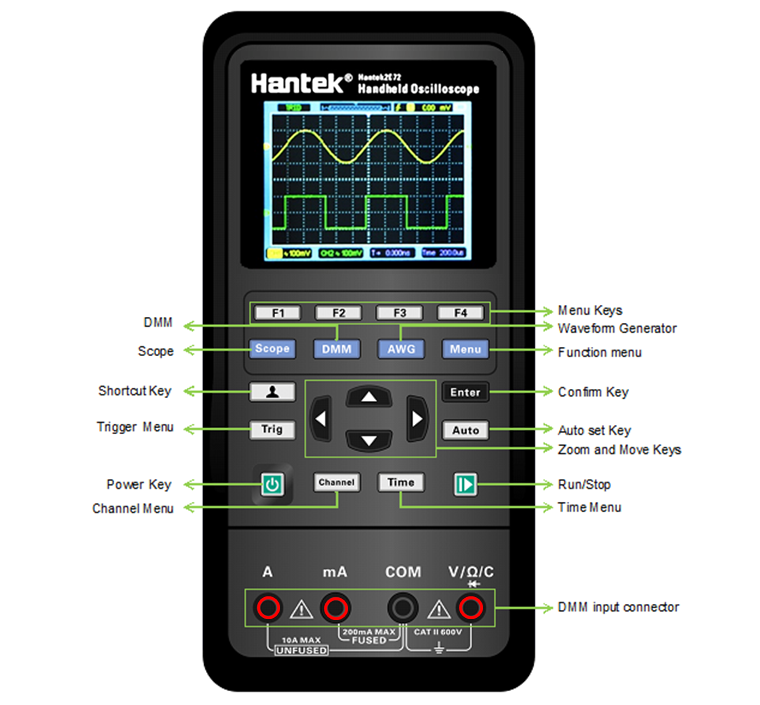

Thanks to its internal rechargeable battery and Type-C charging support, the Hantek 2D72 provides long-lasting mobile operation. Its ergonomic handheld design, intuitive button layout, and comfortable one-handed use deliver a practical and efficient user experience.

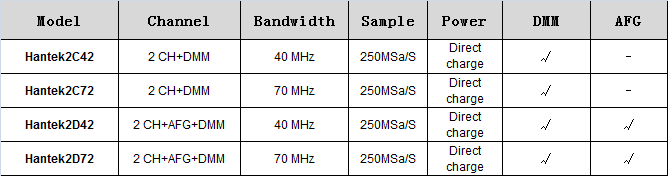

Hantek 2D72 Technical Specifications:

• Oscilloscope bandwidth: 70MHz

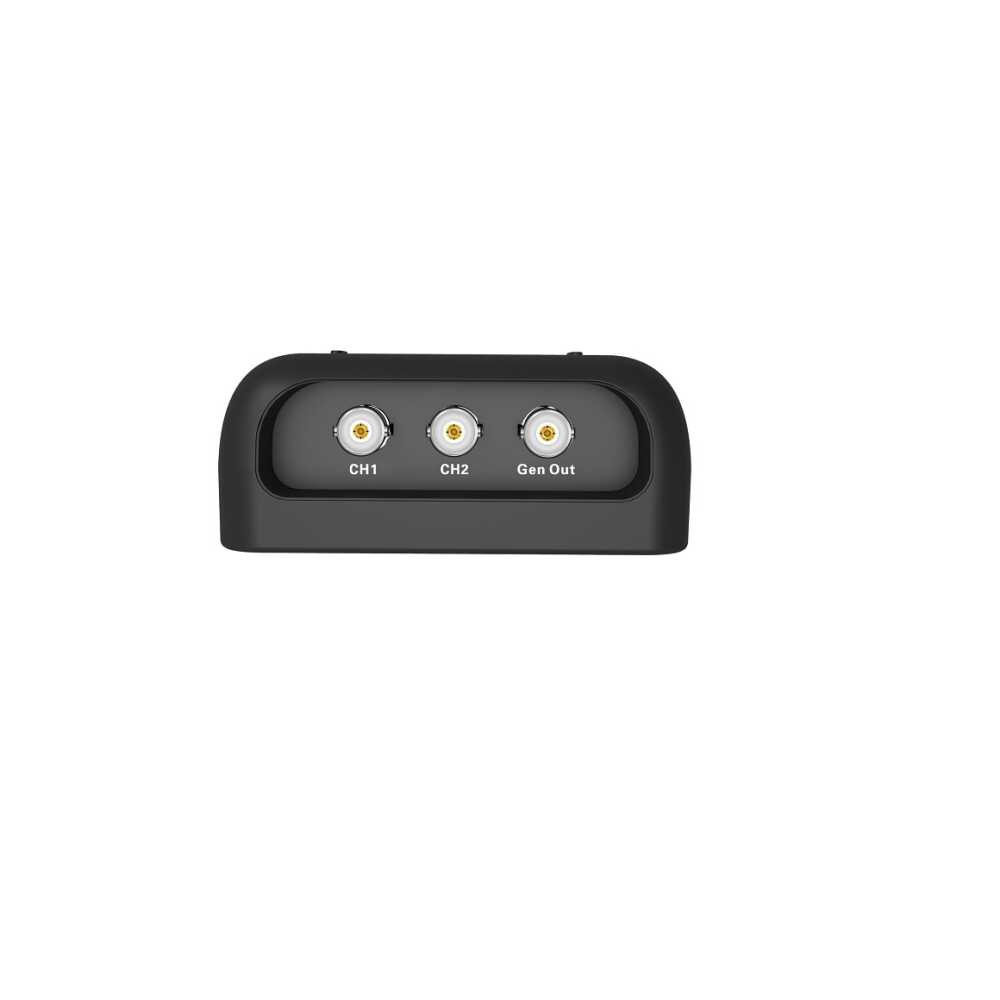

• Number of channels: 2
• Maximum sampling rate: 250MSa/s
• Digital multimeter resolution: 6000 counts
• Measurement functions: AC/DC voltage, AC/DC current, resistance, capacitance, diode, continuity
• Built-in signal generator

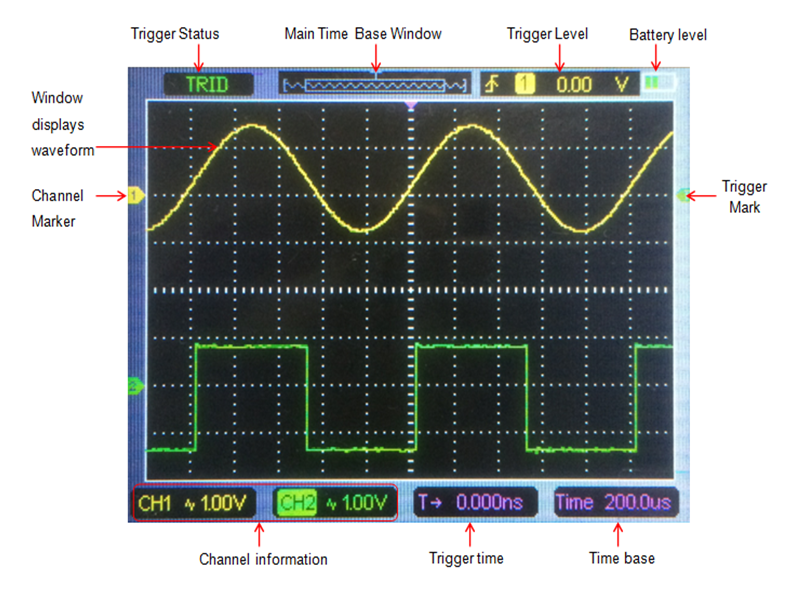

• Display: Color LCD screen
• Charging interface: Type-C

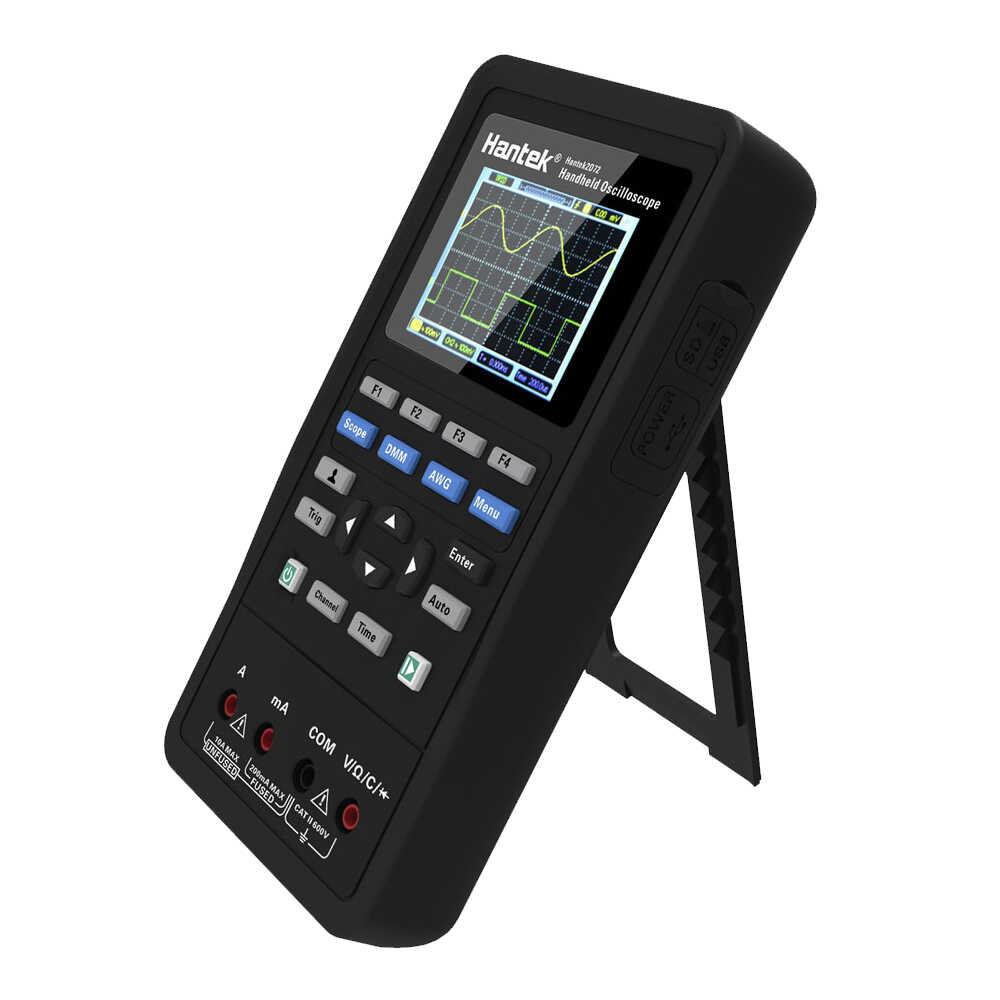

• Portable and ergonomic handheld design
