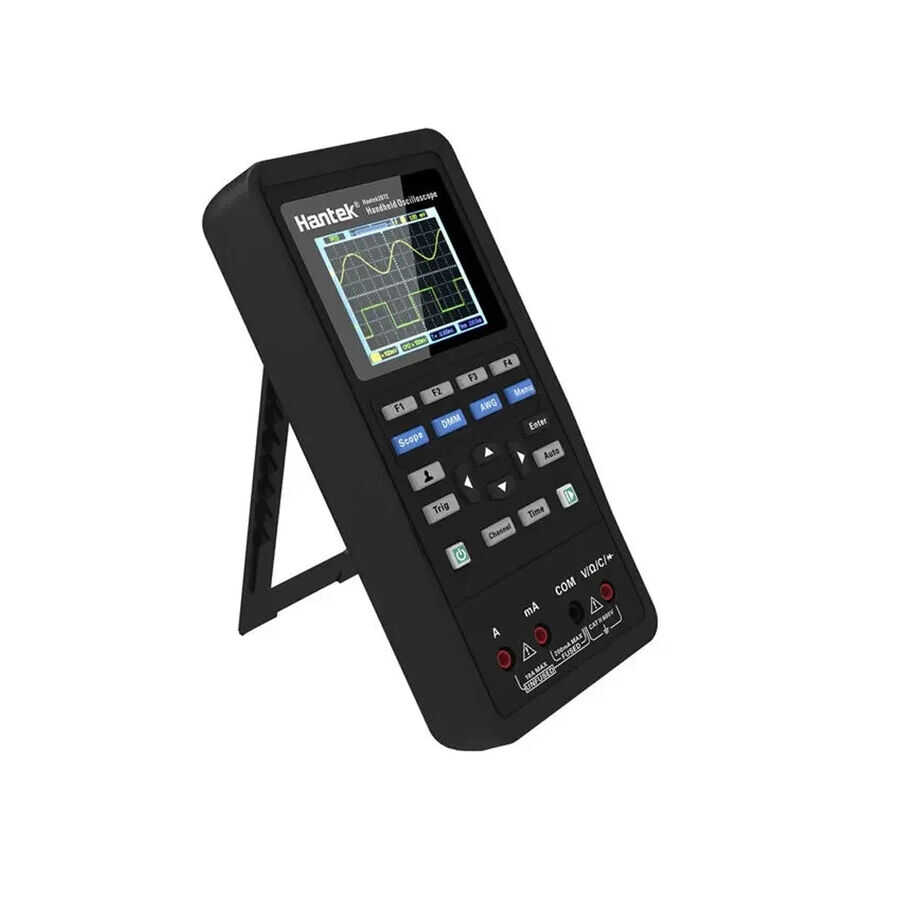

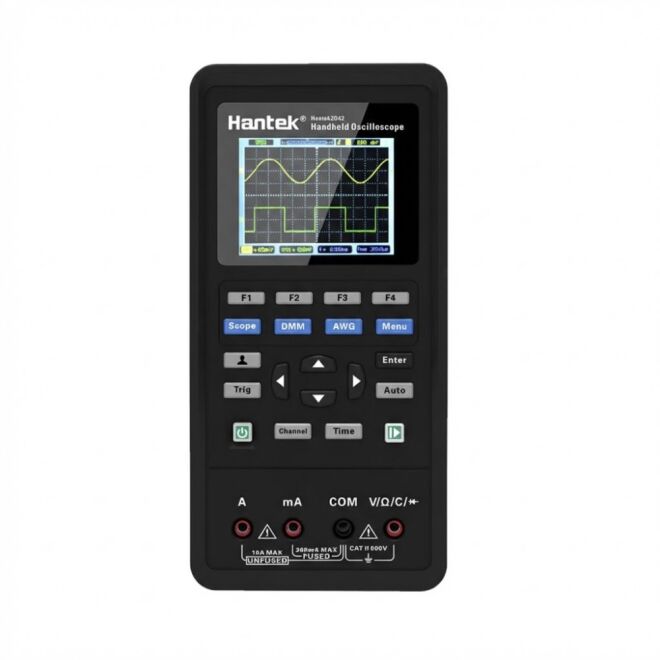

Hantek 2D42 40MHz Handheld Oscilloscope and Multimeter

Hantek 2D42 40MHz Handheld Oscilloscope and Multimeter

The Hantek 2D42 is a multifunctional measuring instrument that combines a 40MHz handheld digital oscilloscope and a 6000-count digital multimeter in a single compact housing. Thanks to its portable design, it is an ideal solution for field work, maintenance and repair tasks, educational applications, and laboratory use.

The oscilloscope features a 2-channel architecture to meet basic signal analysis requirements, while the multimeter function allows AC/DC voltage, AC/DC current, resistance, capacitance, diode, and continuity measurements. Its color LCD display ensures clear and easy-to-read visualization of waveforms and measurement values.

With a built-in rechargeable battery, Type-C charging support, and low power consumption, the device provides long-lasting portable operation. Its ergonomic design and simple button layout enable comfortable one-handed use.

Hantek 2D42 Technical Specifications:

• Oscilloscope bandwidth: 40MHz

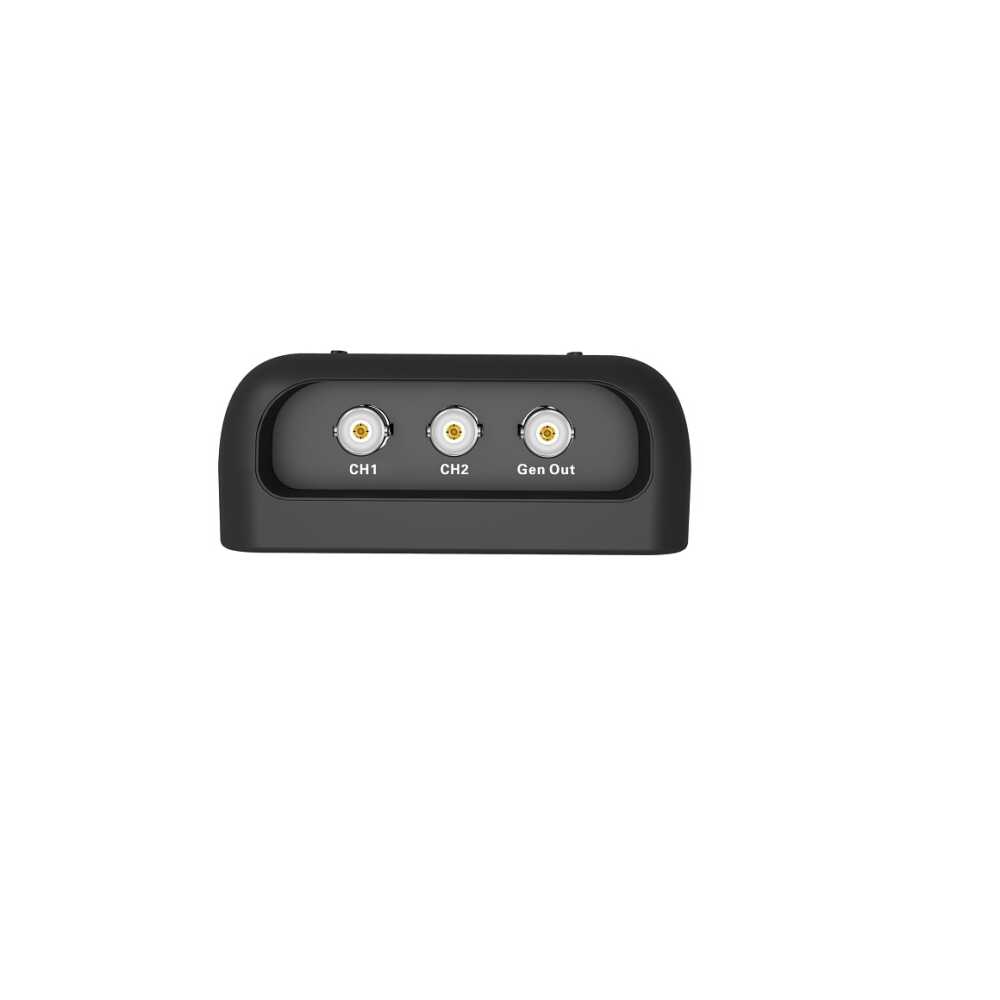

• Number of channels: 2

• Maximum sampling rate: 250MSa/s

• Digital multimeter resolution: 6000 counts

• Measurement functions: AC/DC voltage, AC/DC current, resistance, capacitance, diode, continuity

• Display: Color LCD screen

• Charging interface: Type-C

• Portable, handheld ergonomic design

Useful Links / Documents:

• Hantek 2000 Series User Manual
• Quick Start Guide
• FPGA Update Details
• Firmware Update Details
• Hantek 2D42 Driver
• Hantek 2000 Firmware
• Hantek 2000 Software
• Firmware Update Tool
