Hantek 1833C Handheld Digital LCR Meter

Hantek 1833C Handheld Digital LCR Meter

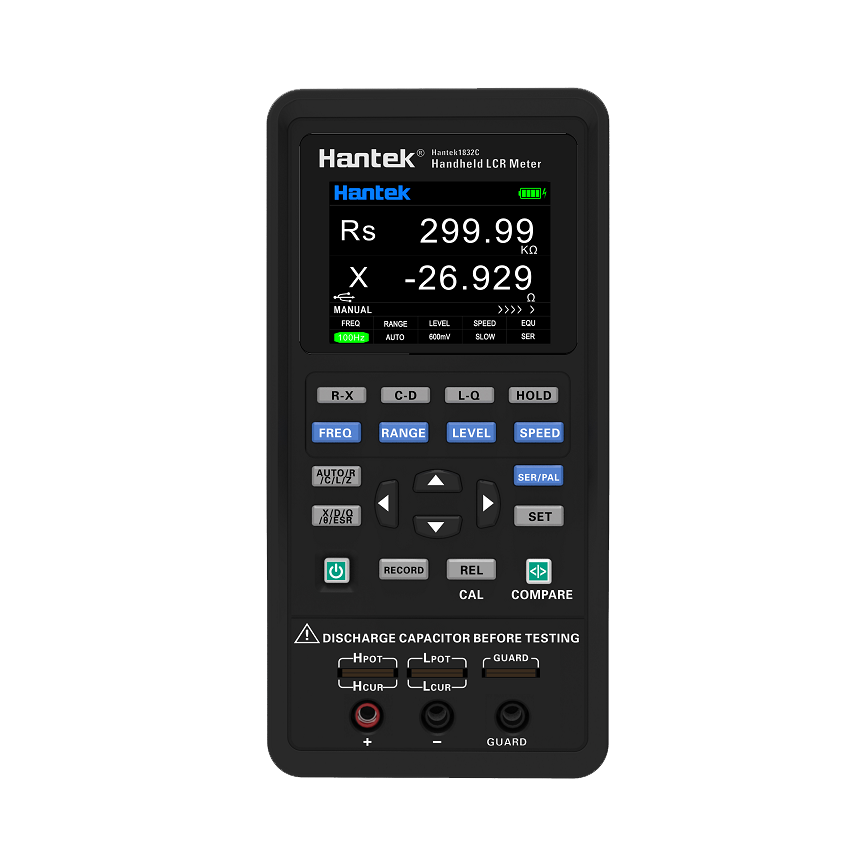

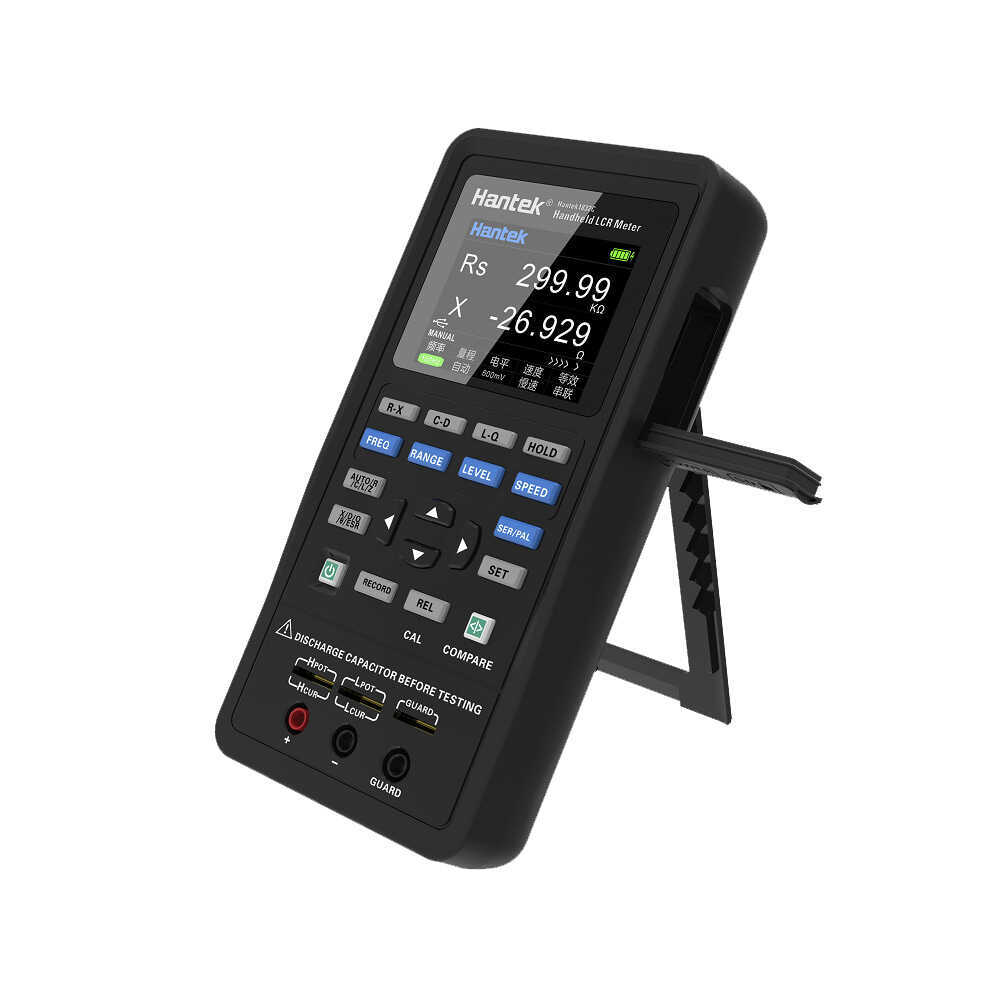

The Hantek 1833C is a portable handheld digital LCR meter designed for measuring inductance (L), capacitance (C), and resistance (R). Thanks to its compact design and built-in lithium battery, it delivers desktop LCR meter performance in field and mobile applications. It can be safely used in electronics maintenance and repair, quality control, education, and R&D applications.

The device provides fast and reliable measurement results for different component types with multiple test frequencies, automatic range selection, and high measurement accuracy. Support for secondary parameters such as ESR, DCR, and Q/D enables detailed evaluation in capacitor and inductor analysis.

The Hantek 1833C features a color TFT LCD that displays measurement values clearly and legibly. Open-circuit and short-circuit calibration support improves measurement accuracy, while the USB interface allows data transfer to a computer and software-assisted operation.

Hantek 1833C Technical Specifications:

• Measurement types: Inductance (L), Capacitance (C), Resistance (R)

• Secondary parameters: ESR, DCR, Q, D

• Test frequencies: 100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz

• Measurement accuracy: 0.3% (typical)

• Equivalent circuit mode: Automatic series / parallel selection

• Measurement speed: Fast / Medium / Slow modes

• Display: Color TFT LCD

• Calibration: Open-circuit / Short-circuit calibration

• Interface: USB (PC connection and data transfer)

• Power supply: Built-in lithium battery

• Form factor: Handheld / portable

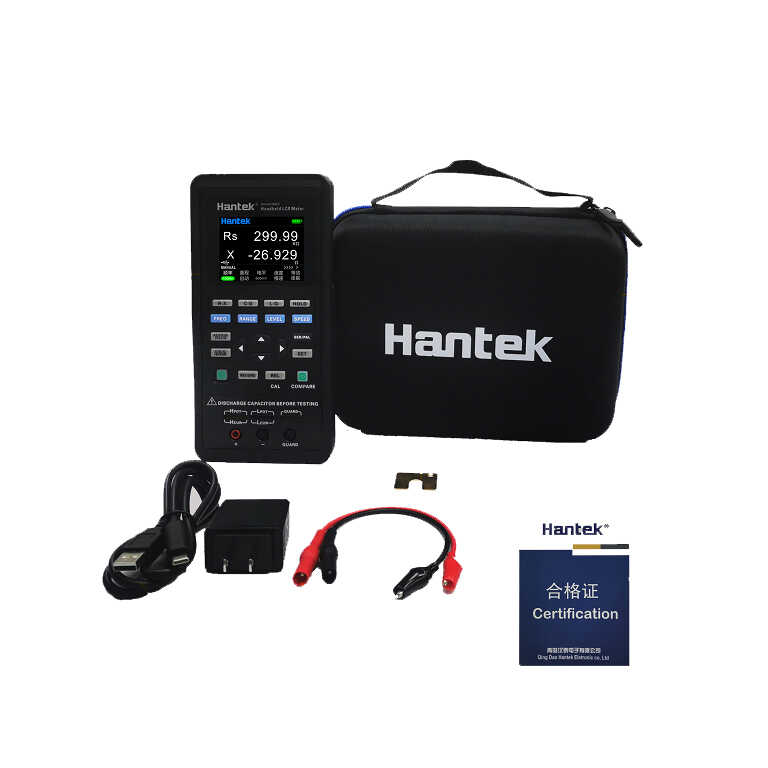

Package Contents:

• 1 x Hantek 1833C Handheld Digital LCR Meter

• 1 x Carrying Case

• 1 x Short-Circuit Calibration Fixture

• 1 x Red-Black Alligator Clip Test Cable

• 1 x USB Power / Charging Adapter

• 1 x User Manual and Certification Documents

Useful Links / Documents:

• Hantek 183X User Manual
• Hantek 183X Firmware
• Hantek 183X Software
• Hantek 183X Update Tool
