Hantek 1008C 20:1 Passive Signal Attenuator

Hantek 1008C 20:1 Passive Signal Attenuator

The Hantek 1008C 20:1 passive signal attenuator is specifically designed for safe and accurate measurement of high-voltage signals in automotive testing and measurement applications. By protecting the oscilloscope input, it extends the measurement range and enables precise signal analysis.

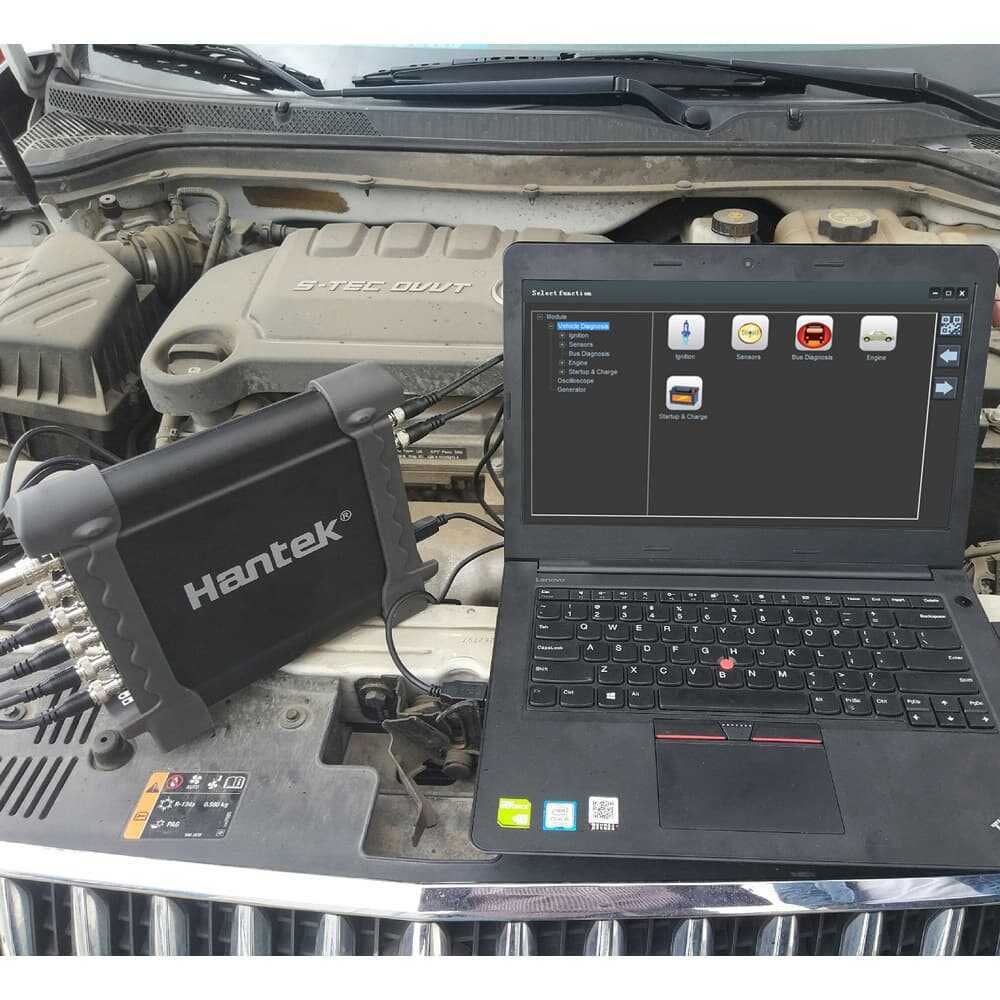

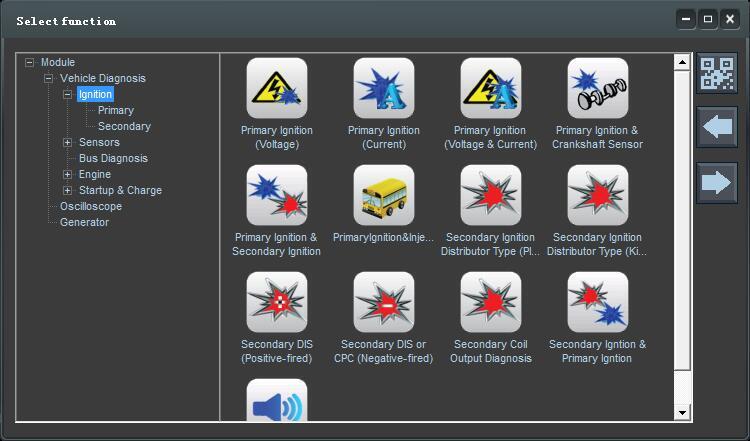

With a 20:1 attenuation ratio, high-amplitude signals are reduced to safe levels while preserving the original waveform integrity. Its passive design eliminates the need for an external power supply and allows direct integration into measurement systems. It is widely used in the analysis of automotive ignition systems, sensor signals, and charging circuits.

Featuring a robust construction and high-quality connectors, the Hantek 1008C offers long-lasting performance even in demanding field conditions. It is fully compatible with Hantek 1008 series automotive oscilloscopes and serves as a reliable measurement accessory for professional users.

Hantek 1008C Technical Specifications:

• Attenuation ratio: 20:1

• Type: Passive signal attenuator

• External power requirement: None

• Application area: Automotive testing and measurement applications

• Compatibility: Hantek 1008 series automotive oscilloscopes

• Safe measurement of high-voltage signals

Useful Links / Documents:

• Hantek 1008 User Manual
• Hantek 1008 Quick Start Guide
• Hantek 1008 Driver

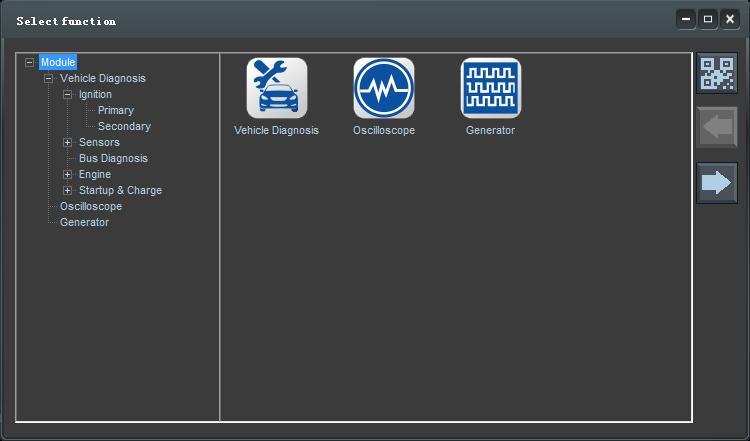

• Hantek 1008 Software
