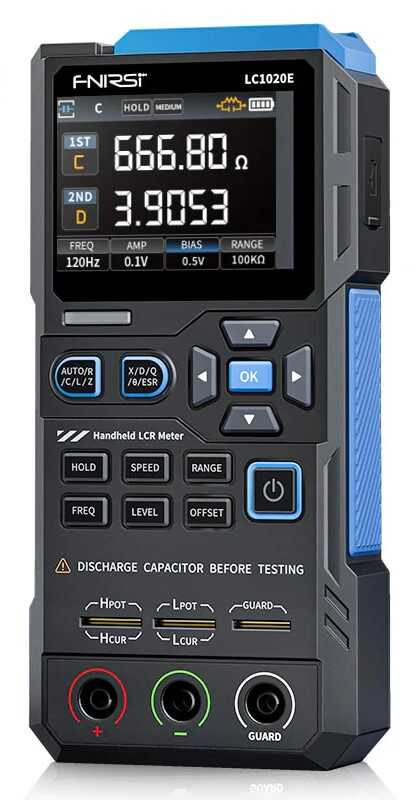

Fnirsi LC1020E High-Precision LC Meter

Fnirsi LC1020E High-Precision LC Meter

The Fnirsi LC1020E is a professional LC meter that delivers high accuracy and stability for inductance (L) and capacitance (C) measurements. Designed for electronic circuit design, maintenance and repair, R&D, and educational applications, this device provides reliable results in all scenarios that require precise measurements thanks to its wide measurement range and advanced analysis functions.

Featuring a portable and ergonomic design, the LC1020E presents measurement values clearly and legibly on its color TFT display. With selectable test frequencies, adjustable RMS test levels, series/parallel measurement modes, and sorting & comparison functions, it fully meets professional measurement needs.

Open & Short calibration functions, internal resistance, and dissipation factor measurements help achieve more accurate results. Data Hold and measurement recording features allow measurement data to be analyzed more efficiently.

Fnirsi LC1020E Technical Specifications:

• Measurement Types: Inductance (L), Capacitance (C)

• Test Frequencies: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz

• Adjustable RMS Test Level

• Series (SER) and Parallel (PAR) Measurement Modes

• Internal Resistance (DCR) and Dissipation Factor Measurement

• Sorting & Comparison Mode

• Open & Short Calibration Support

• Display: Color TFT LCD

• Data Hold and Measurement Recording

• Power Supply: Built-in Rechargeable Battery

• Charging & Updates: USB Type-C

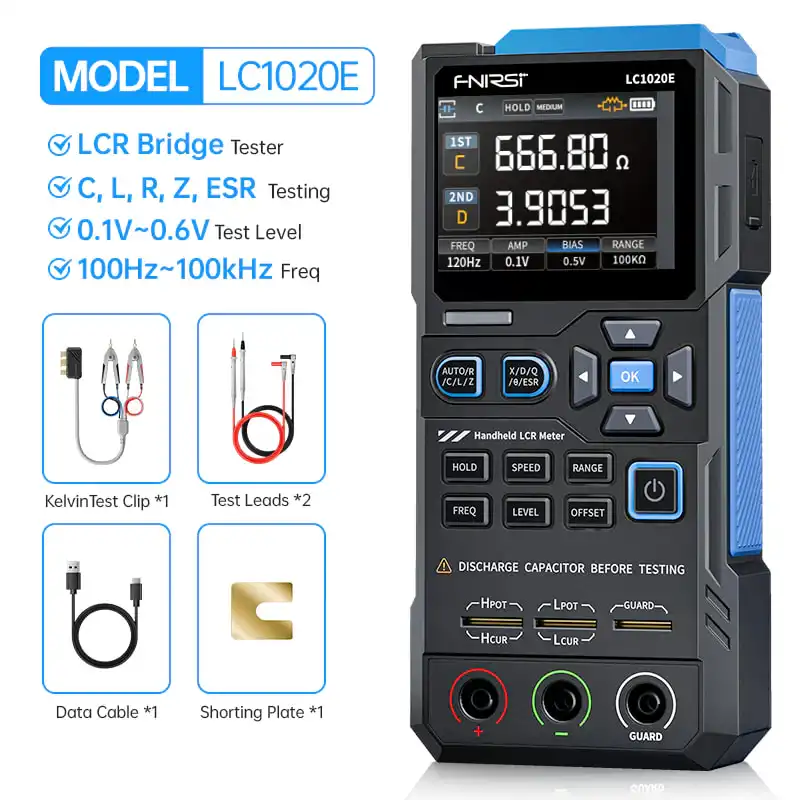

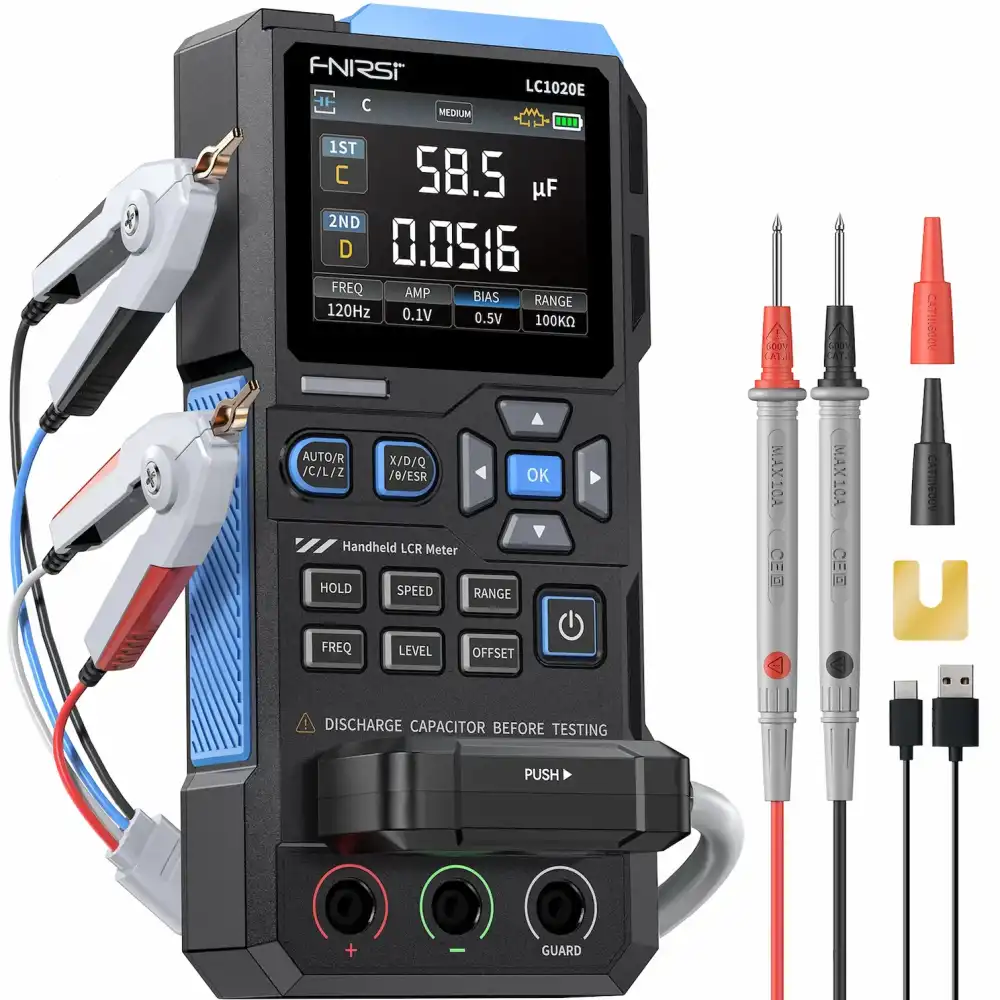

Package Contents:

• 1 x Fnirsi LC1020E LC Meter

• Measurement Probes and Test Leads

• USB Charging Cable

• User Manual

Useful Links / Documents:

• Fnirsi LC1020E User Manual (PDF)
• Fnirsi LC1020E Firmware Update
• Fnirsi LC1020E Video Tutorial Series
