Fnirsi DPS150 Adjustable DC Programmable Power Supply

Fnirsi DPS150 Adjustable DC Programmable Power Supply

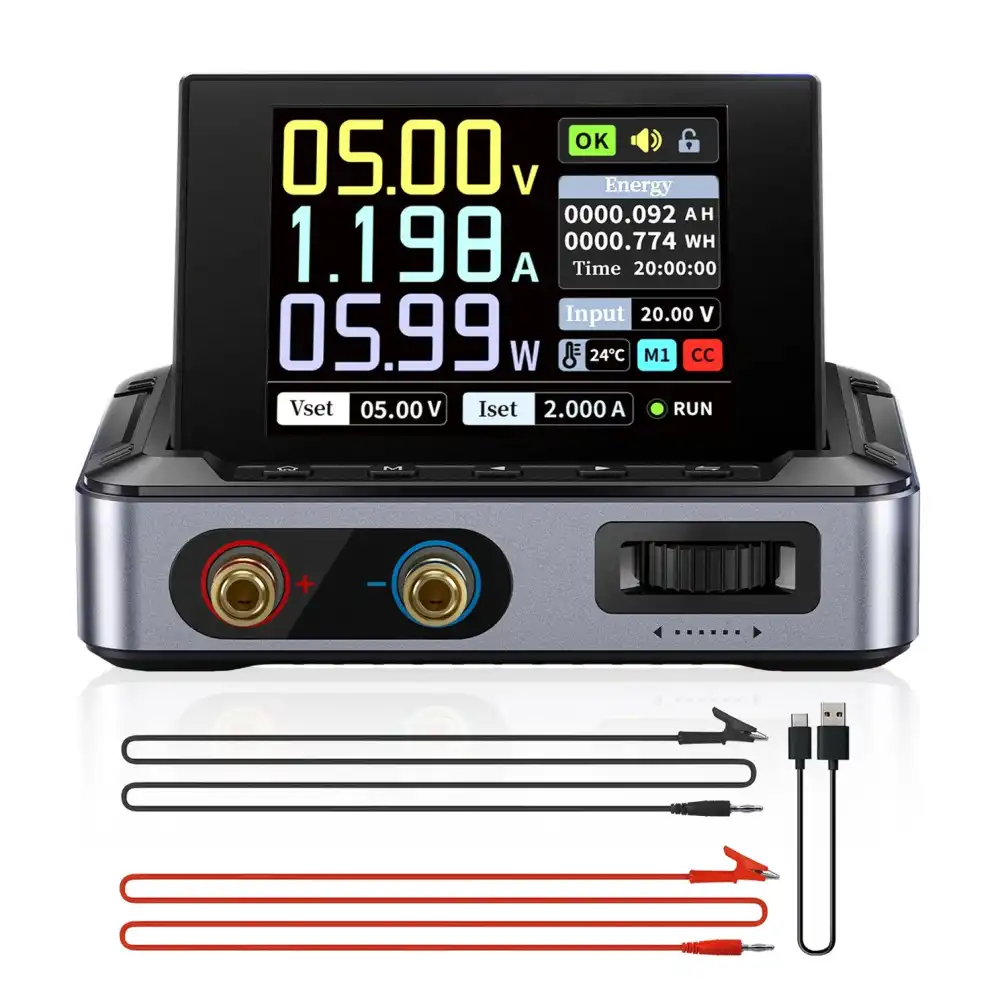

The FNIRSI DPS-150 is a programmable DC power supply that delivers up to 150W of output power with an adjustable range of 0–30V and 0–5A, all in a compact form factor. It is ideal for laboratory testing, electronic circuit experiments, repair and maintenance tasks, and hobby projects that require stable and precise power output.

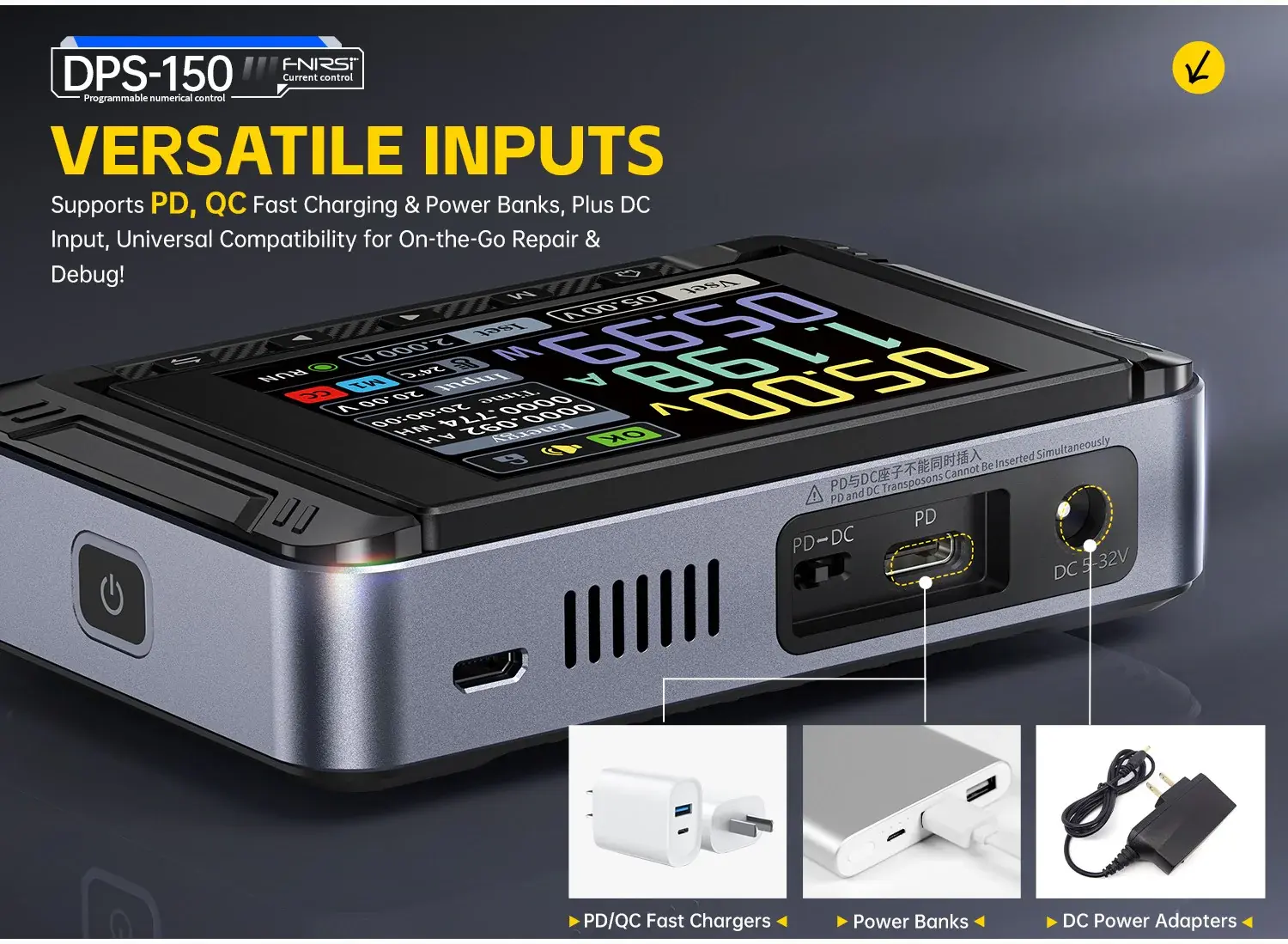

Thanks to its Type-C input interface and multiple power input options such as PD, QC, and DC, it can be powered by power banks, fast chargers, or DC adapters, offering great flexibility in various working environments. With CC/CV modes, ultra-low ripple output, and comprehensive protection features, it is designed to safely power sensitive electronic devices.

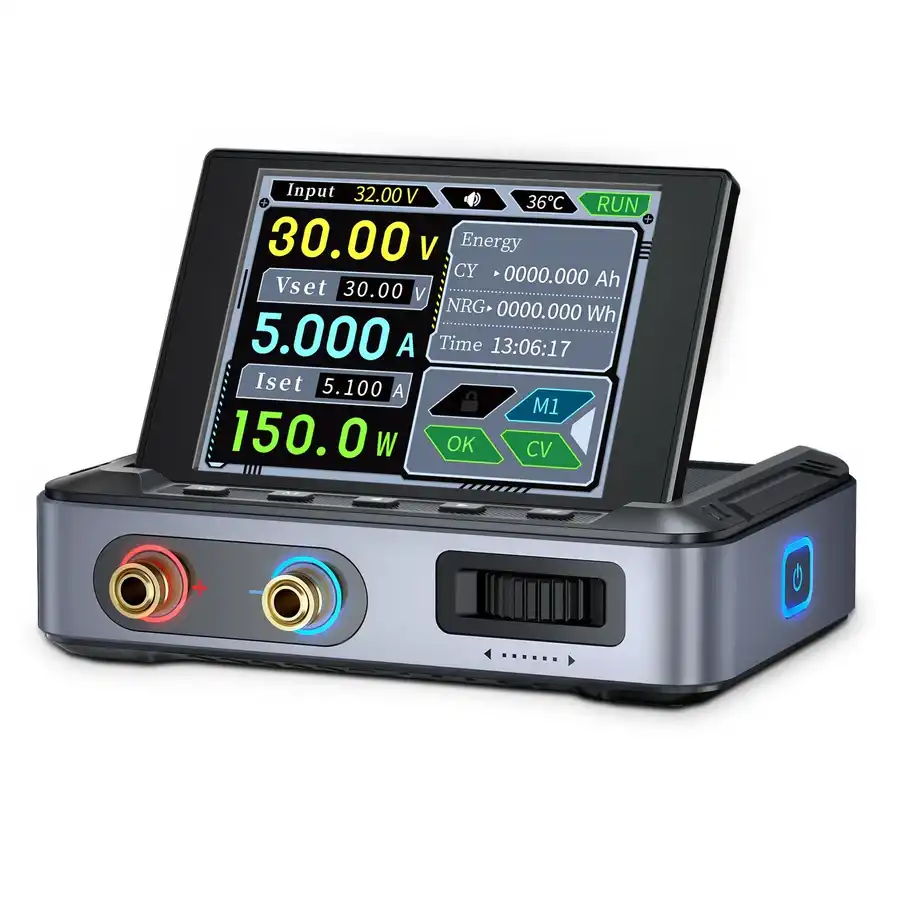

The 2.8-inch IPS color display provides real-time monitoring with both numeric and graphical views. The screen can be rotated by 90°, allowing comfortable viewing from different angles. In addition, PC software support, six preset output profiles, and firmware upgrade capability make it suitable for advanced users.

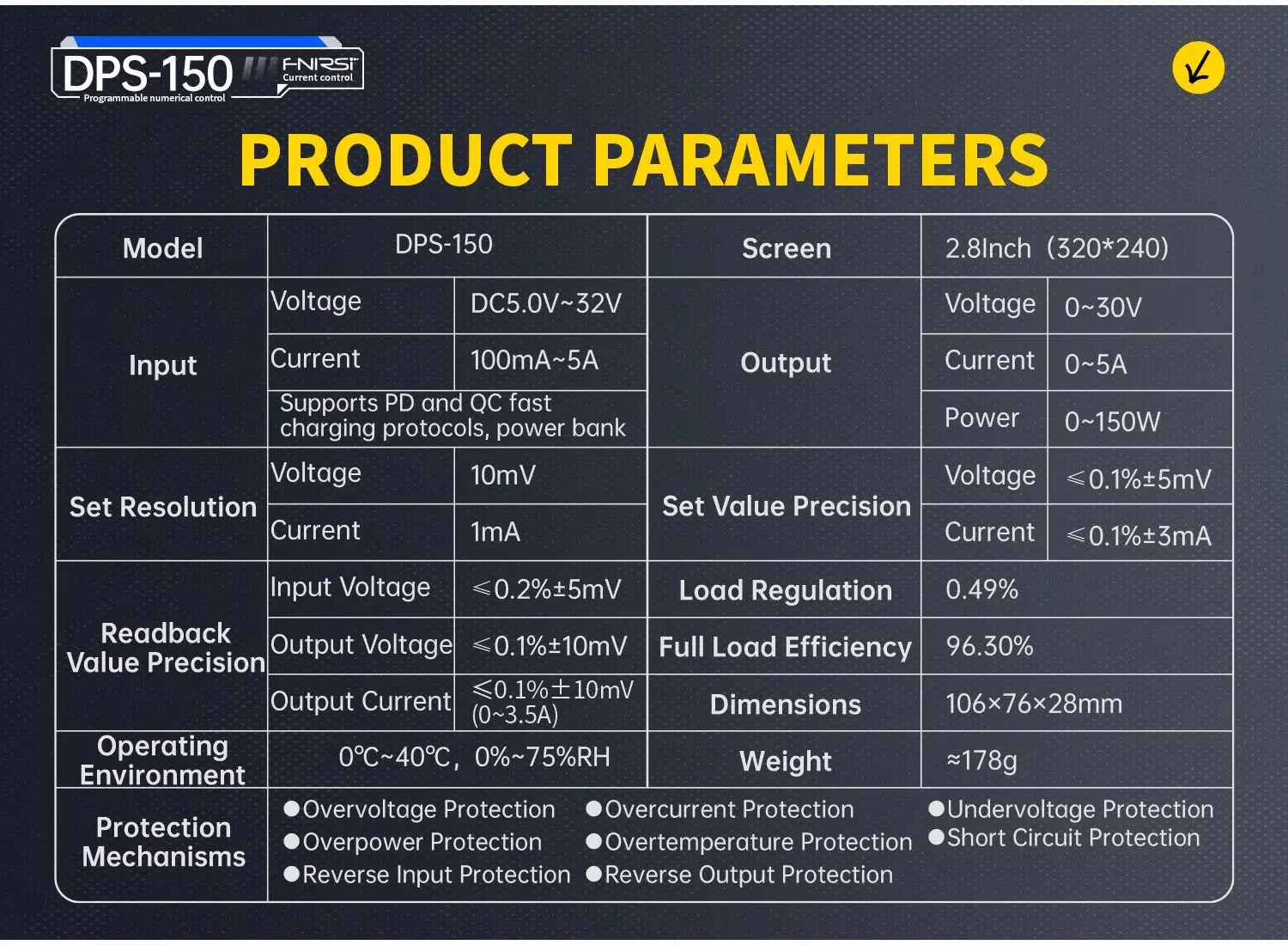

Fnirsi DPS150 Adjustable DC Programmable Power Supply Technical Specifications:

• Output voltage: 0–30V

• Output current: 0–5A

• Output power: 0–150W

• Input voltage: DC 5.0V – 32V

• Input current: 100mA – 5A

• Power input options: PD fast charger, QC fast charger, power bank, DC power adapters

• Operating modes: CC/CV (Constant Current / Constant Voltage)

• Display: 2.8-inch IPS (320x240), 90° rotatable

• Load regulation: 0.49%

• Full load efficiency: 96.30%

• Operating temperature: 0°C – 40°C

• Dimensions: 106 × 76 × 28 mm

• Weight: Approx. 178 g

• PC software support: Yes

• Firmware upgrade: Supported

• Protection features: Over-voltage, over-current, under-voltage, over-power, over-temperature, reverse input, reverse output, short circuit protection

Package Contents:

• DPS-150 power supply unit x1

• Alligator clip cables x2 (Red & Black)

• Micro USB cable

• User manual x1
