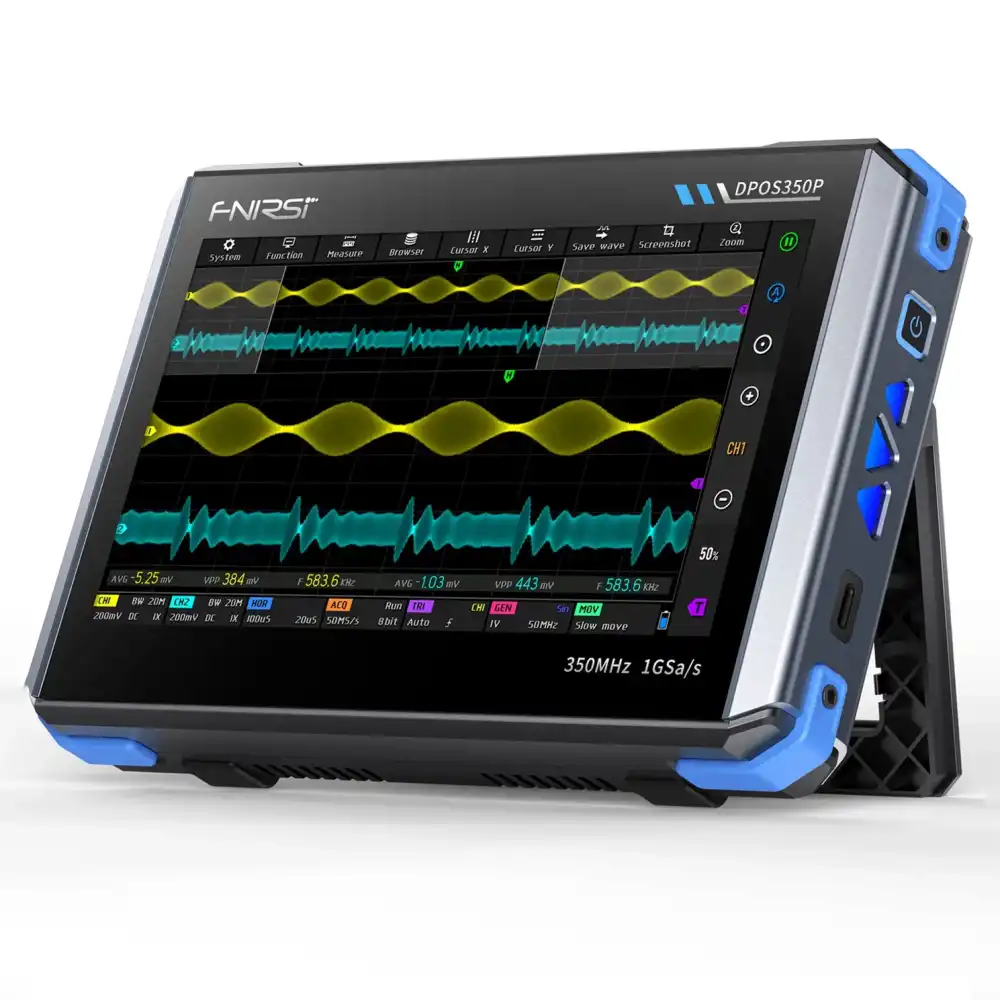

Fnirsi DPOS350P 350MHz 4-in-1 Digital Tablet Oscilloscope

Fnirsi DPOS350P 350MHz 4-in-1 Digital Tablet Oscilloscope

The Fnirsi DPOS350P is a high-performance, multi-functional digital tablet oscilloscope designed for advanced measurement needs. With a 350MHz bandwidth, its 4-in-1 design combines an oscilloscope, signal generator, spectrum analyzer, and digital multimeter into a single device, delivering maximum efficiency for professional users.

Featuring a large, high-resolution touch screen, powerful hardware, and advanced analysis capabilities, the Fnirsi DPOS350P is ideal for electronic design, R&D applications, maintenance and repair, and advanced educational use. Its portable tablet form factor provides great convenience for both desktop and field applications.

Fnirsi DPOS350P Technical Specifications:

• Bandwidth: 350MHz

• Number of Channels: 2 Analog Channels

• Sampling Rate: 1GSa/s

• Vertical Resolution: 8-bit / 16-bit (High Resolution Mode)

• Vertical Sensitivity: 200µV/div ~ 10V/div

• Time Base: 2ns/div ~ 1000s/div

• Input Impedance: 1MΩ / 50Ω

• Trigger Modes: Auto, Normal, Single

• Trigger Types: Edge, Pulse, Video, Alternate

• Built-in Signal Generator: Sine, Square, Triangle, Sawtooth

• Signal Generator Frequency: Up to 50MHz

• Spectrum Analysis: FFT supported

• Display: 7-inch Touchscreen IPS LCD

• Resolution: 1024 x 600

• Battery: Built-in 8000mAh Lithium Battery

• Interfaces: USB, Type-C, BNC

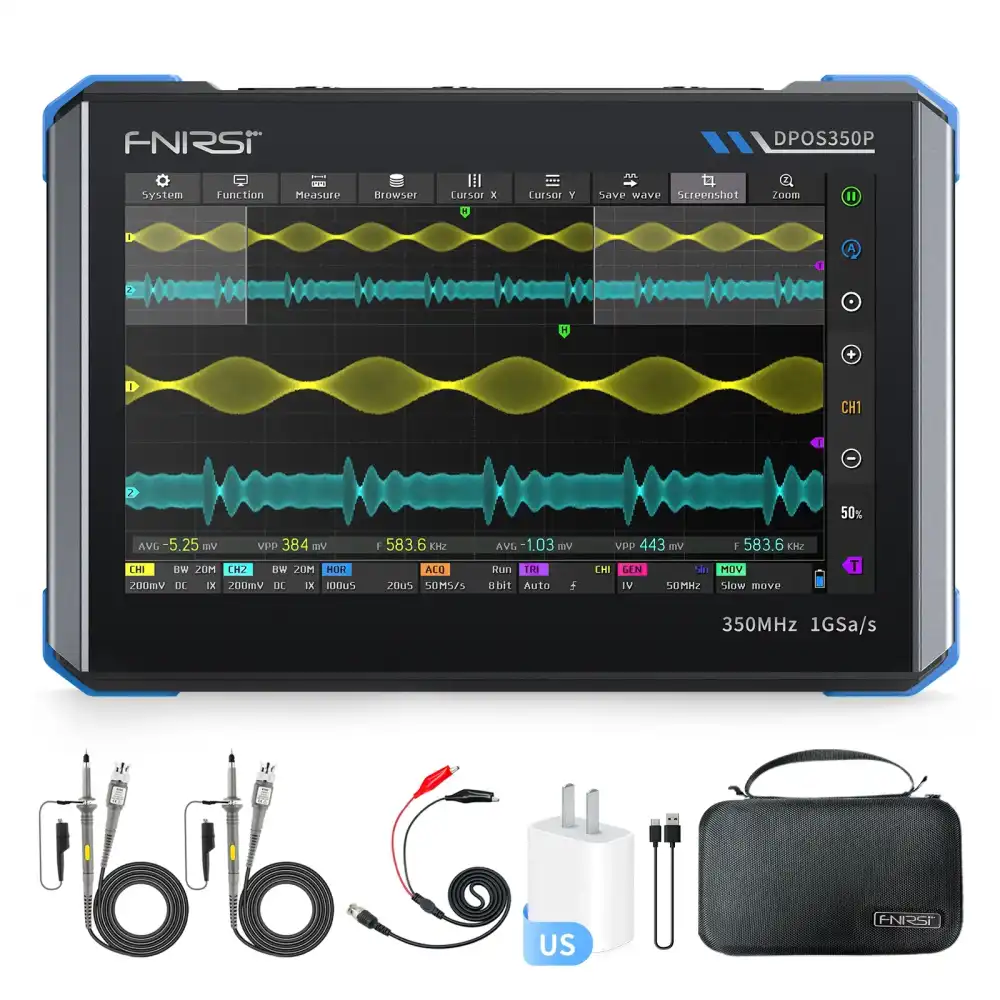

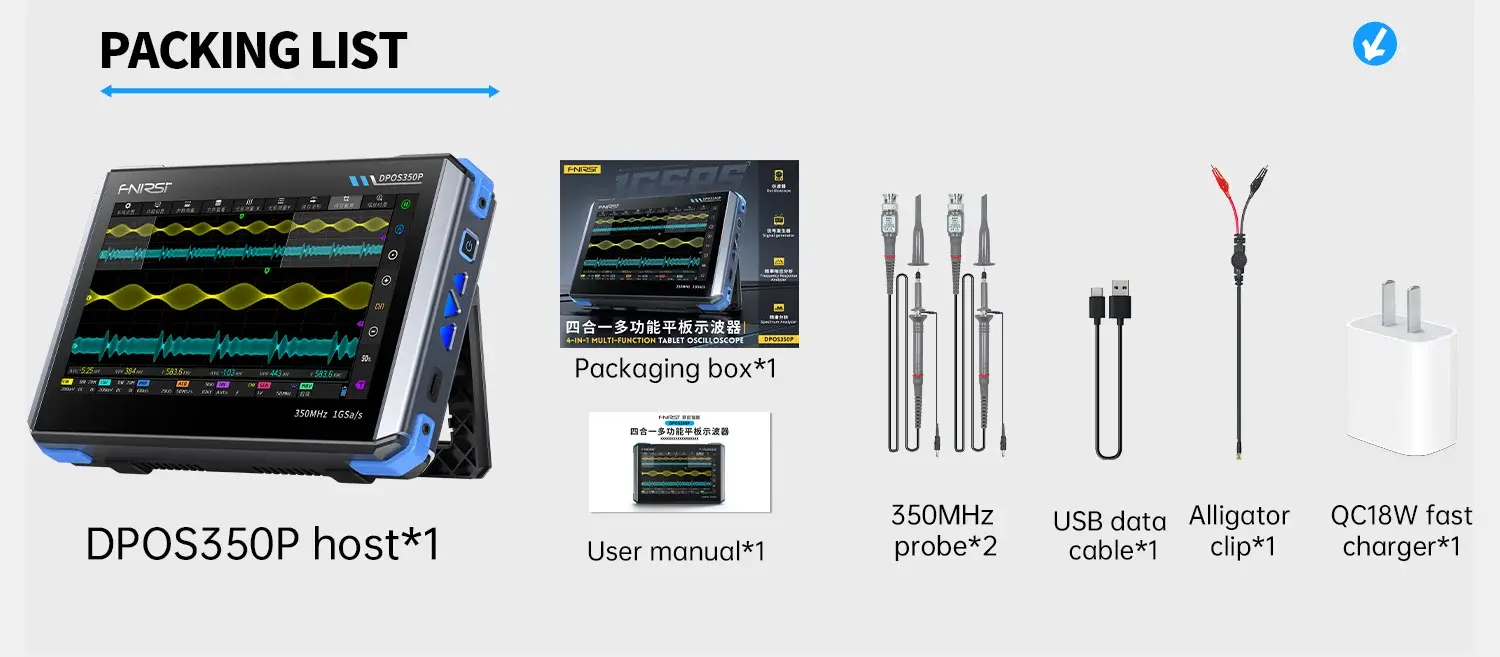

Package Contents:

• 1 x Fnirsi DPOS350P Oscilloscope Unit

• 2 x 350MHz Oscilloscope Probes

• 1 x QC18W Fast Charging Adapter

• 1 x USB Data Cable

• 1 x Carrying Bag

• 1 x Alligator Clip

• 1 x User Manual

Useful Links / Documents:

• DPOS350P User Manual (PDF)
• DPOS350P Firmware Update
• DPOS350P Video Tutorial Playlist
