Fnirsi 2C53P 50MHz 3-in-1 Touchscreen Tablet – Oscilloscope Multimeter Generator

Fnirsi 2C53P 50MHz 3-in-1 Touchscreen Tablet – Oscilloscope Multimeter Generator

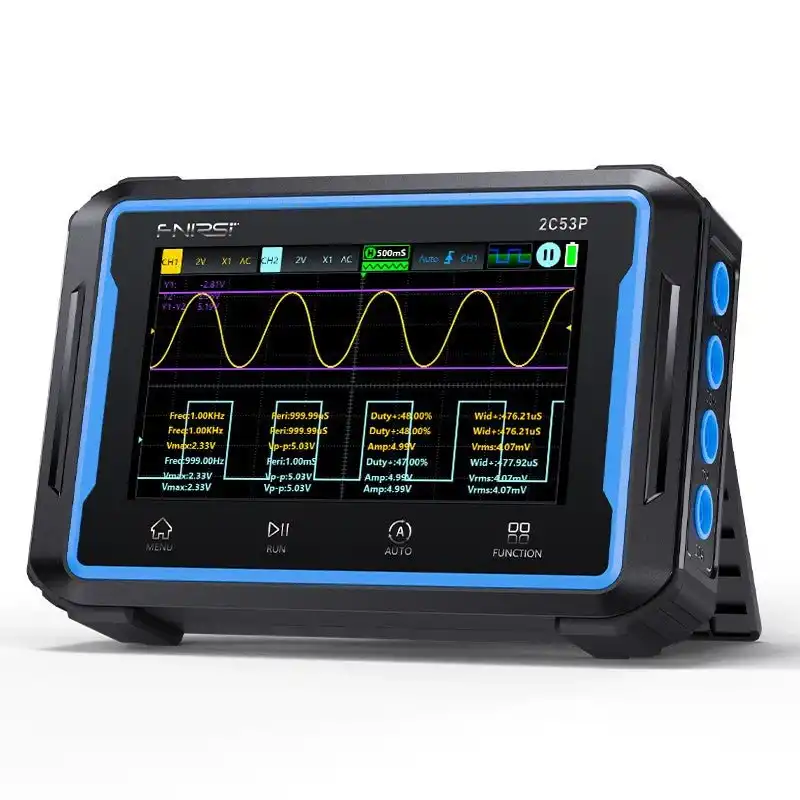

The Fnirsi 2C53P is a multifunctional measurement device designed in a compact tablet form, combining an oscilloscope, digital multimeter, and signal generator in a single unit. With a 50MHz bandwidth and a 2-channel oscilloscope architecture, it enables practical and reliable electronic circuit analysis, signal observation, and testing.

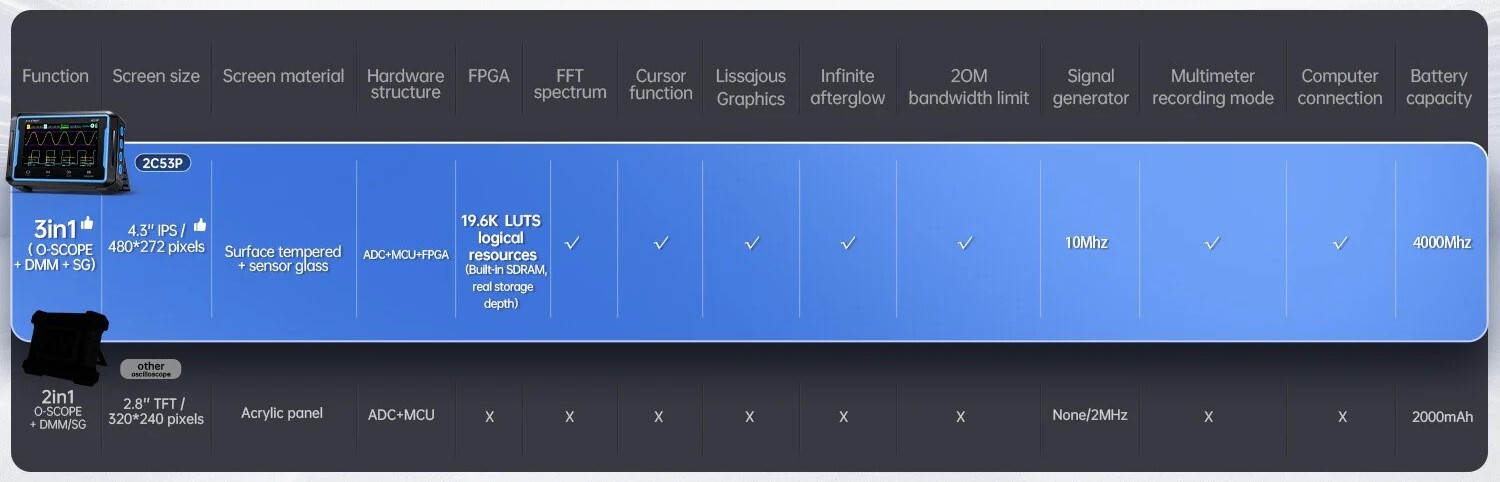

Featuring a 4.3-inch touchscreen IPS color display, an intuitive user interface, and powerful hardware, the Fnirsi 2C53P is an ideal solution for both professionals and students. As highlighted in the visuals, advanced waveform analysis, automatic measurement functions, multiple trigger modes, and a high-precision multimeter allow comprehensive measurements with a single device.

With its built-in signal generator, various waveform types can be generated easily. Waveforms can be viewed and recorded on a computer via USB connection. The built-in 4000mAh lithium battery provides long-lasting portable operation.

Fnirsi 2C53P Technical Specifications:

• Oscilloscope Bandwidth: 50MHz

• Number of Channels: 2 Channels

• Sampling Rate: 250MSa/s

• Vertical Sensitivity: 10mV/div ~ 10V/div

• Time Base: 20ns/div ~ 10s/div

• Trigger Modes: Auto, Normal, Single

• Waveform Analysis: FFT supported, advanced measurement functions

• Display: 4.3-inch Touchscreen IPS Color LCD

• Resolution: 480 x 272

• Digital Multimeter: 19999 counts, auto-ranging

• Multimeter Measurements: DC/AC Voltage, DC/AC Current, Resistance, Capacitance, Diode, Continuity

• Signal Generator Waveforms: Sine, Square, Triangle, Sawtooth, Pulse

• Signal Generator: Supports 12 selectable waveform types

• Interface: USB (PC waveform display support)

• Battery: Built-in 4000mAh Lithium Battery

• Protection: Intelligent over-voltage and over-current protection

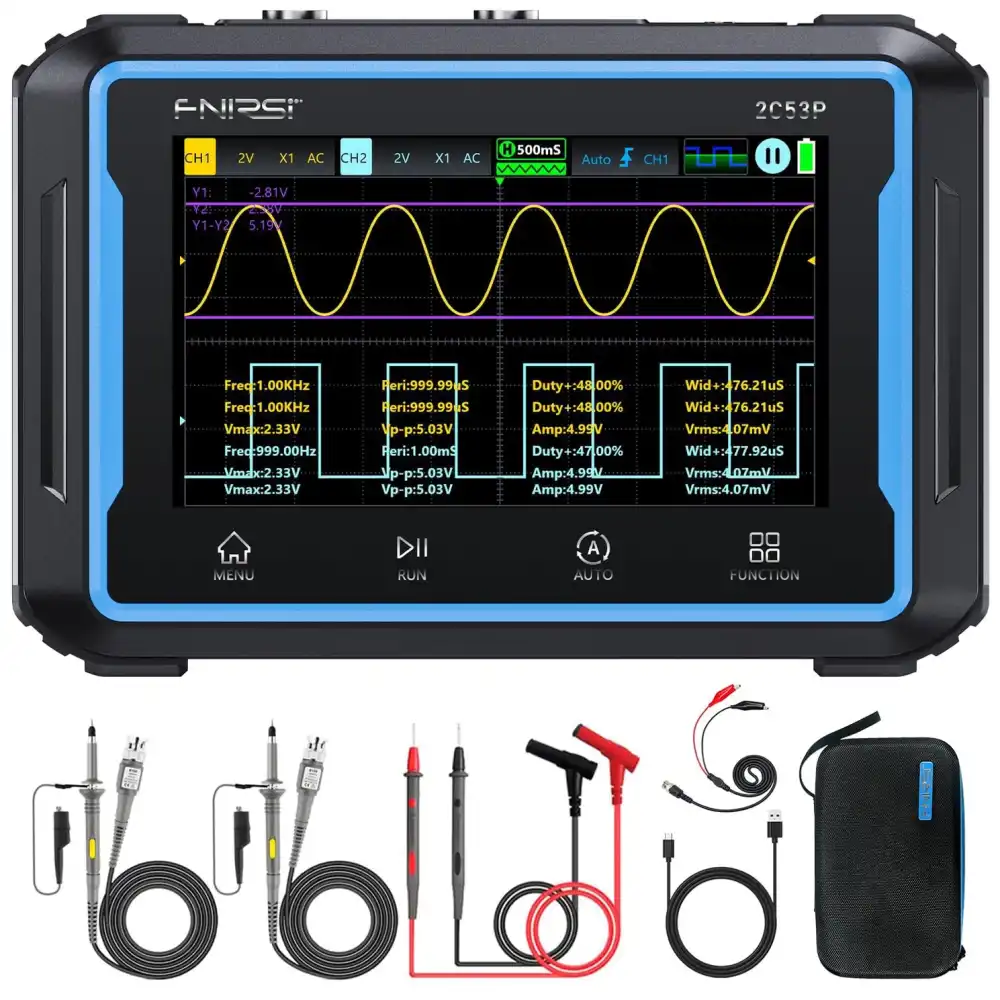

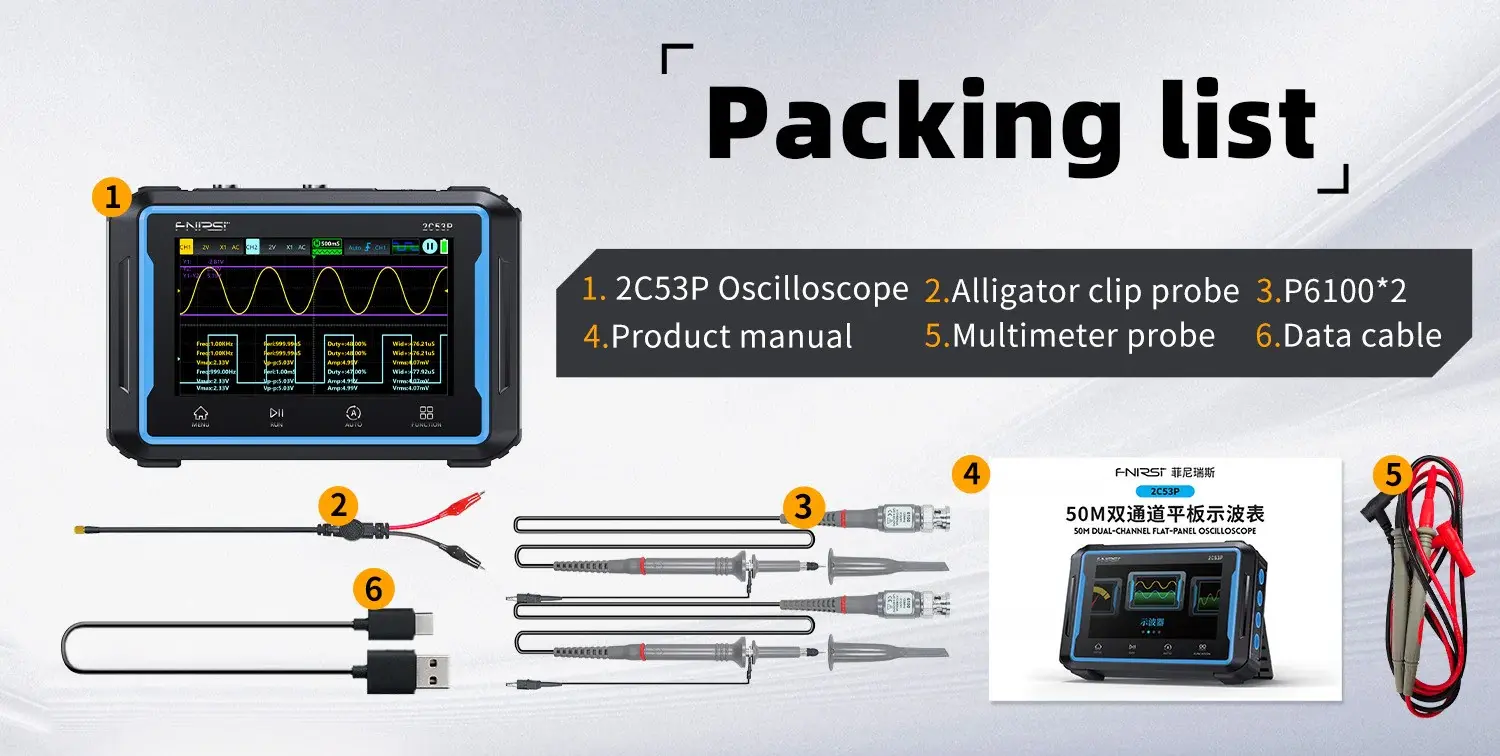

Package Contents:

• 1 x Fnirsi 2C53P Touchscreen Tablet Oscilloscope (3-in-1)

• 2 x P6100 Oscilloscope Probes

• 1 x Multimeter Probe

• 1 x Alligator Clip Probe

• 1 x USB Data Cable

• 1 x User Manual

• 1 x Storage / Carrying Box

Useful Links / Documents:

• Fnirsi 2C53P User Manual (PDF)
• Fnirsi 2C53P Firmware Update
• Fnirsi 2C53P Video Tutorial Playlist
