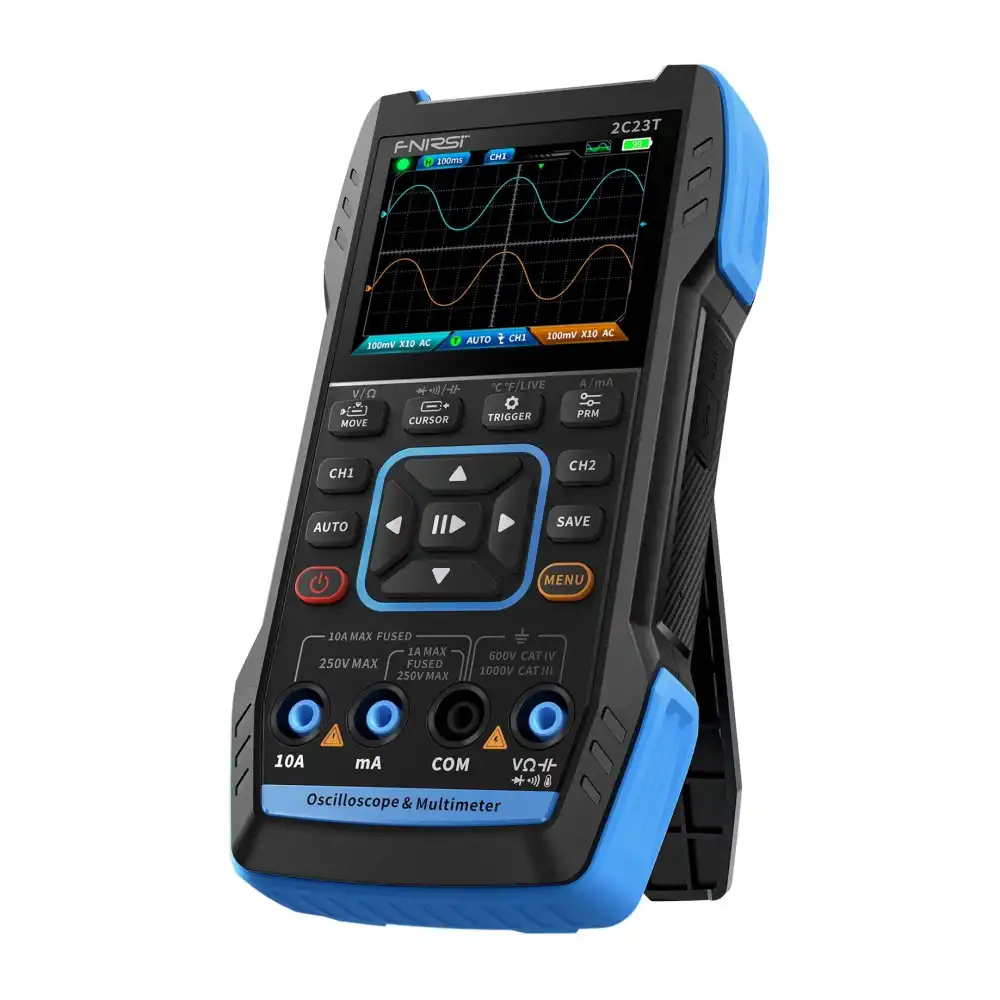

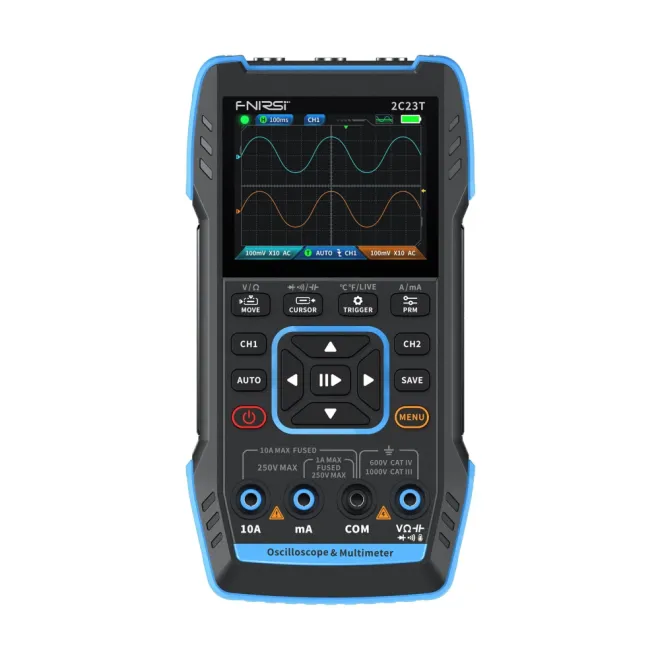

Fnirsi 2C23T 10MHz 3-in-1 Oscilloscope Multimeter Generator

Fnirsi 2C23T 10MHz 3-in-1 Oscilloscope Multimeter Generator

The Fnirsi 2C23T is a versatile and portable measurement device that combines an oscilloscope, digital multimeter, and signal generator into a single compact unit. With its 10MHz bandwidth and 2-channel oscilloscope structure, it enables practical analysis of electronic circuits, signal observation, and basic fault diagnostics.

Featuring a high-brightness color display and an intuitive user interface, the Fnirsi 2C23T is suitable for both professional users and educational or hobby applications. One-button automatic measurement, advanced waveform analysis, and multiple trigger modes allow fast and reliable measurements.

Its built-in signal generator supports multiple waveform types, while the precise multimeter function enables safe measurement of voltage, current, resistance, capacitance, and continuity. The built-in battery provides extended portability for field use.

Fnirsi 2C23T Technical Specifications:

• Oscilloscope Bandwidth: 10MHz

• Number of Channels: 2 Channels

• Sampling Rate: 50MSa/s

• Vertical Sensitivity: 10mV/div ~ 10V/div

• Time Base: 100ns/div ~ 10s/div

• Trigger Modes: Auto, Normal, Single

• Display: Color LCD Display

• Waveform Analysis: FFT supported

• Digital Multimeter: 19,999 counts, auto-ranging

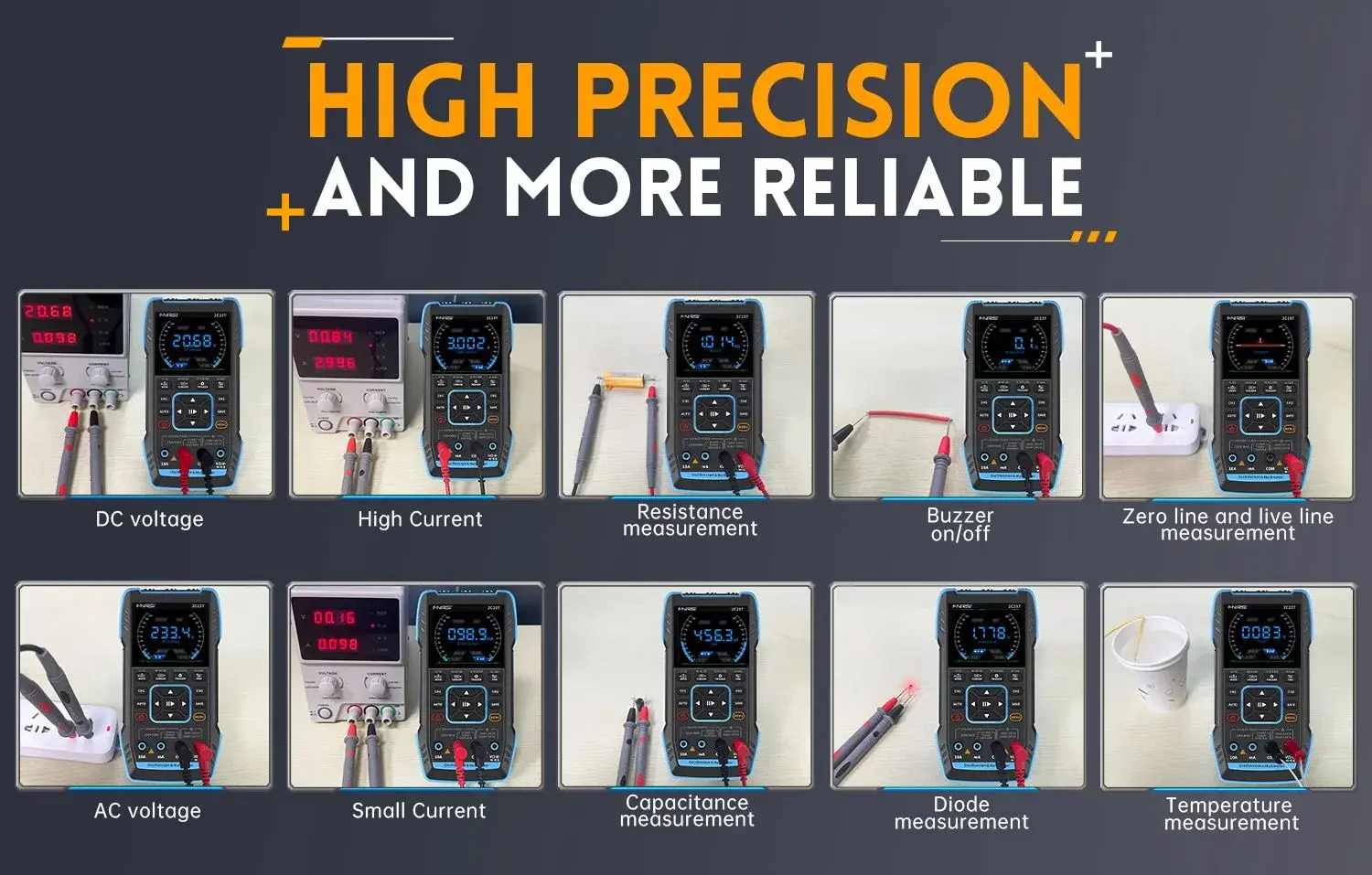

• Multimeter Measurements: DC/AC Voltage, DC/AC Current, Resistance, Capacitance, Diode, Continuity

• Signal Generator Waveforms: Sine, Square, Triangle, Sawtooth

• Interface: USB

• Battery: Built-in Lithium Battery

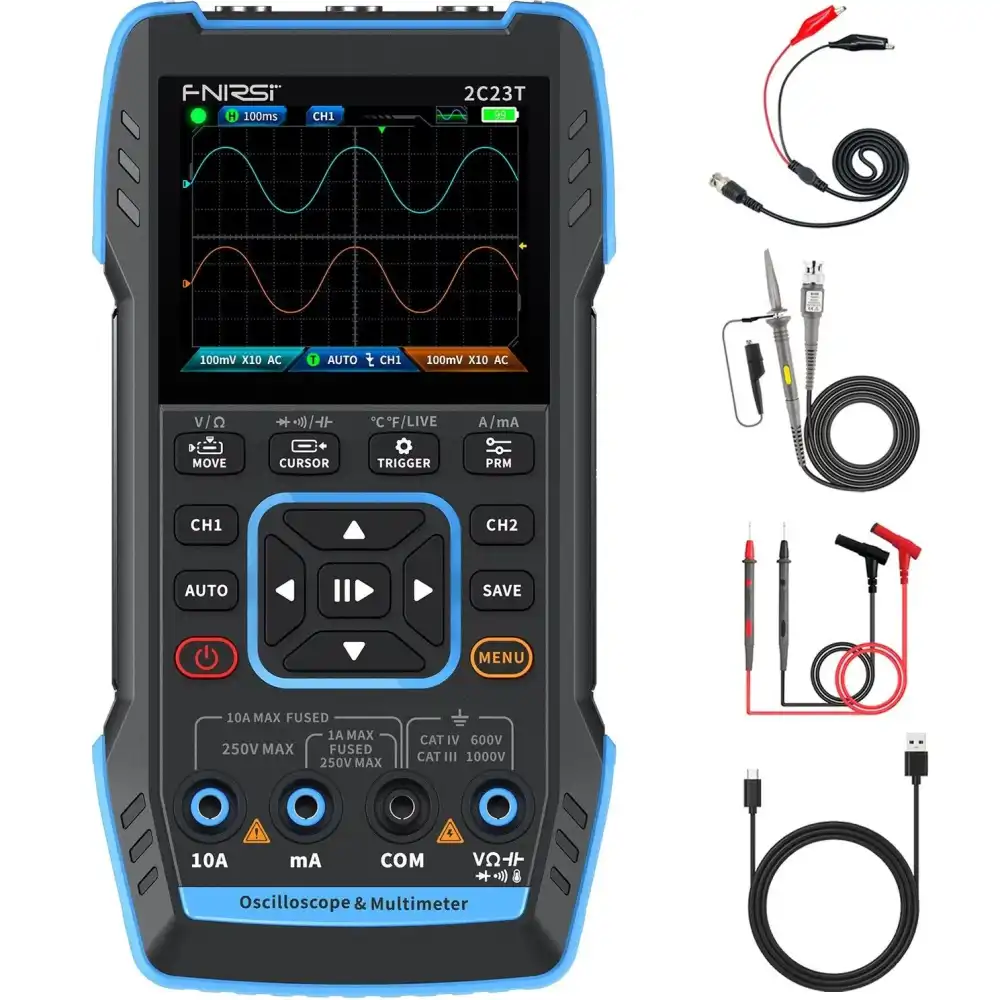

Package Contents:

• 1 x Fnirsi 2C23T Digital Oscilloscope

• 1 x P6100 Oscilloscope Probe

• 1 x Crocodile Clip Probe

• 1 x Multimeter Probe

• 1 x Charging Cable

• 1 x User Manual

• 1 x Product Box
