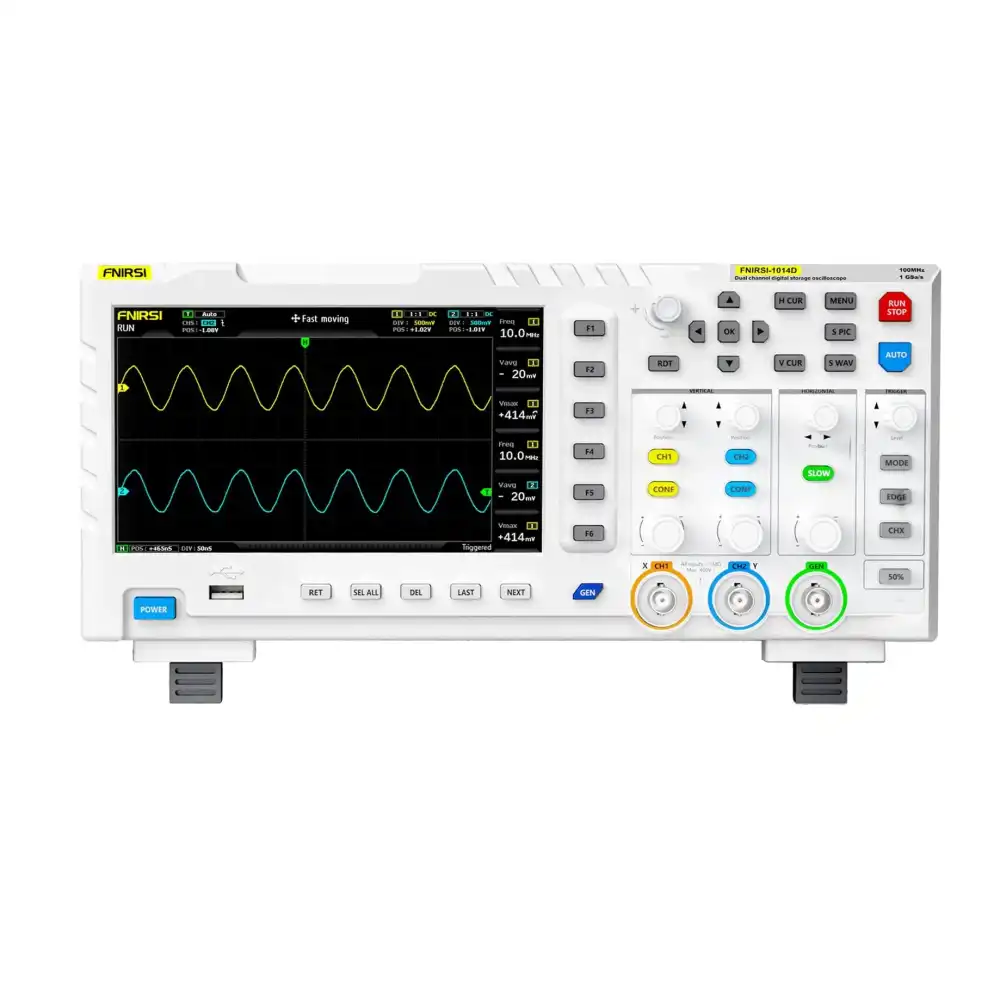

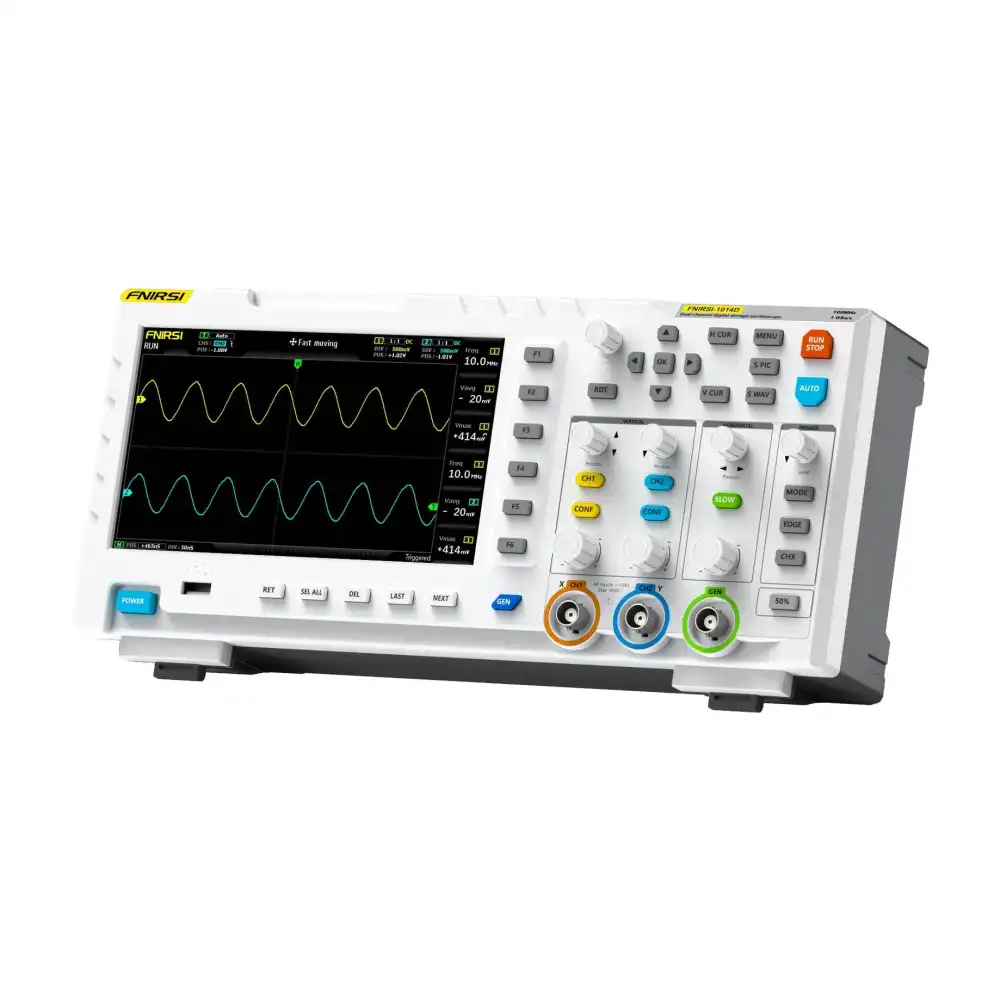

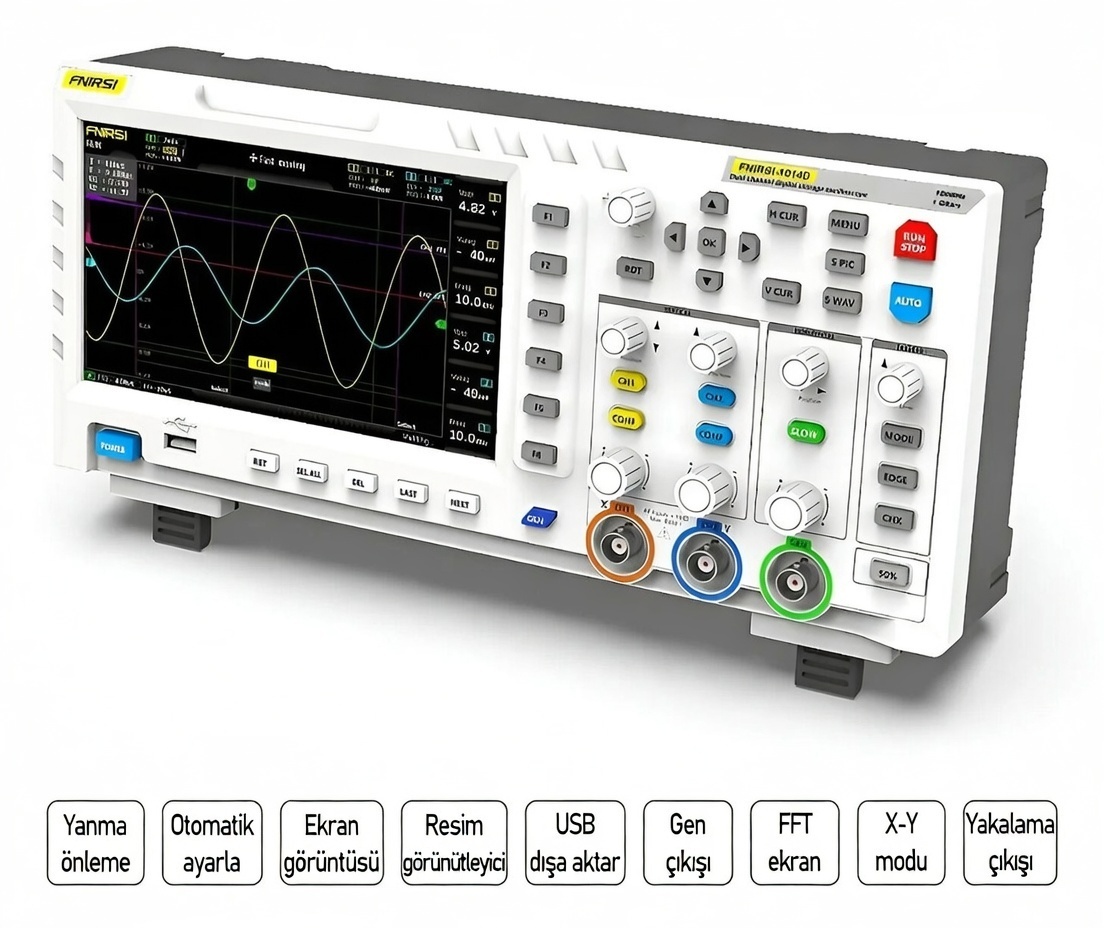

Fnirsi 1014D 100MHz 2 Channel Oscilloscope + Generator

Fnirsi 1014D 100MHz 2 Channel Oscilloscope + Generator

The Fnirsi 1014D is a high-performance digital oscilloscope and signal generator designed for both professional and hobbyist electronic applications. With a 100MHz bandwidth and 2-channel support, it enables fast and reliable circuit analysis, signal measurement, and debugging.

Its large, high-resolution color display allows clear visualization of waveforms, while the built-in DDS function generator lets you produce test signals without the need for additional equipment. Thanks to its portable design and user-friendly interface, it is an ideal solution for education, R&D, and fieldwork.

Fnirsi 1014D Technical Specifications:

• Bandwidth: 100MHz

• Number of Channels: 2 (CH1 & CH2)

• Real-time Sampling Rate: Up to 1GSa/s

• Memory Depth: 240K points

• Vertical Sensitivity: 10mV/div ~ 10V/div

• Time Base Range: 10ns/div ~ 10s/div

• Input Impedance: 1MΩ ±2%

• Maximum Input Voltage: 400V (X10 probe)

• Trigger Modes: Auto, Normal, Single

• Trigger Types: Edge, Pulse, Video

• Built-in Signal Generator Type: DDS

• Signal Generator Waveforms: Sine, Square, Triangle, Sawtooth

• Signal Generator Frequency Range: Up to 25MHz

• Display: 7 inch TFT LCD, 800 x 480 resolution

• Measurement Functions: Frequency, Period, Peak-to-Peak, RMS, Duty Cycle

• Interface: USB Host / USB Device

• Power Supply: AC 100–240V, 50/60Hz

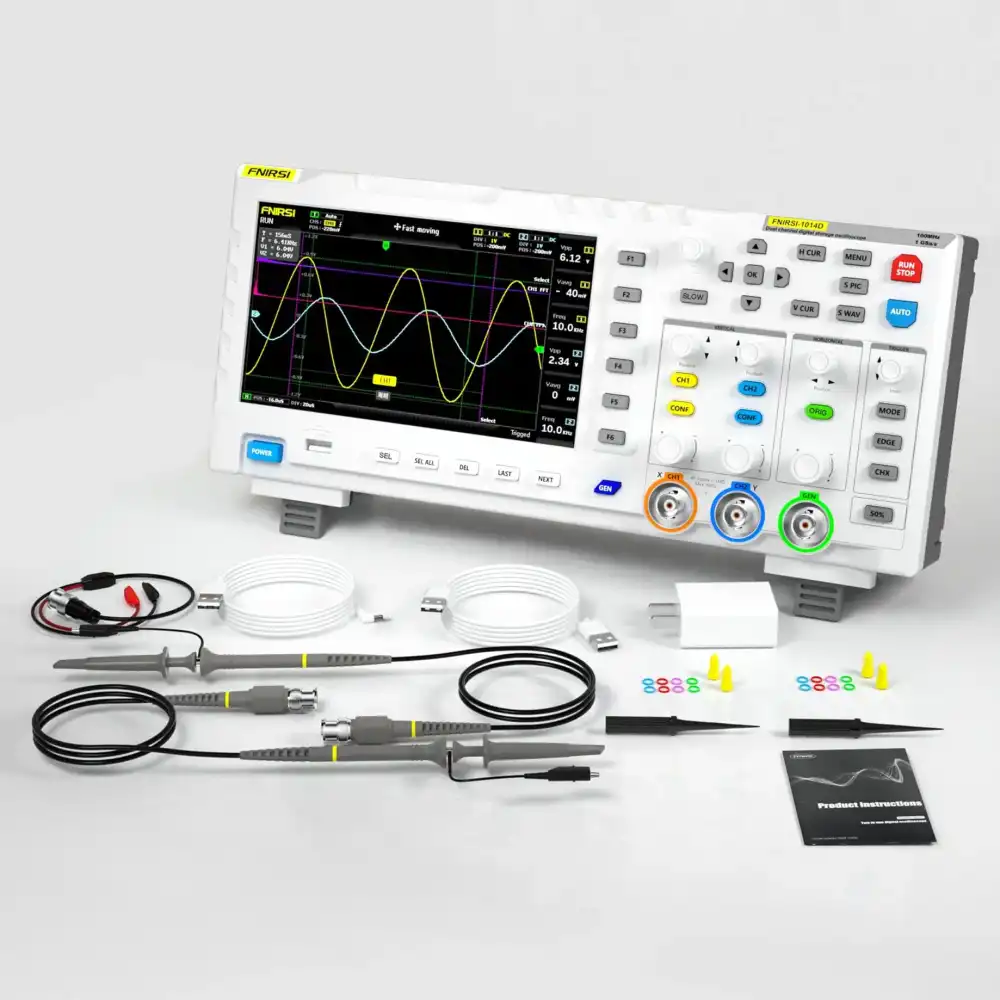

Package Contents:

• 1 x Fnirsi 1014D Digital Oscilloscope

• 2 x Oscilloscope Probes (X1/X10)

• 1 x Power Cable

• 1 x USB Cable

• 1 x User Manual

Useful Links / Documents:

• Fnirsi 1014D User Manual (PDF)
