Fnirsi 1013D 100MHz 2 Channel Tablet Oscilloscope

Fnirsi 1013D 100MHz 2 Channel Tablet Oscilloscope

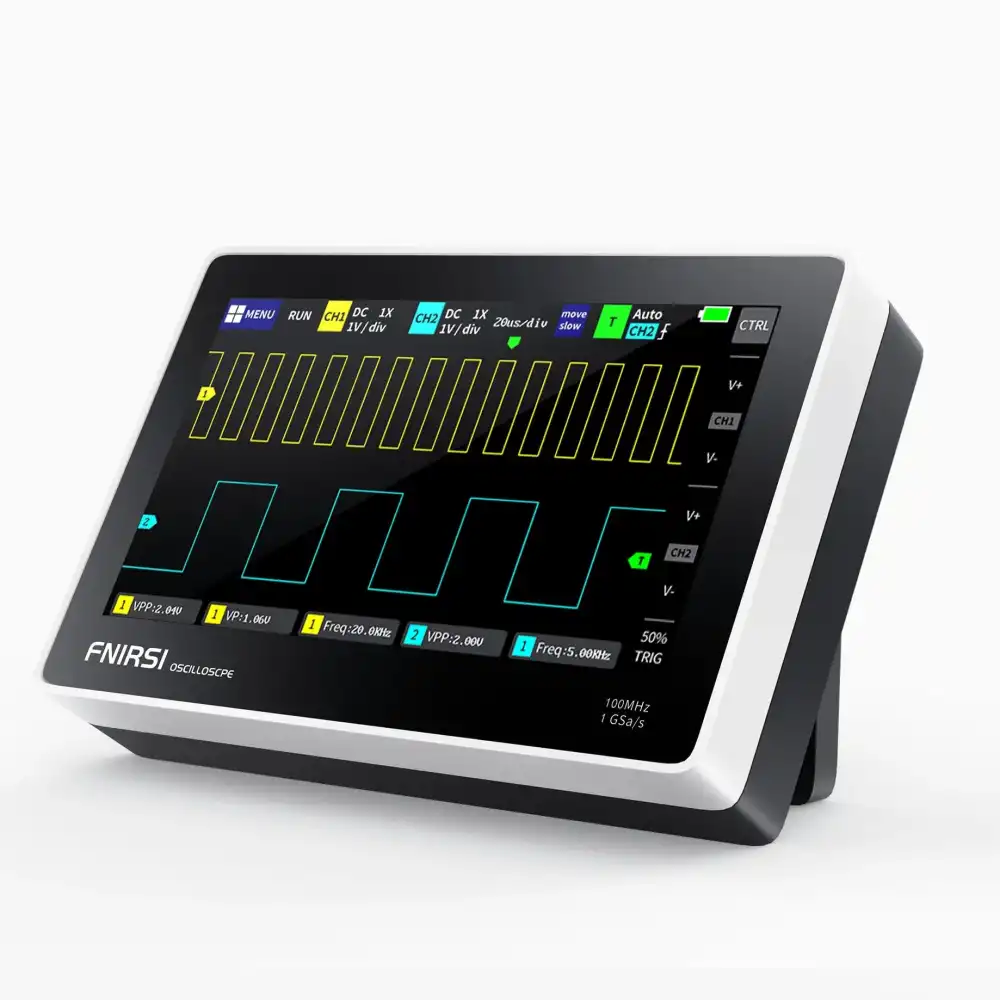

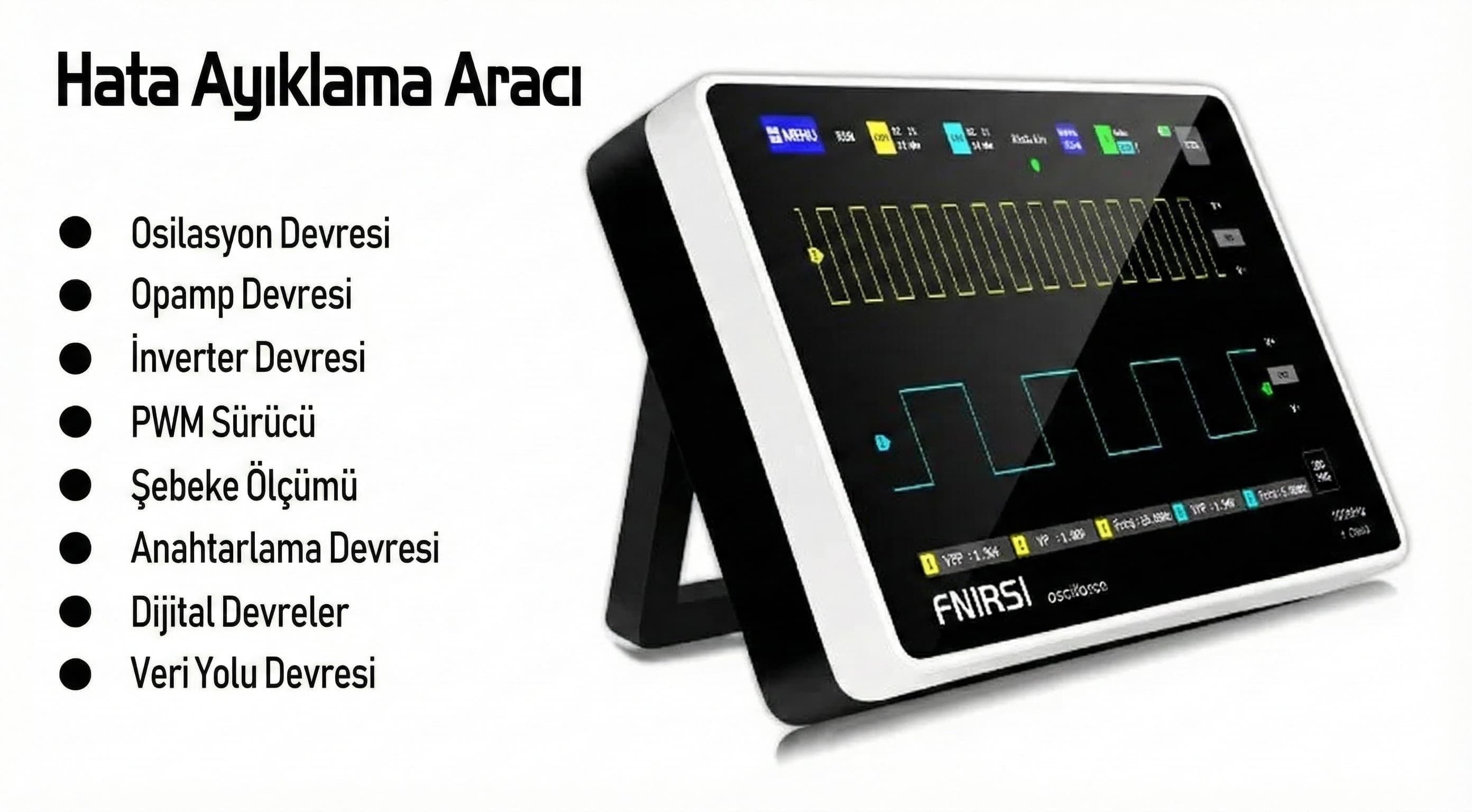

The Fnirsi 1013D is a portable and powerful digital oscilloscope with a tablet-style form factor. With its 100MHz bandwidth and 2-channel support, it delivers high accuracy and performance for electronic circuit analysis, signal measurement, and debugging tasks. Thanks to its compact design, it is perfectly suitable for both desktop and field applications.

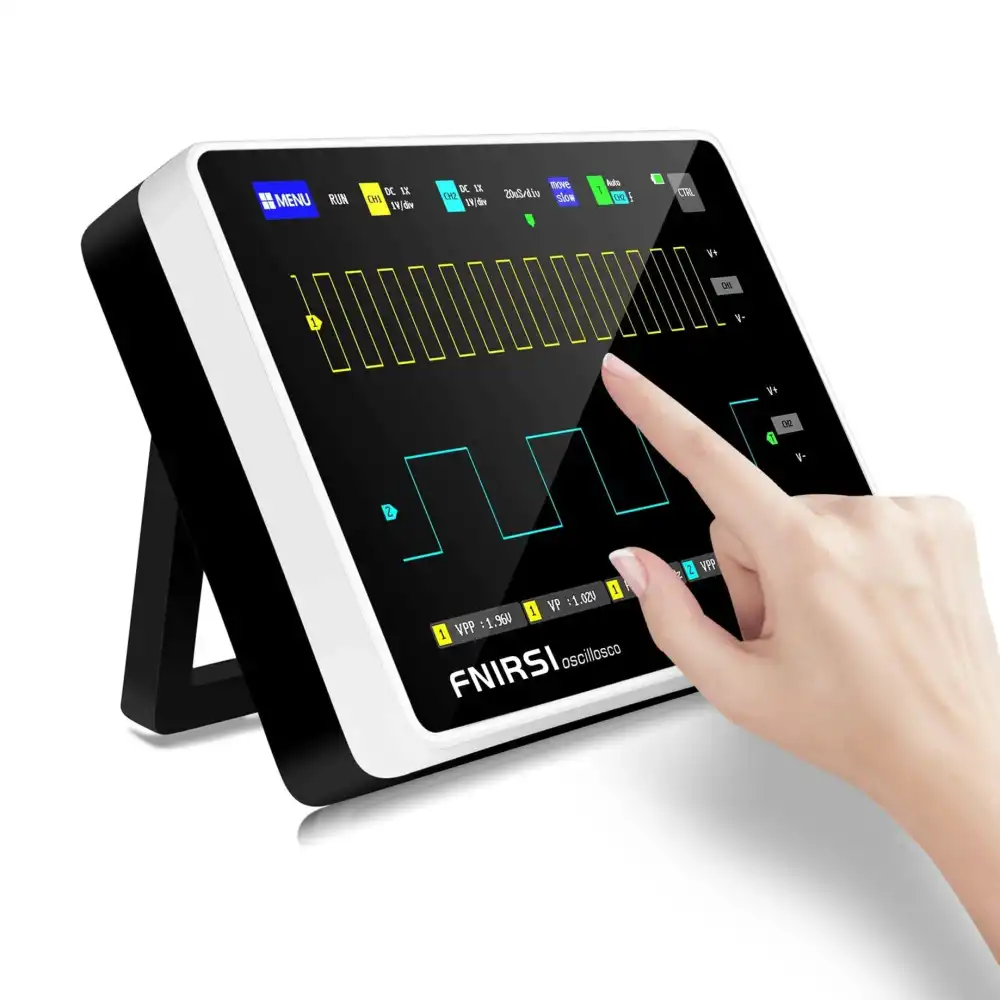

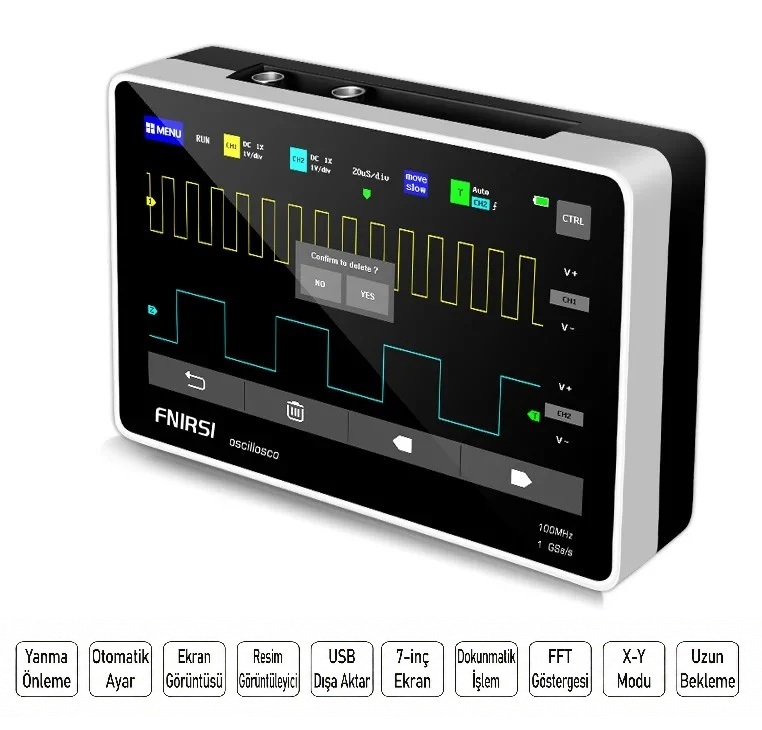

Featuring a large touch screen, the Fnirsi 1013D provides a user-friendly experience. Its automatic measurement functions and advanced trigger options make it an ideal solution for professionals and students alike. Data transfer and charging can be easily performed via the USB Type-C connection.

Fnirsi 1013D Technical Specifications:

• Bandwidth: 100MHz

• Number of Channels: 2

• Real-Time Sampling Rate: 1GSa/s

• Memory Depth: 240K points

• Vertical Sensitivity: 10mV/div ~ 10V/div

• Time Base: 10ns/div ~ 10s/div

• Input Impedance: 1MΩ

• Trigger Modes: Auto, Normal, Single

• Trigger Types: Edge, Pulse

• Display: 7-inch Touchscreen TFT LCD

• Resolution: 800 x 480

• Measurement Functions: Frequency, Period, Peak-to-Peak, RMS, Duty Cycle

• Interface: USB Type-C

• Power Supply: Built-in Battery / USB Charging

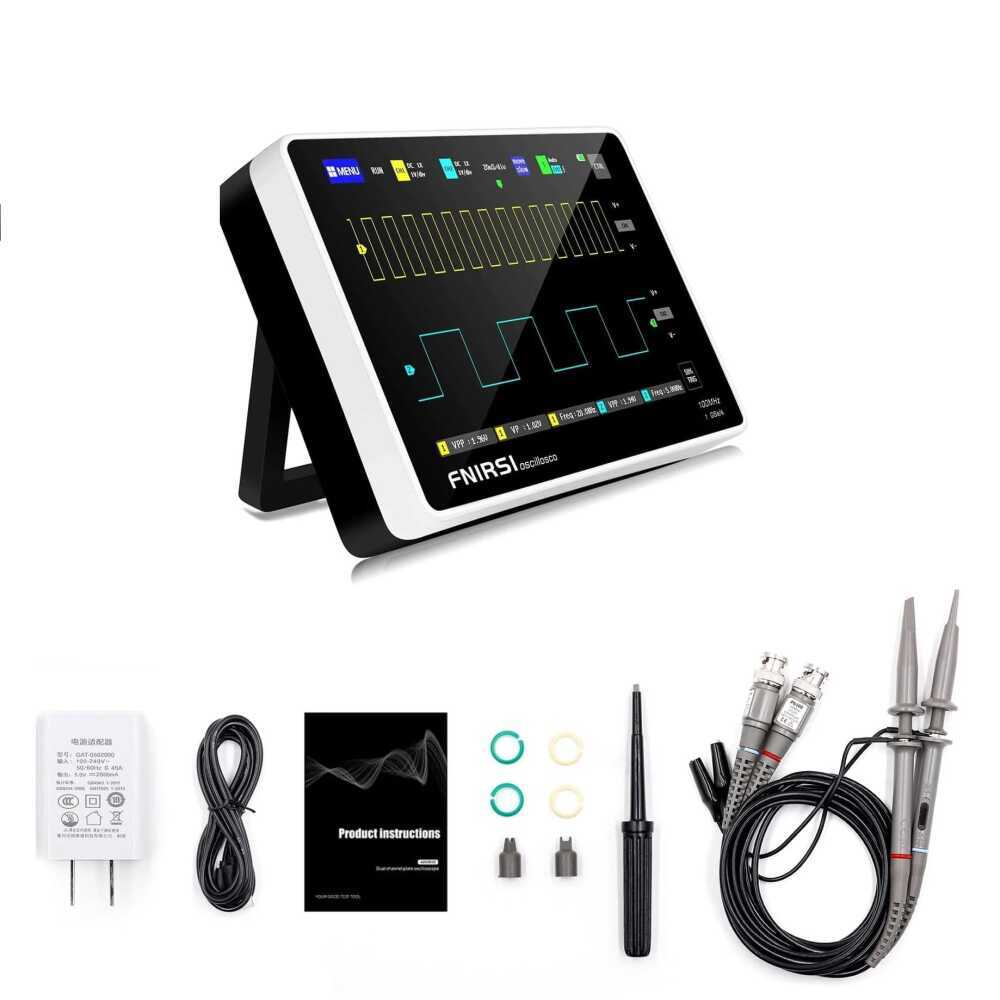

Package Contents:

• 1 x Fnirsi 1013D Tablet Oscilloscope

• 2 x 100MHz Oscilloscope Probes (1X / 10X)

• 1 x USB Type-C Data Cable

• 1 x Power Adapter

• 1 x User Manual
