Drone Power Distribution Board (PDB)

Drone Power Distribution Board (PDB)

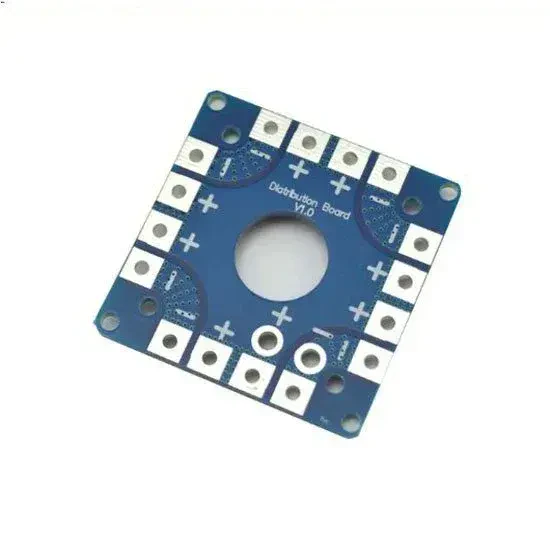

This power distribution board (PDB) is a component designed to distribute power from the main power source to multiple electronic speed controllers (ESCs) in drone projects. It ensures stable and safe power management, especially in multirotor systems.

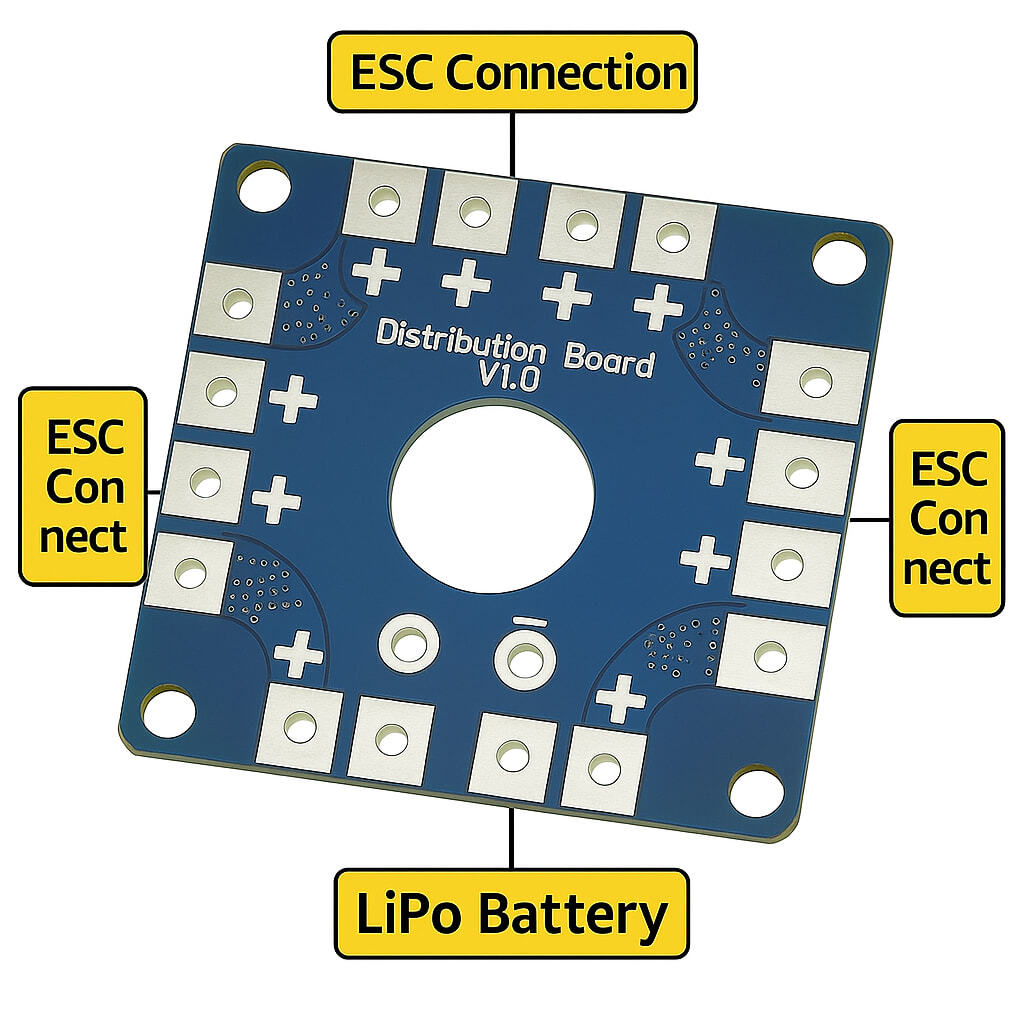

In typical applications, a LiPo battery is connected to this board, and up to 8 ESCs can be easily integrated into the system via the solder pads on the board. The central hole allows easy mounting of upper modules like a flight controller and facilitates cable routing.

This board helps reduce cable clutter, enhances the stability of connections, and ensures balanced voltage distribution. As a result, your drone's flight performance and safety are significantly improved.

Technical Specifications:

• Length: 50 mm

• Width: 50 mm

• Height: 2 mm

• ESC Connections: Supports 1–8 ESCs

• Features 8 channels that support various ESC connections using 3.5 mm Banana Bullet connectors
