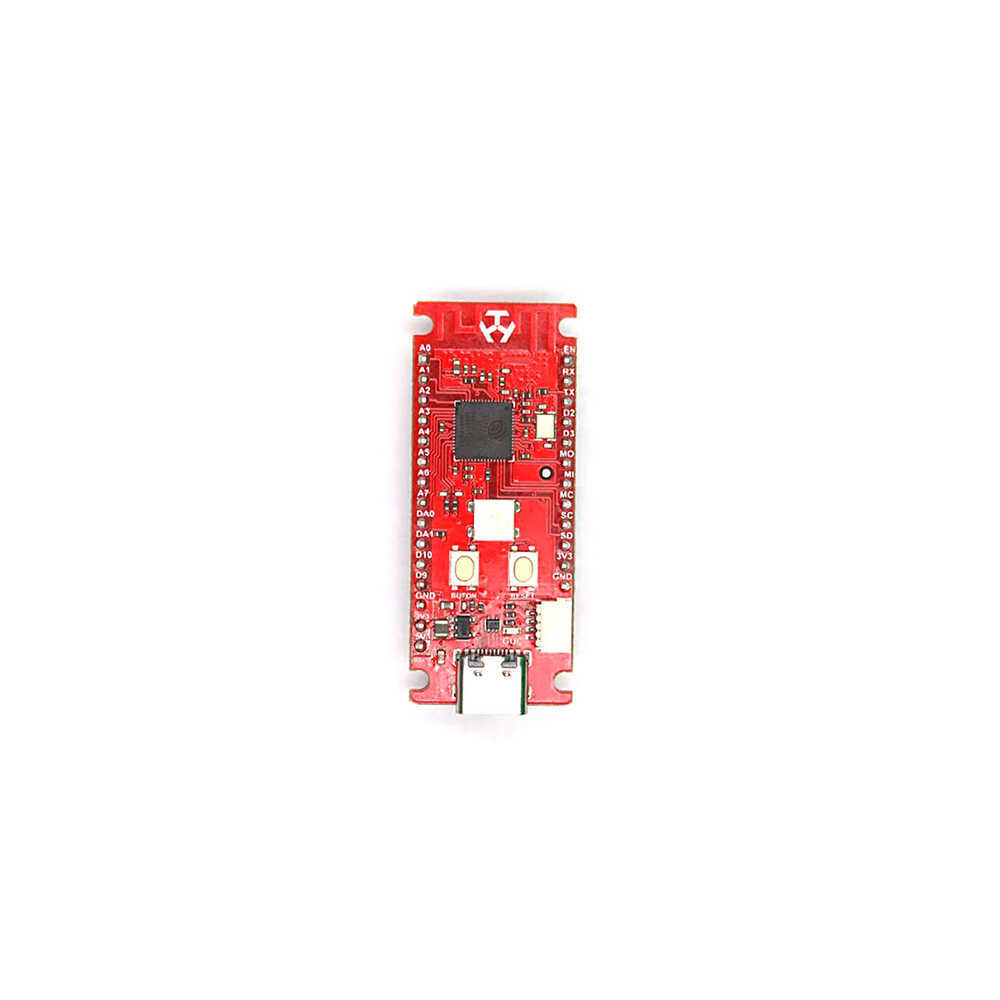

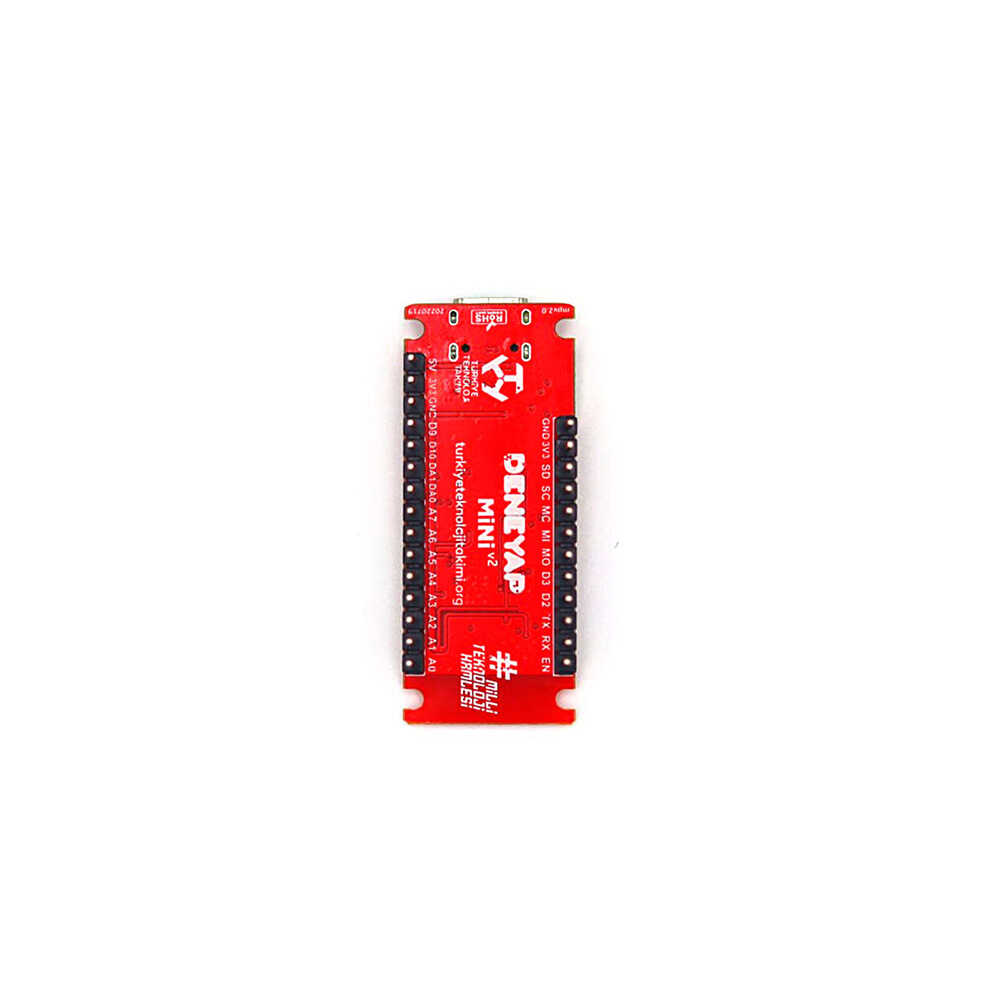

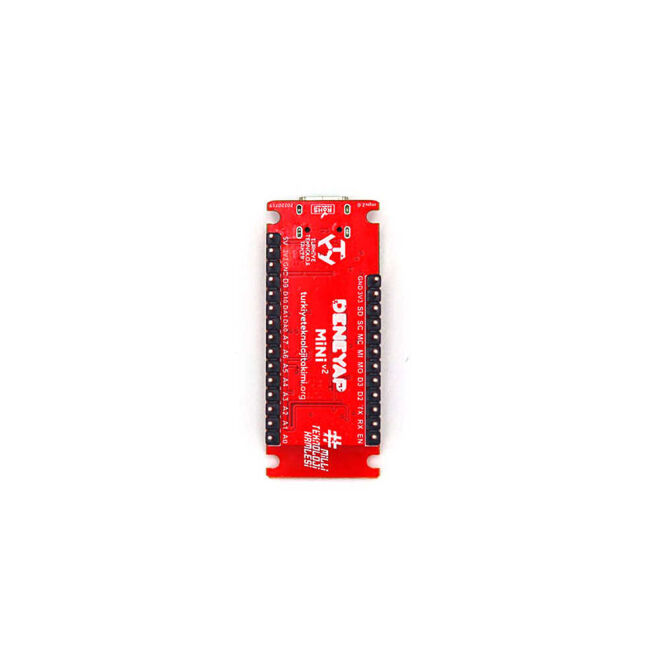

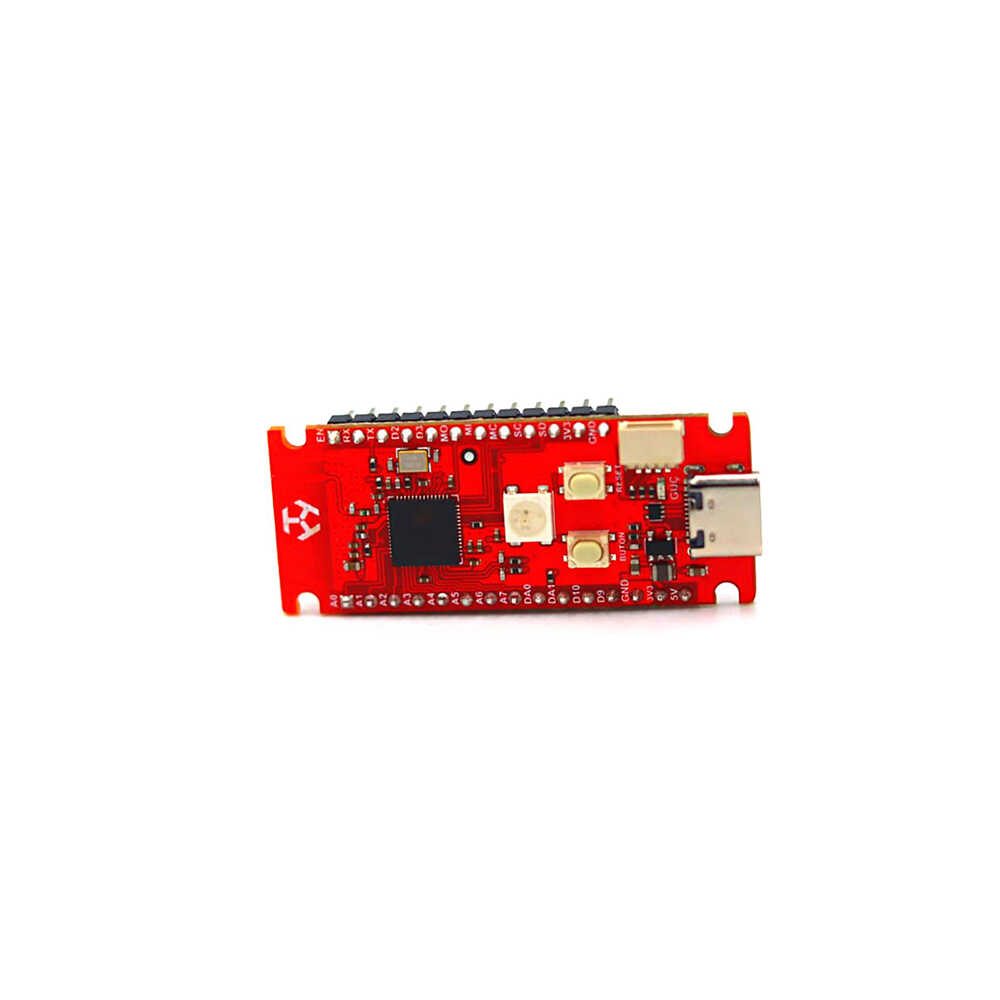

DENEYAP Mini v2 (Type-C)

DENEYAP Mini v2 (Type-C)

DENEYAP Mini v2 is developed using the original ESP32-S2 integrated microprocessor.

You can use the Wi-Fi communication feature to exchange data between your system and your cloud-based application. You can set up a closed loop wireless communication network using DENEYAP Mini v2 as a server.

It has a rich range of peripheral connections such as ADC, DAC, USB OTG, PWM, SPI, UART, I2S, I2C, Capacitive Sensing, TWAI, RMT, JTAG and external interrupt. In addition, to give you flexibility, some of these connection interfaces can be used on any pin of your choice according to your needs.

With the internal temperature sensor integrated into the microprocessor, you can monitor the device temperature in the range of -20 °C to +110 °C.

Using the I2C communication connector, you can quickly implement your system consisting of sensors and actuators without wiring and soldering.

In addition, 2 push buttons and 1 addressable RGB LED are built-in.

It has 21 pins that can be used for general purposes.

DENEYAP Mini v2 has a design compatible with breadboard. The pins are soldered for you to start developing immediately.

DENEYAP Mini v2 is compatible with Arduino IDE. You can start coding using the instructions.

There are 2 basic updates over the first version. Deneyap Mini v2 has 2 MB PSRAM and addressable RGB LED.

• Single Core 240MHz Tensilica Xtensa LX7 Microprocessor
• 4 MB SPI Flash
• 2 MB PSRAM
• 320 KB SRAM
• 128 KB ROM
• 2.4 GHz Wi-Fi - 802.11b/g/n
• Built-in PCB Antenna
• Built-in Temperature Sensor
• Addressable RGB LED
• General Purpose Button
• Type-C USB Connector
• I2C Communication Connector
• 21 x Digital Input/Output Pins
• 9 x Analog Input Pins (13-bit ADC)
• 2 x Analog Output Pins (8-bit DAC)
• 6 x Capacitive Sensing Pins
• All Digital Input/Output Pins Support PWM, I2C, SPI, UART, I2S, RMT, TWAI and External Interrupt
• 3.3V Operating Voltage
• 3.3V and 5V Output Voltage
• 3.3V - 5.5V Input Voltage
• 50.00mm x 20.32mm x 12.96mm
