Deneyap Kart 1A
Fiyat
:
615.68
TL + VAT
KDV Dahil Fiyat
:
738.82
TL
Money Order Price :
724.04
TL
%2 Discount
Out Of Stock
Notify me when its in stockDeneyap Kart 1A

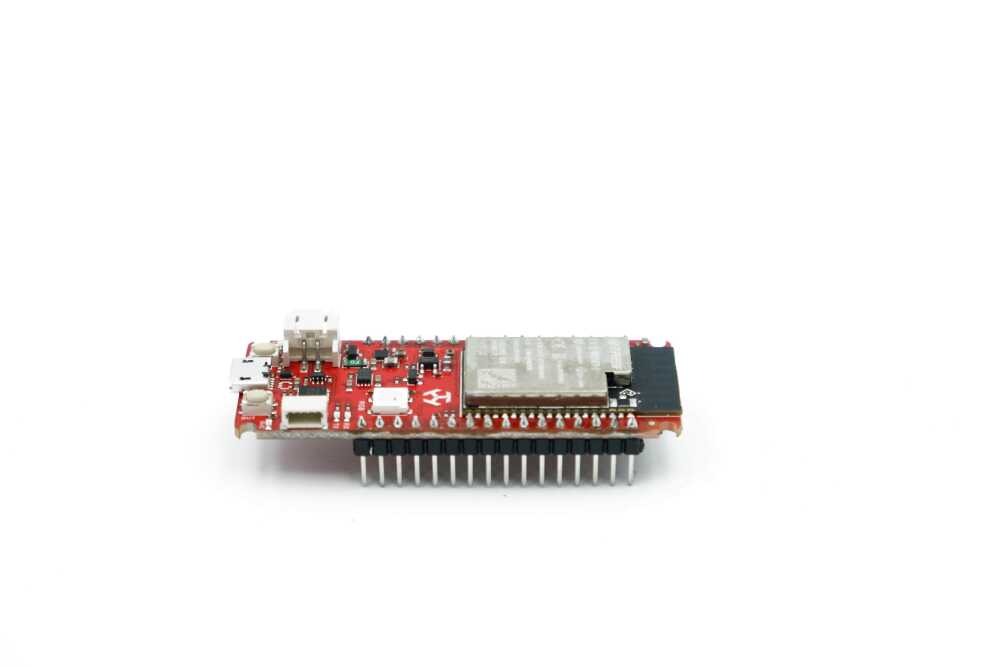

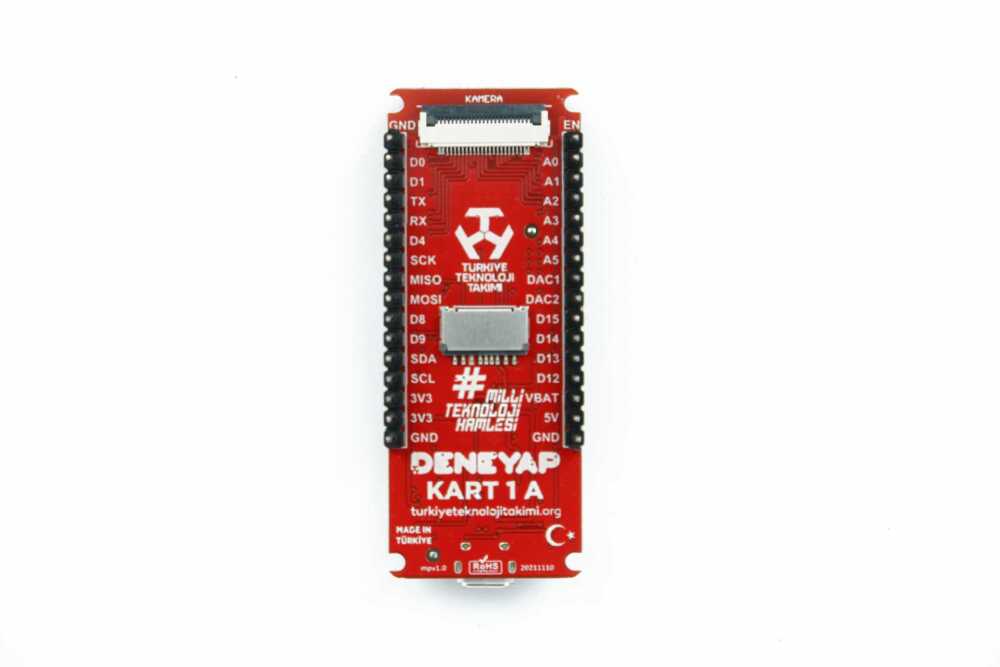

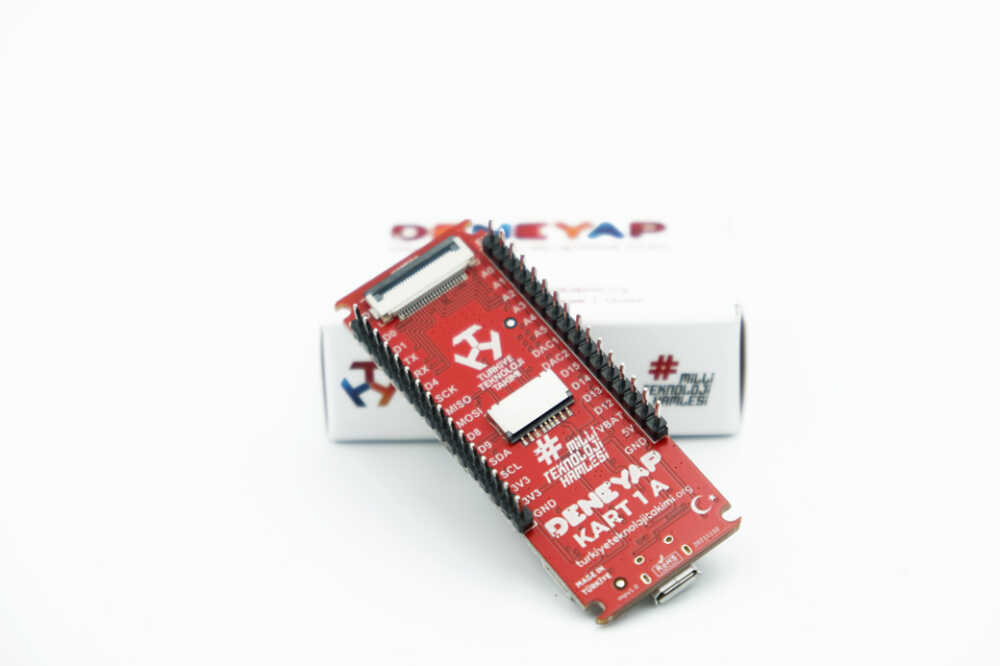

The Deneyap Kart 1A is an ideal development board for artificial intelligence and IoT projects, powered by the ESP32-WROVER-E module. Its dual-core Tensilica Xtensa LX6 processor, along with TensorFlow Lite support, enables machine learning applications. With built-in Wi-Fi, Bluetooth, and a wide range of peripheral connections, it offers flexible usage. The Li-Po battery support and Arduino IDE compatibility make it easy to program.
Deneyap Kart 1A Product Features:
-
Developed using the original ESP32-WROVER-E module.
-
Dual-core Tensilica Xtensa LX6 processor with TensorFlow Lite support.
-
Suitable for IoT and cloud projects with Wi-Fi and Bluetooth (BLE & EDR) connectivity.
-
Server mode for creating a closed-loop wireless network.
-
Wide range of connection interfaces: ADC, DAC, UART, PWM, I2C, SPI, I2S, SD/SDIO/MMC, Capacitive Sensing, TWAI, RMT, JTAG, Timer, pulse counter, and external interrupts.
-
Built-in magnetic field sensor for measuring magnetic levels.
-
24 general-purpose pins for flexible use.
-
Special Li-Po connection connector for reliable power supply, and the ability to charge Li-Po batteries via this connector.
-
Micro SD and FPC camera connectors available on the back of the board.
-
2 buttons and 1 addressable RGB LED are included.
-
I2C connector for easy connection without soldering.
-
3.3V & 5V power output, with 5V support even when powered by Li-Po.
-
Compatible with breadboard for quick prototyping, with pins pre-soldered for ease of use.
-
Arduino IDE compatible for easy programming.
Deneyap Kart 1A Technical Specifications:
|
240 MHz Dual-Core Tensilica LX6 Microprocessor |
Built-in PCB Antenna |
USB Micro-B Connector |
All Digital Input Pins Supports I2C, SPI, UART, I2S, RMT, TWAI, and External Interrupts |
|
520 KB SRAM |
Built-in Magnetic Field Sensor |
I2C Haberleşme Konnektörü |
All Digital Output Pins Support PWM |
|
448 KB ROM |
Addressable RGB LED (Pin: D12) |
24 x Digital Input Pins |
3.3V Operating Voltage |
|
8 MB PSRAM |
SD Card (Pins: D9, D13, D14, and D15) |
20 x Digital Output Pins |
3.3V and 5V Output Voltage |
|
4 MB SPI Flash |
General Purpose Button (Pin: D8) |
16 x Analog Input Pins (12-bit ADC) |
3.3V – 5.5V Input Voltage |
|
2.4 GHz Wi-Fi – 802.11b/g/n |
Li-Po Battery Charging |
2 x Analog Output Pins (8-bit DAC) |
Dimensions: 63.50mm x 25.4mm x 15.70mm |
|
Bluetooth EDR ve BLE |
Li-Po Battery Connector |
10 x Capacitive Sensing Pins |
11g (pins soldered) |
