Notify me when its in stockCreality RaptorX & Scan Bridge Kit

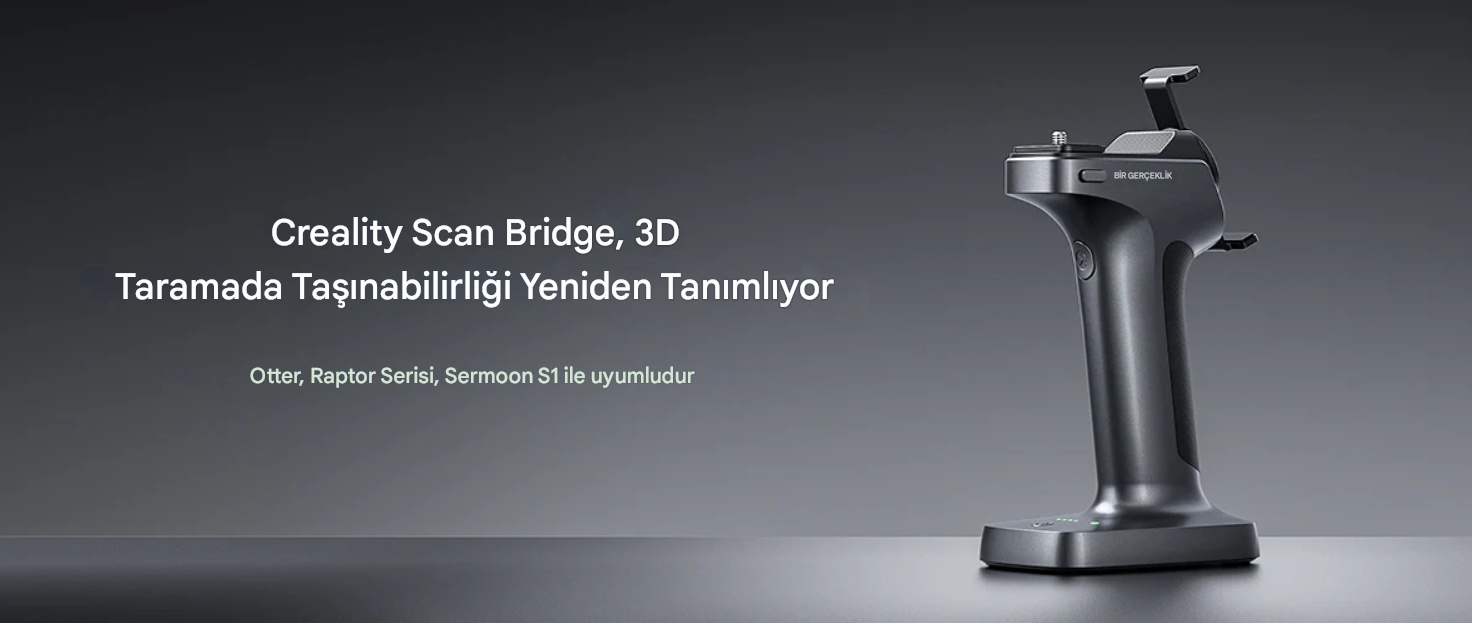

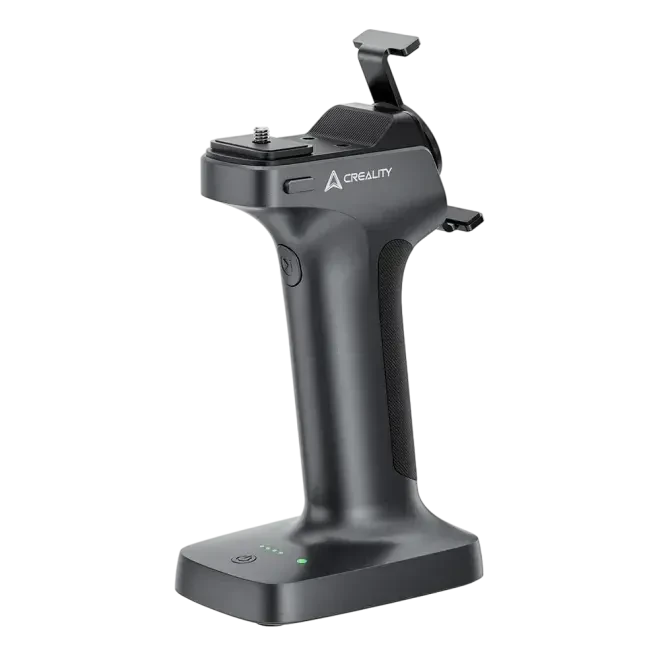

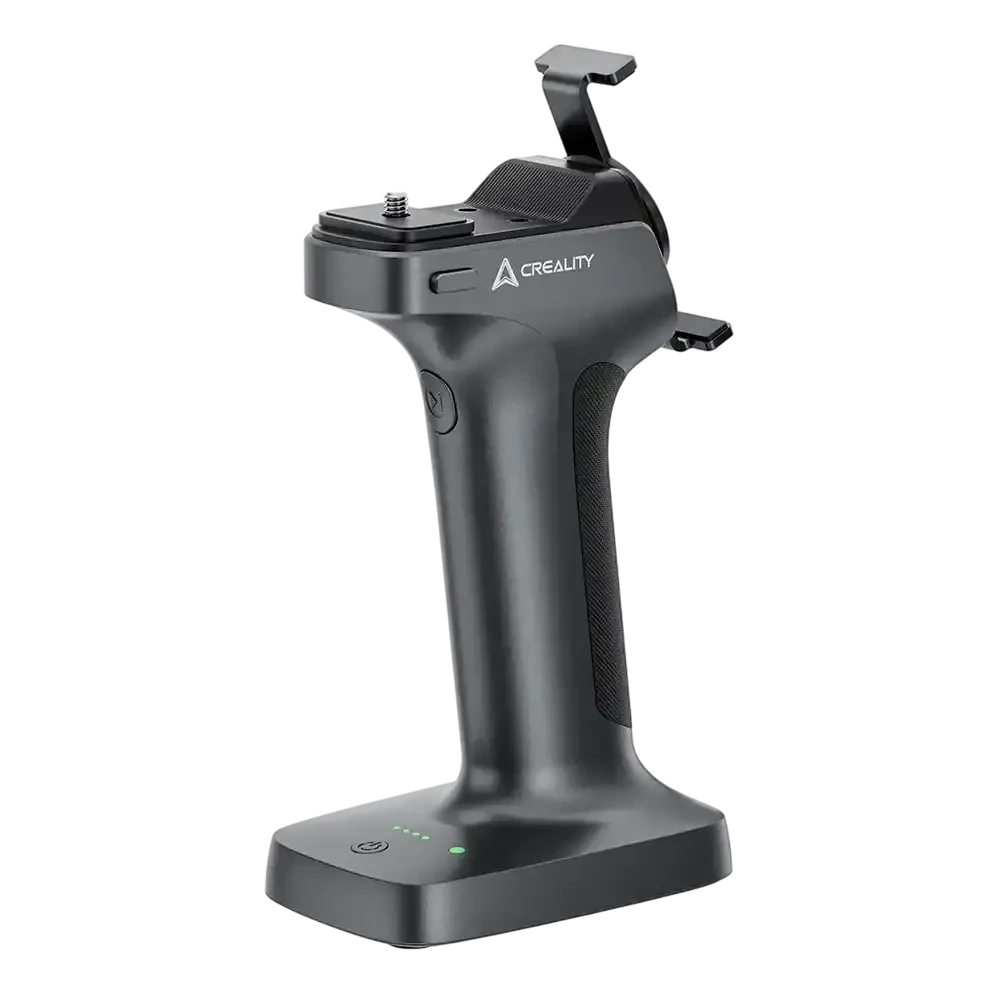

The Creality RaptorX & Scan Bridge Kit combines the world’s first wireless hybrid blue-laser & NIR 3D scanner RaptorX with the Wi-Fi 6 AX6000 Scan Bridge, providing a complete professional scanning solution in one package. With its 34+7 blue laser lines, up to 0.02 mm metrology-grade accuracy, and compatibility with objects sized between 5 – 4000 mm, it enables fast, stable, and highly detailed digitization of both small and large parts. The Scan Bridge’s 36000 mWh battery, support for up to 4 hours of wireless scanning, magnetic phone clamp, and intelligent power-saving features make field-work efficient and cable-free. Thanks to the Creality Scan software and the Creality Cloud ecosystem, the entire workflow integrates directly into 3D printing and CAD processes. It is an ideal, portable, and reliable scanning set for automotive, industrial design, reverse engineering, quality inspection, architecture, art, and cultural heritage applications.
Creality RaptorX & Scan Bridge Kit Technical Specifications:
| Scanning Technology | Hybrid blue-laser + NIR (near-infrared) one-shot 3D imaging, LiDAR-based stable tracking |
| Laser Line Structure | Total of 34+7 blue laser lines for high detail in complex geometries and deep corners |
| Accuracy / Precision | Up to 0.02 mm metrology-grade accuracy in blue-laser mode; NIR mode optimized for fast and stable scanning |
| Scannable Object Size | Approximately 5 mm – 4000 mm (from jewelry pieces to automotive body panels) |
| Scanning Volume / Scene | High-detail small-object scanning and multi-scene large-object workflows with multi-capture merging |
| Scanning Speed | Up to 30 fps in laser mode and 20 fps in NIR mode when used wirelessly with Scan Bridge |

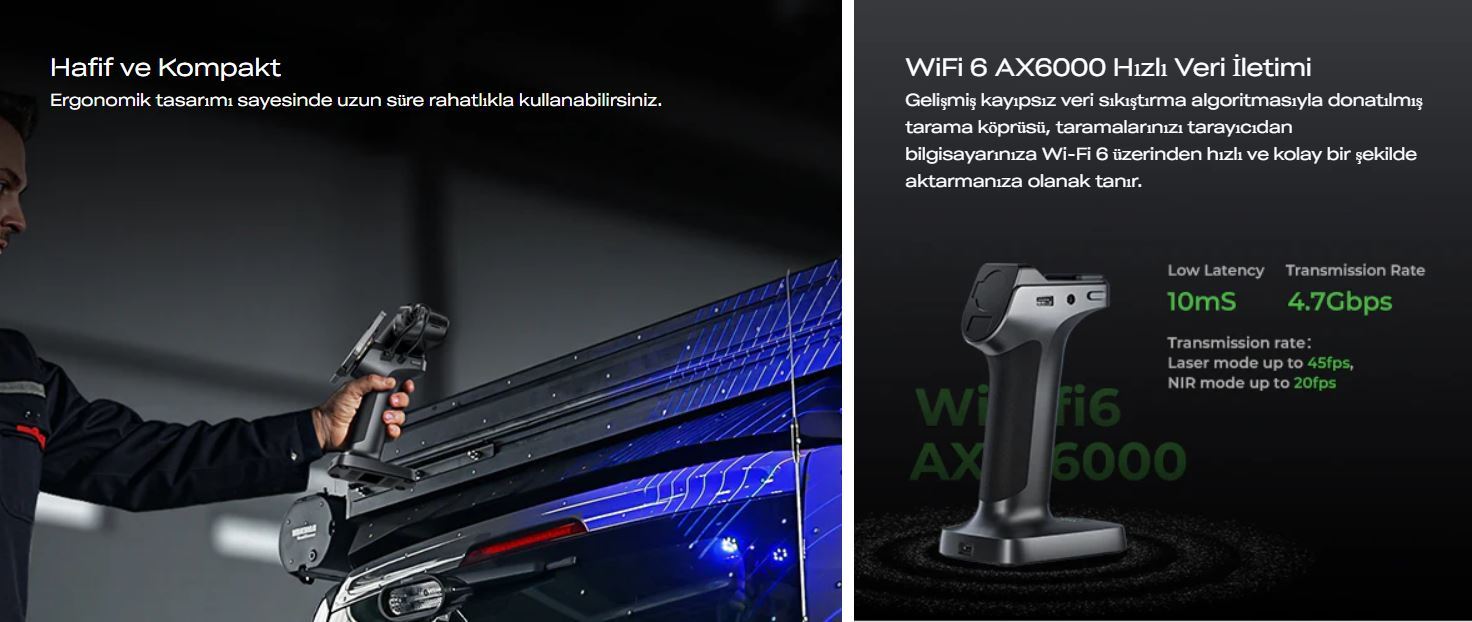

| Wireless Connectivity | Wi-Fi 6 (AX6000) for high-speed transmission, enabling wireless scanning with mobile devices and PCs |

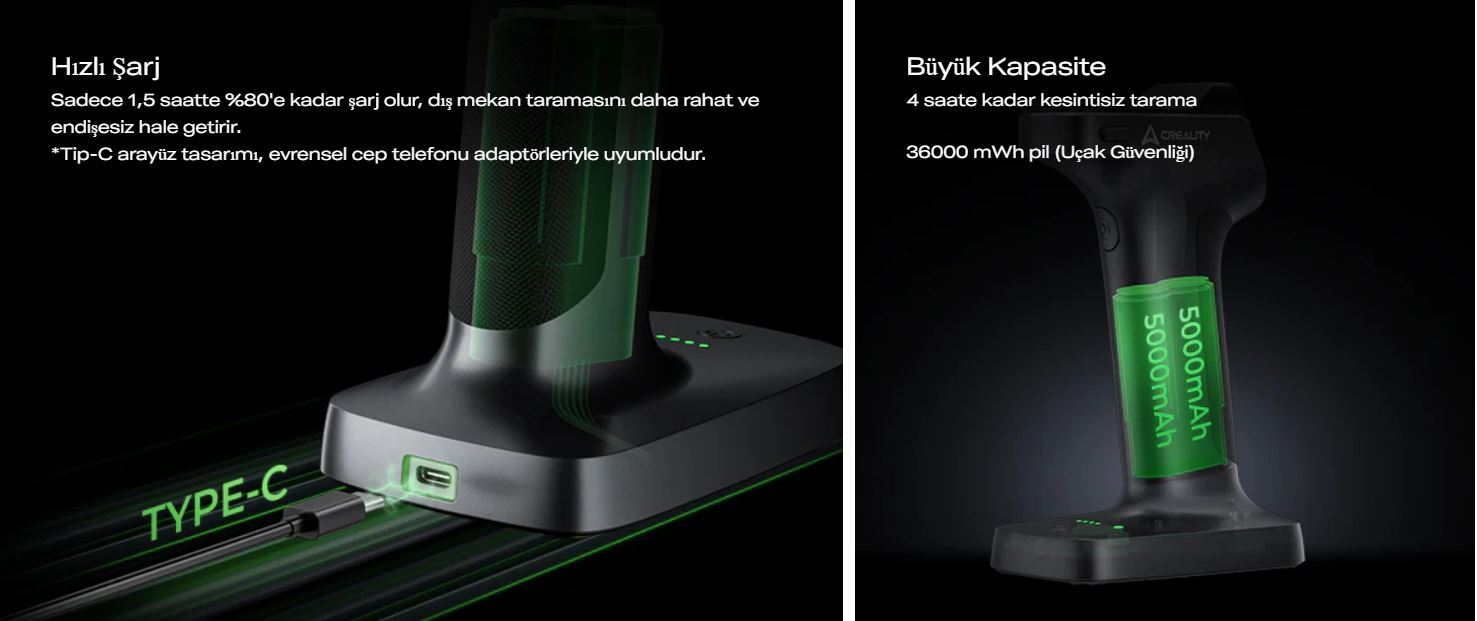

| Scan Bridge Battery Capacity | 36000 mWh internal Li-ion battery providing up to 4 hours of wireless scanning |
| Power & Charging | 30 W fast charging, PD/AFC/FCP protocol support, Type-C charging port |

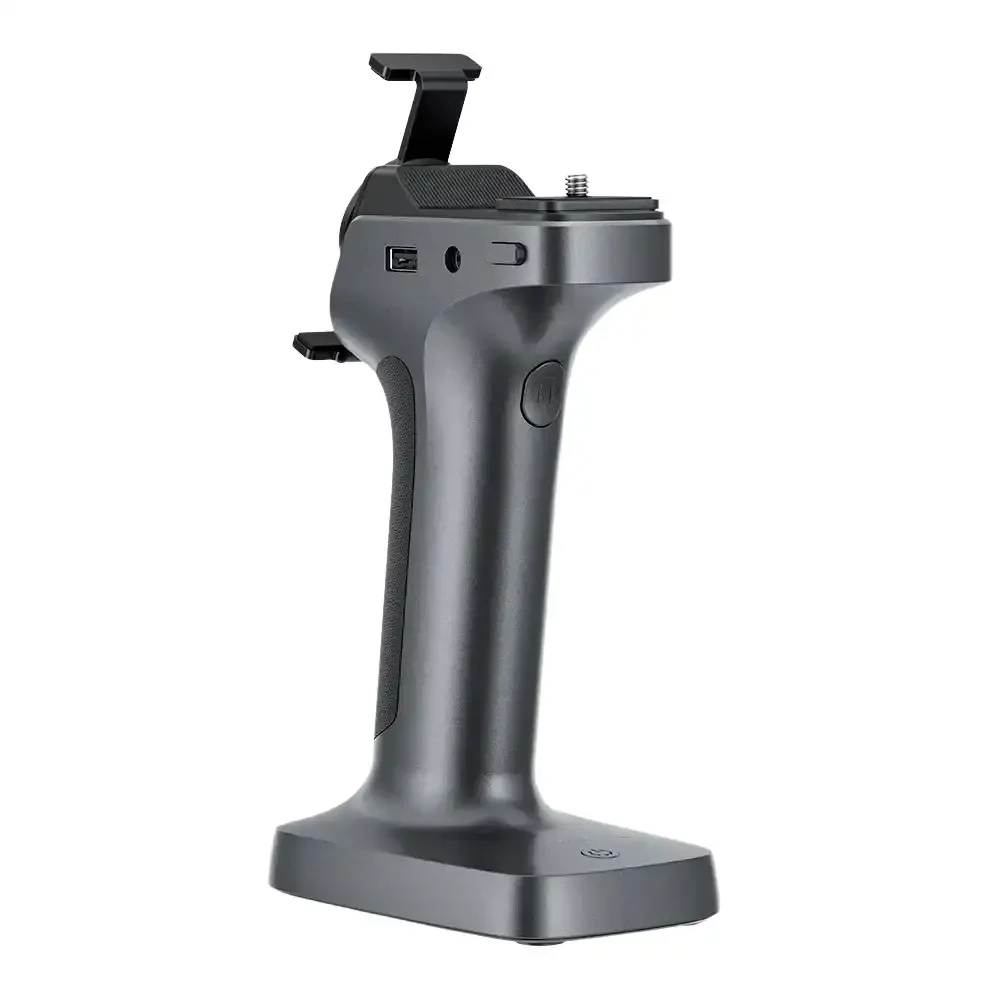

| Interfaces | USB-A / USB 3.0 data interface, DC 12 V & USB 5 V power inputs, wireless operation with mobile devices and PCs |

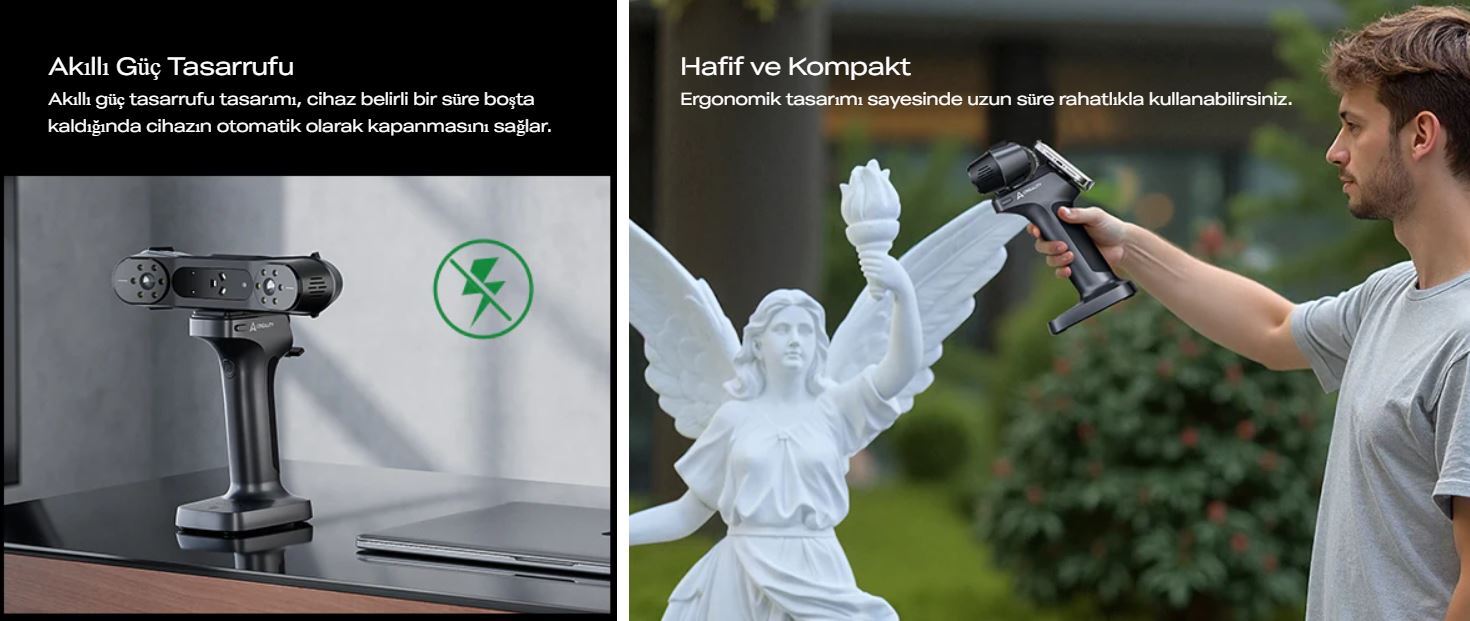

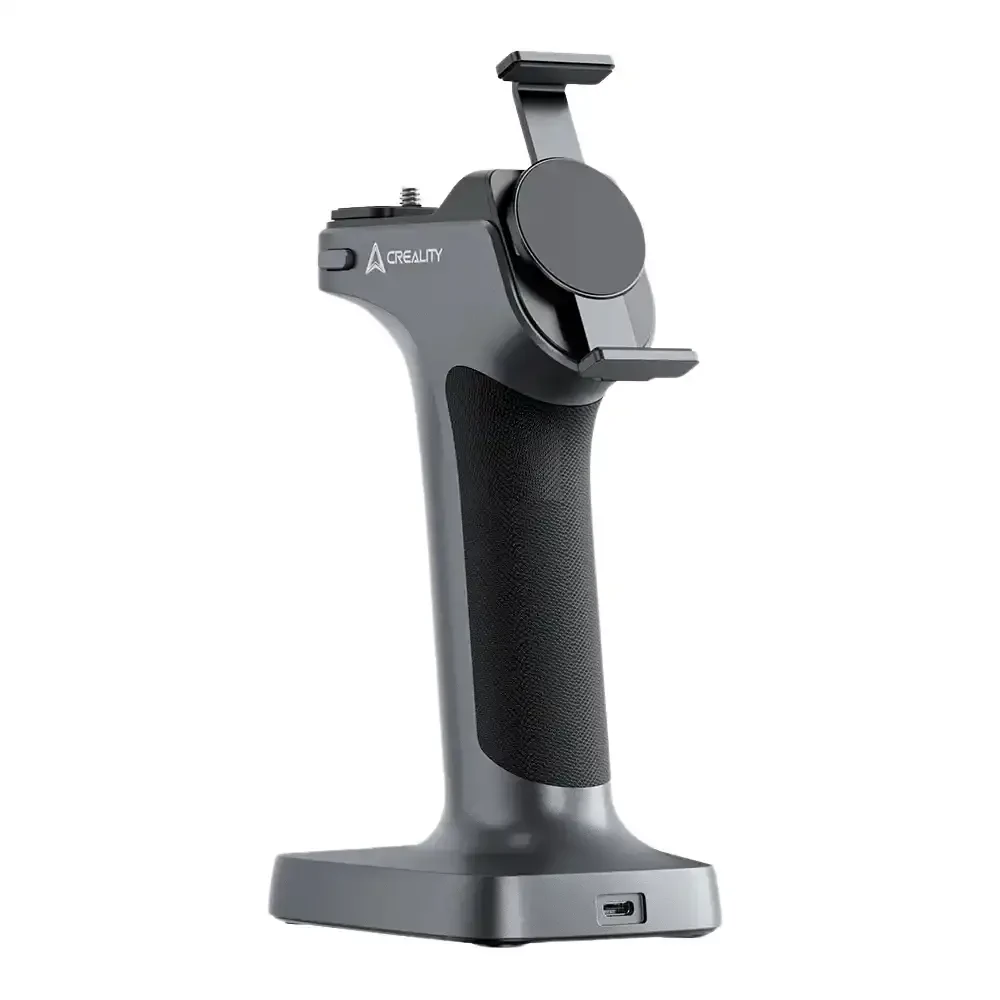

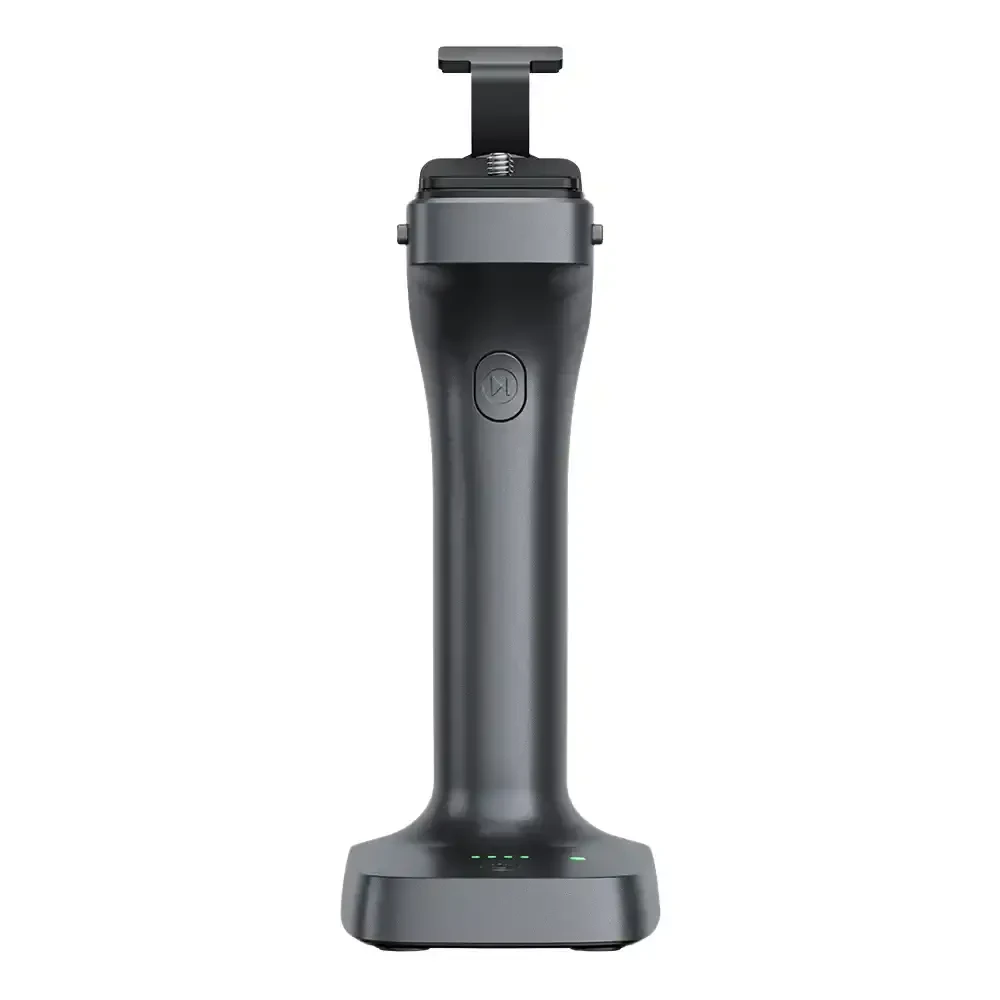

| Ergonomics & Usability | Magnetic phone clamp, physical buttons for start/stop and power, compatible with tripods/stands for stable scanning |
| Operating Conditions (Scan Bridge) | Operating temperature −10 °C to 40 °C, humidity 0 – 90 RH |
| Scan Bridge Dimensions / Weight | Approx. 194 mm × 120 mm × 82 mm, weight 474 g |

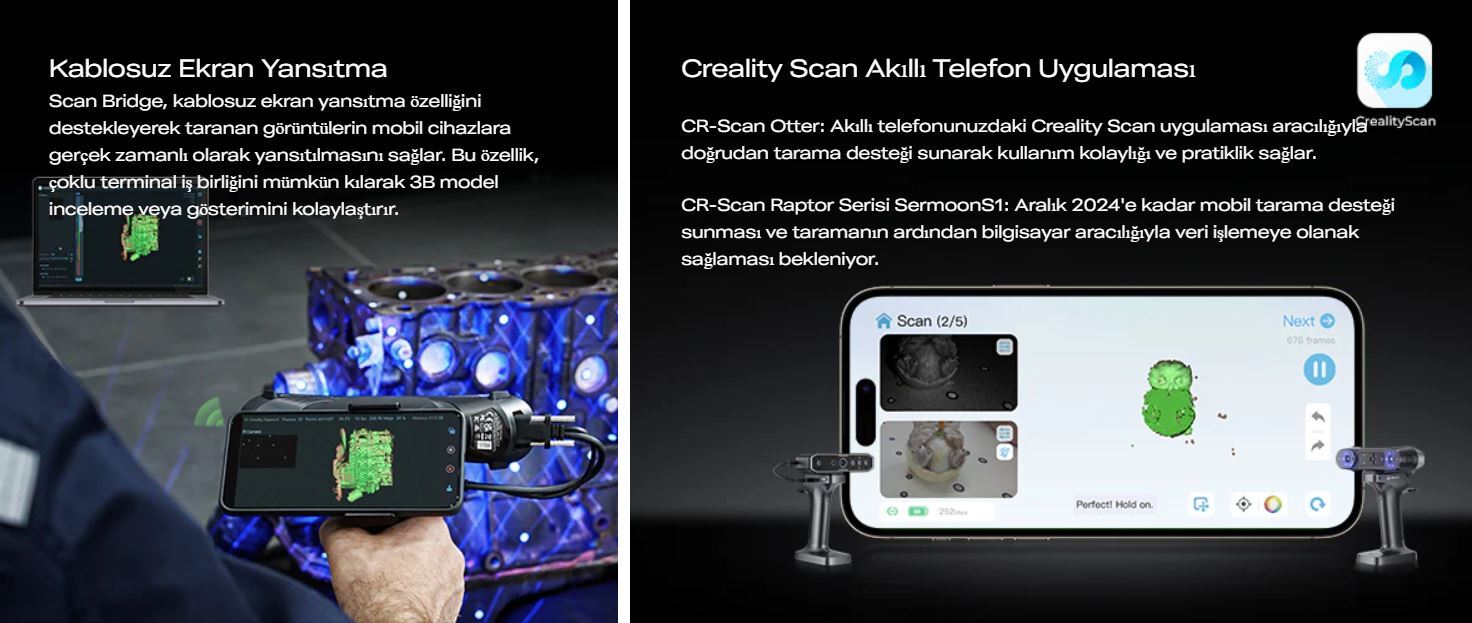

| Software & Ecosystem | Creality Scan for scanning, Creality Print for slicing and 3D printing prep, full integration with the Creality Cloud ecosystem |
| Use Cases | Automotive and appliance parts, industrial design, reverse engineering, quality inspection, AR/VR content creation, art & cultural heritage scanning, orthopedic and custom-product applications |
