Creality Pika 3D Scanner

Creality Pika Portable AI 3D Scanner

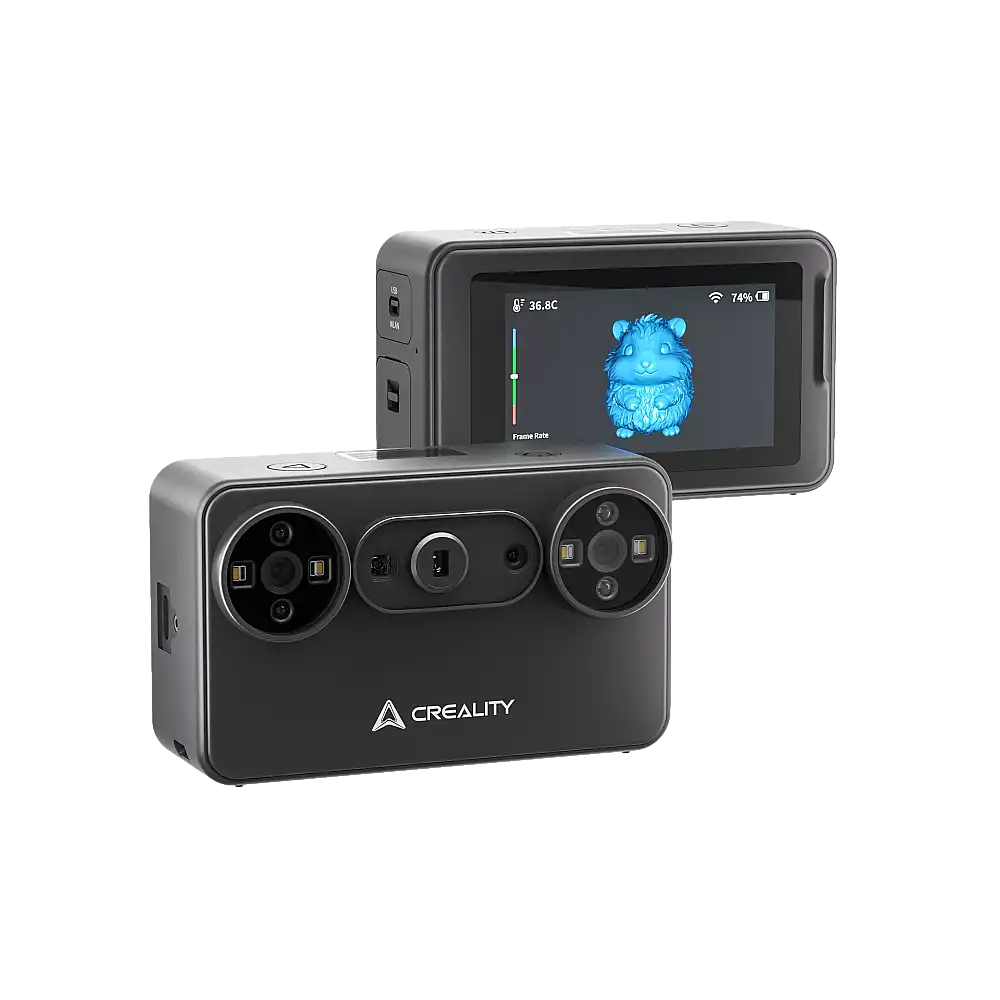

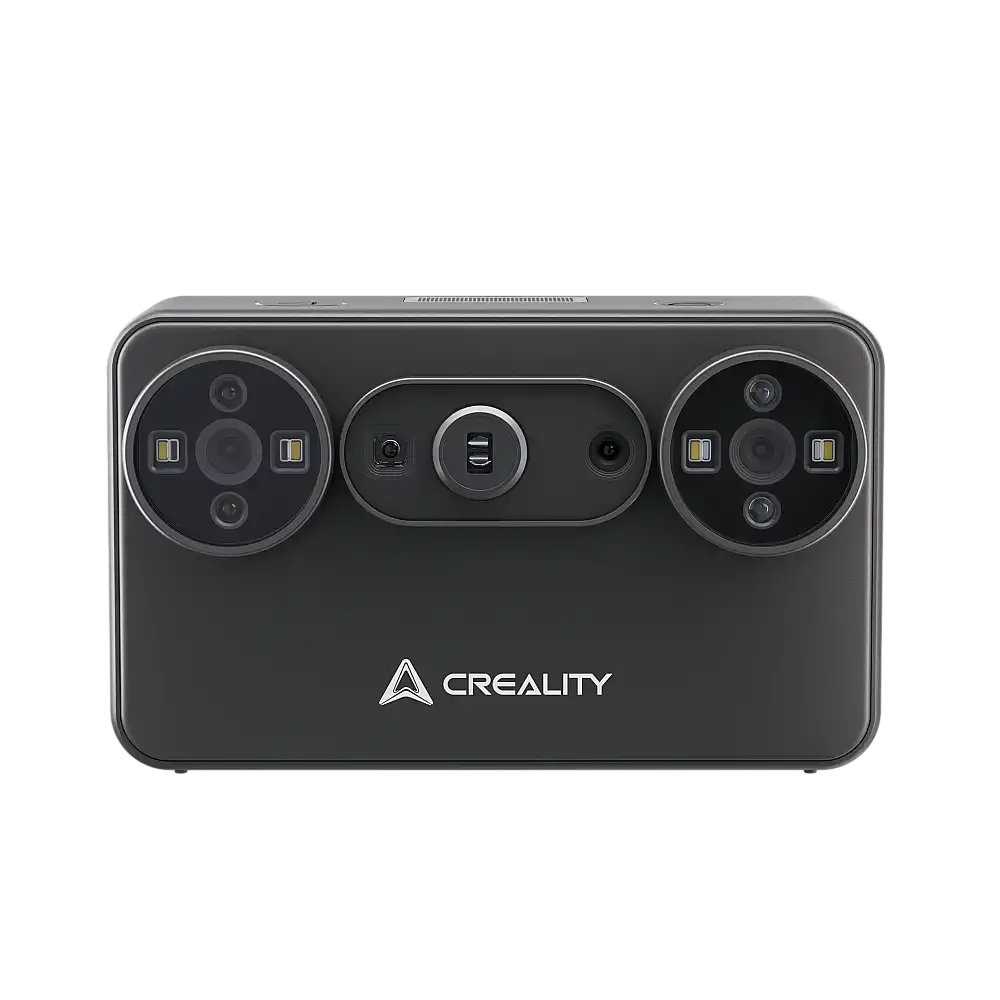

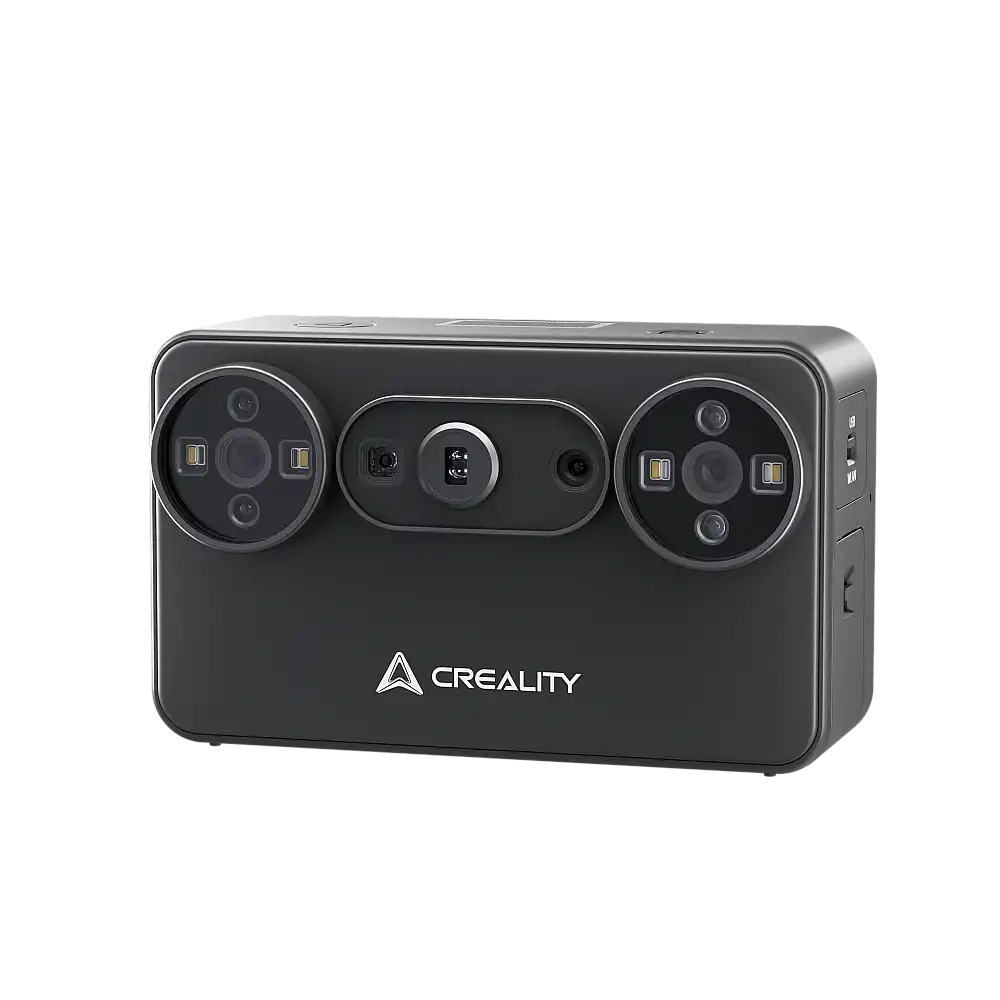

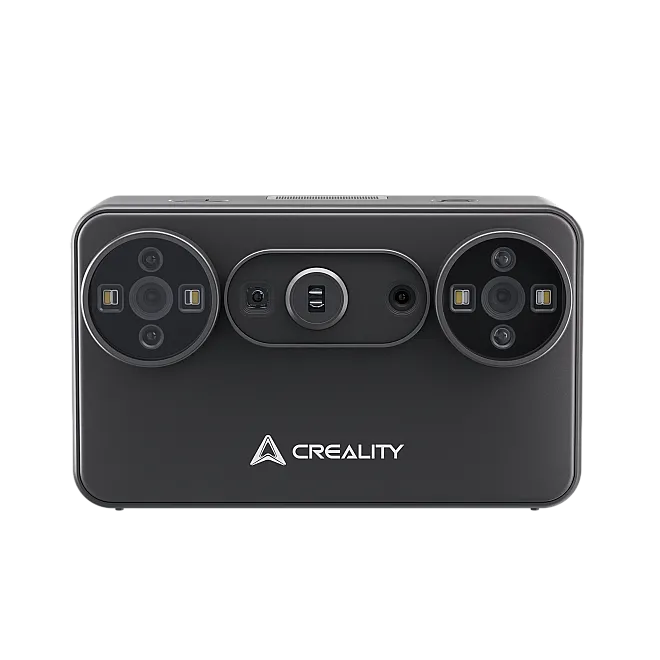

Creality Pika Portable AI 3D Scanner is a smartphone-form-factor professional 3D scanning device that combines industrial-grade accuracy and AI-powered scanning technology in a compact body small enough to fit in your pocket.

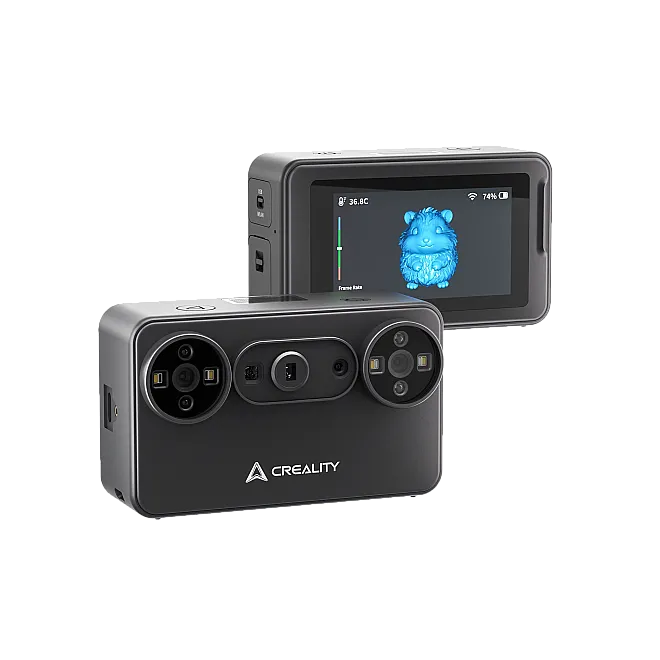

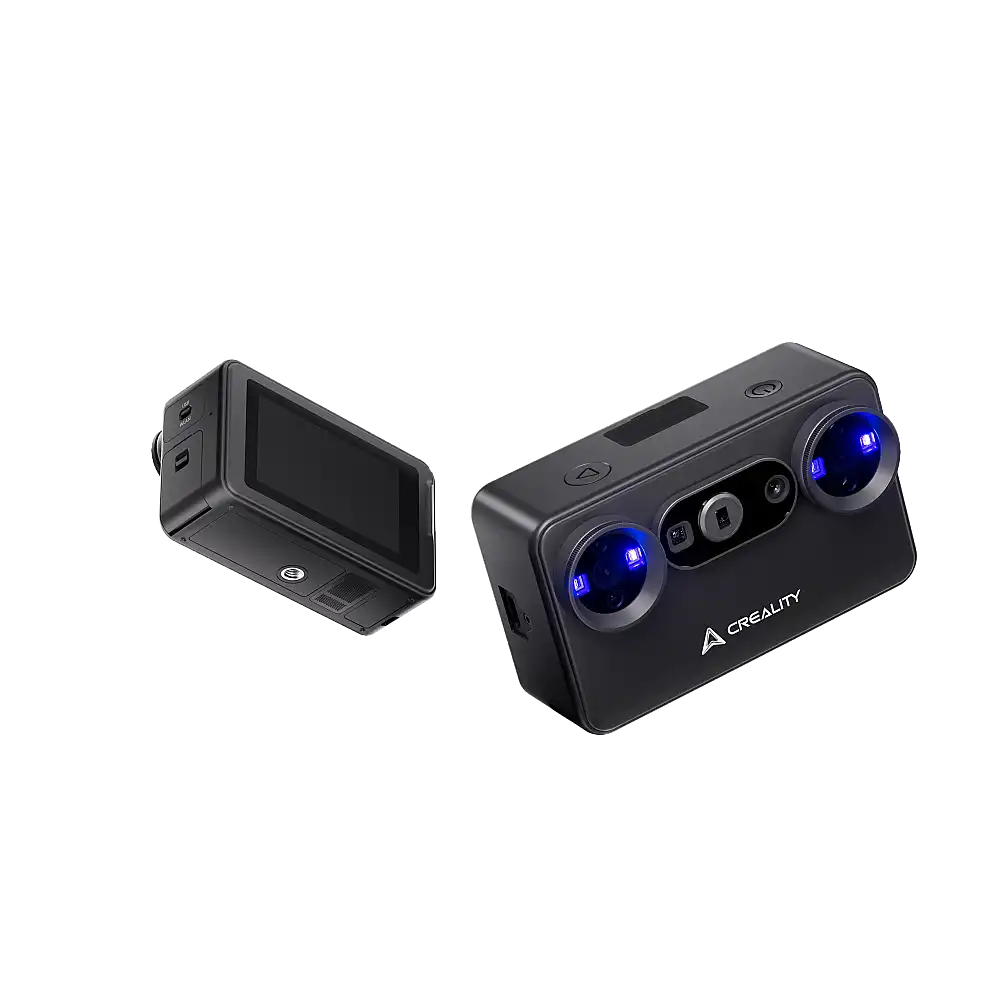

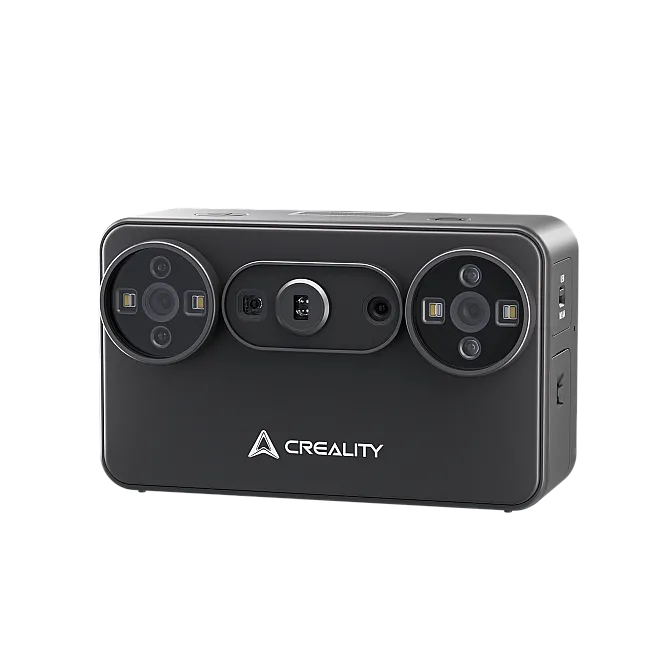

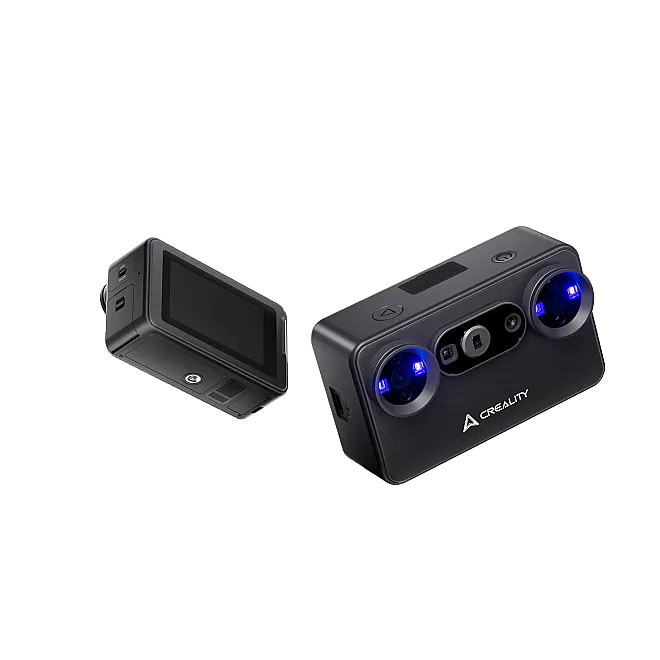

Weighing just 260 grams and measuring 100 × 60 × 35 mm, the Creality Pika is equipped with a dual light engine featuring 7 parallel blue laser lines and Near-Infrared (NIR) structured light. With the blue laser mode, metrology-grade accuracy up to 0.03 mm can be achieved on complex mechanical parts, shiny black, or metallic surfaces without spraying. The NIR mode provides eye-safe, fast scanning suitable for human body, face, and organic forms without requiring target markers. Featuring a 3-inch HD touchscreen, built-in 8-core processor, swappable battery architecture, and Wi-Fi 6 connectivity, it enables hassle-free scanning in the field without being tethered to a PC.

Key Features:

• Dual Light Engine Technology: 7 Parallel Blue Laser lines for precise industrial measurements and Class I eye-safe NIR infrared light architecture for body/face scanning.
• 0.03 mm Metrology-Grade Accuracy: High-accuracy digitization performance up to 0.03 mm for everything from small components to complex mechanical parts.
• Marker-Free Blue Laser & NIR Scanning: Directly capture intricate geometries and fine details without the need for target markers.
• 110 FPS High-Speed Capture: Smooth scanning speeds of up to 110 FPS via PC connection and 40 FPS via mobile connection for quick, data-loss-free scanning.
• Spray-Free Black & Metal Surface Scanning: Directly scan reflective metallic and black surfaces without anti-glare spray, thanks to its specialized optical wavelength.

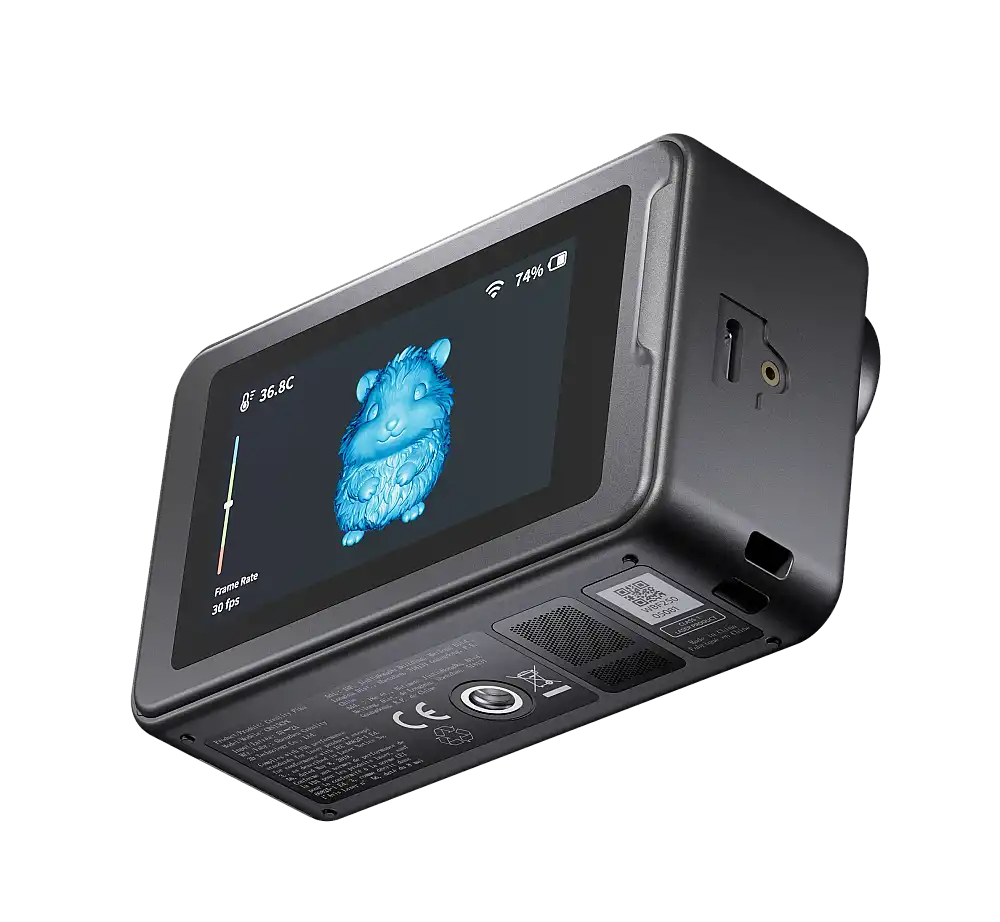

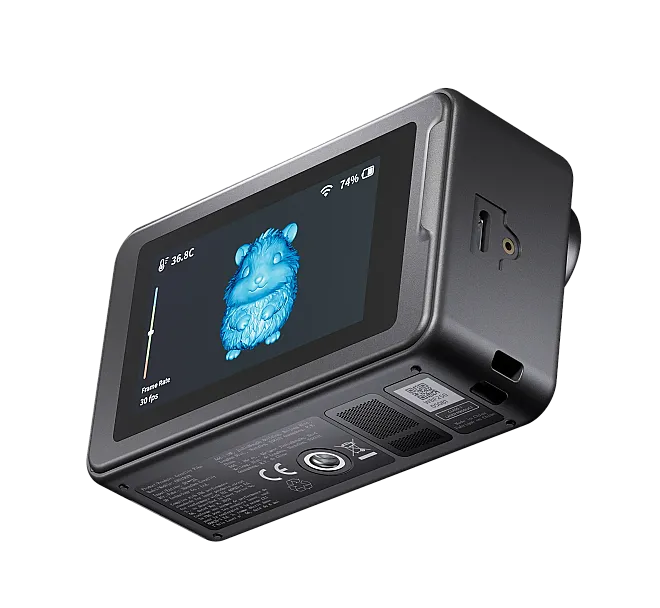

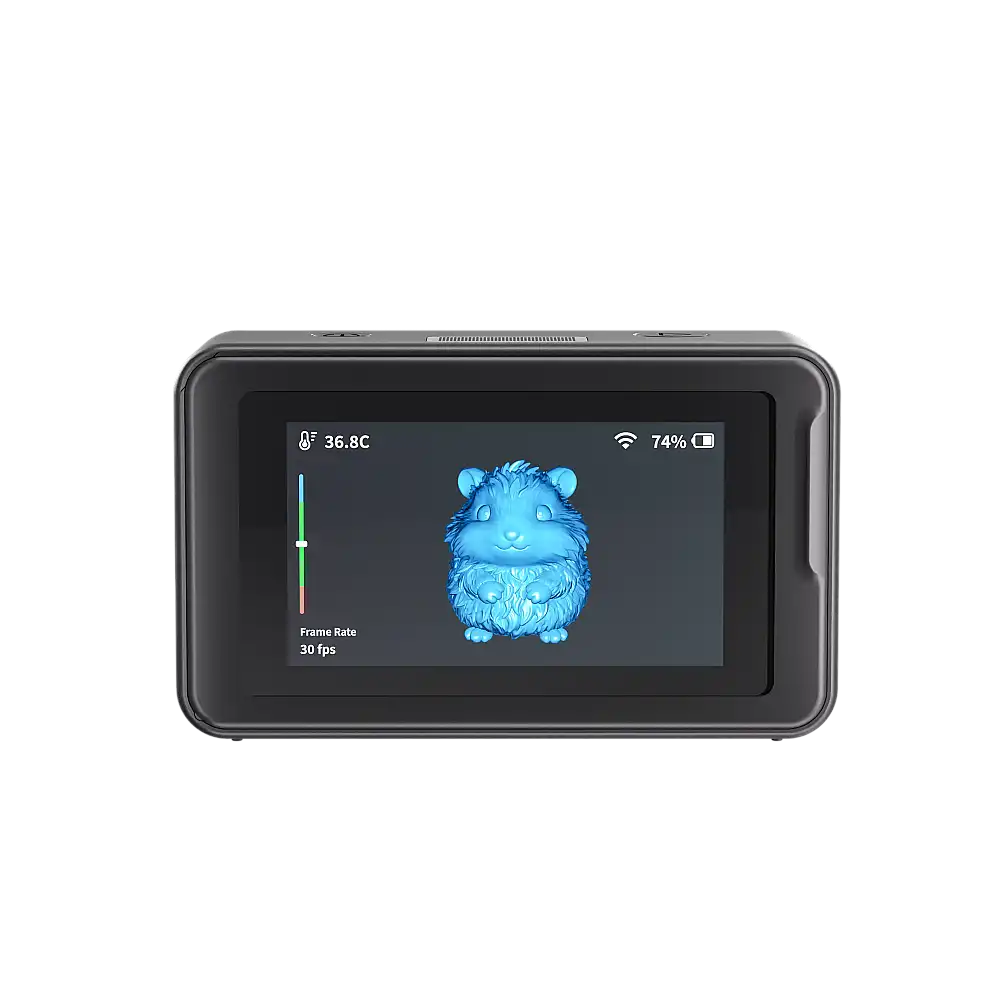

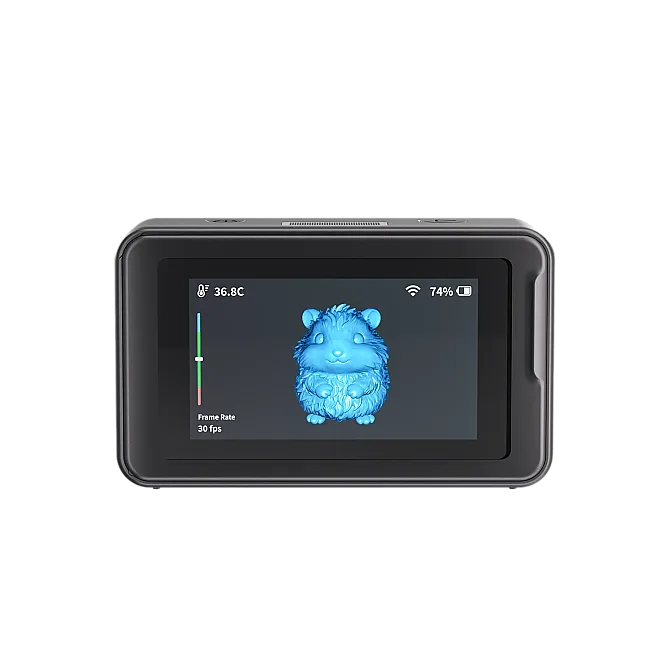

• Built-in 3-Inch HD Touchscreen: Directly preview scans, adjust device settings, and check alignment on the device without needing an external display.
• Advanced AI & Gaussian Splatting Support: AI-powered point cloud cleaning, automatic model completion, and realistic texture mapping using smartphone/DSLR photos.
• Hot-Swappable Dual Battery: Swap batteries while the device is running for uninterrupted field operations.
• High Ambient Light Tolerance: Reliable outdoor operation under direct sunlight up to 110,000 lux in blue laser mode and up to 80,000 lux with the NIR filter.

Technical Specifications:

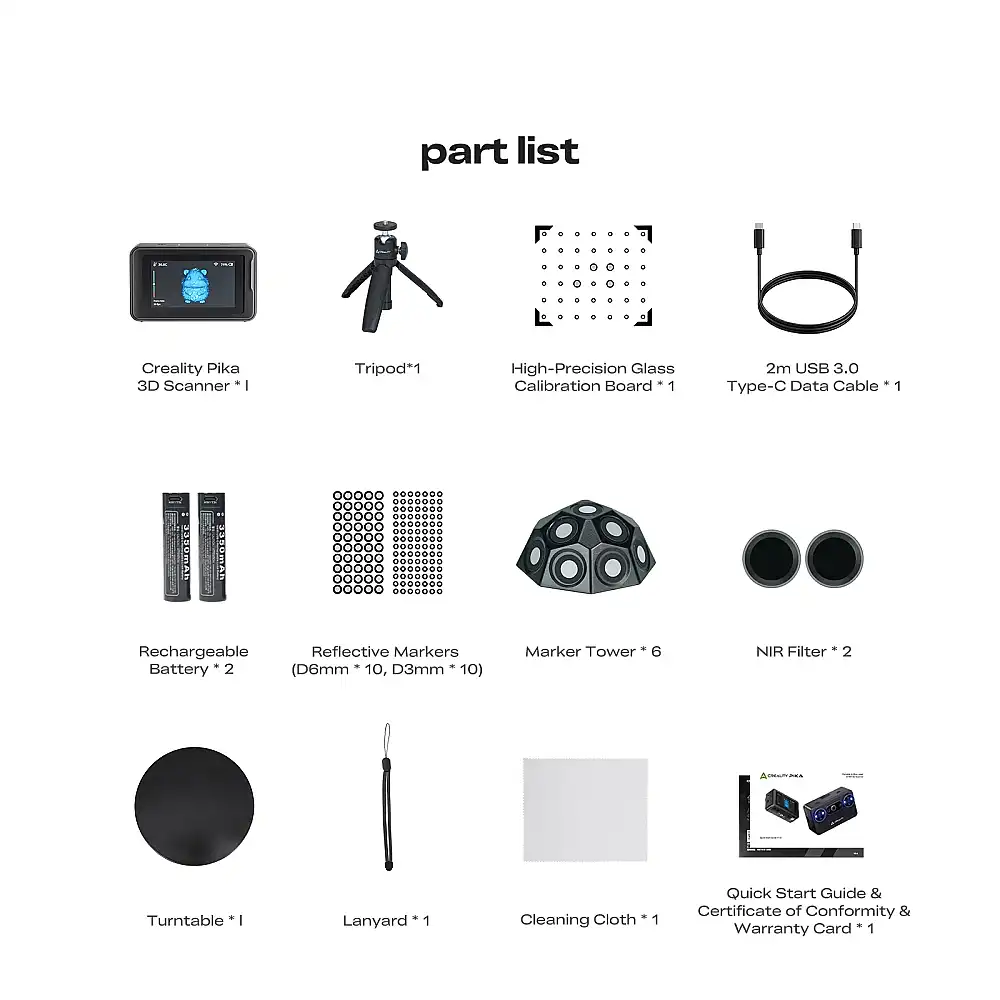

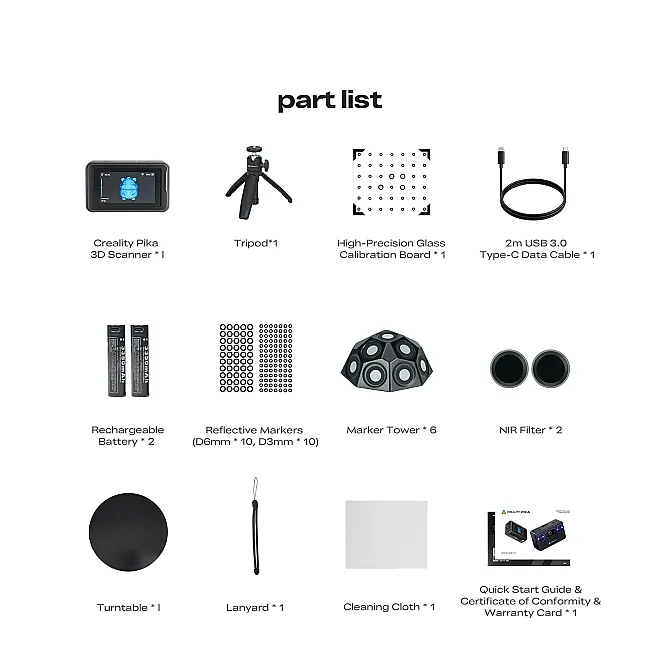

Package Includes:

• 1 x Creality Pika AI Portable 3D Scanner
• 2 x 3350 mAh Rechargeable Batteries
• 1 x Dual Battery Charging Hub
• 1 x High-Precision Glass Calibration Board
• 1 x Detachable NIR Infrared Filter Lens
• 1 x Adjustable Phone Clamp Holder
• 1 x Desktop Mini Tripod
• 1 x Protective Hard Carrying Case
• 1 x Pack of Reflective Target Marker Stickers
• 1 x USB 3.0 Type-C Data and Power Cable
• 1 x Lanyard / Wrist Strap
• User Manual & Quick Start Guide
