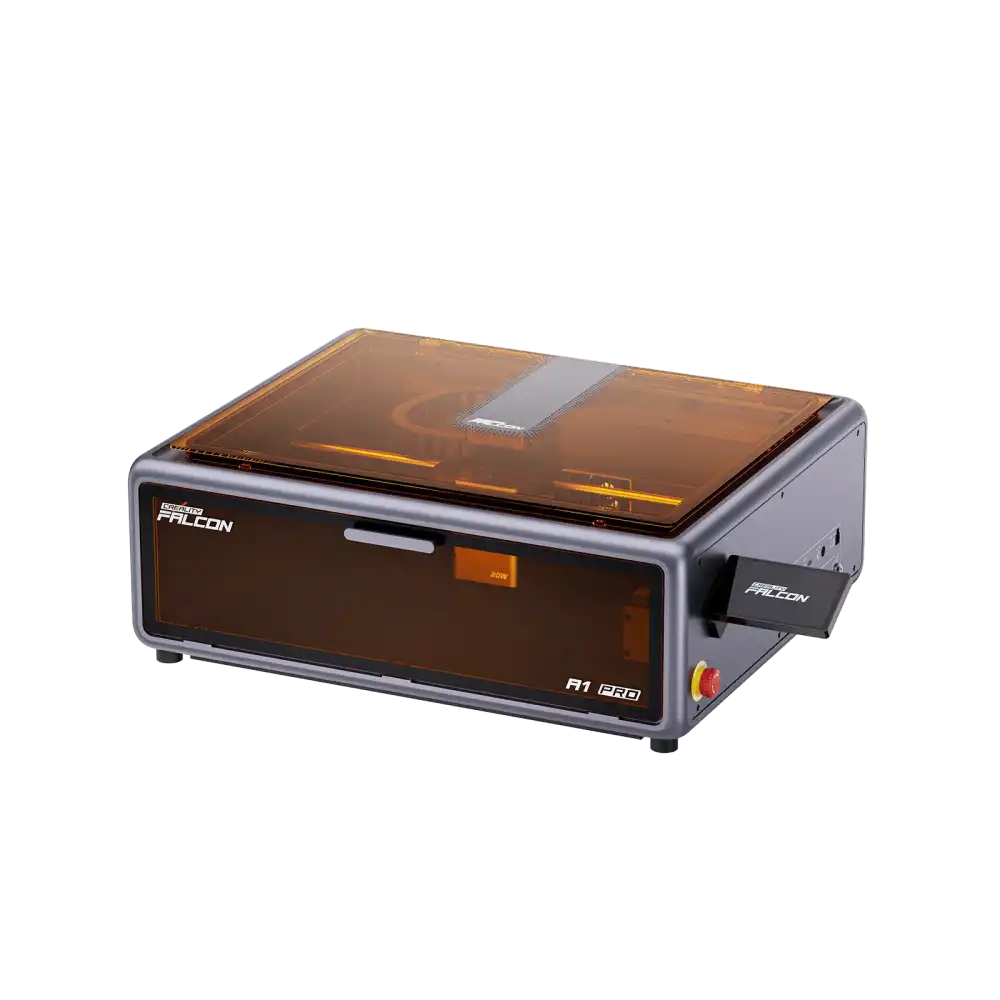

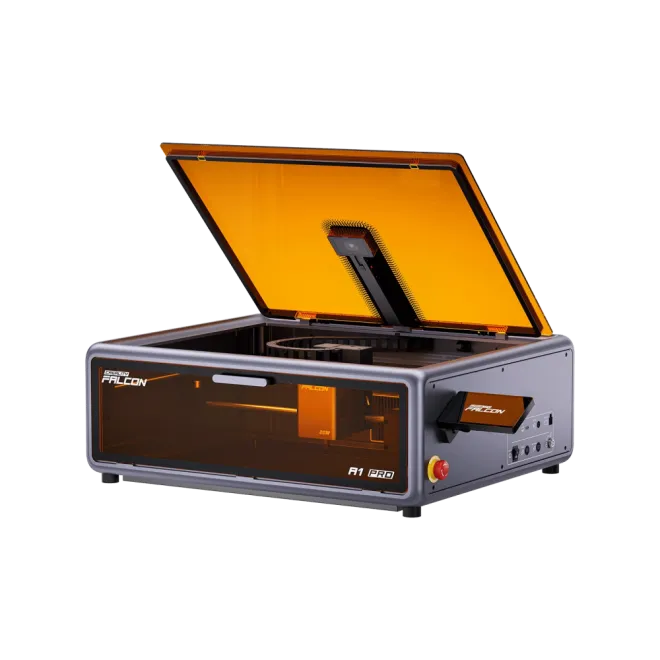

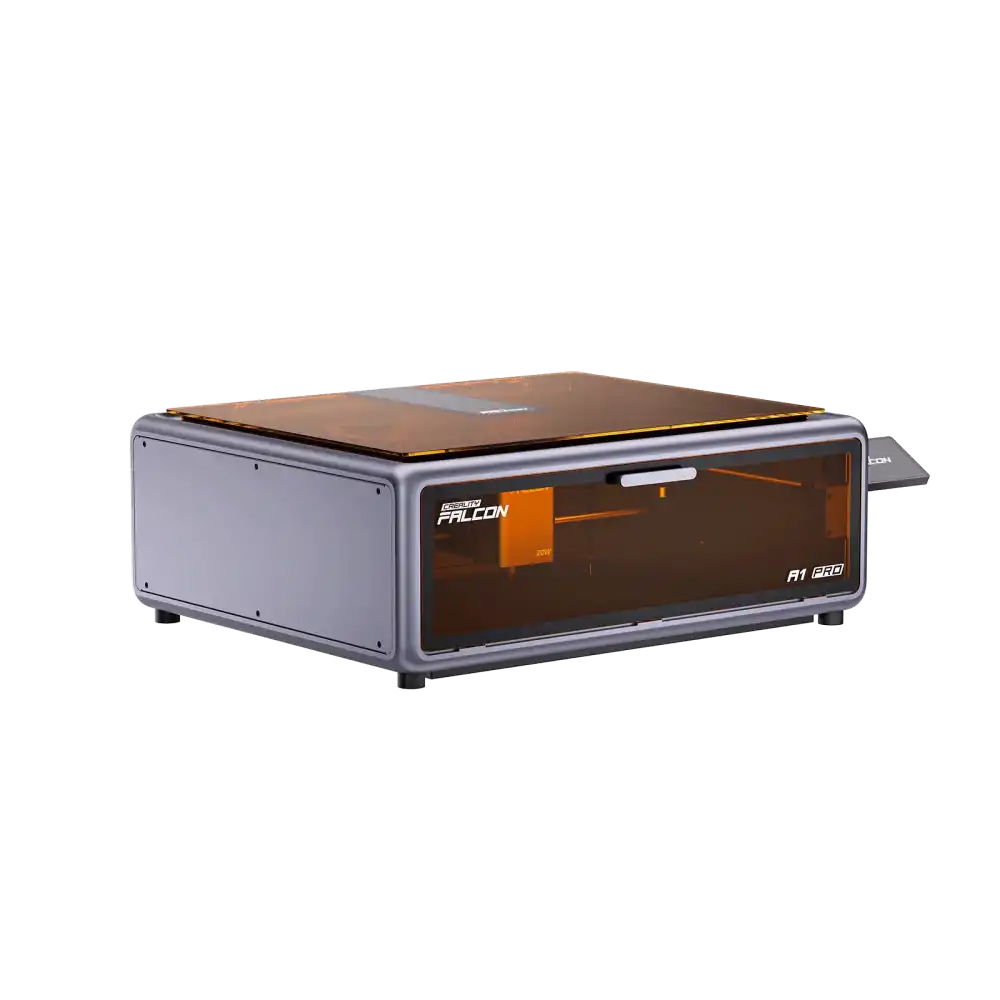

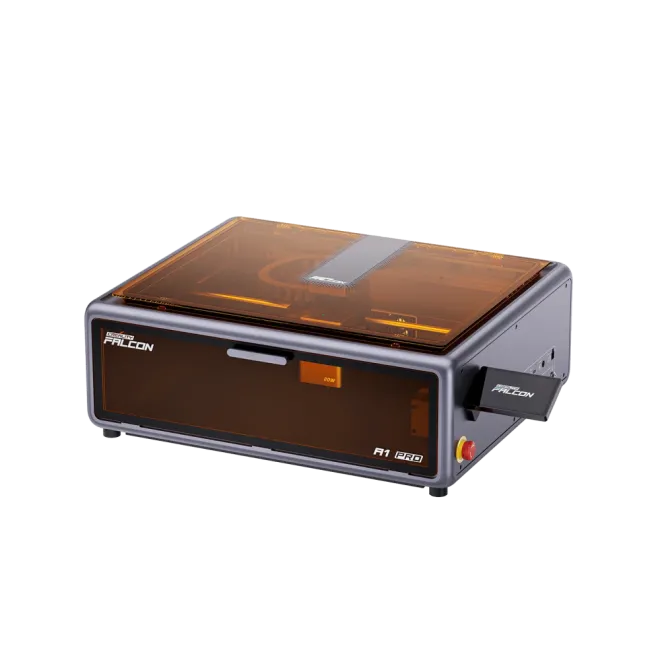

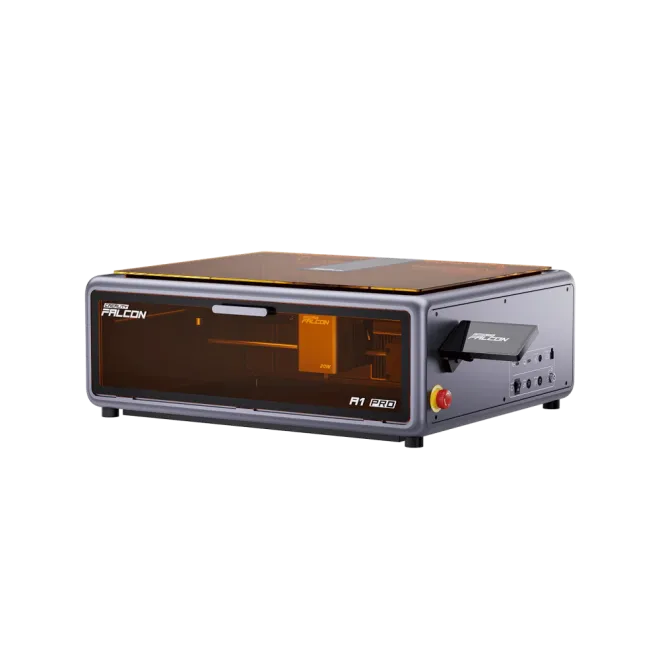

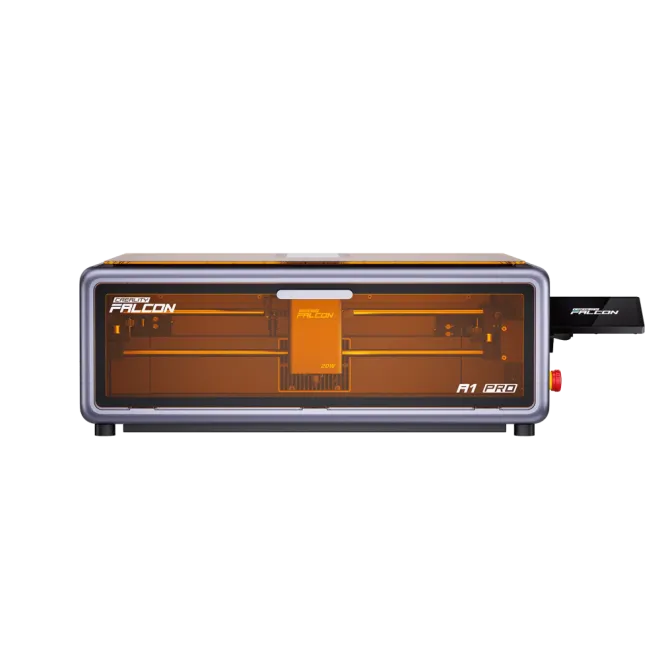

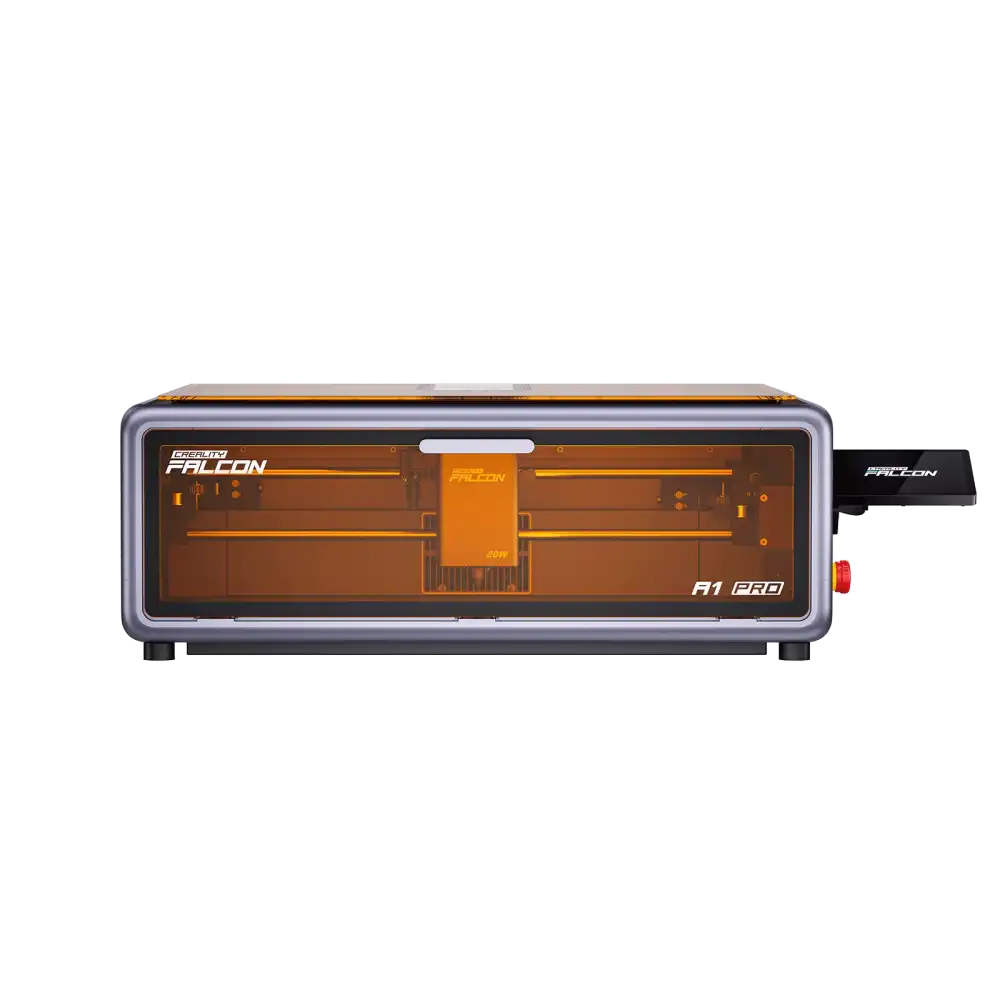

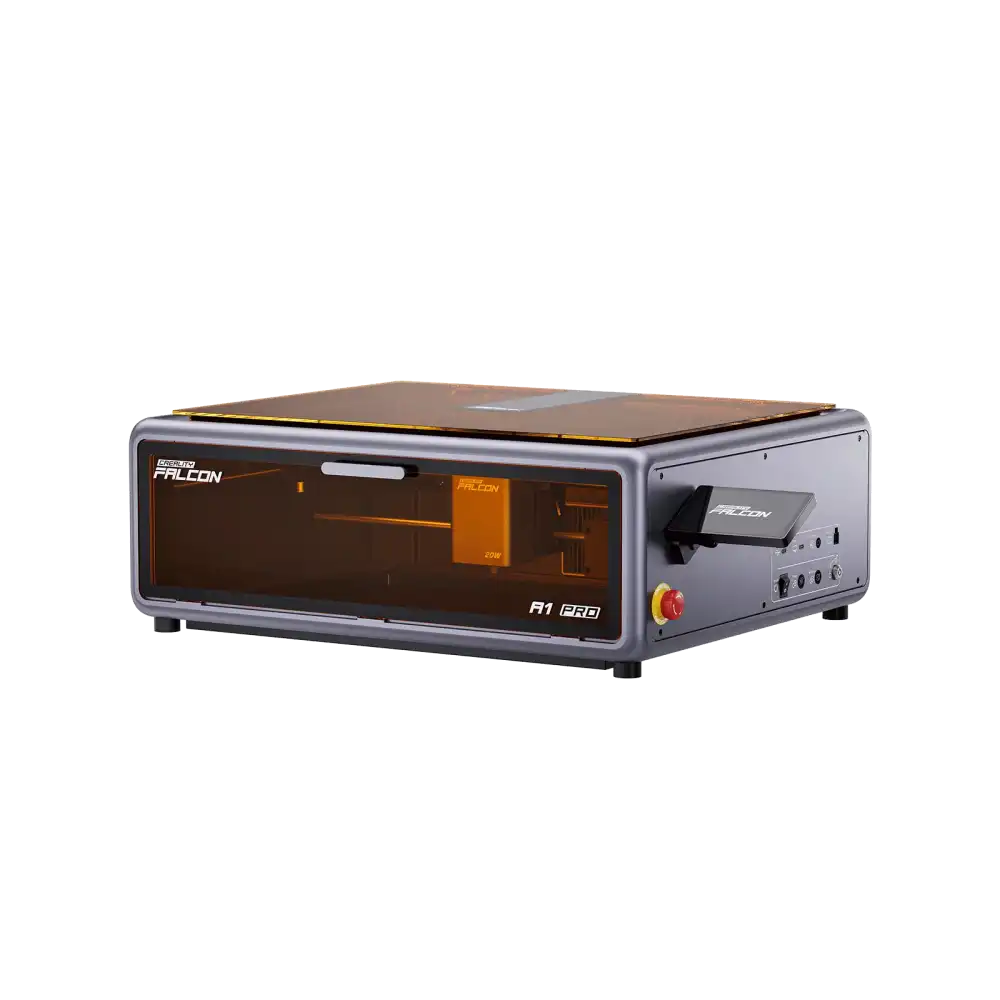

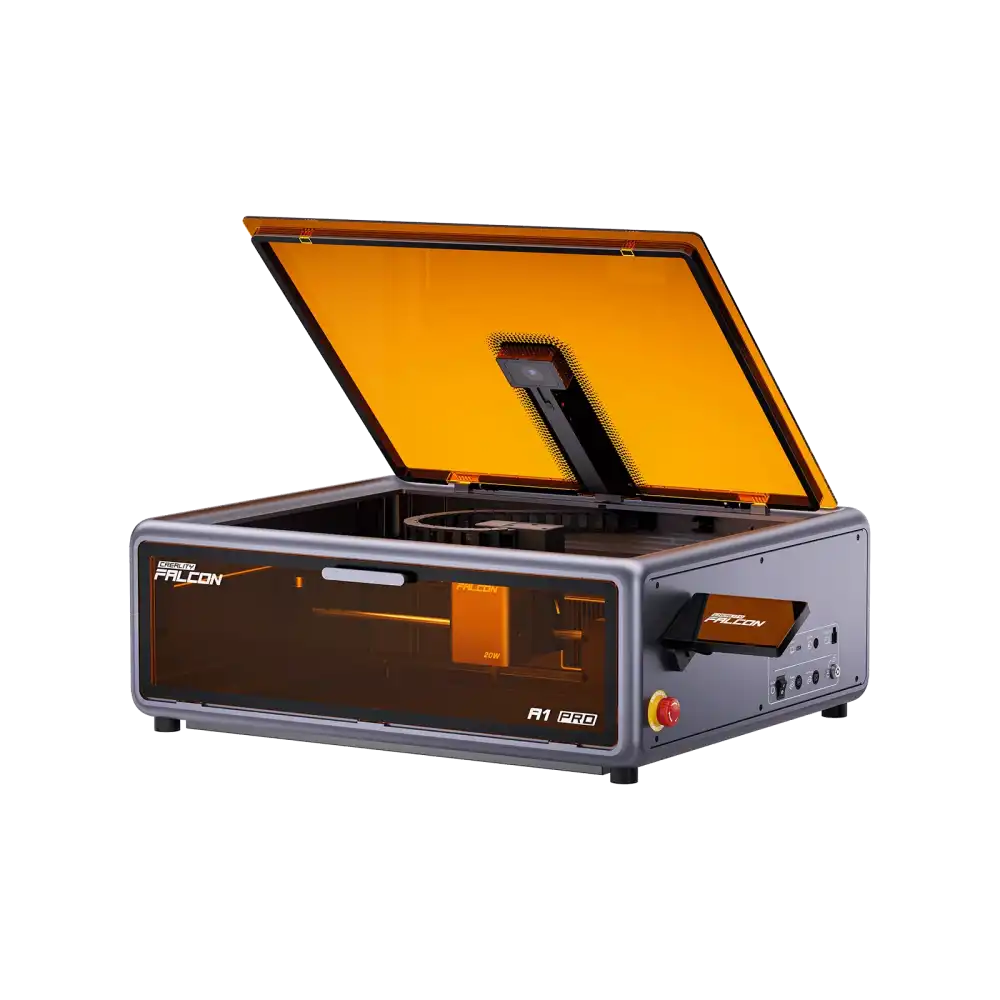

Notify me when its in stockCreality Falcon A1 Pro Laser Engraver and Cutter – 20W
Creality Falcon A1 Pro 20W is a laser engraving and cutting machine developed for both professional users and advanced hobbyists, featuring high-power diode laser technology. With its 20W optical laser power, it delivers extremely fast, clean, and precise results on materials such as wood, leather, acrylic, fabric, and metal surfaces. Its high speed, stable mechanical structure, and smart software features significantly increase productivity.
Equipped with an AI-powered camera system, Falcon A1 Pro offers automatic alignment, object recognition, and real-time monitoring, minimizing the risk of engraving errors. With engraving speeds of up to 600 mm/s, an automatic focusing system, and a powerful smoke extraction structure, it is an ideal solution for mass production and highly detailed designs.
Differences Between Creality Falcon A1 Pro and Creality Falcon A1:
Compared to the standard Falcon A1 model, Creality Falcon A1 Pro offers higher laser power, faster operating capacity, and more advanced production-oriented features. While Falcon A1 is mainly designed for hobby and entry-level users, Falcon A1 Pro is optimized for small businesses and serial production needs.
Laser Power: Falcon A1 Pro features 20W optical laser power, while Falcon A1 offers 10W laser power. This allows the A1 Pro to cut thicker materials in a single pass.
Cutting Performance: Falcon A1 Pro can cut up to 25 mm wood and 15 mm black acrylic in a single pass, whereas these values are lower on the Falcon A1 model.
Engraving Speed: Falcon A1 Pro can reach a maximum engraving speed of 600 mm/s, while Falcon A1 offers a maximum speed of 400 mm/s.
Production Efficiency: Thanks to its high speed and powerful laser combination, Falcon A1 Pro is more suitable for serial production and intensive use.
Target Users: While Falcon A1 is ideal for hobby and educational use, Falcon A1 Pro is designed for professional workshops and commercial applications.
Creality Falcon A1 Pro Technical Specifications:
| Laser Power | 20W Optical Power (Diode Laser) |
| Laser Wavelength | 455 ± 5 nm |
| Laser Spot Size | 0.06 × 0.08 mm |
| Focusing | Automatic focusing + manual fine adjustment |
| Maximum Engraving Speed | 600 mm/s |
| Working Area | 400 × 415 mm |
| Maximum Cutting Depth | 25 mm wood / 15 mm black acrylic (single pass) |
| Supported Engraving Materials | Wood, bamboo, paper, cardboard, leather, fabric, rubber, acrylic, anodized metal, stainless steel |
| Supported Cutting Materials | Wood, acrylic, cardboard, felt, leather |
| Camera | AI-powered top camera – automatic alignment and live monitoring |

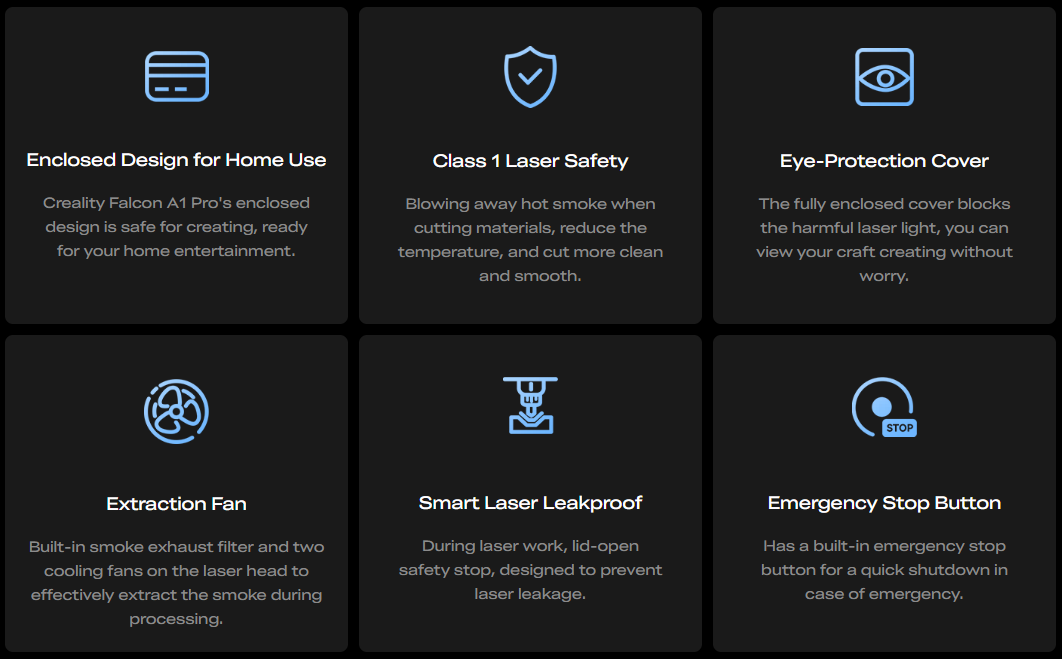

| Safety Systems | Flame detection, motion sensor, emergency stop, lid-open warning |
| Smoke Management | Automatic fan-assisted smoke extraction system |
| Software Compatibility | LightBurn, LaserGRBL, Creality Print |
| File Formats | PNG, JPG, BMP, SVG, DXF, G-code |
| Connectivity | USB, Wi-Fi, TF Card |
| Input Voltage | AC 100–240V, 50/60 Hz |
| Power Consumption | Maximum 150W |
| Operating Temperature | 0 – 35 °C |
