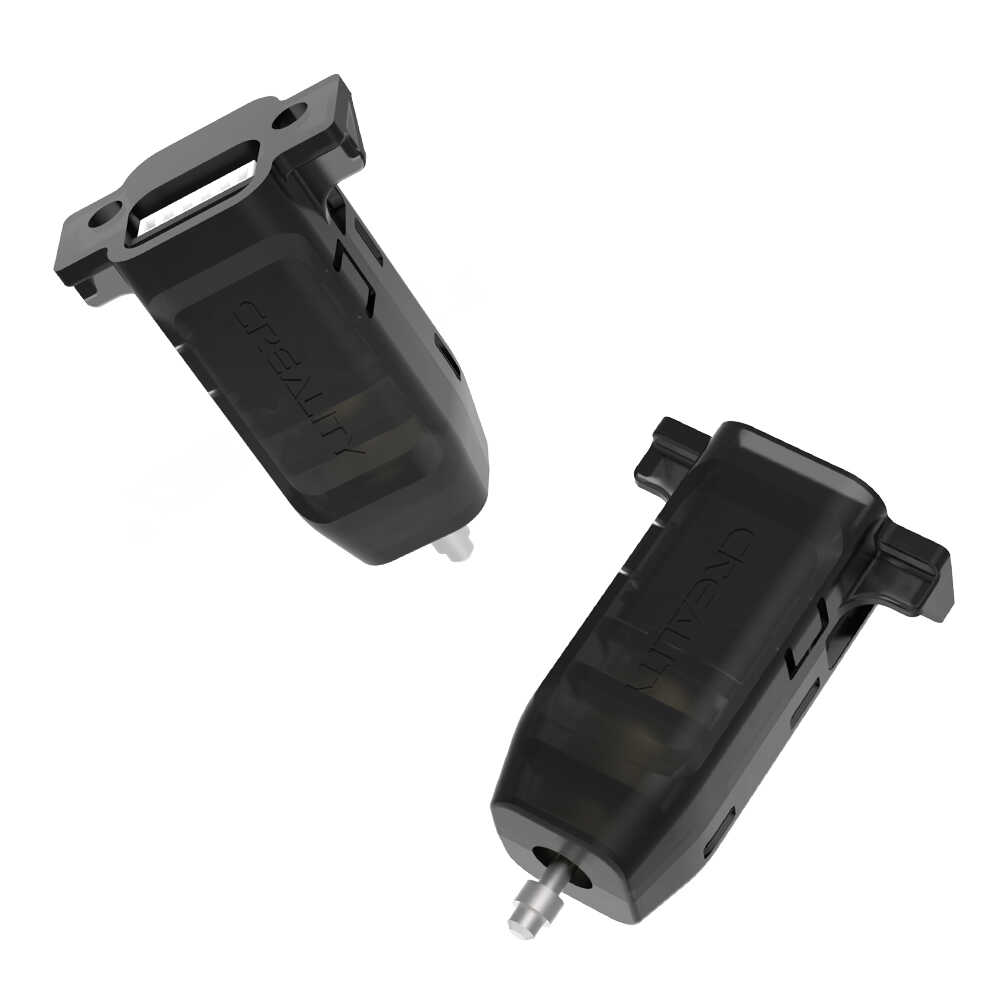

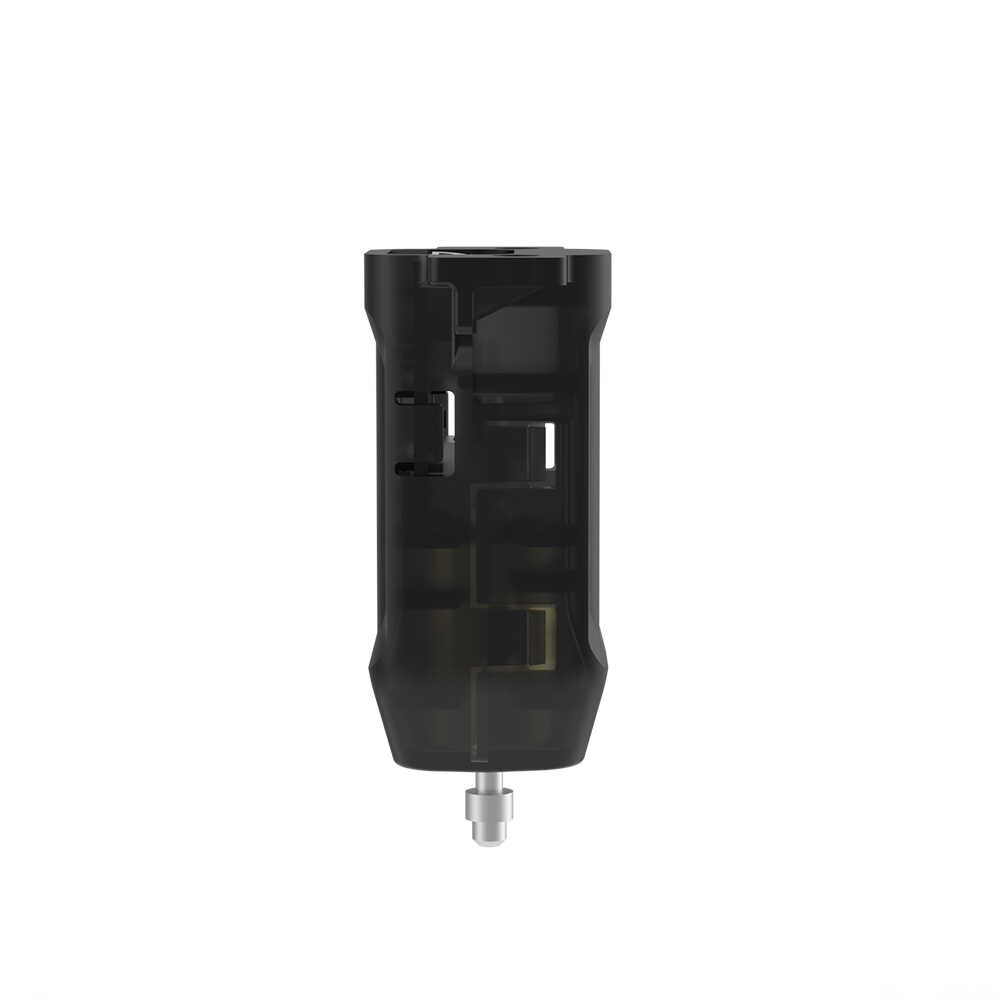

Creality CR Touch Auto Leveling Standard Kit without Bracket

Creality CR Touch Auto Leveling Standard Kit without Bracket

The Creality Bracketless CR Touch Auto Leveling Standard Kit can record the height of each detected point with multi-point sensing on the build plate. In this way, the system creates a virtual plane according to the effect of the detected point and calculates the angle of inclination between the nozzle and the platform to automatically compensate for the different points. It also has a metal probe that reduces wear and tear and greatly extends its service life. When the probe print platform is touched, it detects the photoelectric sensor contacts signal on the PCB board and the system can record the height of the platform. Apart from these structures, it has more than one perfect structure, including multi-point detection, high sensitivity, low power consumption, enterprise flexibility, strong stability and target function.

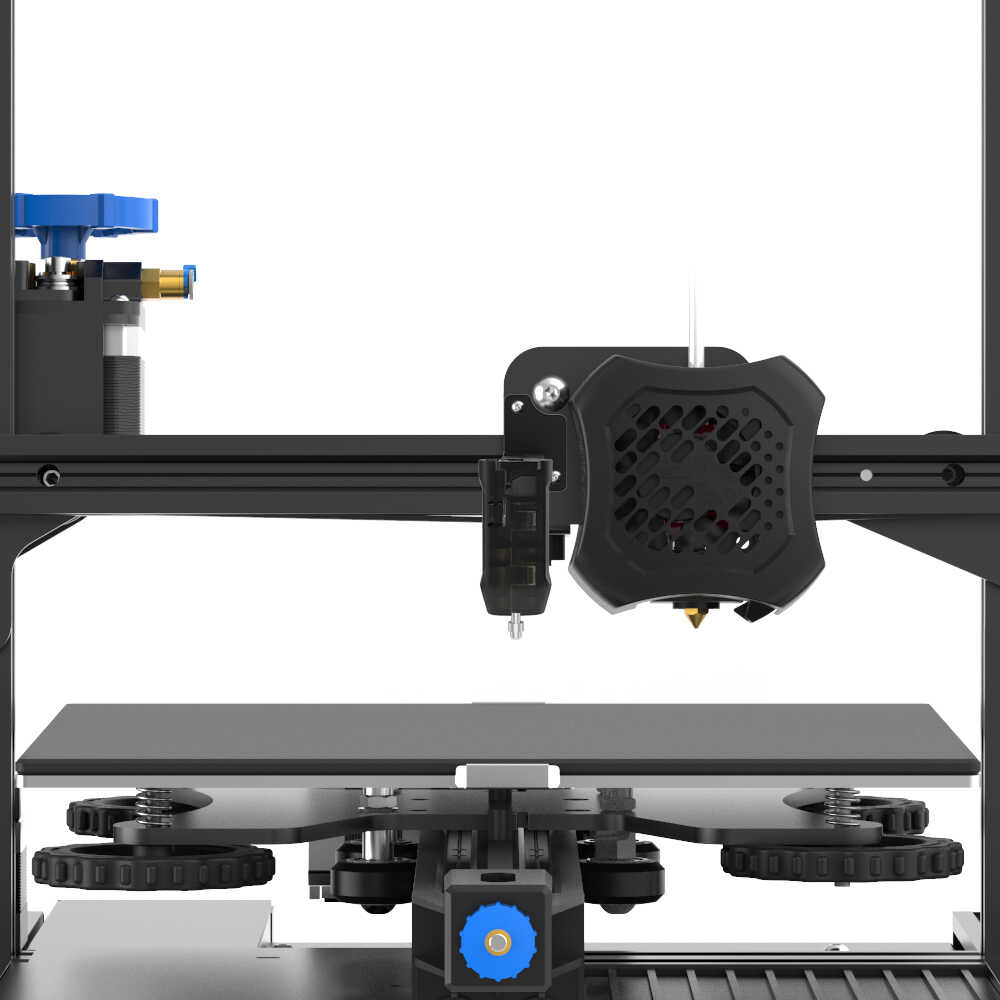

Bracketless CR Touch Auto Leveling Standard Kit Compatible Printers:

• Ender - 3 Neo
• Ender - 3 V2 Neo
• Ender - 3 Max Neo
• Ender - 3 S1
• Ender - S1 Pro
• CR - 10 Smart Pro

Bracketless CR Touch Auto Leveling Standard Kit Technical Specifications:

• Rated Voltage: 5V
• Operating Rate: < 1 W
• Probe Path: 6 mm
• Accuracy: <0.04 (Positioning Accuracy)
• Weight: 11.5 g
• Size: 27x17.5x39.3mm
• Operating Temperature: <65°C
• Service Life: 100,000 (Probe Detection Time)
