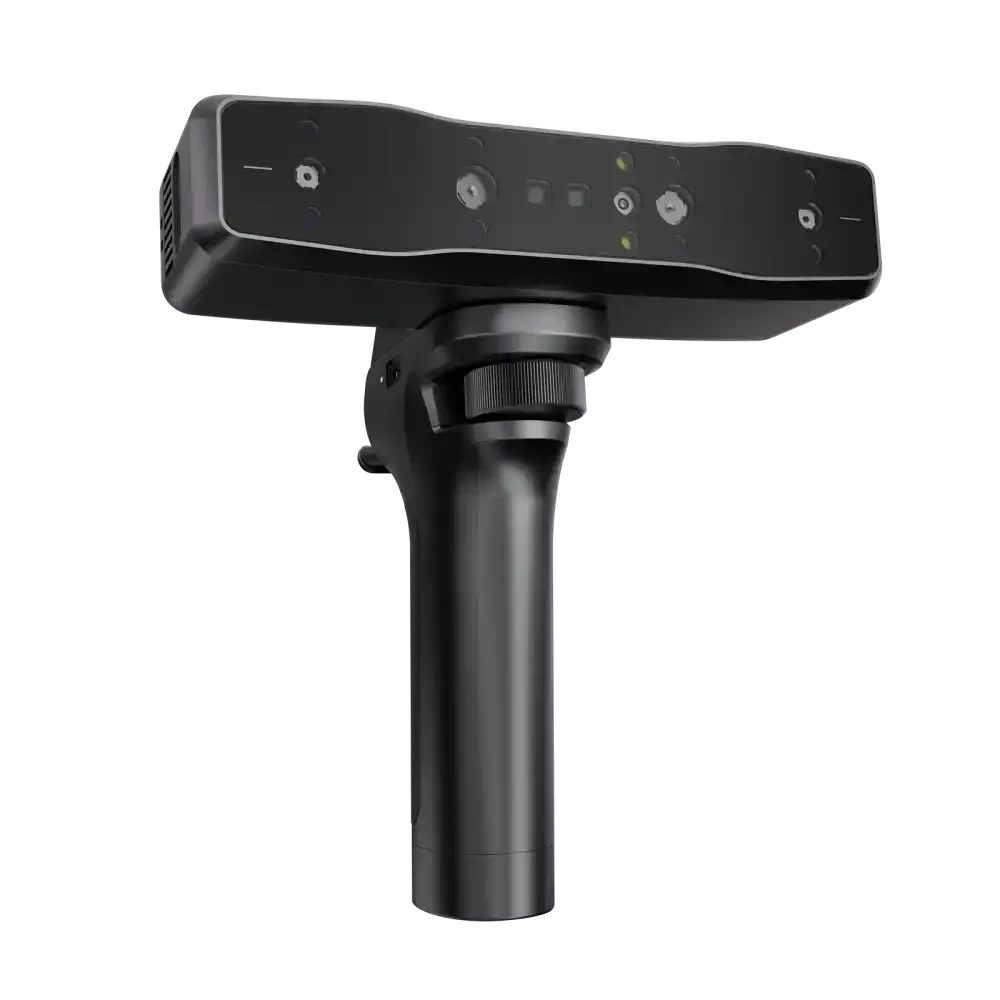

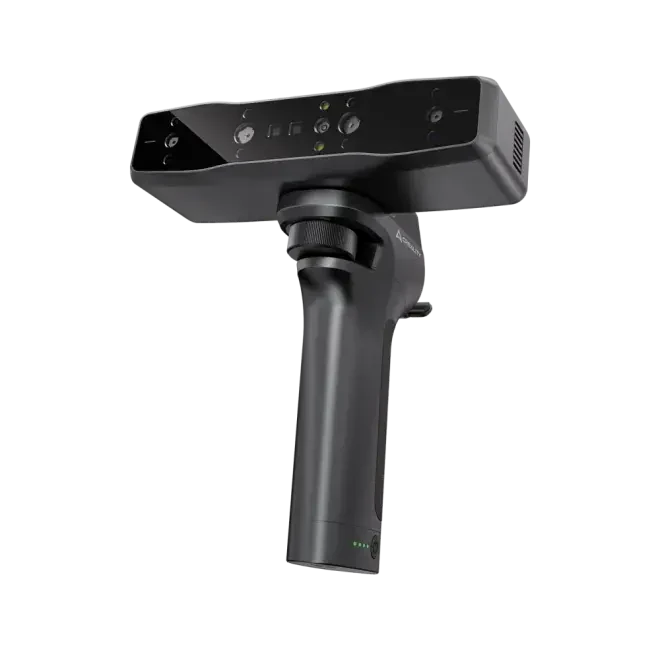

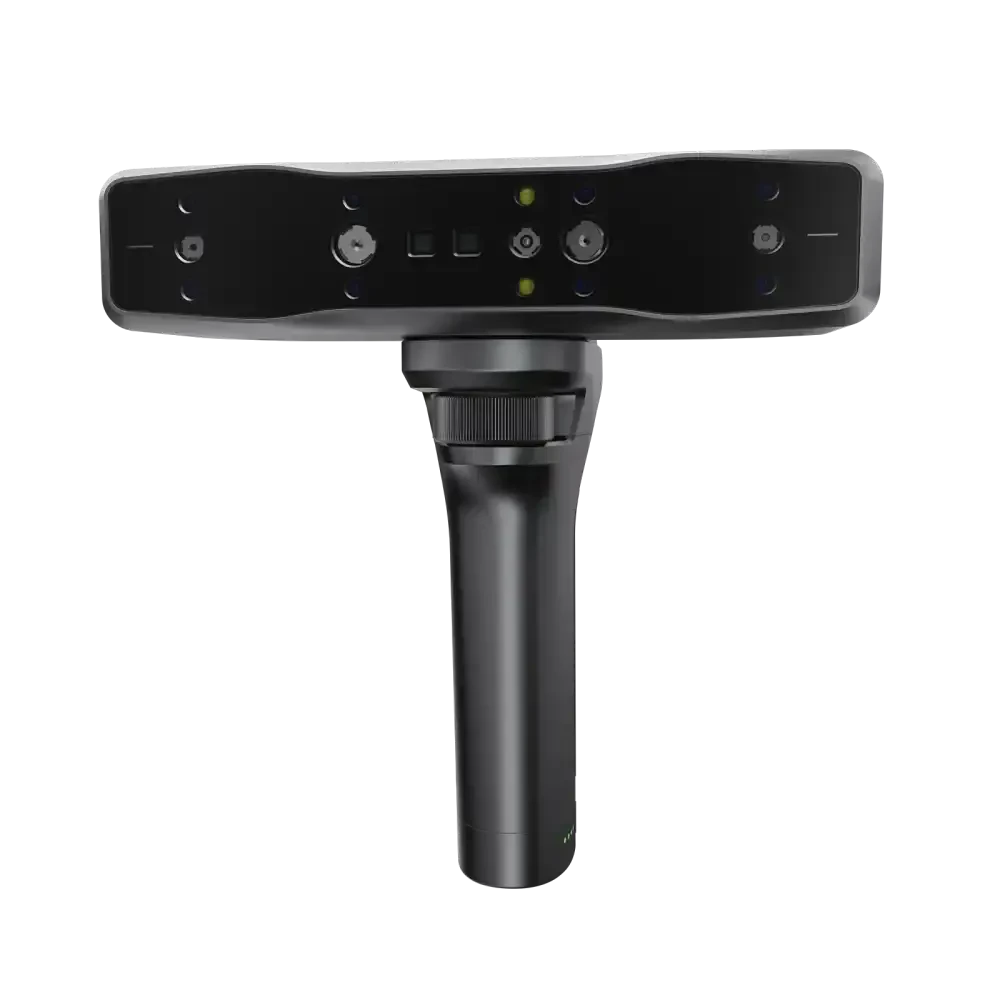

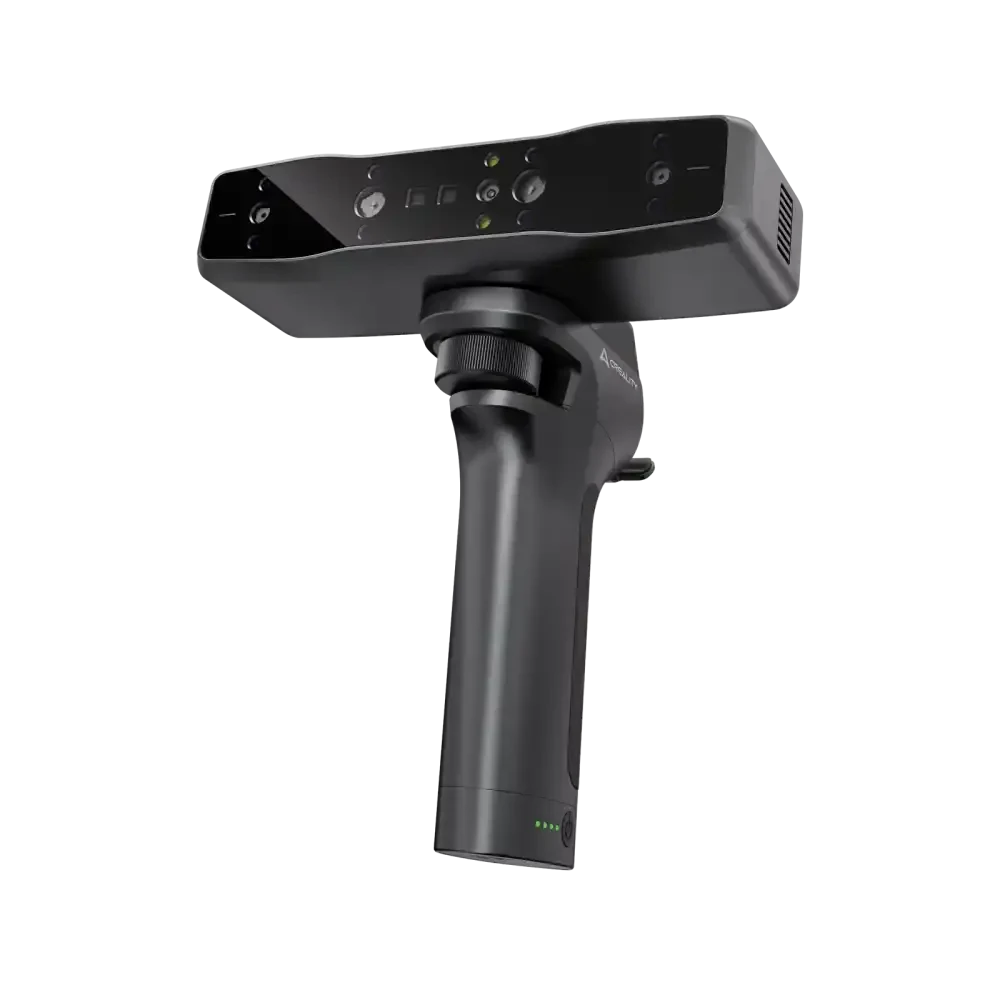

Notify me when its in stockCreality CR-Scan Otter Lite 3D Scanner

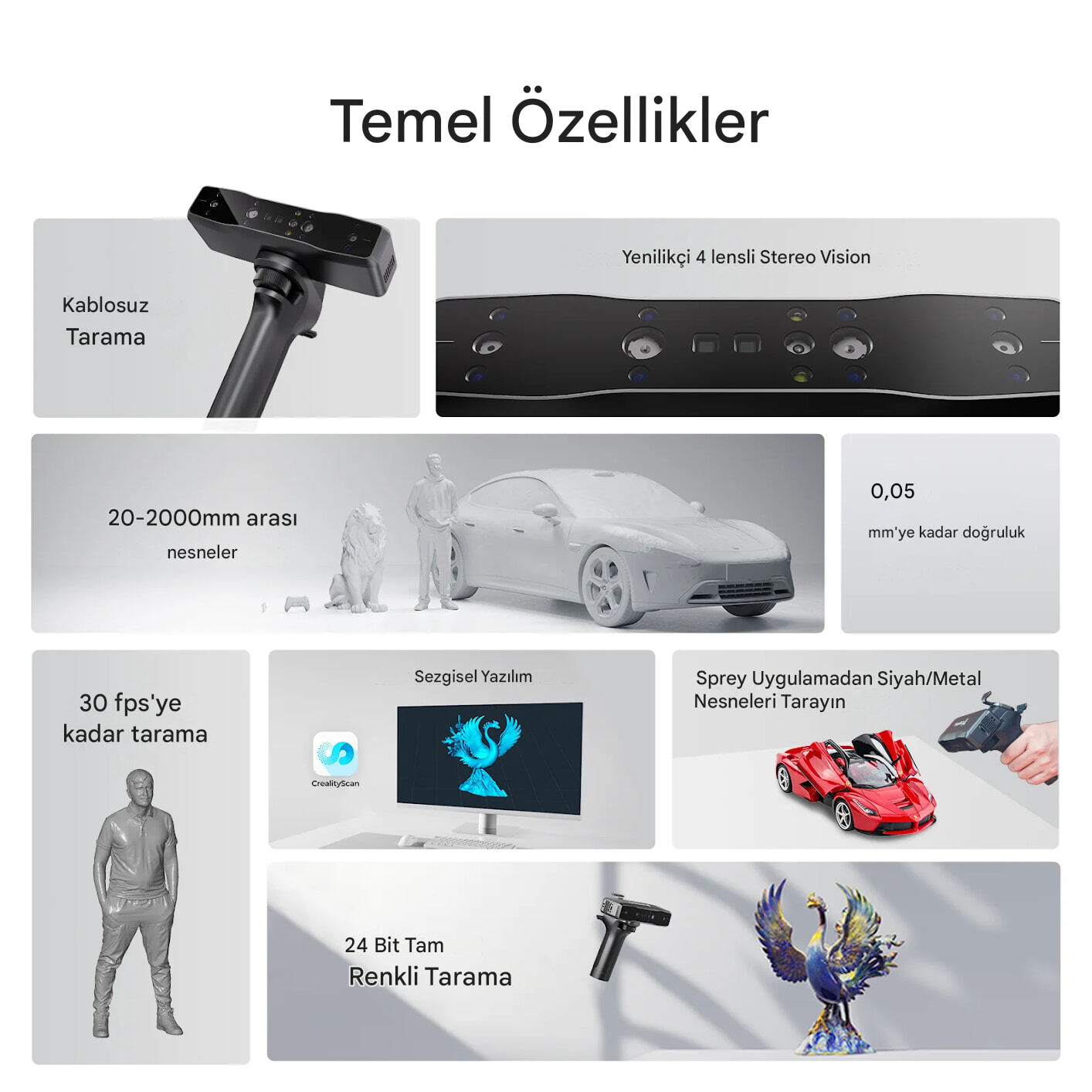

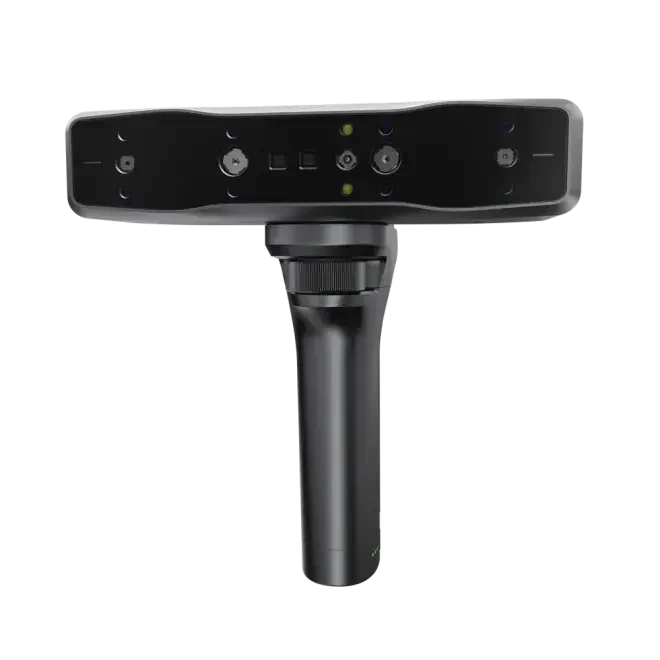

The Creality CR-Scan Otter Lite is a portable and versatile NIR (near-infrared structured light) 3D scanner designed for users who need high precision at close range. With accuracy up to 0.05 mm and a 3D resolution range of 0.1–2 mm, it can easily capture both small detailed parts like screws and larger objects such as automotive components or the human body. Its four-eye stereo vision architecture provides a large scanning volume while maintaining stable tracking and rich detail even on complex surfaces.
Otter Lite supports objects from 20 mm x 20 mm x 20 mm up to 2000 mm and offers a fast workflow with a scanning speed of up to 30 frames per second. NIR light technology helps you scan even under strong lighting (including outdoors), while two white LEDs provide full-color texture capture. The marker enhancement system with 8 infrared LEDs ensures high stability when scanning with markers.

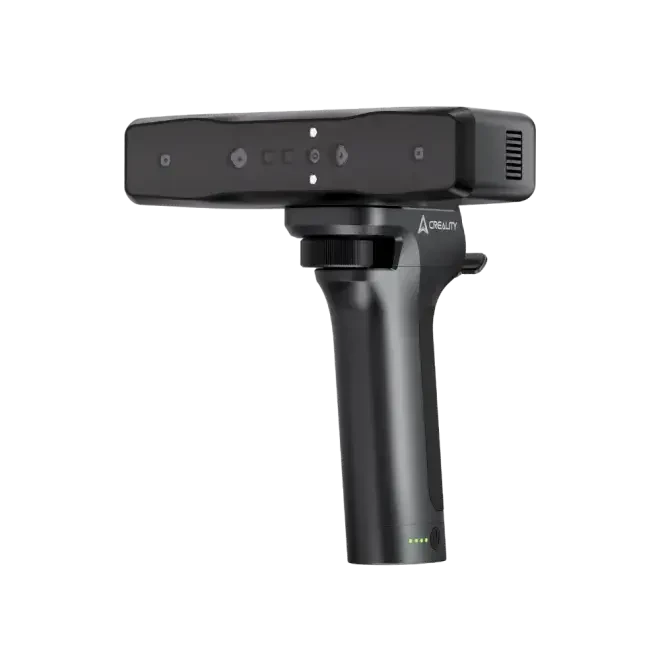

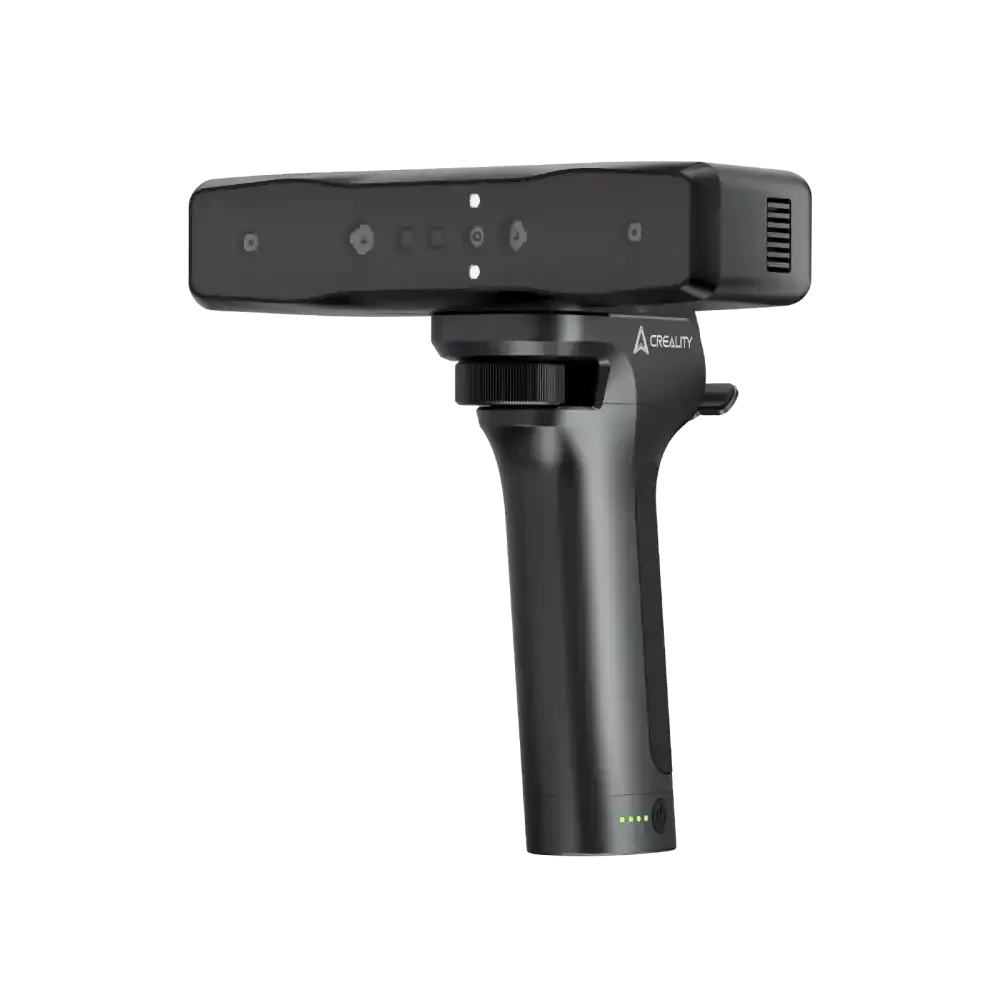

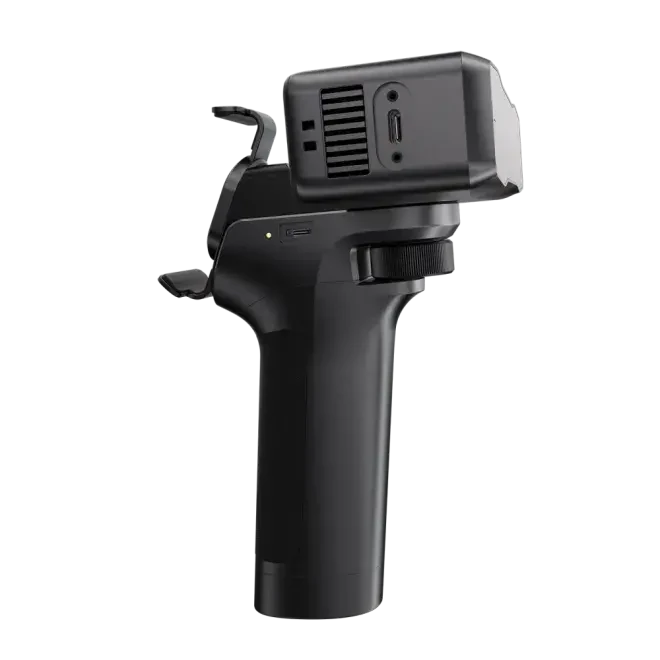

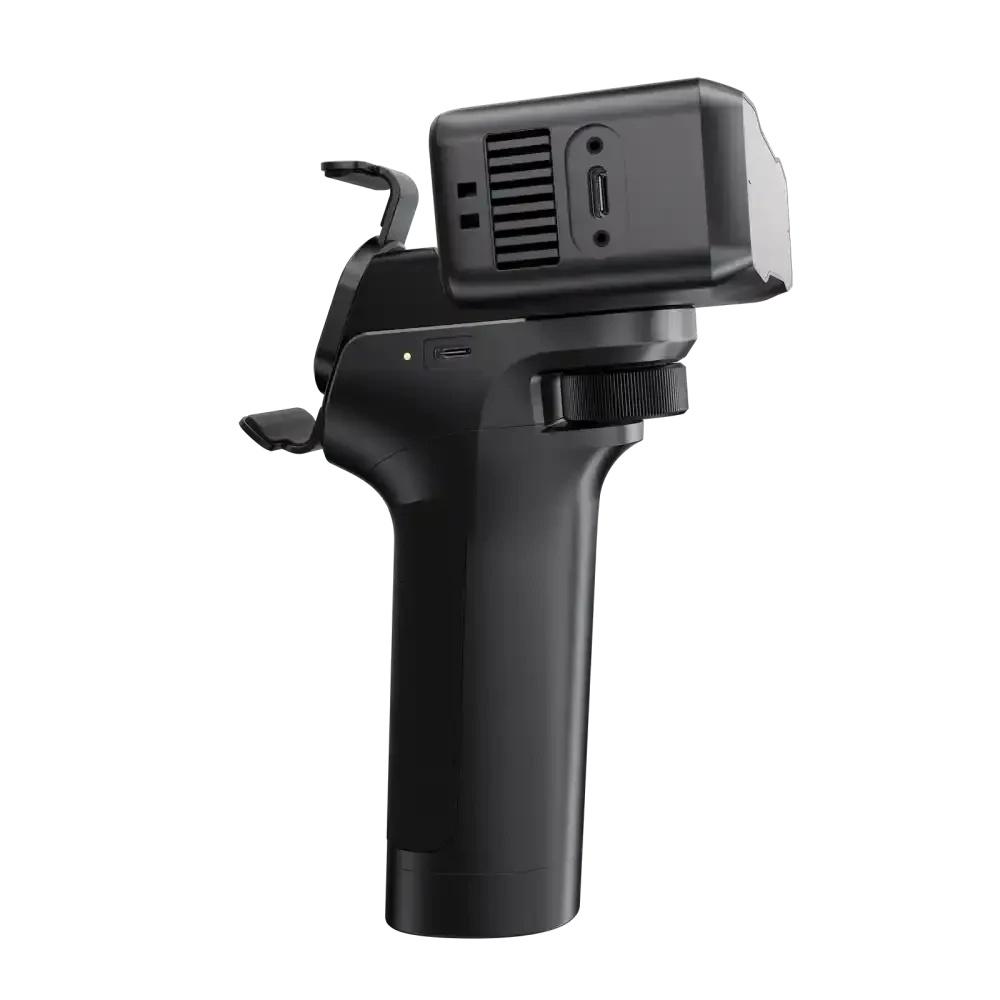

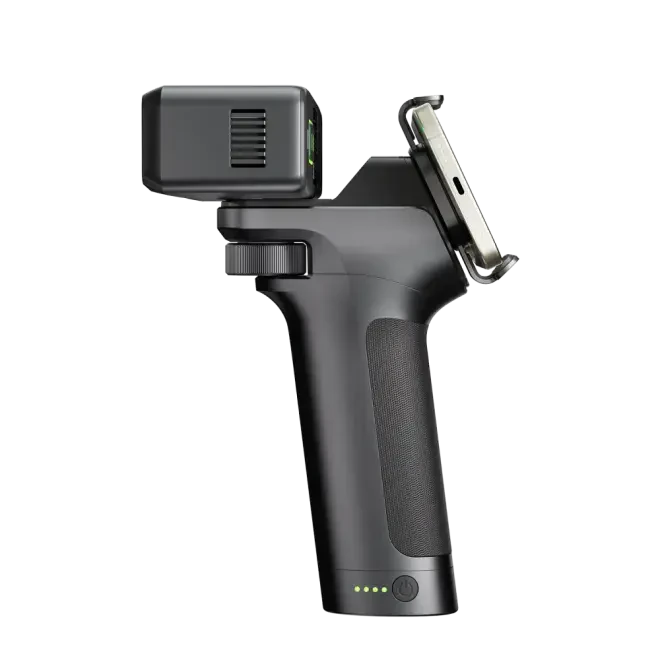

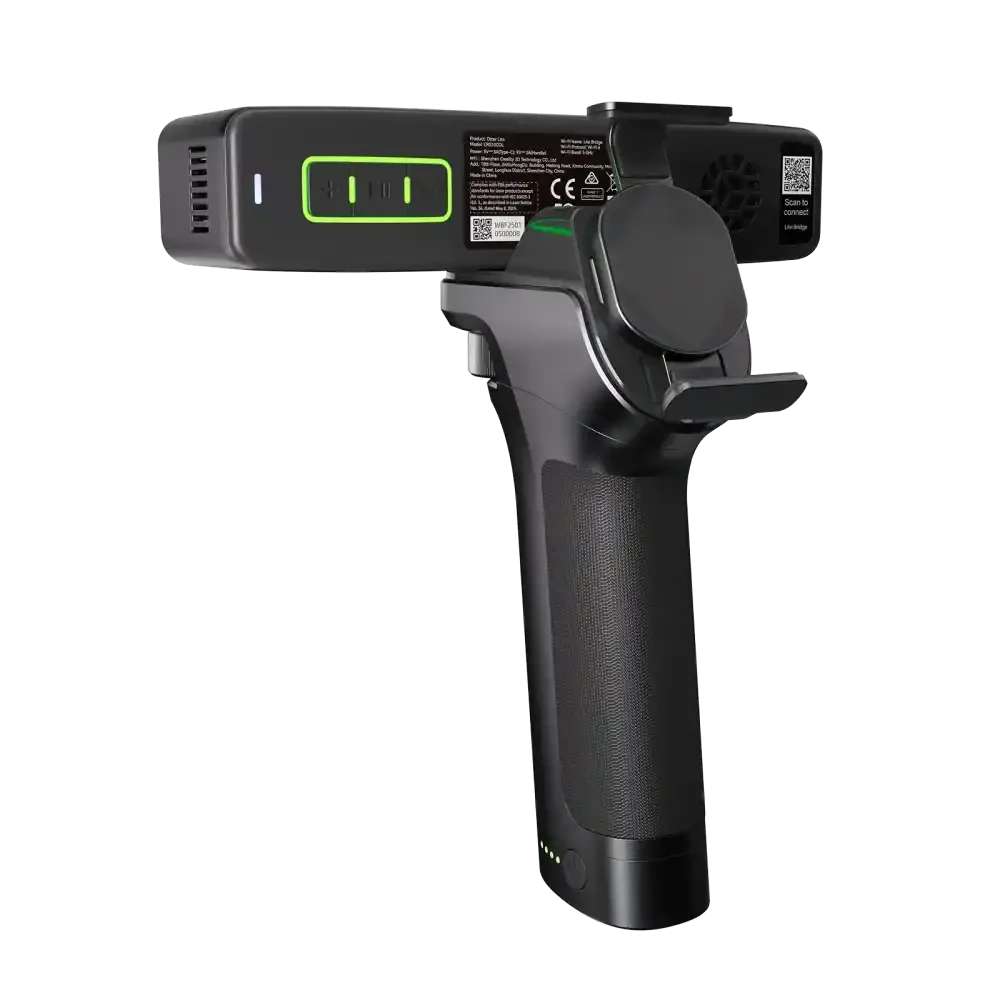

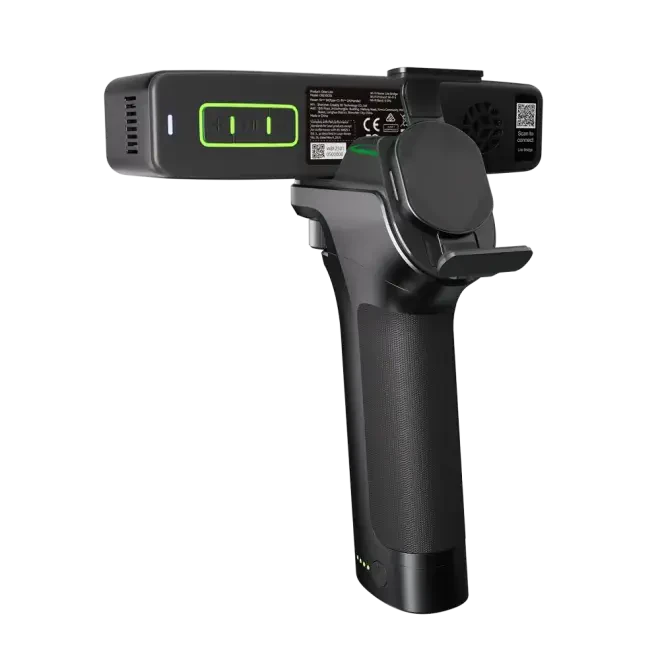

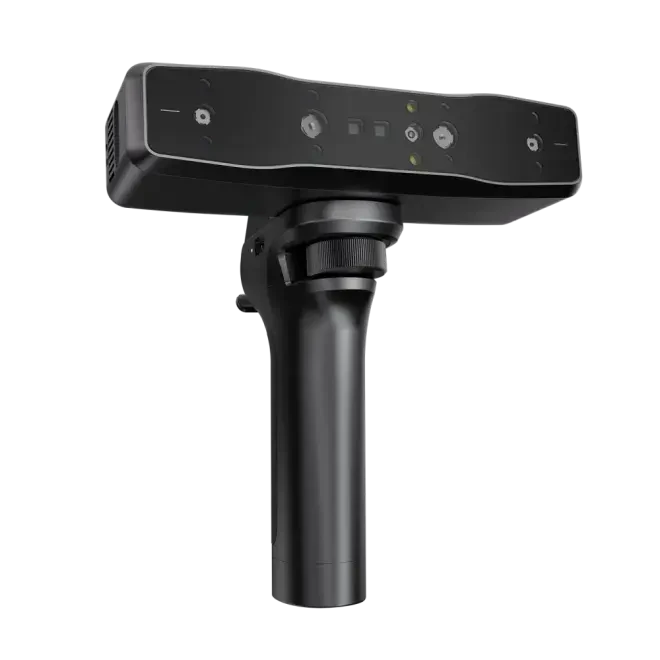

When used together with the Lite Bridge handle, Otter Lite offers wireless scanning and can easily connect to your phone or computer via Wi-Fi 6. With support for Windows and macOS, export formats OBJ/STL/PLY, and the powerful Creality Scan software, it provides a professional solution for product design, reverse engineering, education, statue and figure duplication, cosplay, modeling, and many other applications.

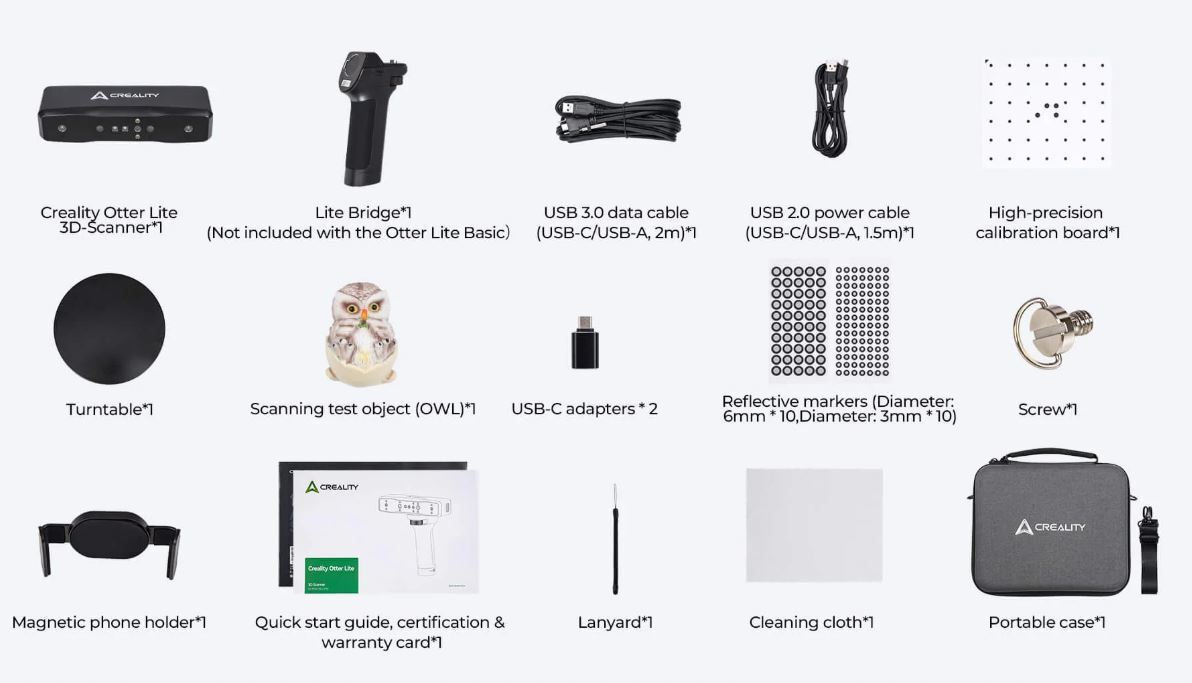

Package Contents:
Creality Otter Lite 3D scanner x1
Lite Bridge handle x1
USB 3.0 data cable (USB-C/USB-A, 2 m) x1
USB 2.0 power cable & Lite Bridge charging cable (USB-C/USB-A, 1.5 m) x1
High-precision calibration board x1
Turntable x1
Scanning test object (owl figure) x1
USB-C adapter x2
Reflective marker set (diameter 6 mm x10, diameter 3 mm x10)
Screw x1
Magnetic phone holder x1
Quick start guide, certificate and warranty card x1
Cleaning cloth x1
Lanyard x1
Portable carrying case x1
Creality Otter Lite 3D Scanner Technical Specifications:
| Product Name | Creality Otter Lite |
| Model | CRS10COL |
| Scanning Mode | NIR (near-infrared binocular structured light) |
| Accuracy | 0.05 mm @ 100 mm[1] |
| 3D Resolution | 0.1 – 2 mm |
| Scanning Speed / Frame Rate | Up to 30 frames per second (30 fps) |
| Minimum Scan Volume | 20 mm x 20 mm x 20 mm |
| Single Capture Range | Close-range mode: 100 mm x 62 mm @ 120 mm 160 mm x 130 mm @ 250 mm Far-range mode: 352 mm x 254 mm @ 300 mm 788 mm x 509 mm @ 600 mm 1460 mm x 1017 mm @ 1200 mm |
| Working Distance | 120 mm – 1200 mm |
| Color Mapping | Yes |
| Alignment Modes | Marker / Geometry / Texture |
| Output Formats | OBJ / STL / PLY |
| IMU | Yes |
| Marker Enhancement | 8 infrared LEDs |
| Color Supplementary Light | 2 white LEDs |
| Laser Safety | Class I (eye-safe) |
| Weight | 301 g |
| Dimensions | 173 mm x 39 mm x 56 mm |
| Calibration Board | High-precision calibration board |
| Wireless Scanning | Yes (with Lite Bridge) |

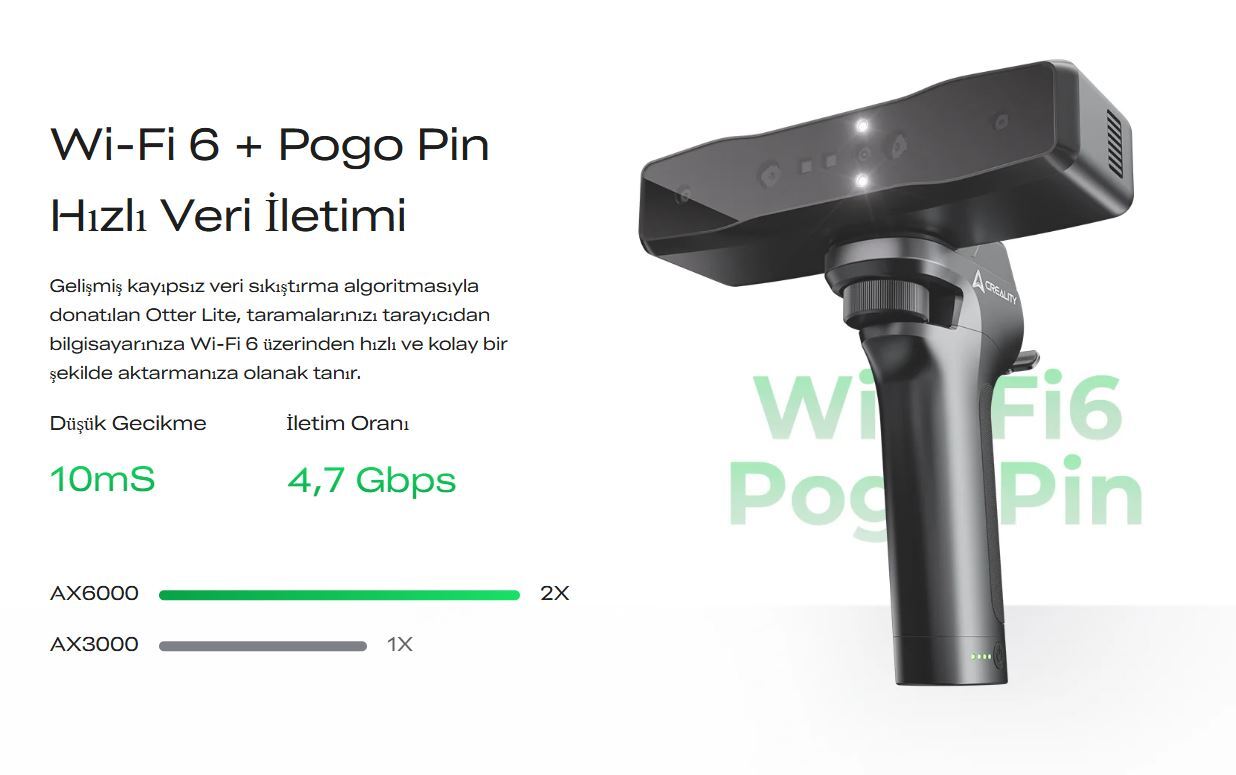

| Network Protocol | Wi-Fi 6, backward compatible |
| Wi-Fi Bands | Multiple sub-bands in the 5 GHz range (5180–5700 MHz) |
| Maximum Transmission Power | 16.65 dBm |
| Data Transfer Rate | Up to 30 fps |
| System Support | Windows / macOS |
| Data Interface | Type-C / USB 3.0 / USB 2.0 |
| Input Power | USB 3.0: 5V 3A, Wi-Fi mode: 12V 2A |
| Operating Temperature | -10 °C – 40 °C |
| Operating Humidity | 10% – 90% RH |
[1] Accuracy is a value tested in a laboratory environment; actual results may vary depending on temperature, vibration, and working conditions.

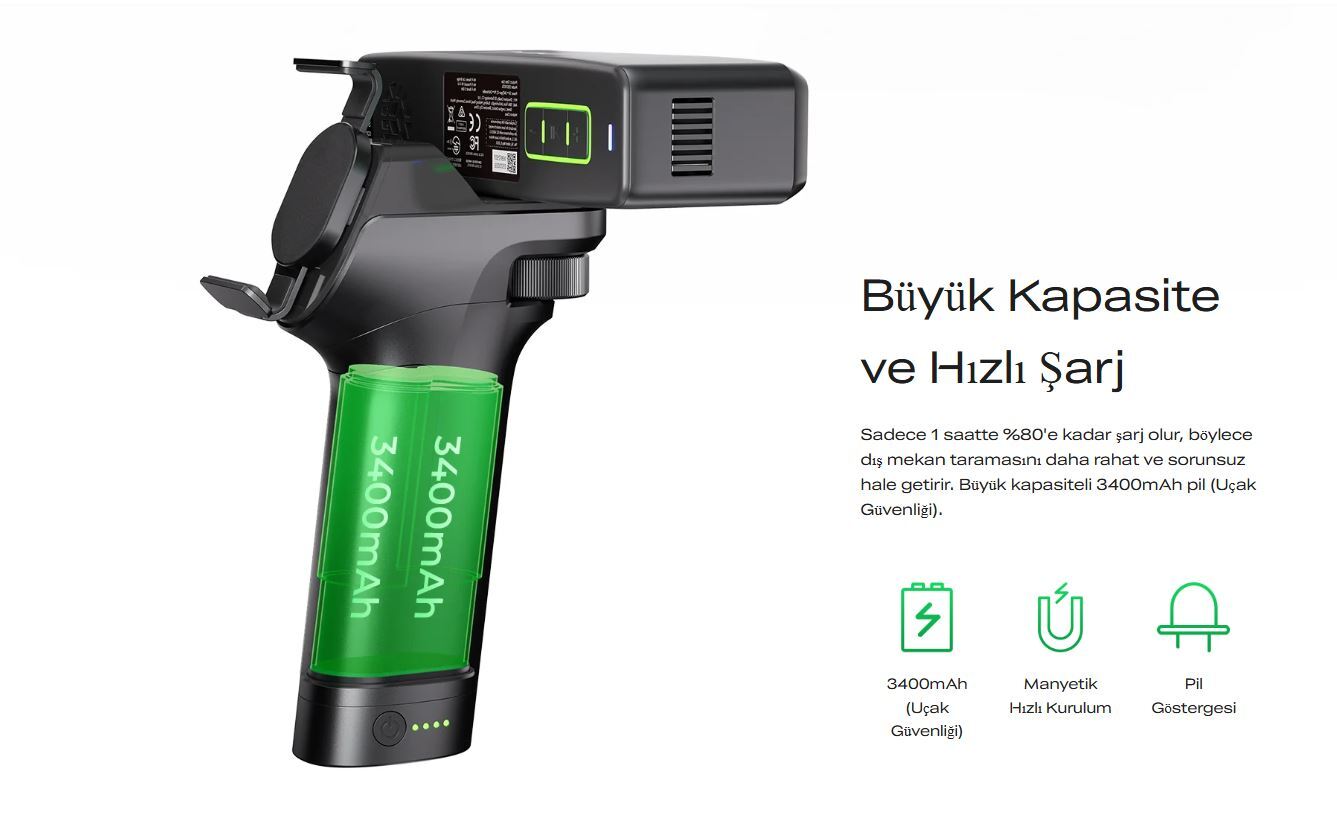

Lite Bridge Technical Specifications:
| Product Name | Lite Bridge |
| Model | CRP15LB |
| Battery Type | Lithium battery |
| Rated Battery Energy | 24.82 Wh |
| Rated Battery Capacity | 3400 mAh (2 cells) |
| Fast Charging Power | 20 W MAX |
| Fast Charging Protocols | PD3.0 / QC3.0 / UFCS / SCP / AFC |
| Charging Port | Type-C |

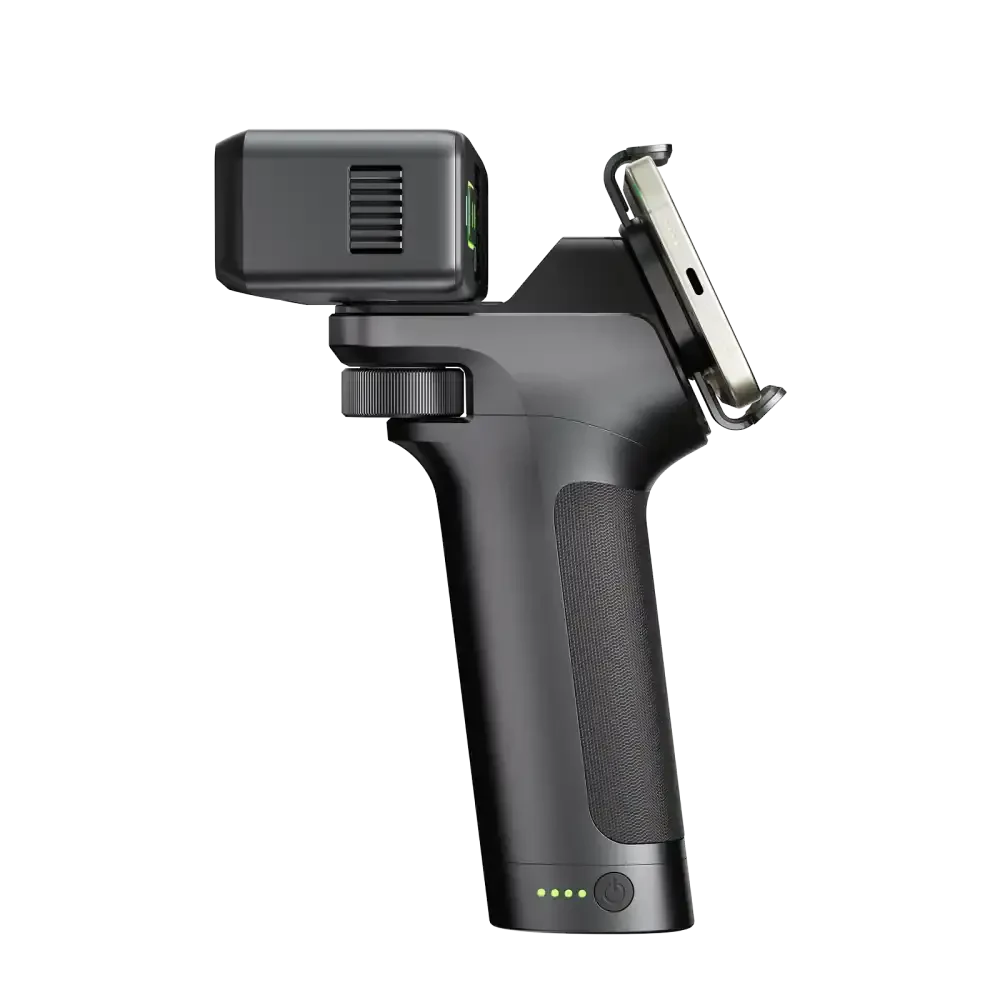

| Phone Holder | Magnetic |
| Switch Type | Mechanical power switch |
| Dimensions | 168 mm x 93 mm x 46 mm |
| Weight | 286 g |
| Operating Temperature | -10 °C – 40 °C |
| Operating Humidity | Standard operating humidity within the specified range |
