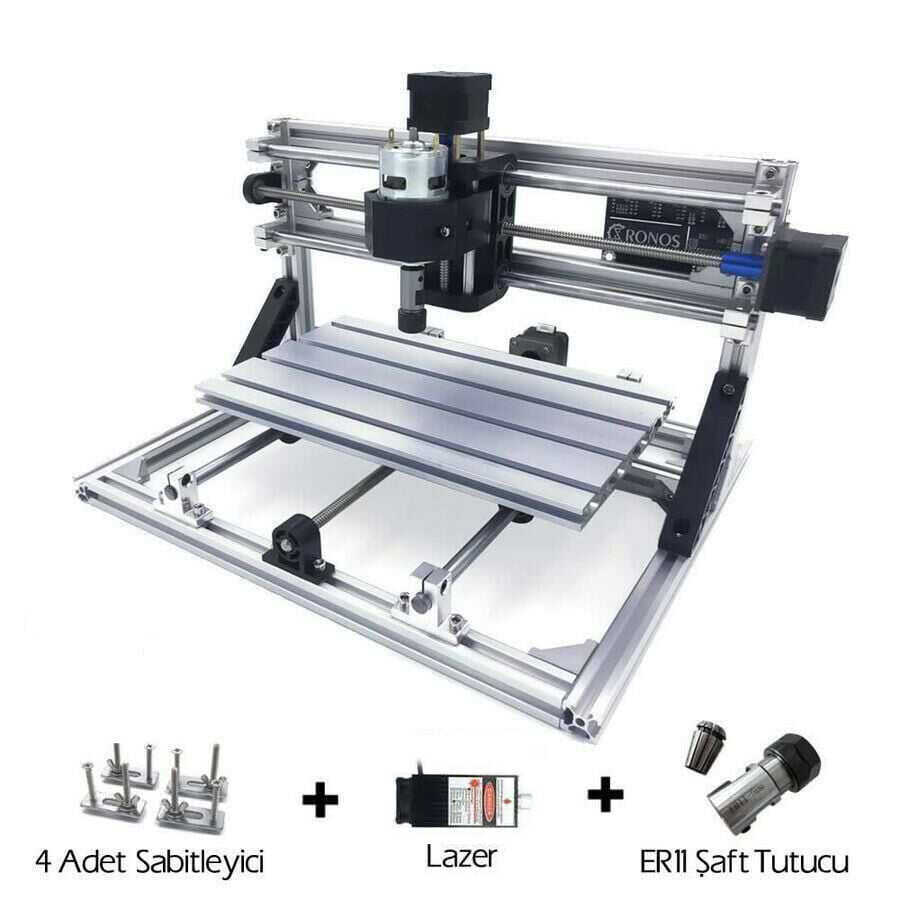

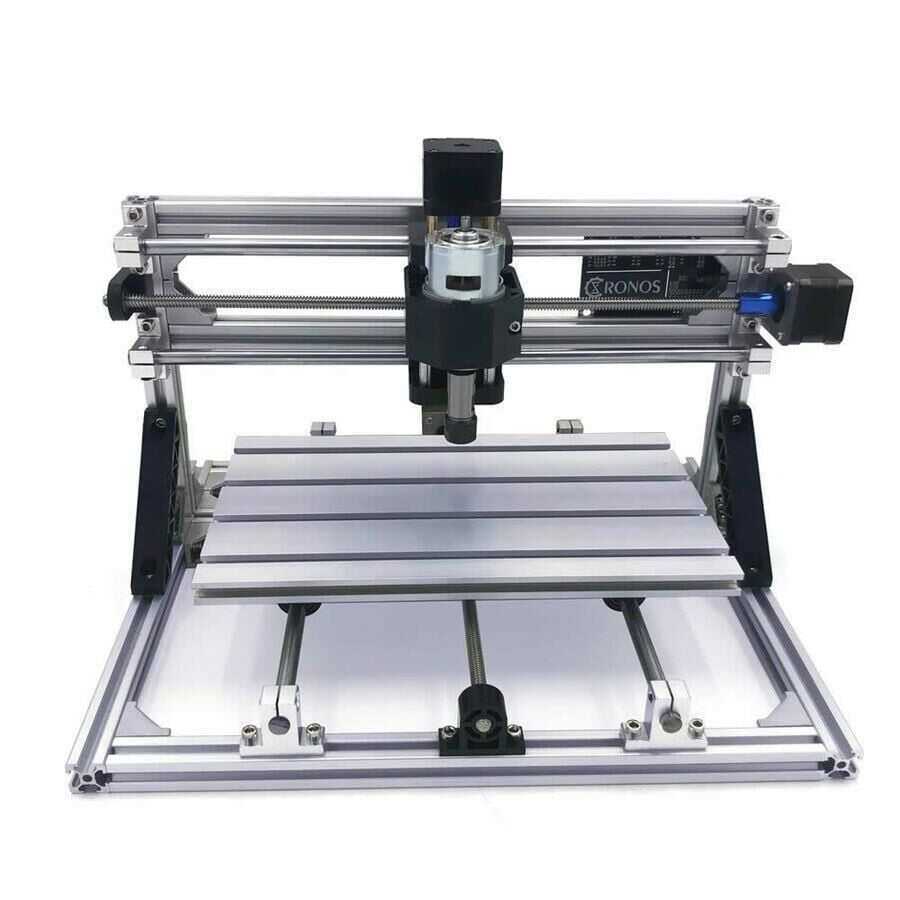

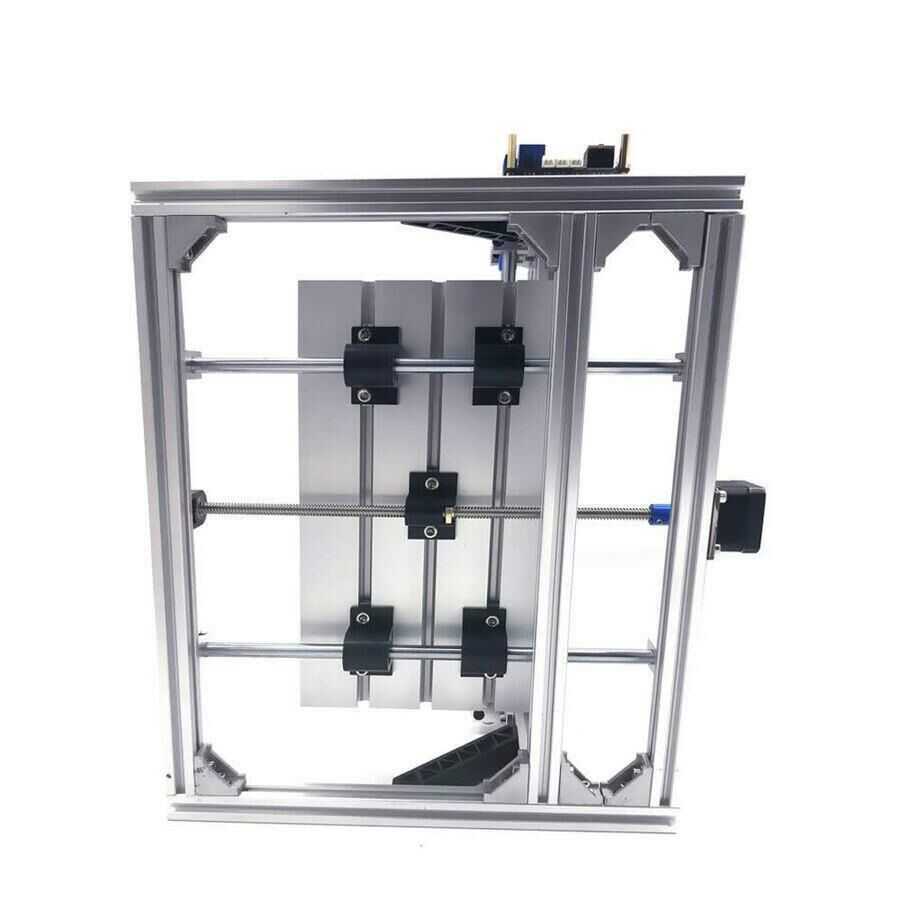

Notify me when its in stockCNC3018 5500mW Laser CNC Machine - Cutting Table
The CNC3018 is a CNC machine that can be used for laser cutting operations, featuring a 5500mW burning laser and a spindle motor. Delivered completely disassembled and very easy to set up, this product allows you to own your own CNC machine. With its 5500mW power burning laser and cutting motor, it enables engraving and shaping on many surfaces such as plastic, wood, PVC, PCB, MDF, and more. The package includes all necessary equipment for installation and operation, including the power supply. A pair of protective goggles is included as a gift with the product.
CNC3018 5500mW Laser CNC Machine - Technical Specifications:
| Engraving machine working area: | 300x180x45mm |
| Frame size: | 400x330x240mm |
| Aluminum alloy plate area: | 300x180mm |
| Spindle motor: | DC24V, max. 120 Watt, 10000 rpm |
| Stepper Motor: | Input DC12V, 1.3A, 0.3Nm torque |
| Power supply: | Input AC100-240V, 50/60Hz, 1.3A, output DC24V 5A |
| Control software: | GRBL control |
| Supported PC systems: | Windows XP/7/8/10 (Does not support Mac OS) |
| For 3-axis engraving: | Wood, plastic, PCB, acrylic, plywood, etc. |
| For laser engraving: | Wood, plastic, leather, bone, stone, paper, shell, etc. |
