Notify me when its in stockCNC3018 2500mW Laser CNC Machine - Cutting Table

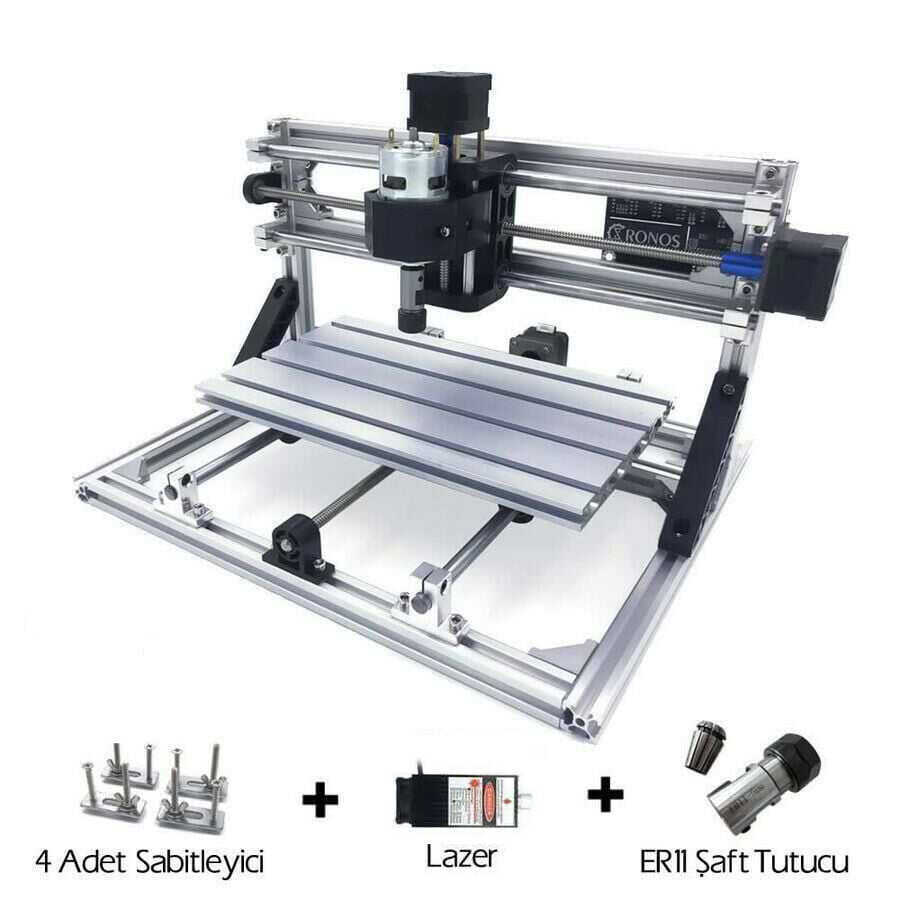

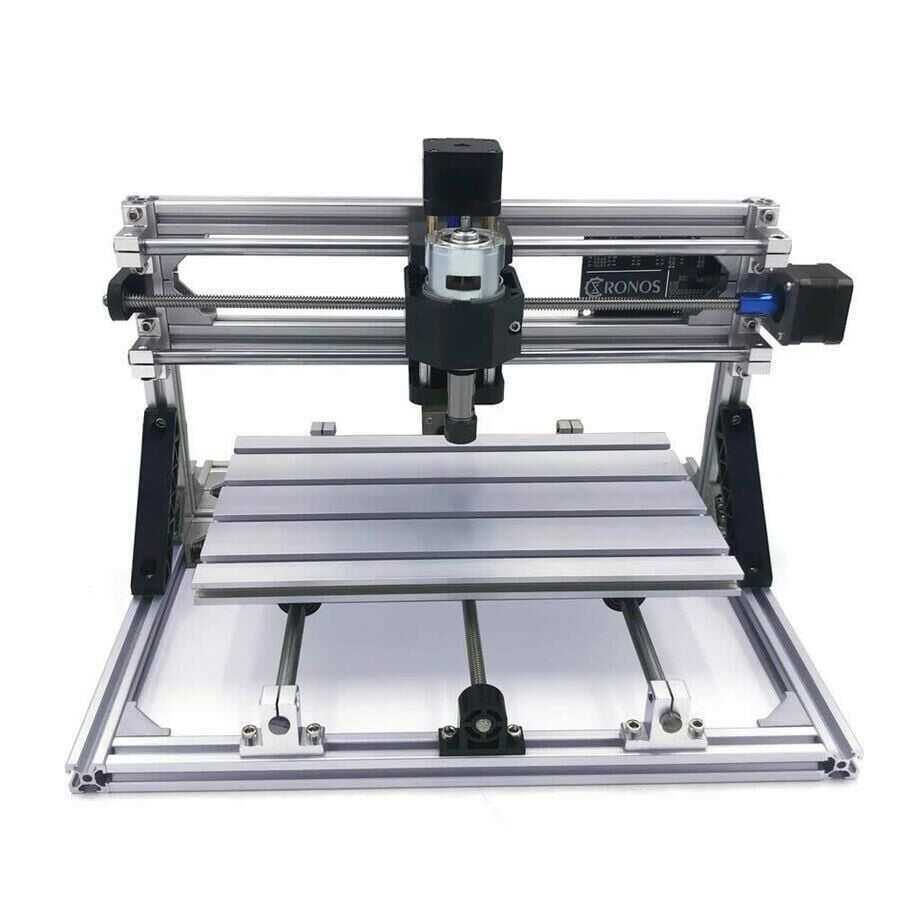

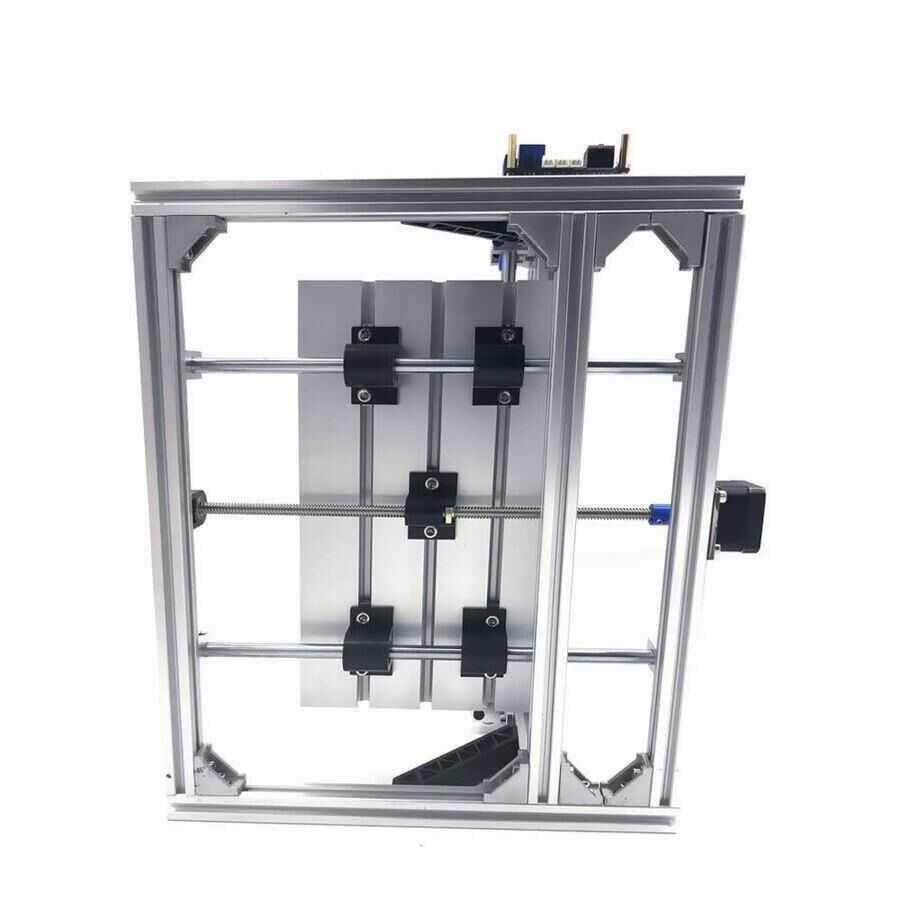

The CNC3018 is a CNC machine designed for laser cutting processes, featuring a 2500mW burning laser and a spindle motor. Arriving in a fully disassembled state and offering an easy assembly process, this product allows you to own your own CNC machine. With its 2500mW burning laser power and cutting motor, it enables engraving and shaping on various surfaces such as plastic, wood, PVC, PCB, MDF, and more. The package includes all necessary equipment for assembly and operation, including the power supply. A pair of protective goggles is also provided as a gift.
CNC3018 2500mW Laser CNC Machine - Technical Specifications:
| Engraving machine working area: | 300x180x45mm |
| Frame size: | 400x330x240mm |
| Aluminum alloy plate area: | 300x180mm |
| Spindle motor: | DC24V, max. 120 Watt, 10000 rpm |
| Stepper Motor: | Input DC12V, 1.3A, 0.3Nm torque |
| Power supply: | Input AC100-240V, 50/60Hz, 1.3A, output DC24V 5A |
| Control software: | GRBL control |
| Supported PC systems: | Windows XP/7/8/10 (Does not support Mac OS) |
| For 3-axis engraving: | Wood, plastic, PCB, acrylic, plywood, etc. |
| For laser engraving: | Wood, plastic, leather, bone, stone, paper, shell, etc. |
