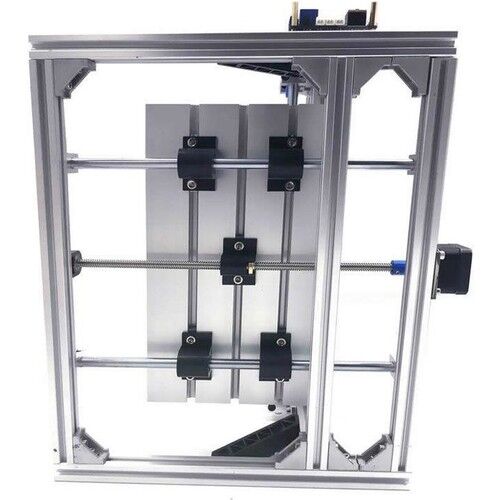

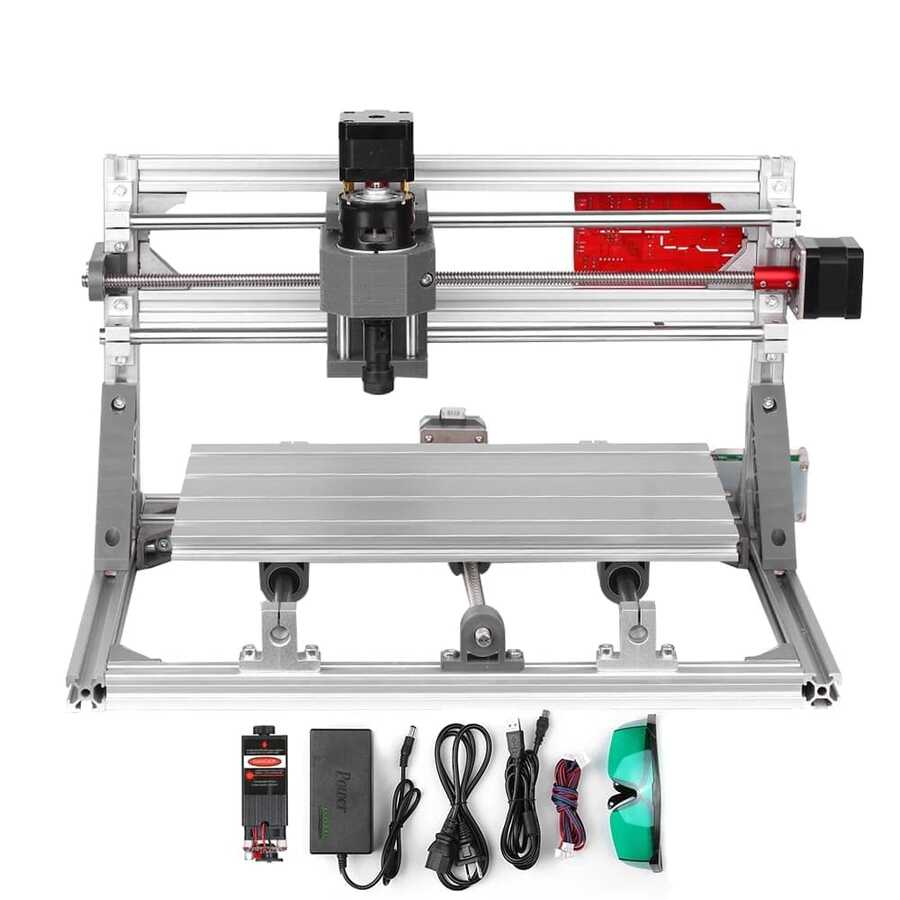

CNC3018 DIY Mini Desktop Engraving Machine Laser CNC Picture Woodworking Engraving Machine GRBL Control EU Plug with 2500mw Laser

CNC3018 DIY Mini Desktop Laser CNC Machining Machine - (Image Woodworking Engraving Machine GRBL Control - EU Plug) - 2500mw Laser

The DIY Mini Desktop CNC Machine is a multi-functional CNC device. This DIY CNC engraving machine is specially designed for DIY fun and research, featuring professional GRBL control software that provides an extraordinary portable experience. Containing a specialized development board similar to an Arduino, this device is ideal for your hobbyist projects. With this machine, you can engrave and shape many materials such as plastic, wood, acrylic, PVC, PCB, MDF, etc. It is suitable for those with entry-level electronic and mechanical knowledge. Coming as a completely disassembled kit with a very easy installation process, this product allows you to own your own CNC machine. The laser head is included in the set and can be attached to the spindle section when needed. With the laser, you can work on wood, leather, cardboard, plastic (excluding white and shiny ones), and aluminum (only on non-shiny, paint-coated ones). Since the laser focus degrades after 3mm, you can perform cutting operations on materials like wood, paper, cardboard, and leather up to a maximum thickness of 3mm. The box includes an installation guide and a USB flash drive containing digital documents with information on necessary open-source software and setup instructions. It is very easy to use and connect. You can check our other DIY Mini CNC Machining Machines by clicking here.

CNC3018 DIY Mini Desktop CNC Machining Machine Technical Specifications:

• Model: CNC3018
• Material: Aluminum + Plastic
• Main Color: Silver
• Power Supply: 110-240V/AC
• Output Voltage: 24V
• Power Adapter: 24V 5A
• Supported Operating System: Windows XP / Win 7 / Win 8 / Win 10 (32/64 bit)
• Supported Formats: jpg / bmp / ​​png
• Communication Port: Micro USB
• Drill Bits: 0.1mm, Diameter: 3.175mm, 30°
• Working Area Size: 18 x 30 x 1.5cm
• Frame Size: 36 x 40 x 24cm
• Spindle: 775
• Spindle Chuck: ER11
• Laser: 2500mw
• Software: GRBL
• Engraving Modes: Image Engraving, Text Engraving, Scanning Engraving, Contour Engraving, Pixel Engraving.
• Non-engravable Objects: All metals, glass, stone, ceramics, jewelry, silver reflective materials, translucent/transparent materials.
• Engravable Objects: All wood, bamboo, paper, plastics, leather, rubber, sponge, sheets, etc.

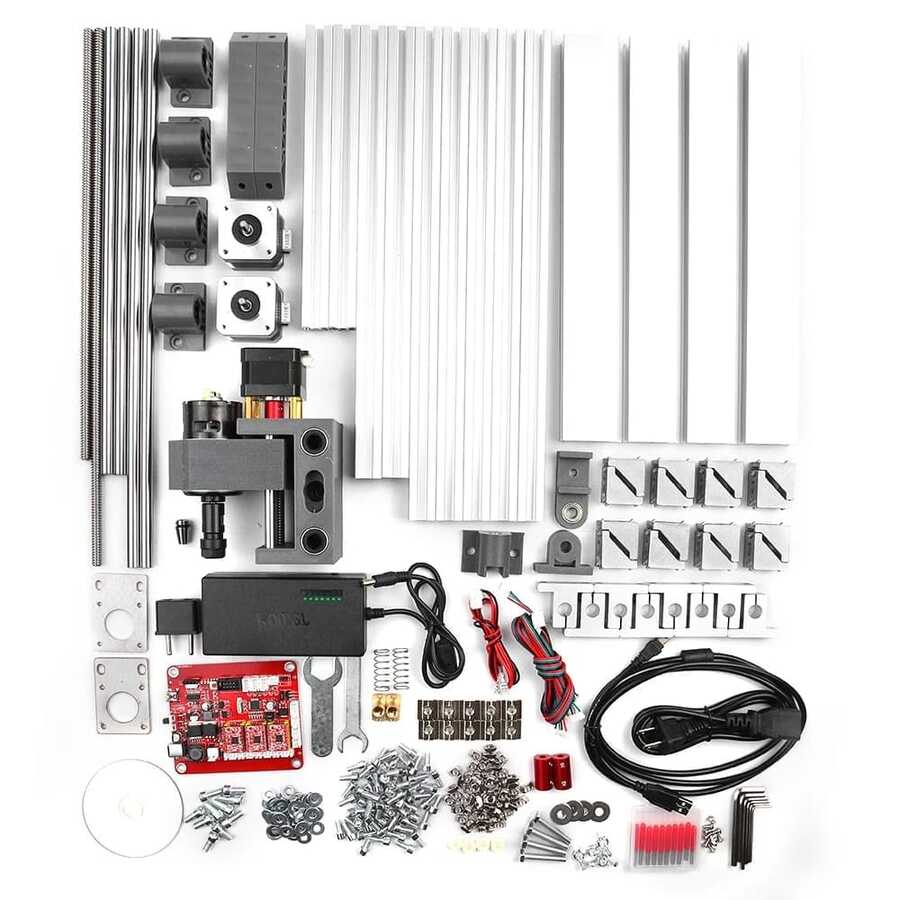

CNC3018 DIY Mini Desktop CNC Machining Machine Package Content:

• 1 x DIY CNC Engraving Machine Kit
• 10 x Drill Bits
• 1 x Power Supply
• 1 x Spindle Chuck
• 1 x Laser Head
• 1 x Protective Goggles
• 1 x USB Flash Drive
• 1 x Installation Guide
