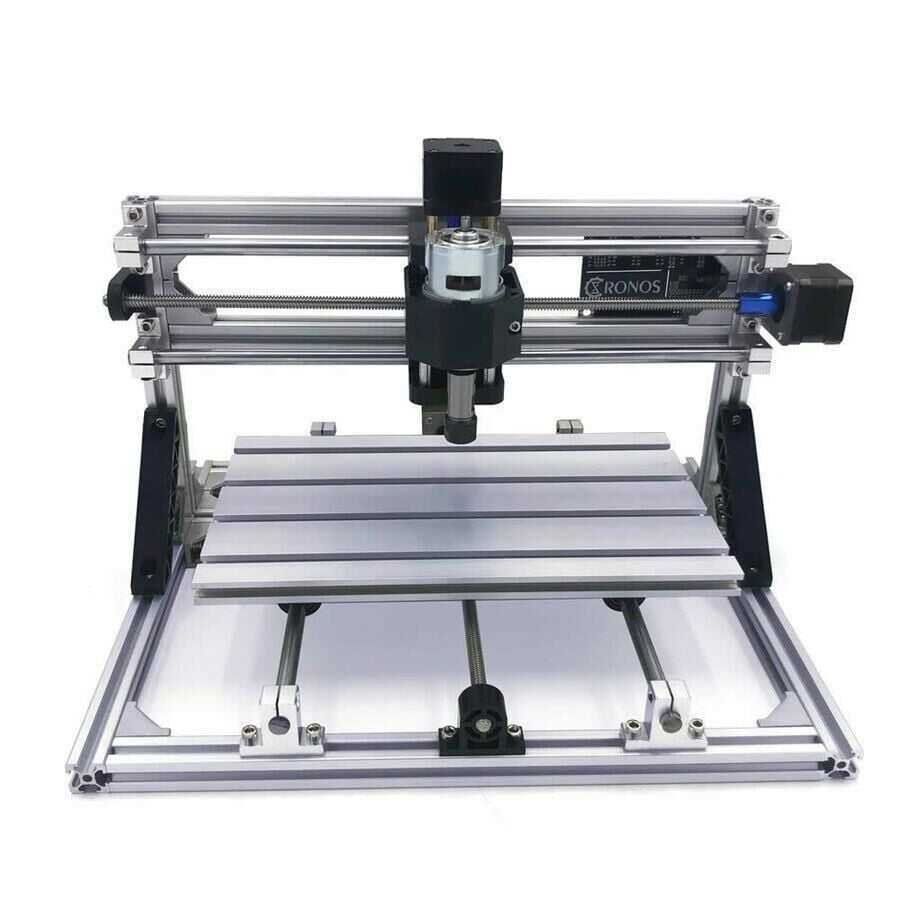

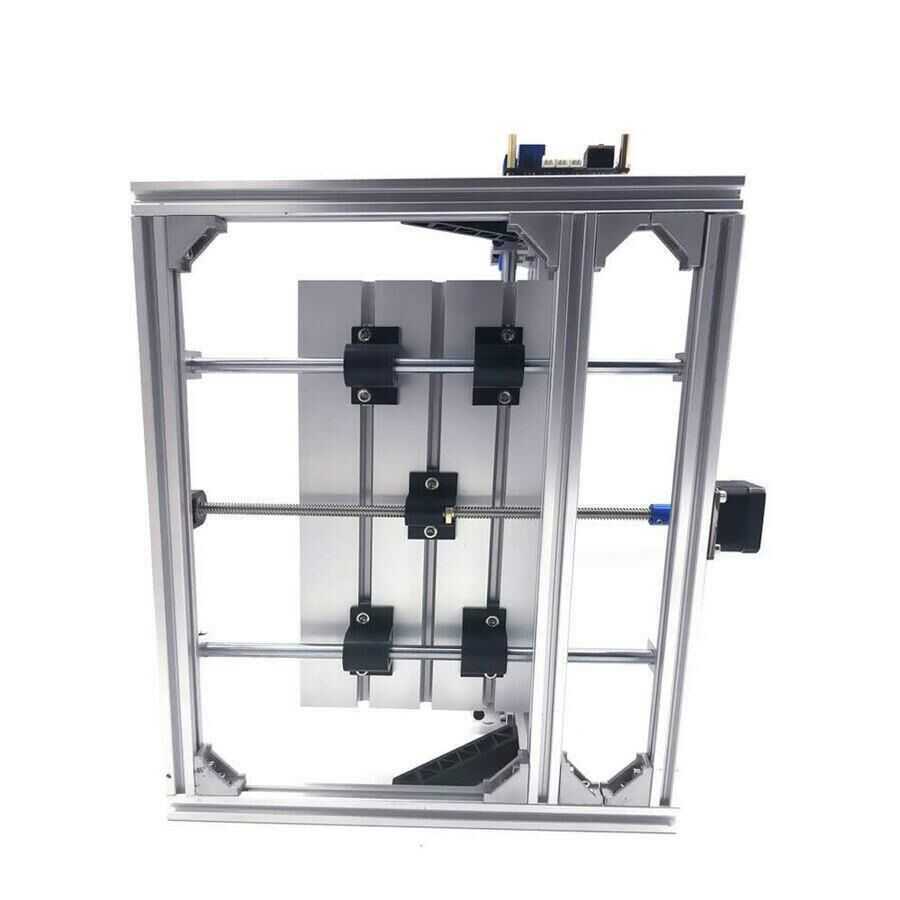

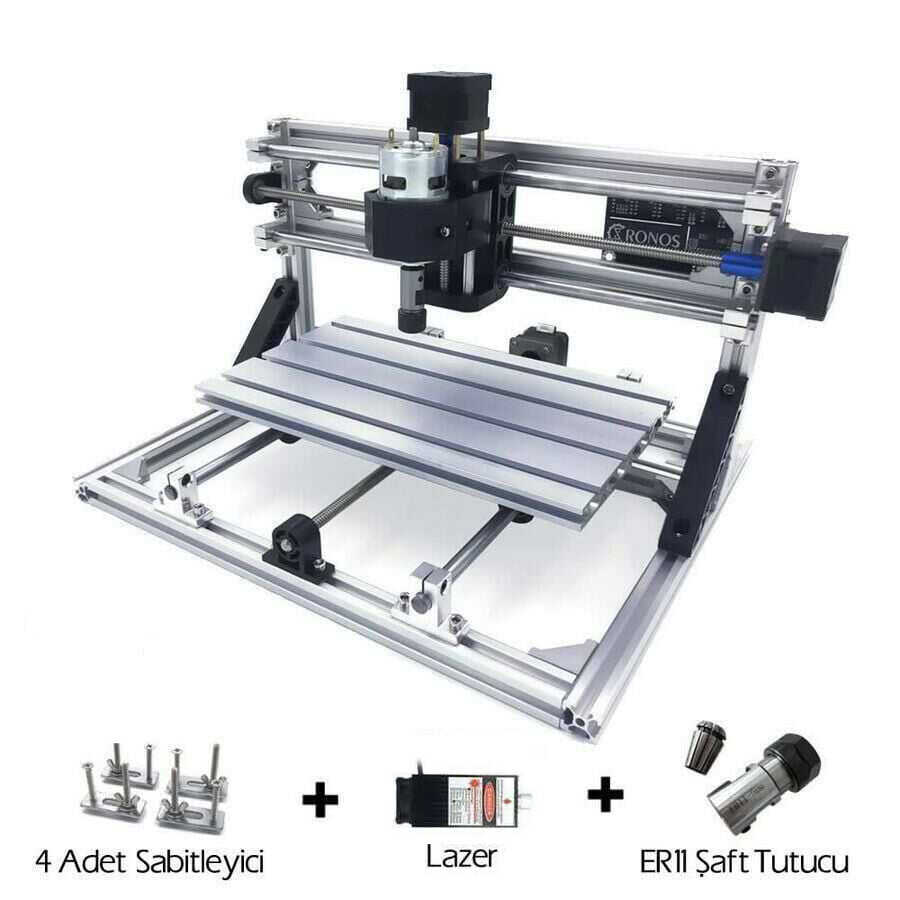

CNC2418 15000mW Laser CNC Machine - Cutting Table

CNC2418 15000mW Laser CNC Machine - Cutting Machine

CNC2418; It is a CNC machine that you can use for laser cutting operations and contains a 15000mW burning laser and a spindle motor. With this product, which comes completely disassembled and is very easy to install, you will have your own CNC machine.

With its 15000mW burning laser and cutter motor; plastic, wood, pvc, pcb, mdf etc. It provides the opportunity to carve and shape many surfaces.

The product includes the necessary equipment for installation and use, including the power supply. A pair of protective glasses is given as a gift along with the product.

CNC2418 15000mW Laser CNC Machine - Cutting Machine Technical Specifications:

• Engraving machine working area: 240x180x40mm;
• Structure size: 340x330x240mm
• Aluminum alloy plate area: 240x180mm;
• Spindle motor: DC24V, max. 120 Watt, 10000 rpm;

• Stepper Motor: input DC12V, 1.3A, 0.3Nm torque;

• Power supply: input AC100-240V, 50/60Hz, 1.3A, output DC24V 5A;

• Control software: GRBL control;

• System available for PC: Windows XP/7/8/10 (does not support Mac OS); etc.

• For laser engraving: wood, plastic, leather, bone, stone, paper, shell, etc.

• ER11 installed on spindle motor
