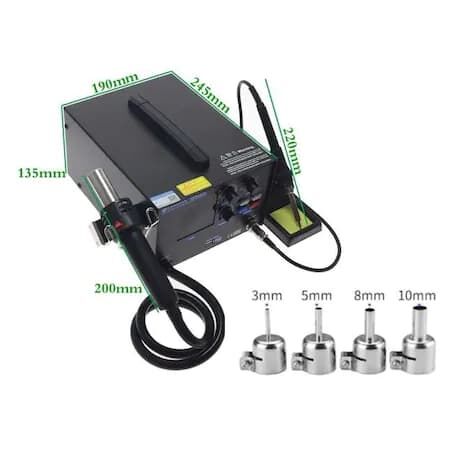

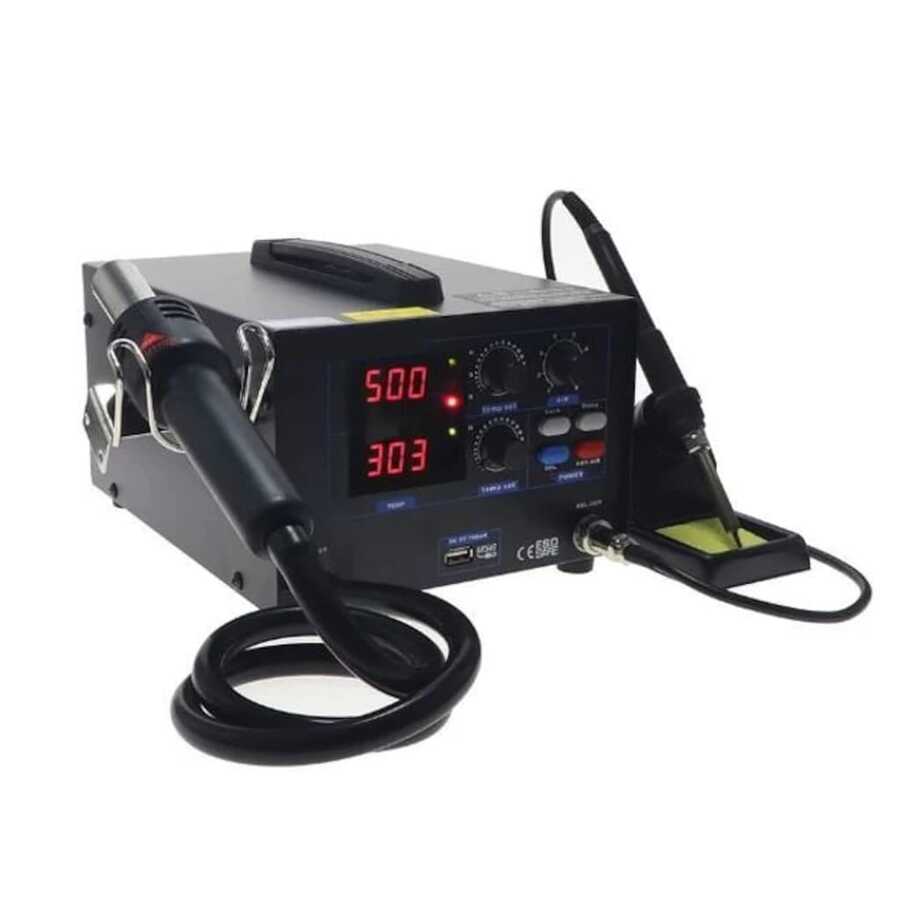

Class 952H Blown Digital Soldering Iron Station

Class 952H Blown Digital Soldering Iron Station

CLASS 952H Blown Digital Soldering Iron Station, smart thermostatic control design and air pump over zero triggers are suitable for soldering in different process. Thanks to the large led double digital display, it is very easy to follow the data. If the use of sleep mode is turned on, the Class 952H Blown Digital Soldering Iron Station automatically goes into sleep mode if it is not used. The temperature setting button, on the other hand, has a locking function to prevent unauthorized persons from interfering with the temperature.

Class 952H Blown Digital Soldering Iron Station Technical Specifications:

• Hot Air Station:
  • Voltage ratio: 220V 50/60Hz AC
  • Power: 500W
  • Pump: Diaphragm Pump
  • Airflow: 120L/min (max)
  • Pump power: 45W
  • Temperature Control: 100°C - 500°C
  • Noise: <45db
• Soldering Station
  • Power: 60(W)
  • Output Volt: 24V AC
  • Heat. Control: 200°C - 480°C
  • Ground potential: < 2mV
  • Ground resistance: < 200mΩ
  • Heater: Ceramic
