Boardoza M032 Educational Development Kit

Boardoza M032 Educational Development Kit

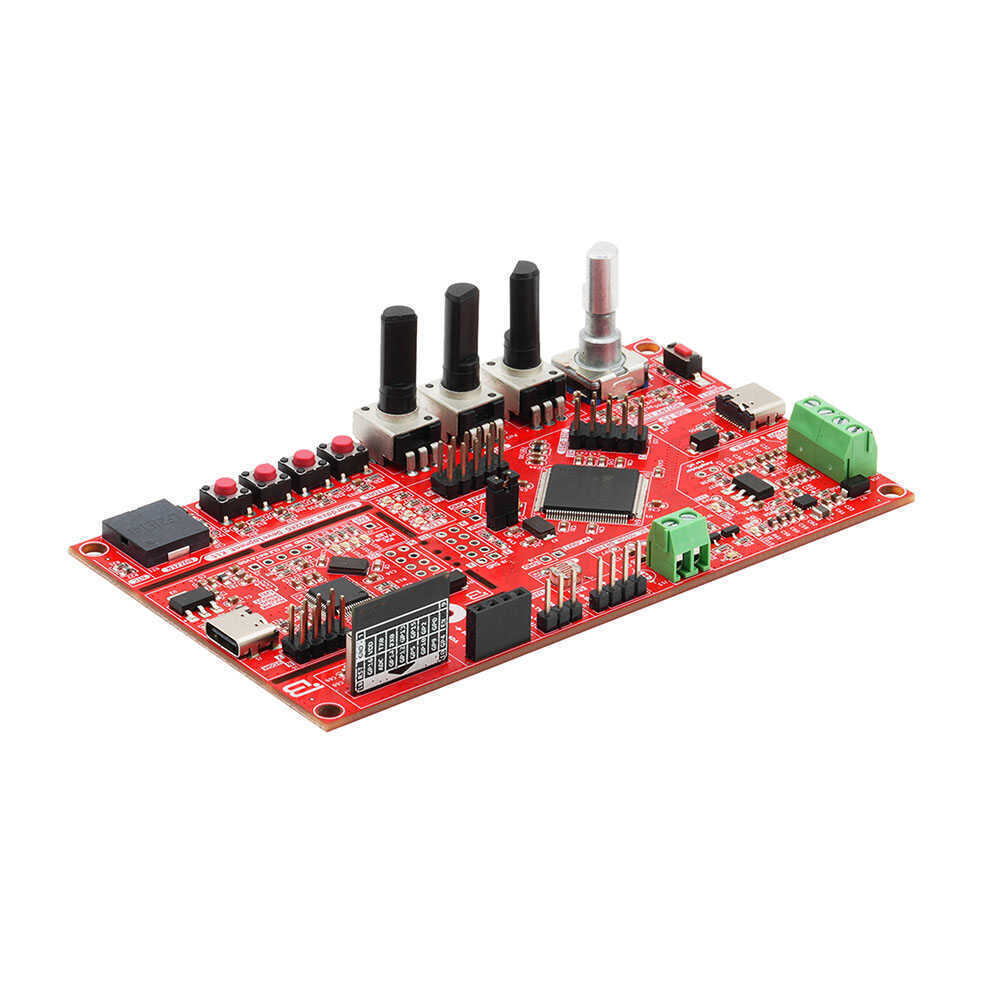

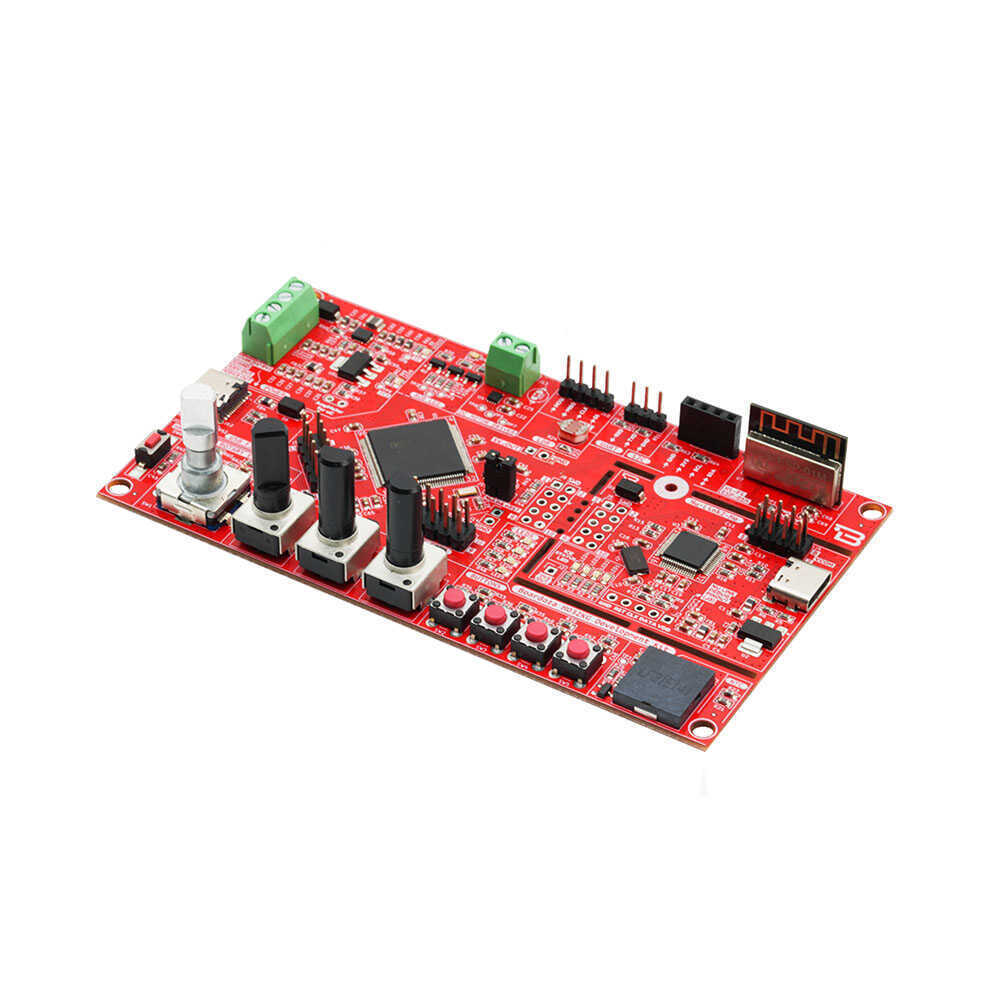

The Boardoza M032KG is a comprehensive educational development kit designed around the Nuvoton M032KG8AE platform. It integrates a M032 microcontroller and a Nu-Link2-Me-compatible debugger and programmer, offering a complete environment for embedded development, learning, and rapid prototyping.

Inspired by the Nuvoton Nu-Link2-Me, this board is fully compatible with Nu-Link debugging tools and workflows, providing seamless integration with existing toolchains. It supports on-board debugging, virtual COM (VCOM), power measurement, and modular expansion.

This versatile kit includes peripherals such as a rotary encoder, potentiometers, buzzer, RGB LED, NTC, LDR, DC motor driver, user LEDs and buttons, OLED Screen interface, ESP-01M Wi-Fi module header, and more—making it ideal for education, experimentation, and IoT application development.

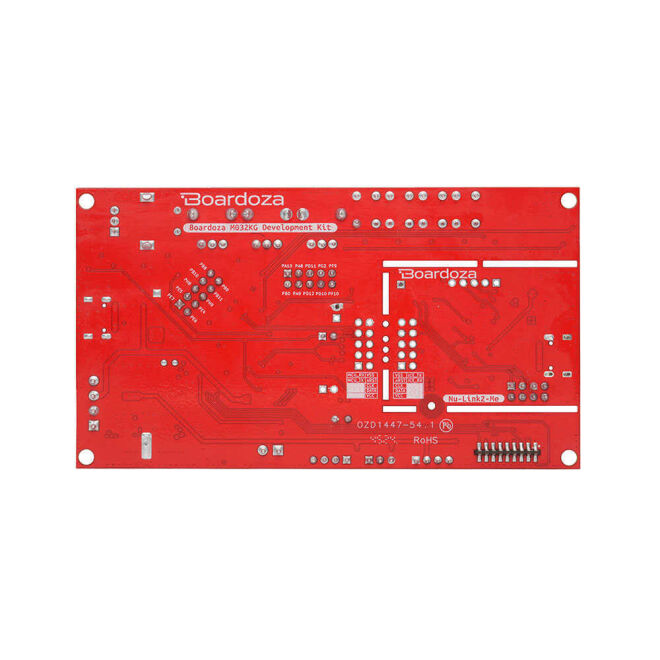

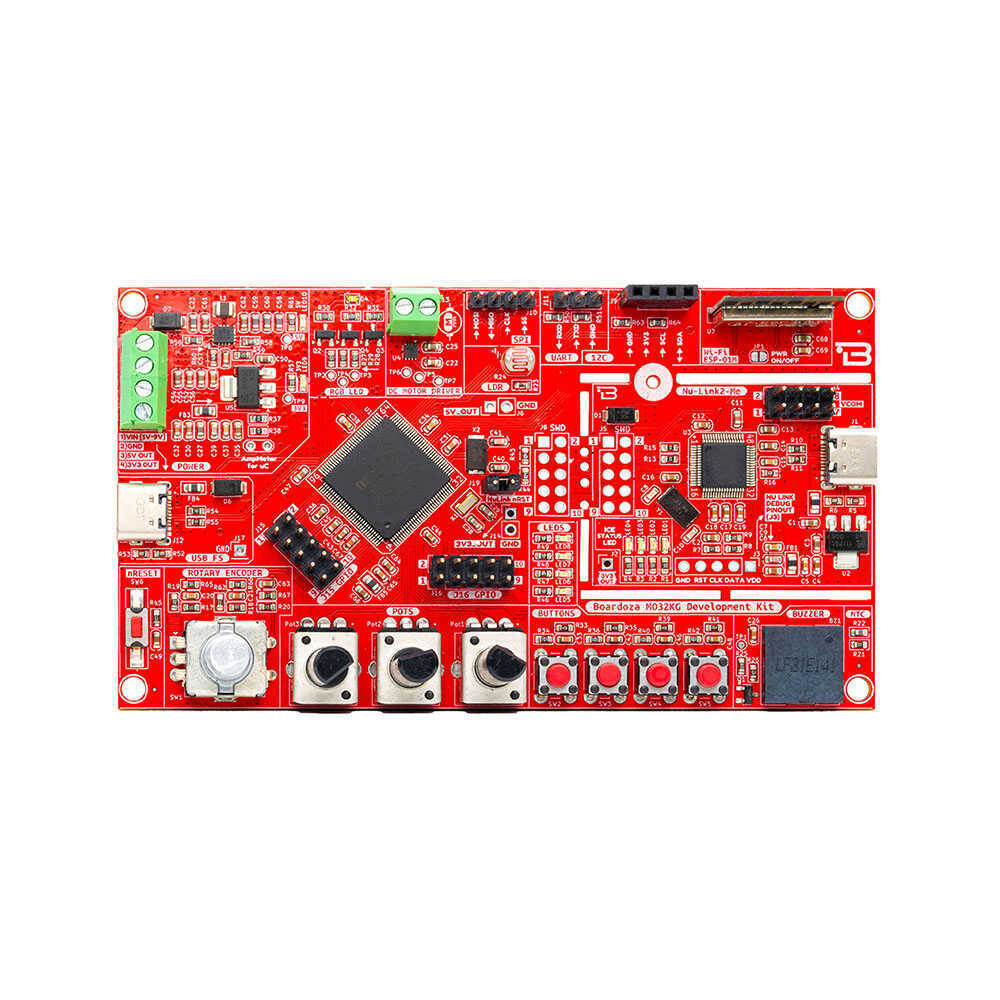

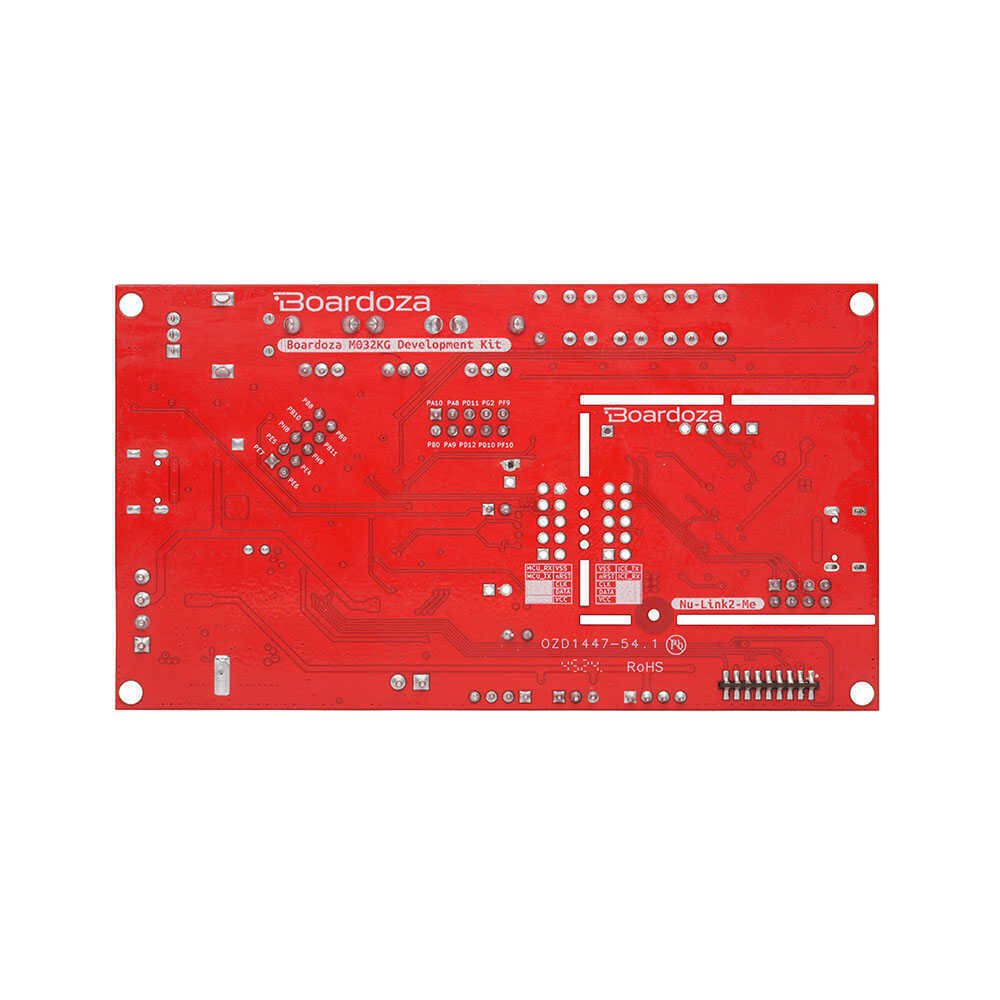

Front Side	Back Side

• M032KG8AE MCU with 20 GPIO breakout header
• Compatible with Nu-Link2-Me: Integrated on-board debugger & programmer
• On-board Virtual COM Port (VCOM) support
• Power measurement header for ammeter connection
• OLED screen connector for UI/graphic development
• ESP-01M (Wi-Fi) header
• On-board peripherals: Rotary encoder, potentiometer, user LEDs & buttons, NTC, LDR, buzzer, RGB LED
• DC motor driver outputs
• USB Type-C for data/power, external 5–9V input support
• Multi-interface pinouts (1xUART, 1xI²C, 1xSPI)

• Model: Boardoza M032KG Development Board
• MCU Core: Nuvoton M032KG8AE
• Input Voltage: 5V – 9V (via terminal block connector)
• USB Interface: USB Type-C (data and power)
• Debugger: Nu-Link2-Me Compatible
• Operating Temperature: -25°C ~ +85°C
• Board Dimensions: 68mm x 116mm
• Mounting Holes: 4 × M3
