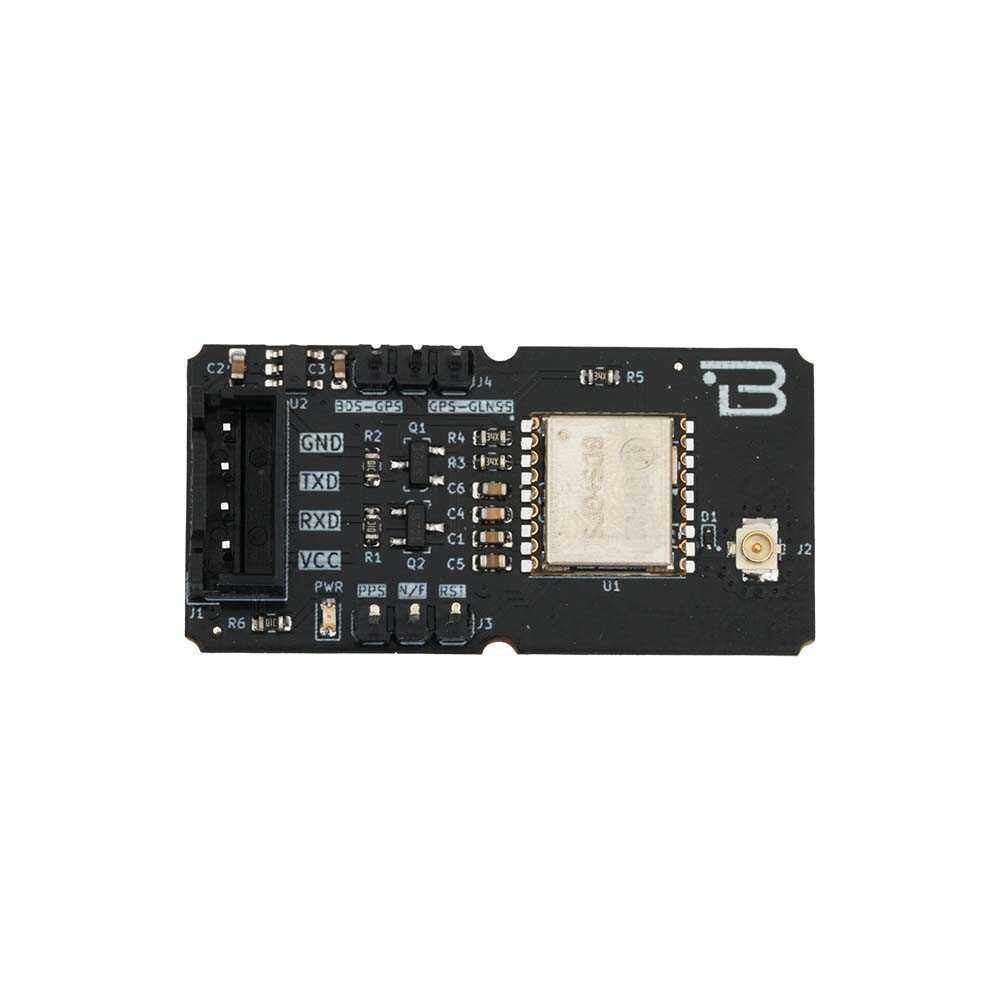

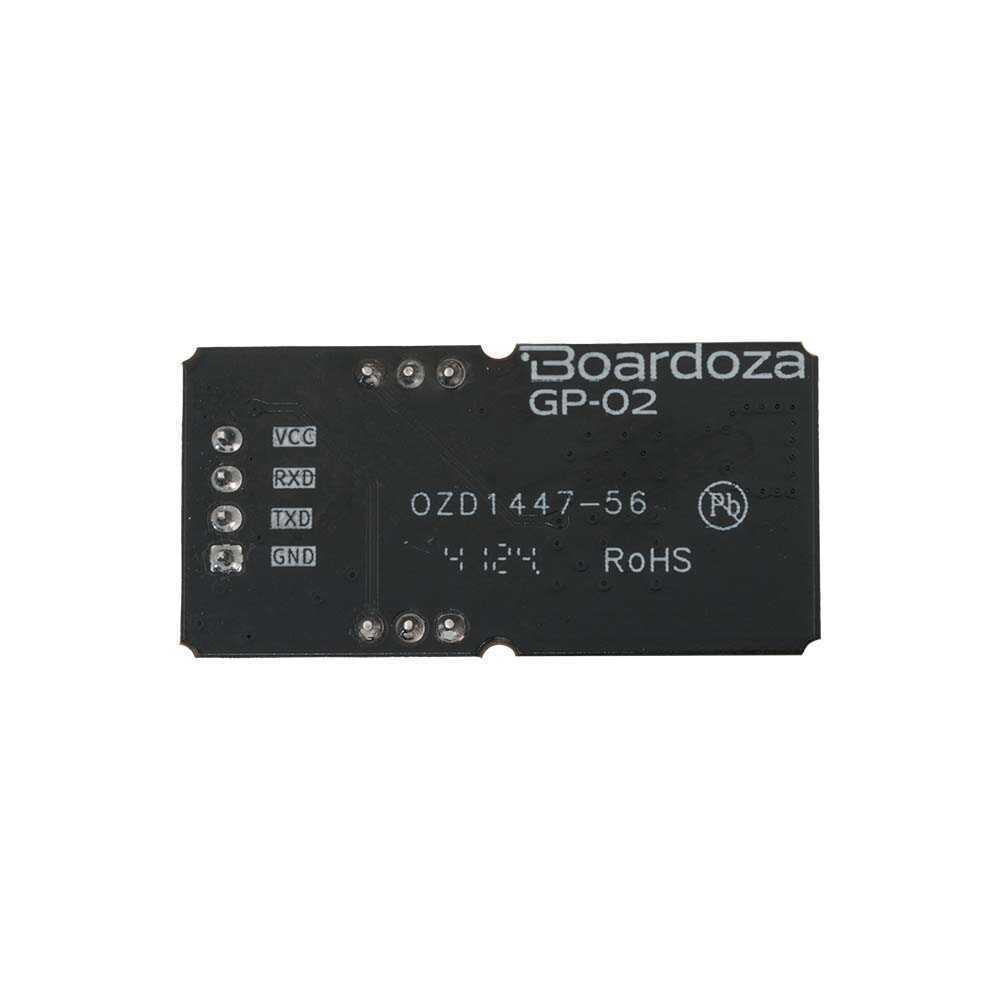

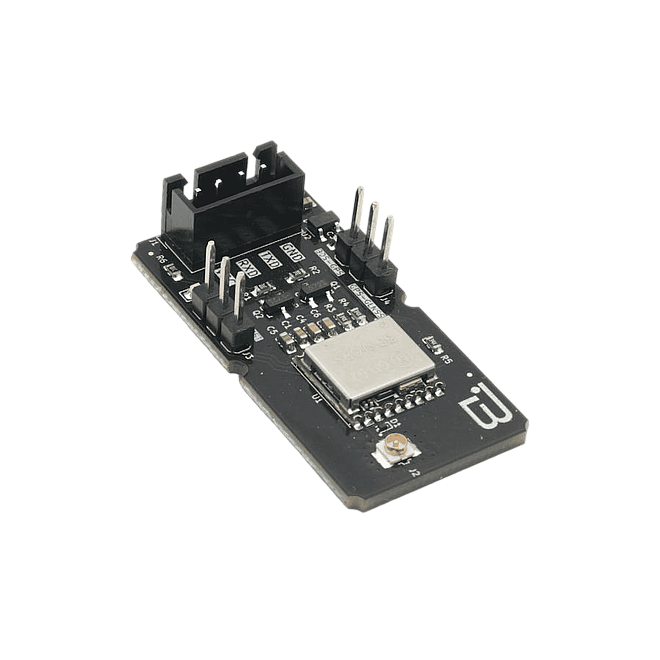

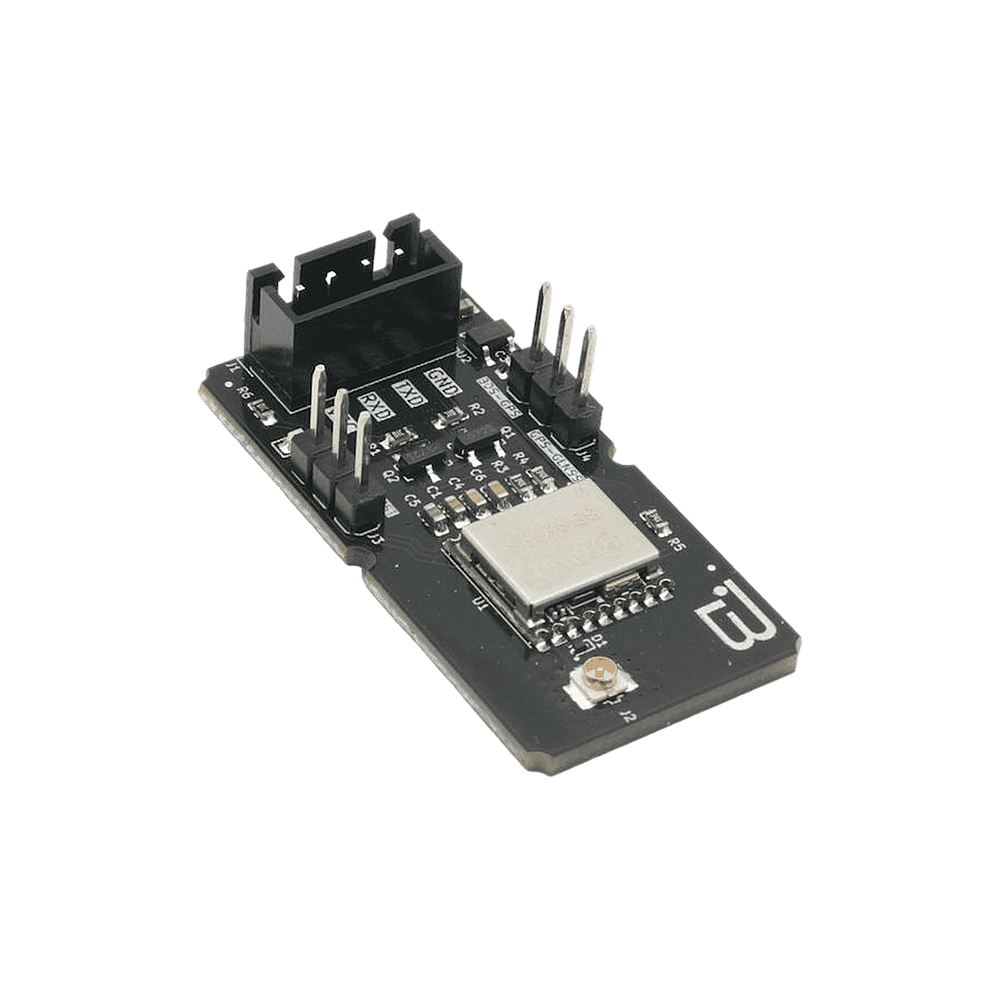

Boardoza GP-02 GPS Breakout Board

GP-02 is a high-performance BDS/GNSS multi-mode satellite navigation receiver SOC module, which integrates RF front-end, digital baseband processor, 32-bit RISC CPU, power management and active antenna detection and protection functions. Support avariety of satellite navigation systems, including China’s Beidou satellite navigation system BDS, the United States’ GPS, and Russia’s GLONASS, which canrealize multi-system joint positioning.

Key Features:

It can work with 3.3V or 5V.
It easily communicates with an MCU with TTL I2C and UART outputs.
PPS, RST, INT and SAFE pins are work with 3.3V.
This board works with I2C and UART. (You can see more info in SAM M8Q
Datasheet.)

Technical Specifications:

Voltage Supply	3V – 5.5V
Power Input Type	MOLEX 4 PIN
Functions	BDS/GNSS multi-mode satellite navigation receiver SOC module.
Operating Temperature	-40°C to 125°C
Board Dimensions	20 x 40 mm

Useful Documents:

Datasheet
