Boaradoza W25Q40CLSNIG SPI Flash Module

W25Q40CLSNIG is a high performance and low power consumption SPI flash memory chip. It has a storage capacity of 4 megabits (512 kilobytes) and provides fast data access. This chip can be used for data storage and code storage in various electronic projects.

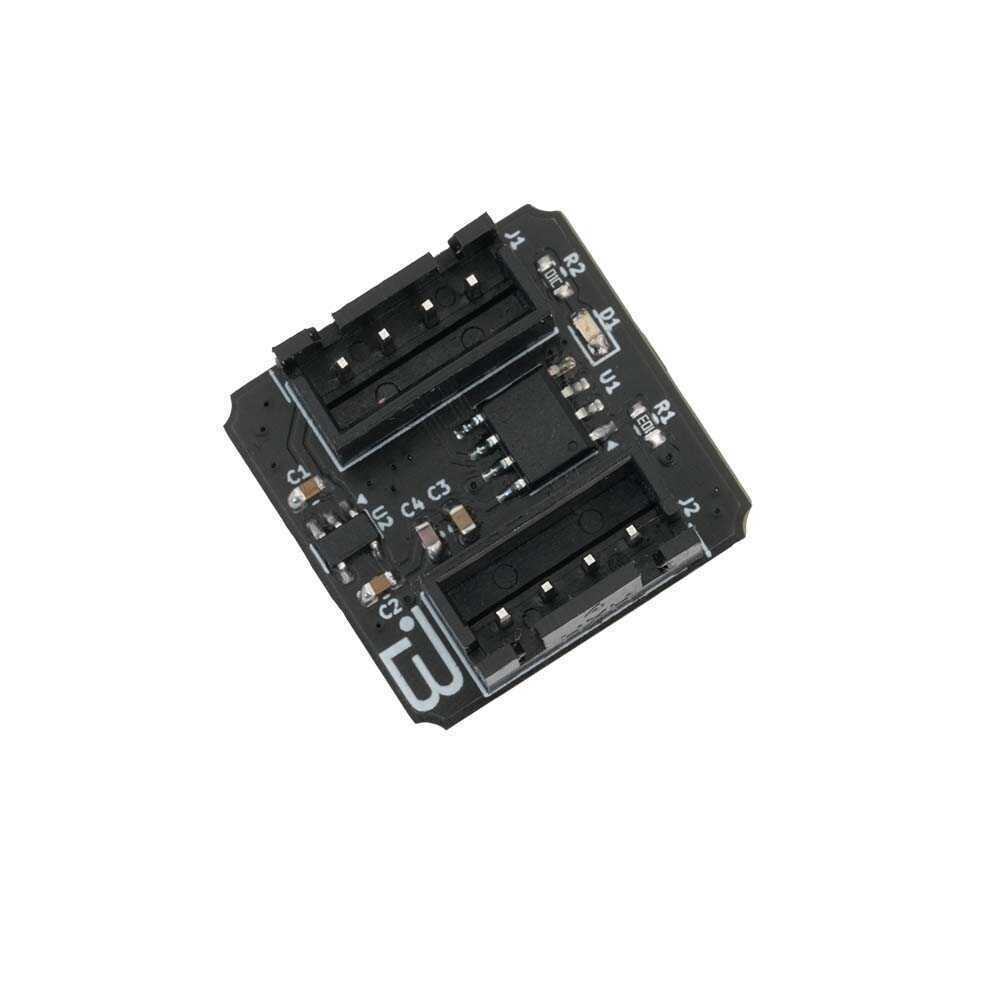

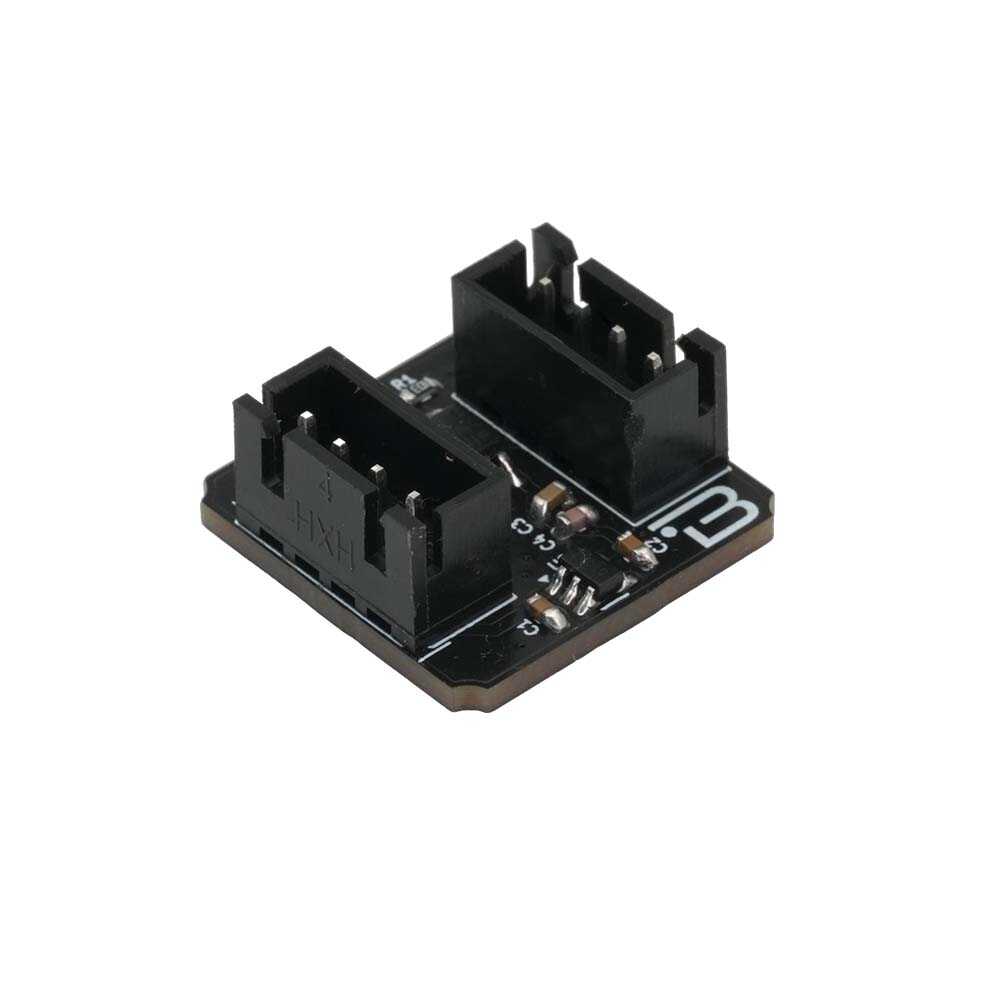

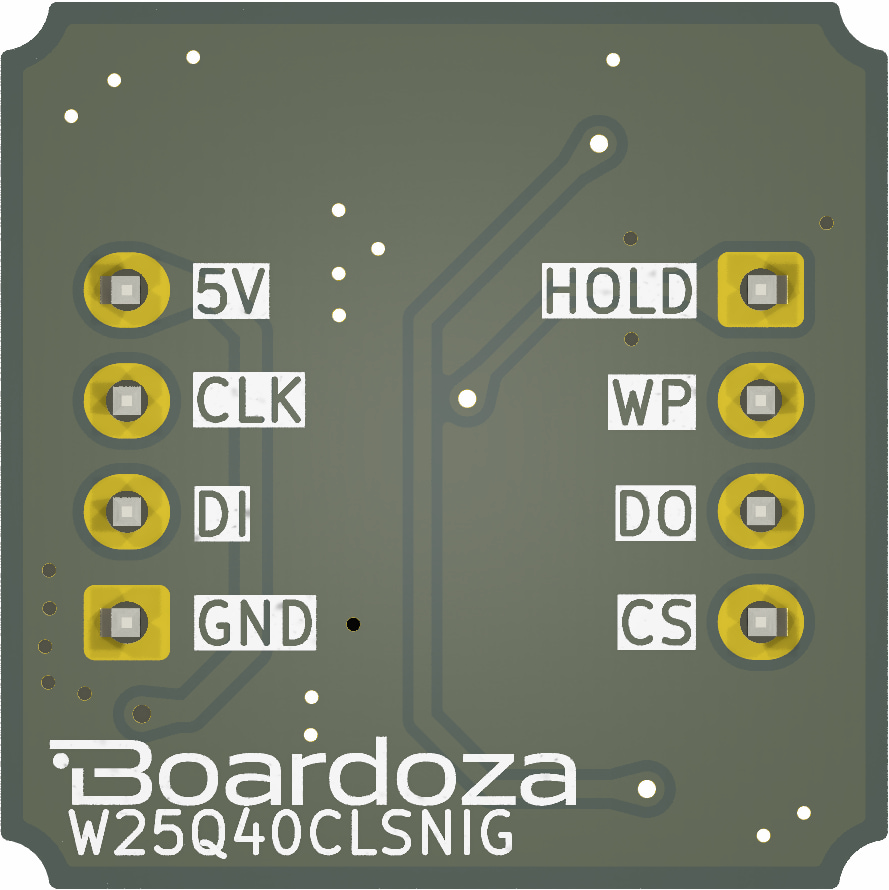

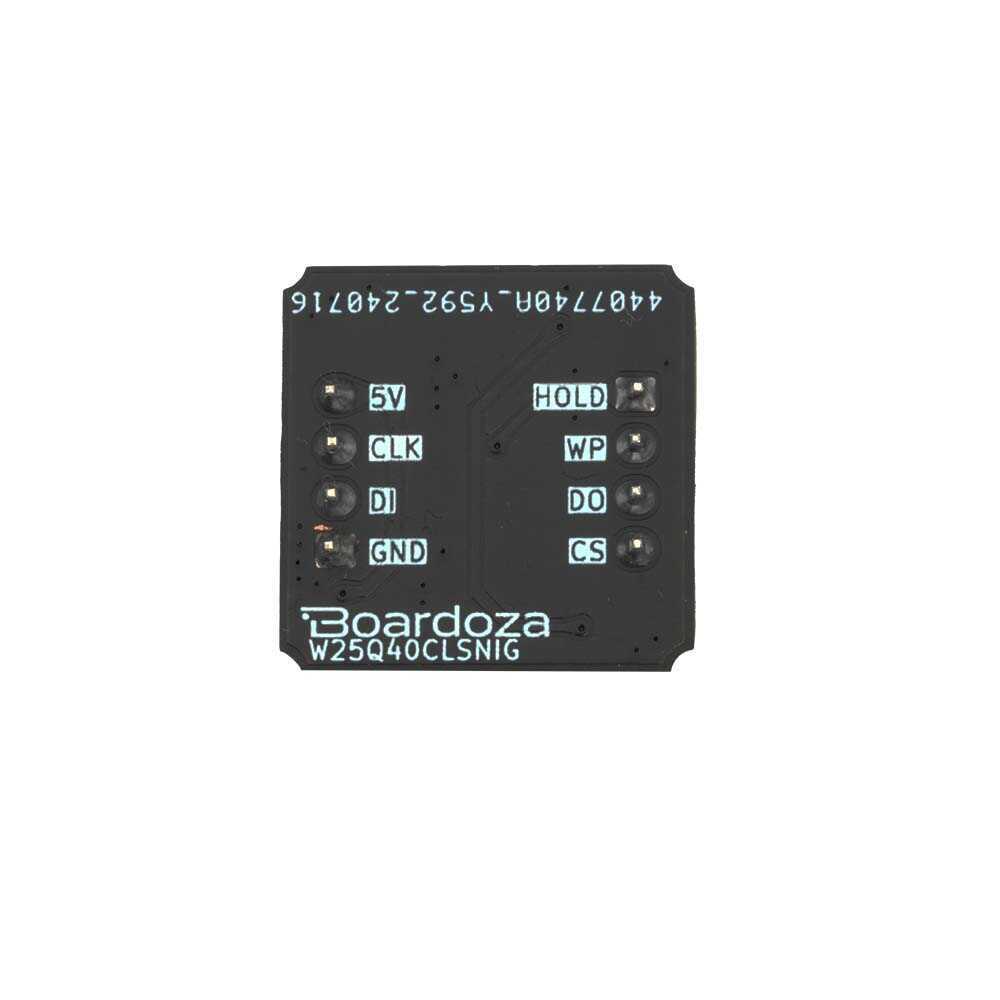

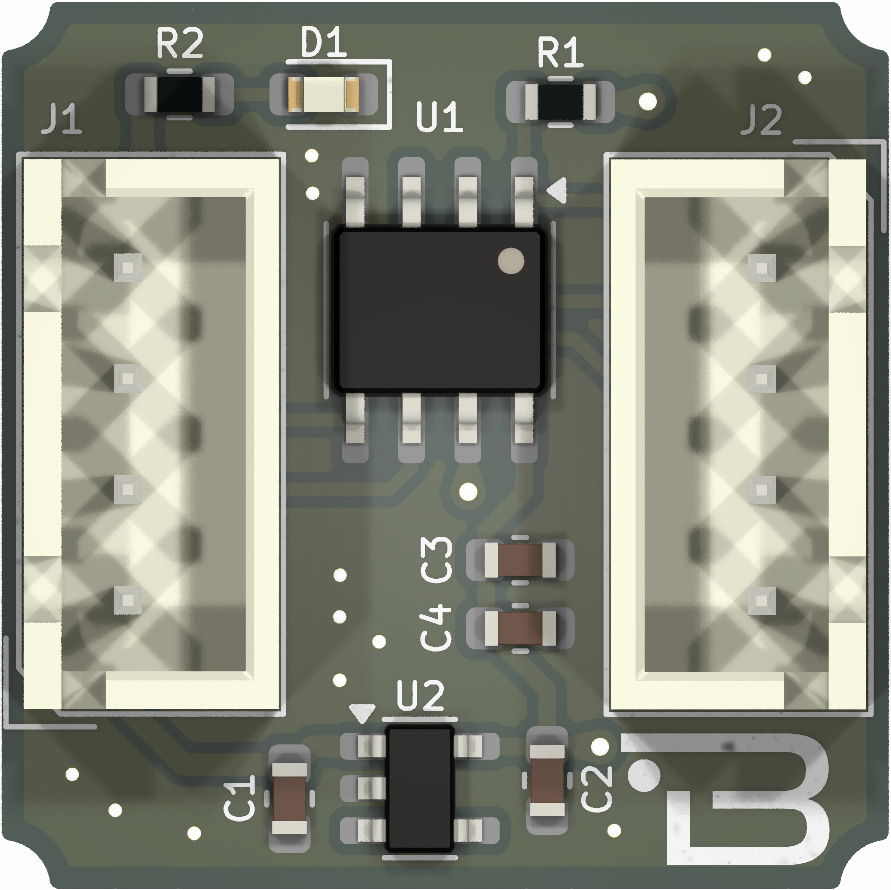

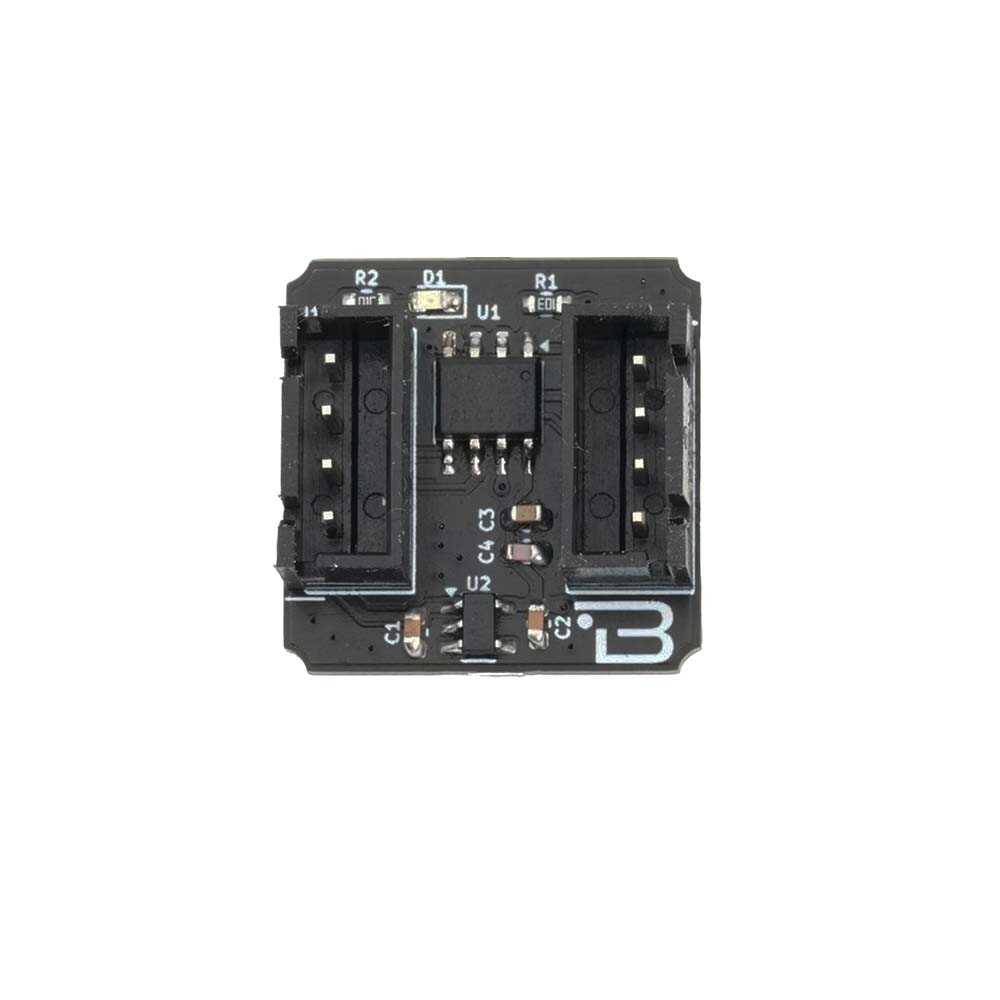

Front Side	Back Side

Key Features:

4M-bit/512K-byte (524,288).
256-byte per programmable page.
Uniform 4KB Sectors, 32KB & 64KB Blocks.
Clock operation to 104MHz.
More than 100,000 erase/write cycles.
More than 20-year data retention.
D1 is a power led.

Technical Specifications:

Voltage Supply	3.3V – 5V
Functions	Serial Flash Memory
Memory Size	4Mbit
Speed	104MHz
Communication	SPI
Operating Temperature	-40°C to 85°C

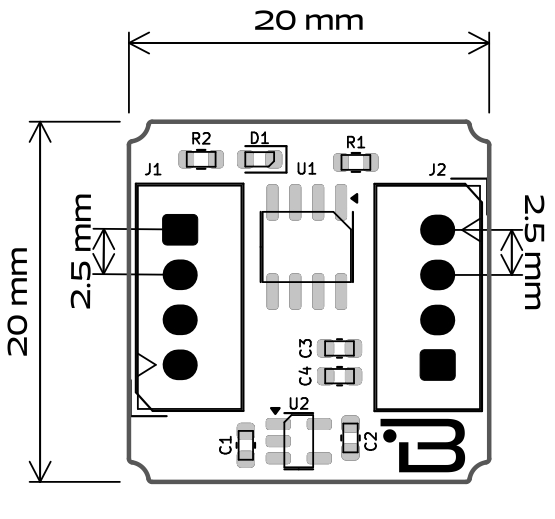

Board Dimensions	20 x 20 mm
