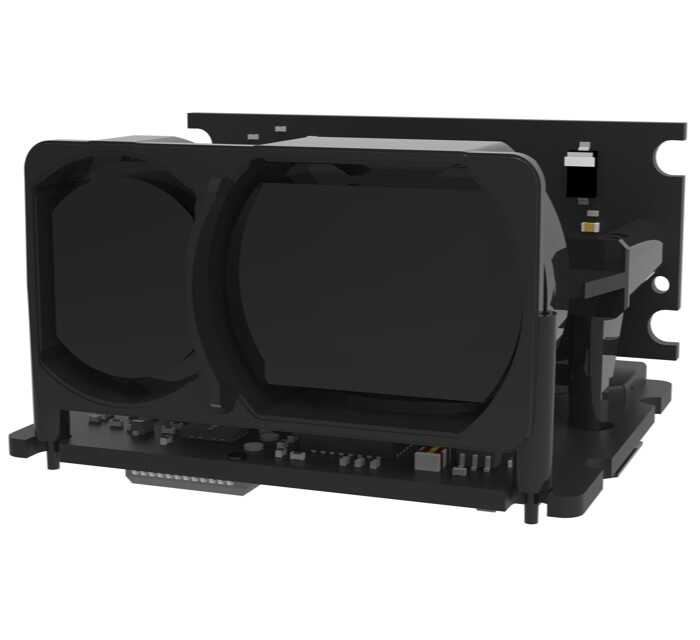

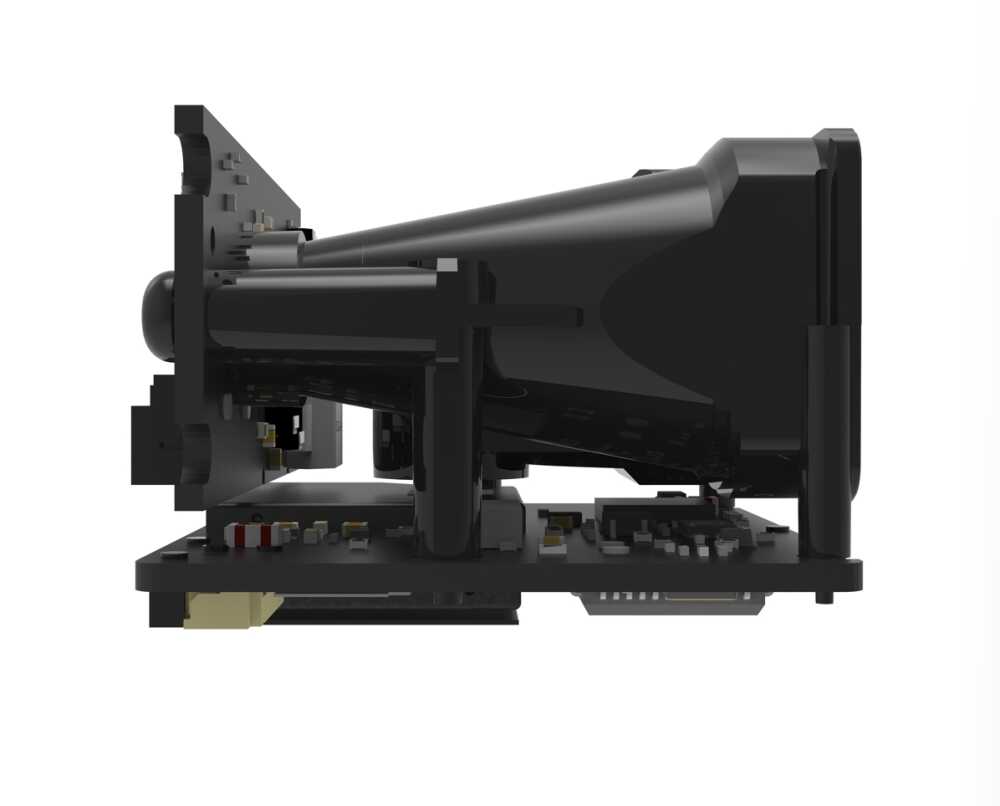

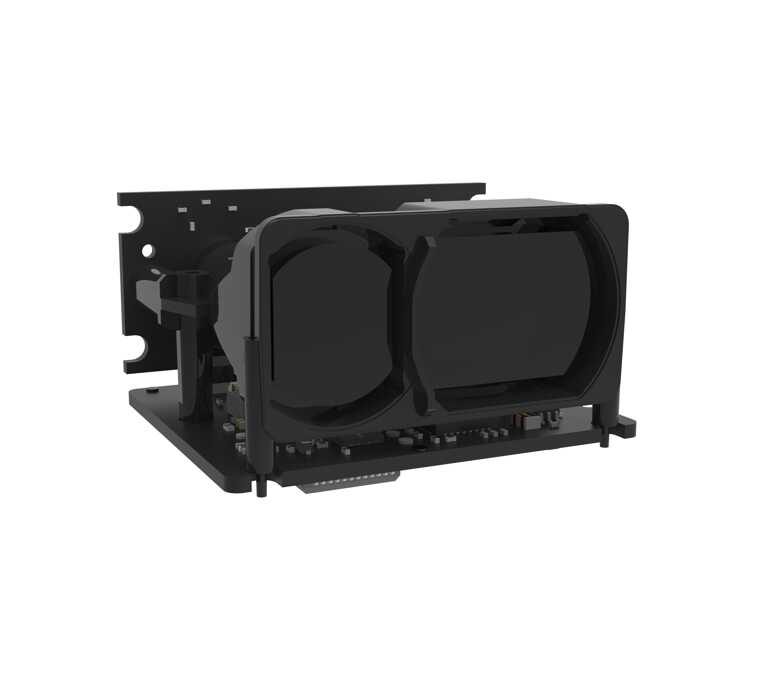

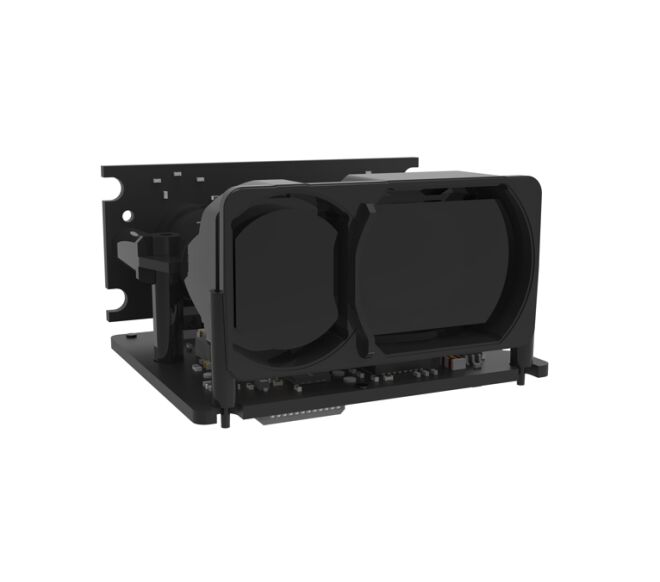

Benewake TFA300-L Long-Range Drone Proximity Lidar Sensor

Benewake TFA300-L Long-Range Drone Proximity Lidar Sensor

The TFA300 series includes the ultra-lightweight TFA300-L version (without enclosure) and the TFA300 model with IP67 protective casing. Both versions support ultra-high frequencies up to 10,000 Hz. Designed for EO/IR gimbals, SAR search and rescue drones, and ultra-fast FPV racing drones, the TFA300 series enables automatic camera focus adjustment, precise localization, altitude hold during flight, and obstacle avoidance at high speeds. By default, the operating frequency ranges from 1 to 1000 Hz but can be boosted to 10,000 Hz in ultra-high-speed mode. It collects data 10,000 times per second, detecting objects at Mach 1 speed with real-time distance updates every 3.4 cm—giving drones more reaction time for obstacle detection.

Key Advantages

• Ultra-high frequency measurement
• Lightweight construction
• Compact form factor
• Optimized for drone integration
• Environmental durability
• Reliable operation in all weather conditions
• Compatible with EO/IR gimbals
• Ideal for SAR (Search and Rescue) drones
• Supports ultra-high-speed FPV racing drones

Main Functional Applications

• Automatic camera focal adjustment
• Precise localization
• Stable altitude cruise control
• Obstacle avoidance at high speeds
• Frame rate: up to 10,000 Hz
• Measurement range: 0.1 to 290 meters
• Field of view: < 0.5°
• Weight: 10.5 g (TFA300-L)
