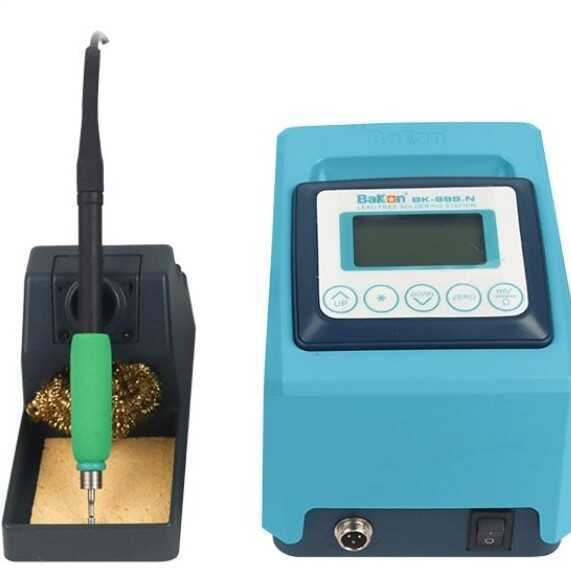

Bakon BK999N High Frequency Temperature Controlled Soldering Iron Station 110 Watt

Bakon BK999N High-Frequency Temperature-Controlled Soldering Station 110 Watt

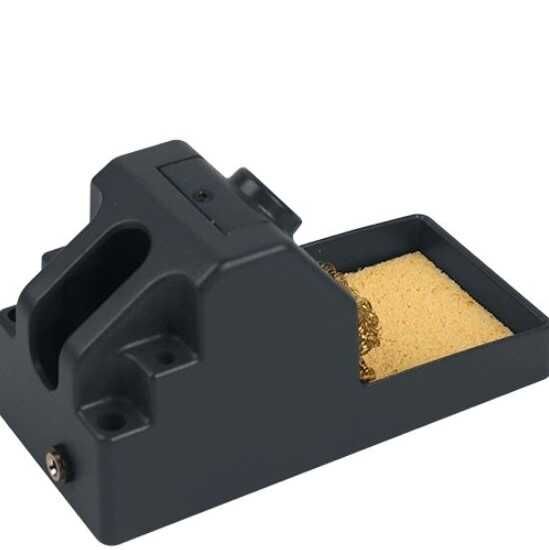

The Bakon BK999 soldering station has a compact footprint and takes up minimal space on your workbench. You only need 3 seconds to start soldering; it heats from 0°C to 380°C in just 3 seconds and is capable of strong, lead-free soldering. When you pause during operation and place the soldering handle on the stand, it automatically stops heating and starts the cooling process. Thanks to the automatic sleep sensor, it switches to sleep mode, saving energy and extending the service life of the unit.

The main unit can be used with two different handpieces: the LF998 soldering handle (with integrated C210 heater tip) or the LF999 soldering handle (with integrated C245 heater tip), offering flexibility for different applications. To protect both the device and user safety when working with the Bakon BK999N high-frequency temperature-controlled soldering station, several new protection features have been added at the design stage. These include:

• Fault warning system

• Short-circuit protection

• Open-circuit protection

• Over-temperature protection

• Error detection

• Overload protection system

Compatible Bakon Models

Bakon BK999N High-Frequency Temperature-Controlled Soldering Station 110 Watt Technical Specifications:

• Brand: Bakon

• Model: BK999N

• C210 Power Consumption: 60 Watt

• C245 Power Consumption: 110 Watt

• C210 Temperature Range: 100–430℃

• C245 Temperature Range: 100–480℃

• Temperature Stability: ±2℃

• Operating Ambient Temperature: 0–40℃

• Storage Temperature: 20–80℃

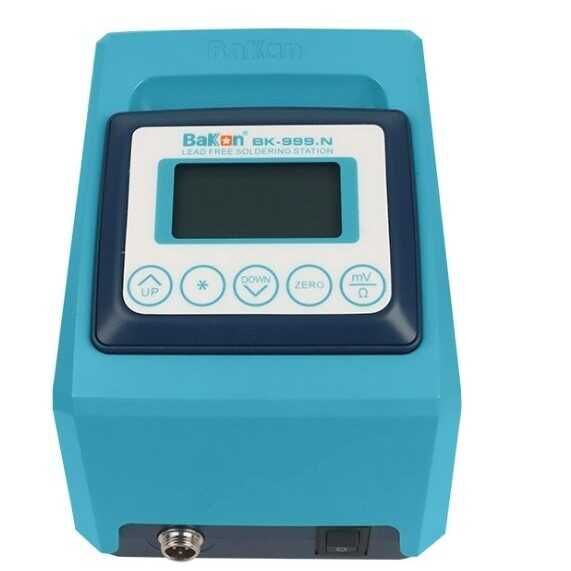

• Display: HD LCD Screen

• Temperature Calibration: Digital Calibration

• Temperature Control Method: P.I.D Temperature Control

• Soldering Handle Model: LF999

• All C210 Series Soldering Tip Models

• All C2245 Series Soldering Tip Models

• Weight: 2.0 kg / 2.3 kg

Microcomputer P.I.D Temperature Control

Thanks to its advanced microcomputer P.I.D temperature control, the soldering station maintains the set temperature within ±2℃, ensuring stable and accurate operation without deviation. Detailed temperature data can be read clearly on the wide HD LCD digital display. You can program high, low, or standby temperature limits according to the requirements of your work.

With its state-of-the-art wireless communication feature, users can monitor the station’s status in real time via the network, including temperature settings, real-time temperature, fault analysis, and sleep mode. With an optional detector, you can also measure leakage voltage and monitor grounding resistance.

With performance and technology that go far beyond expectations, it will be your professional assistant in all your soldering projects.
