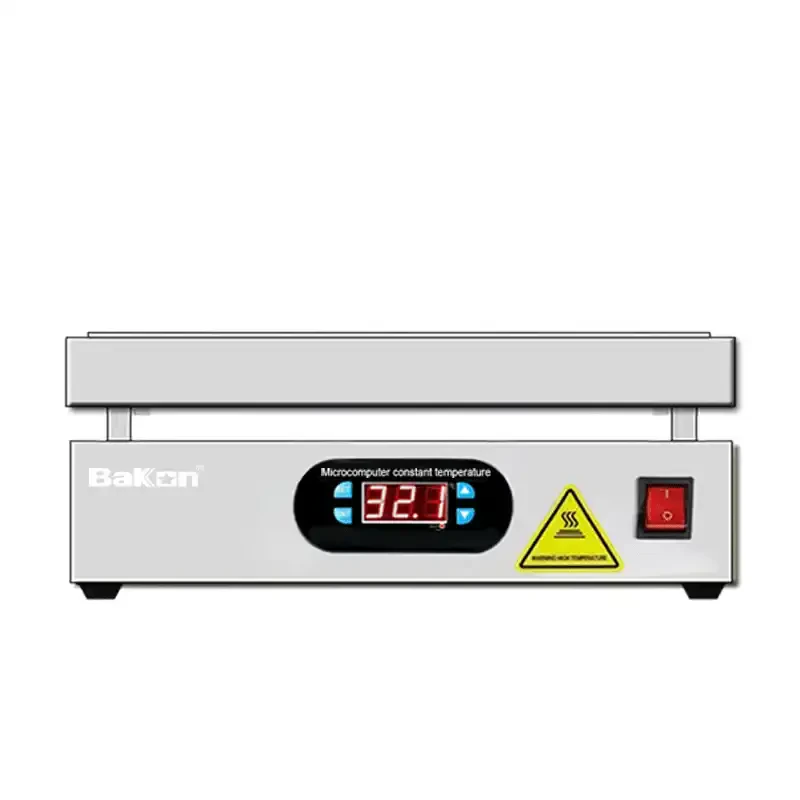

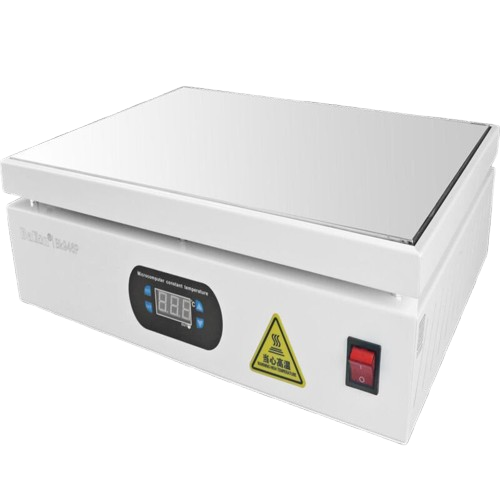

Bakon BK946X Preheating Station – 1000 W

Bakon BK946X Preheating Station – 1000 W

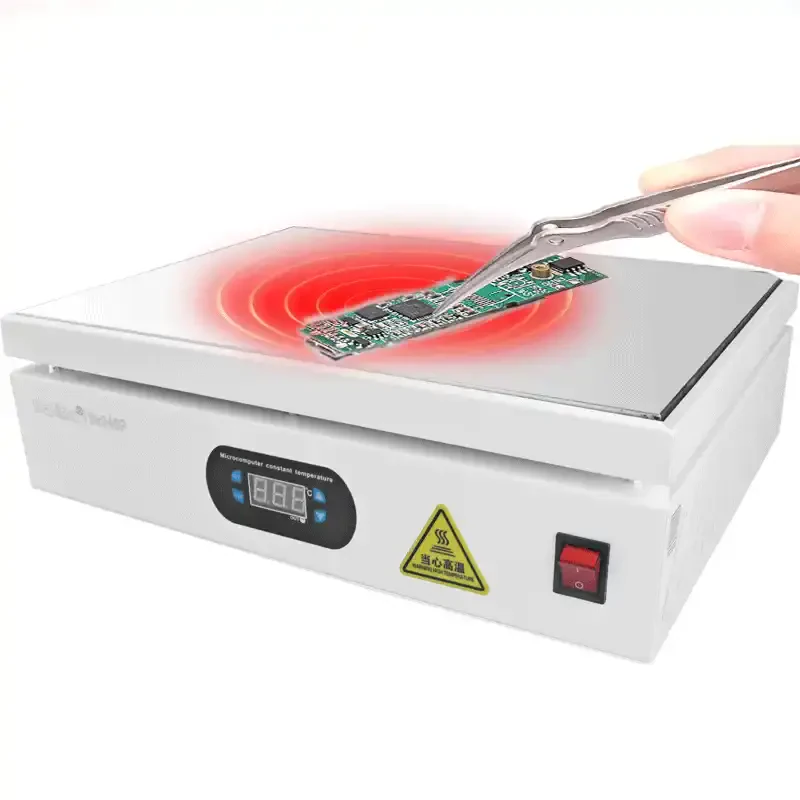

The Bakon BK946X is a professional preheating station that provides controlled and homogeneous heating during repair, maintenance, and re-soldering of electronic circuit boards. With its 1000 W power, it offers fast warm-up performance and operates with high efficiency especially on medium to large PCBs. By optimizing heat distribution on multilayer circuit boards, it minimizes damage caused by thermal stress.

The device’s infrared quartz heating technology ensures that heat is transferred directly and evenly to the circuit board. Its advanced temperature control IC structure provides precise heat stability and accurately manages temperature settings between 50°C and 350°C. Thanks to real-time measurement performed by the built-in sensor, temperature deviations are kept to a minimum. The easy-to-use LED or LCD display (may vary depending on the model series) allows the operator to clearly monitor temperature values.

The BK946X’s safety-focused design is reinforced with protective edges to help prevent accidents in the workspace. The three-way air circulation system both extends the service life of the device components and ensures stable temperature on the heating surface. It offers a wide range of applications in electronics service workshops, production lines, R&D laboratories, and training environments.

Bakon BK946X Preheating Station Technical Specifications:

• Brand: Bakon

• Model: BK946X

• Power: 1000 W

• Operating Voltage: AC 220V

• Temperature Control Range: 50°C – 350°C

• Temperature Stability: ±2°C

• Platform Size: Medium-to-large size depending on the series (typically in the 300 × 300 mm class)

• Heating Technology: Infrared quartz heating

• Advanced IC temperature control circuit

• Protective side panels and safety design

Package Contents:

• 1 × Main Unit

• 1 × Power Cable

• 1 × User Manual

• 1 × Warranty Certificate

• 1 × Technical Service Form
